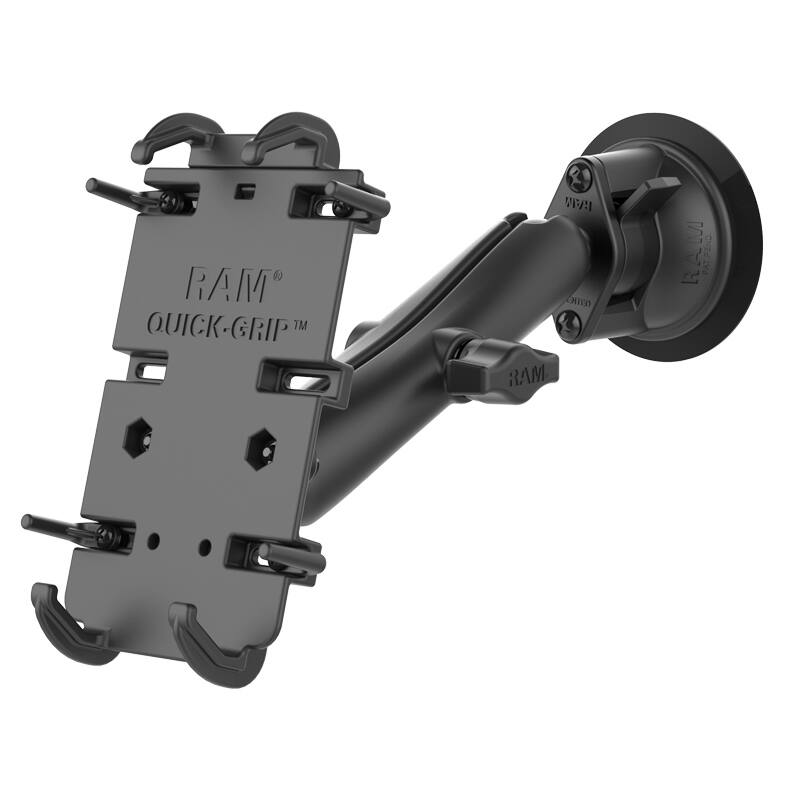

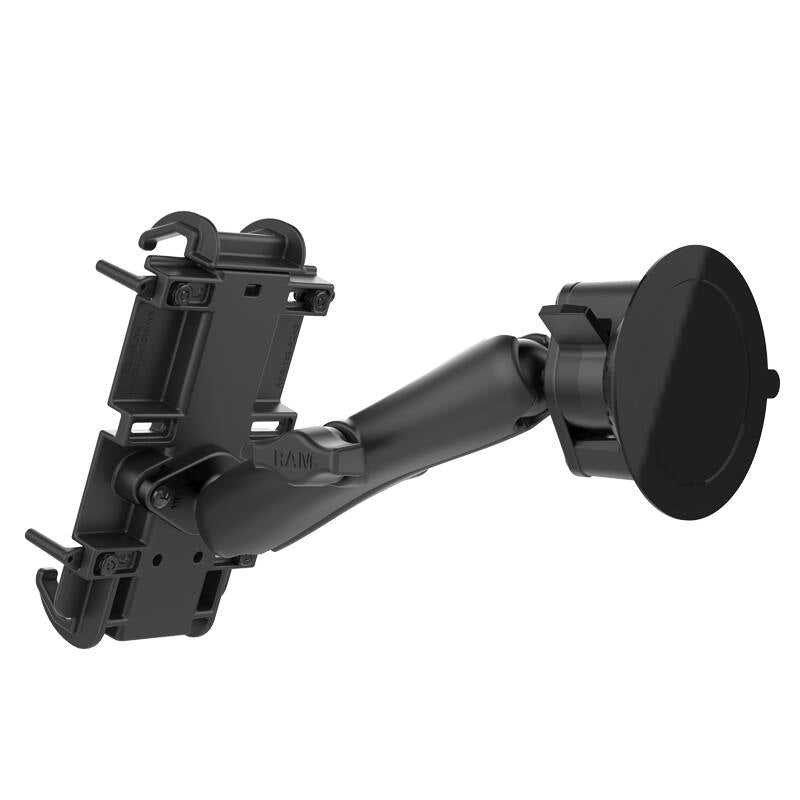

RAM-B-166-PD4U RAM® Quick-Grip™ XL Phone Mount with RAM® Twist-Lock™ Suction Cup (Long Arm)
Features

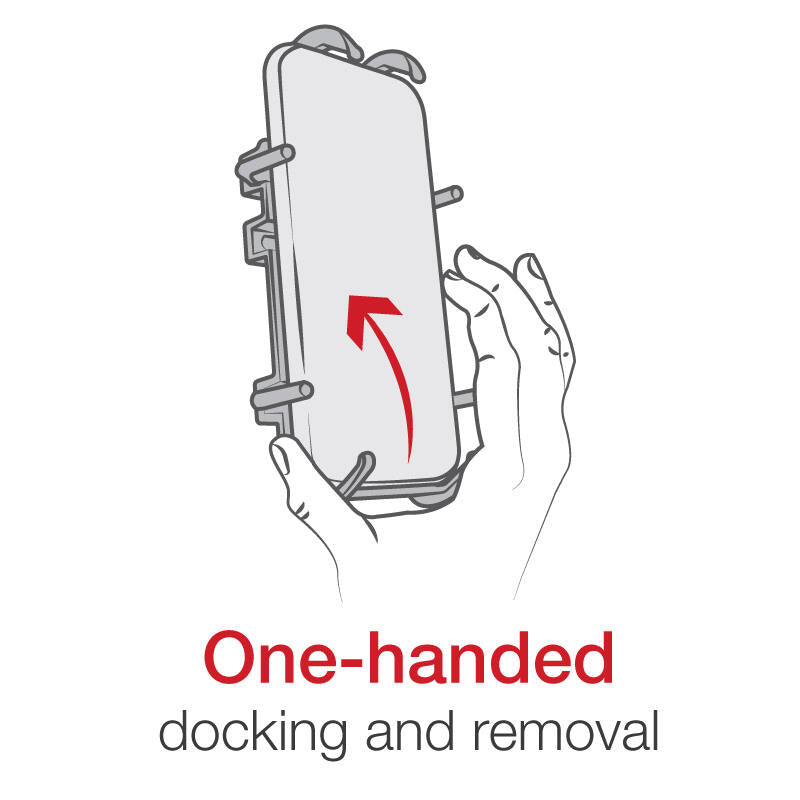

* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of large phones and other devices; easily insert and remove your phone with one hand

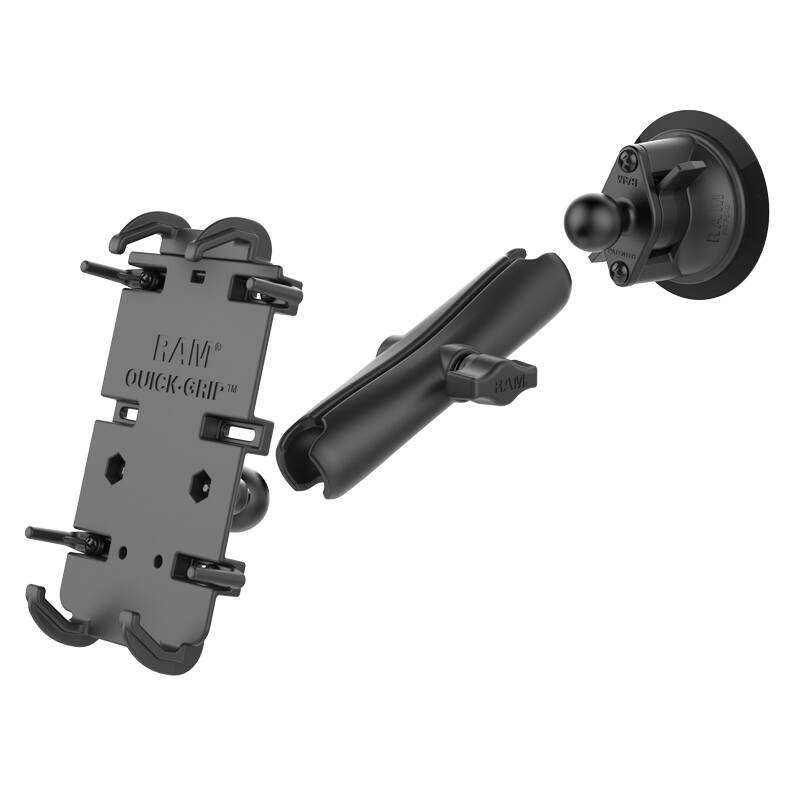

* Kit includes RAM® Quick-Grip™ XL Holder for large phones with a case, B size diamond ball base, LONG double socket arm and RAM® Twist-Lock™ Suction Cup base

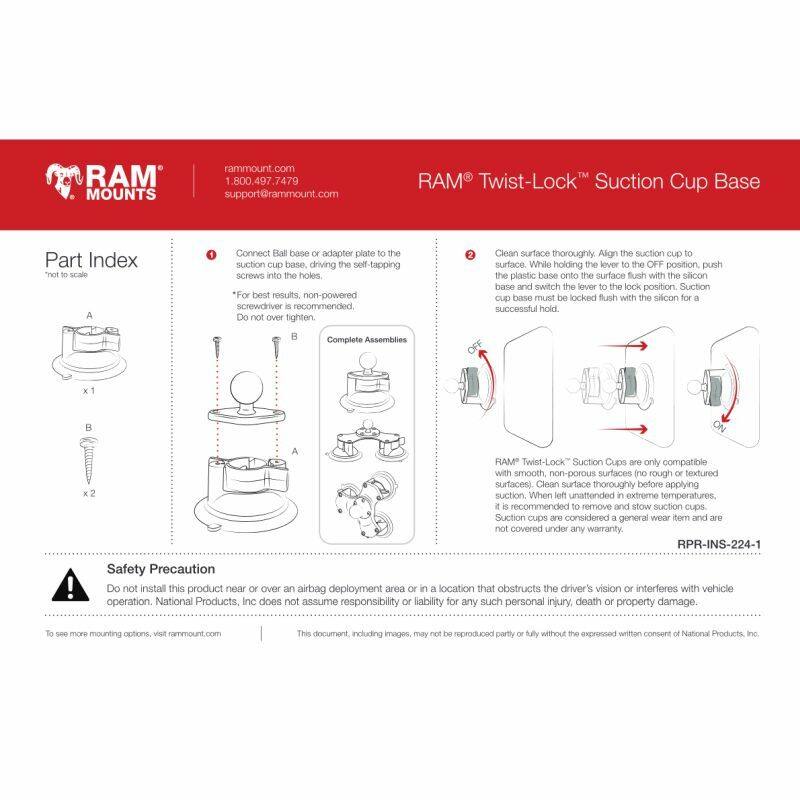

* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other nonporous surfaces
* Backed by a lifetime warranty

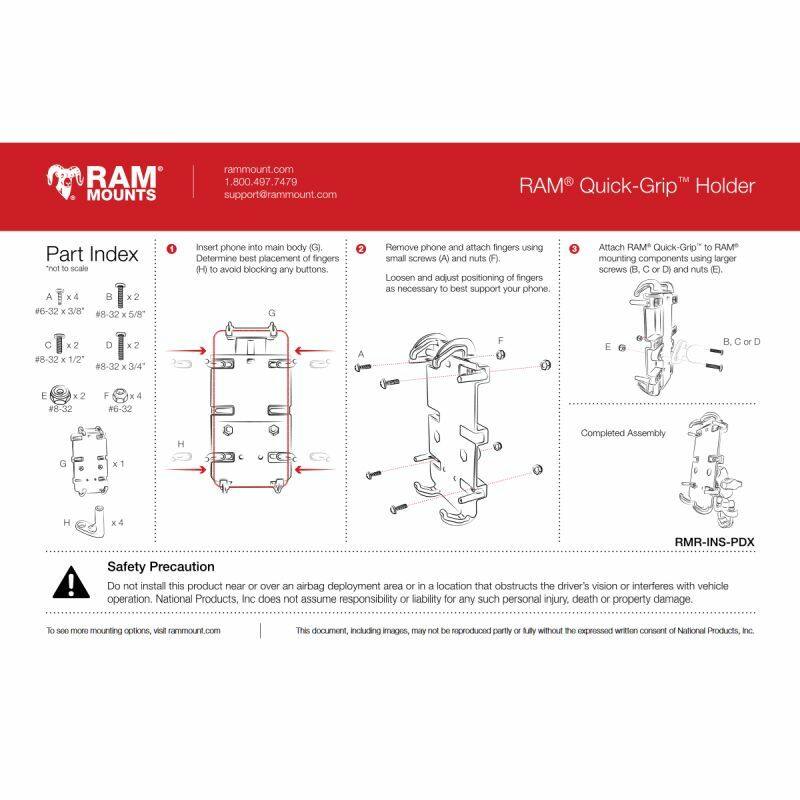

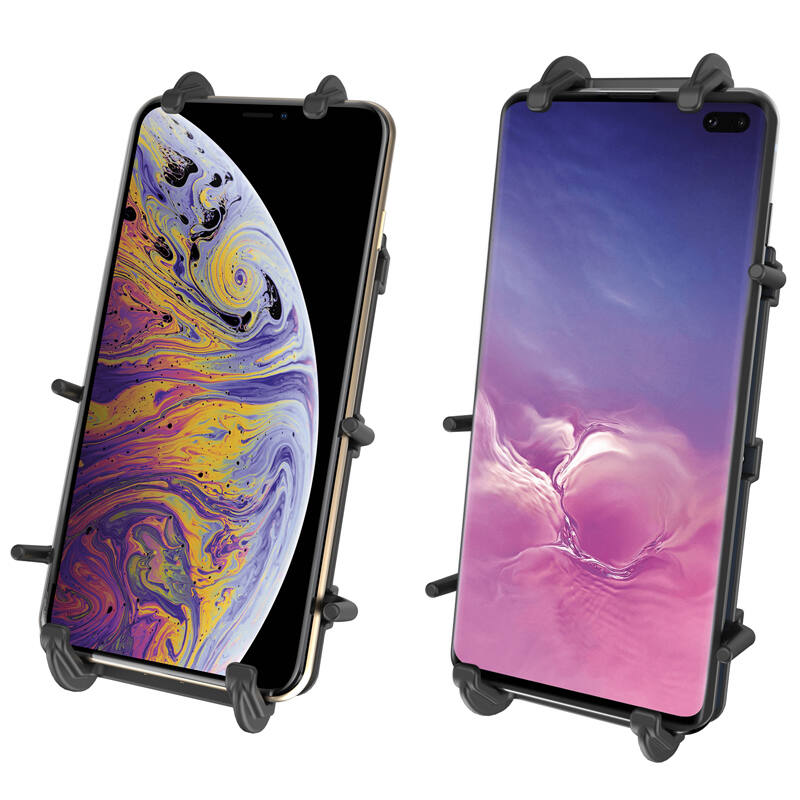

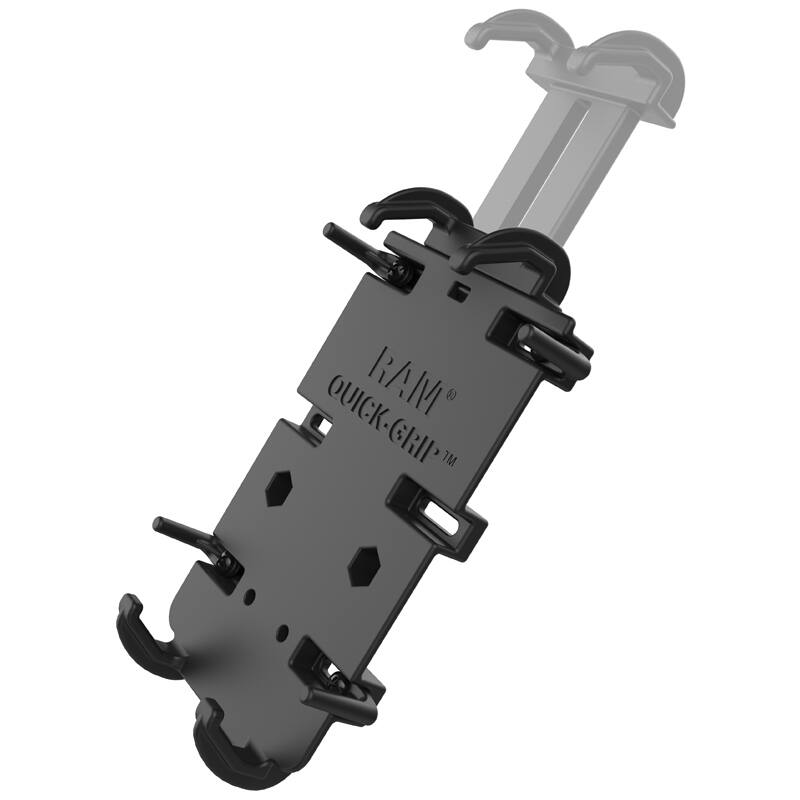

The cradle is the XL version of the spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of large phones and other devices. Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices.
Devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.

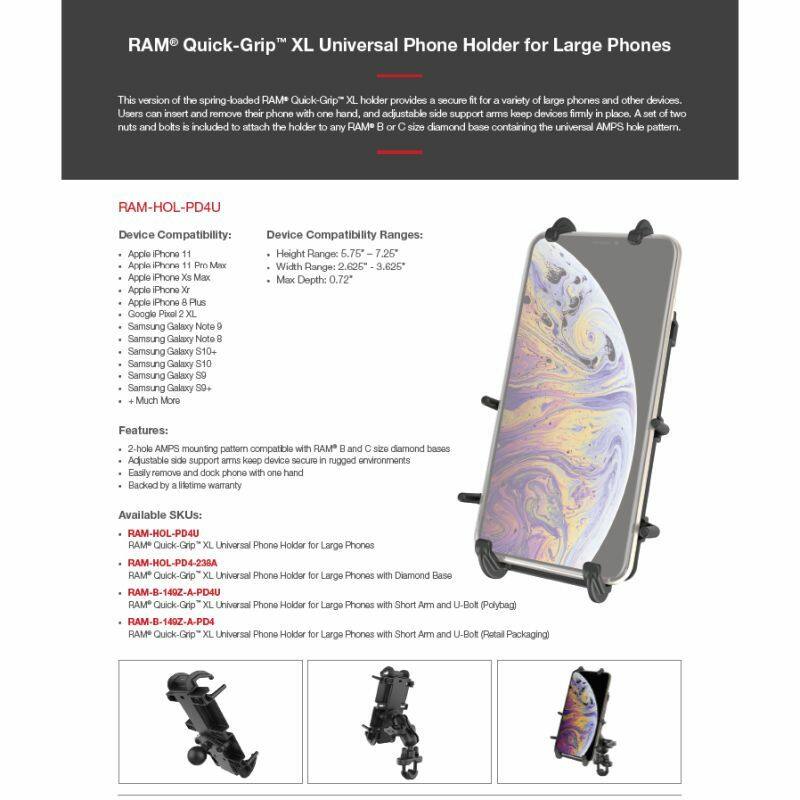

Cradle Clamping Dimensions:
Height Range: 146.1mm to 184.1mm (5.75" – 7.25")
Width Range: 66.7mm to 92.1mm (2.625" – 3.625")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD4U
Specs & Features

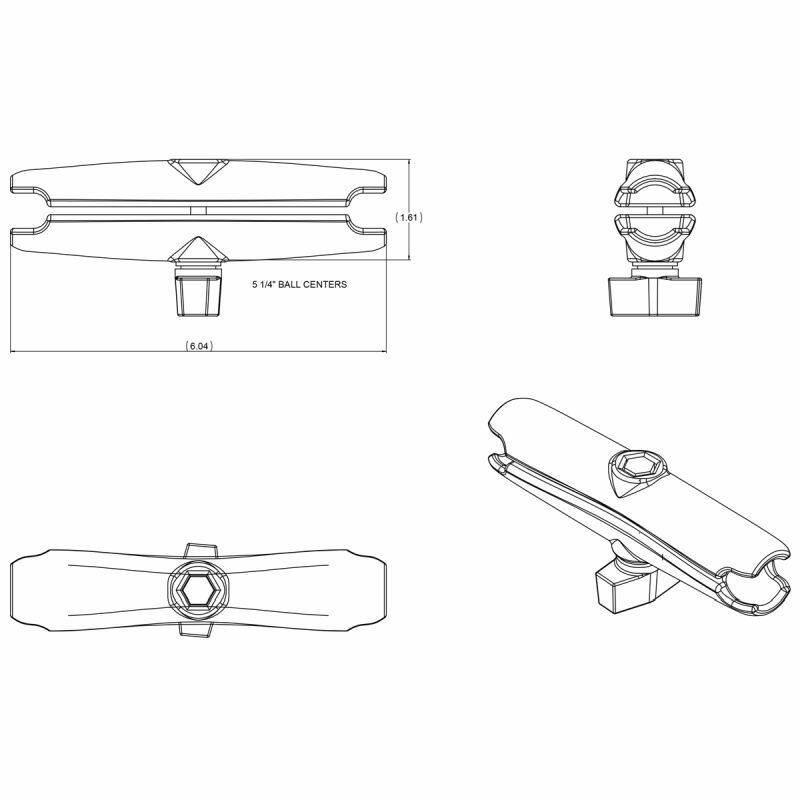

Arm Dimensions:
Overall:
152 mm (6 inches)
Socket-To-Socket:
134 mm (5.25 inches)
Ball/Socket Size
B Size (1")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
High strength composite
Weight
430 grams (0.95 lbs.)
Components

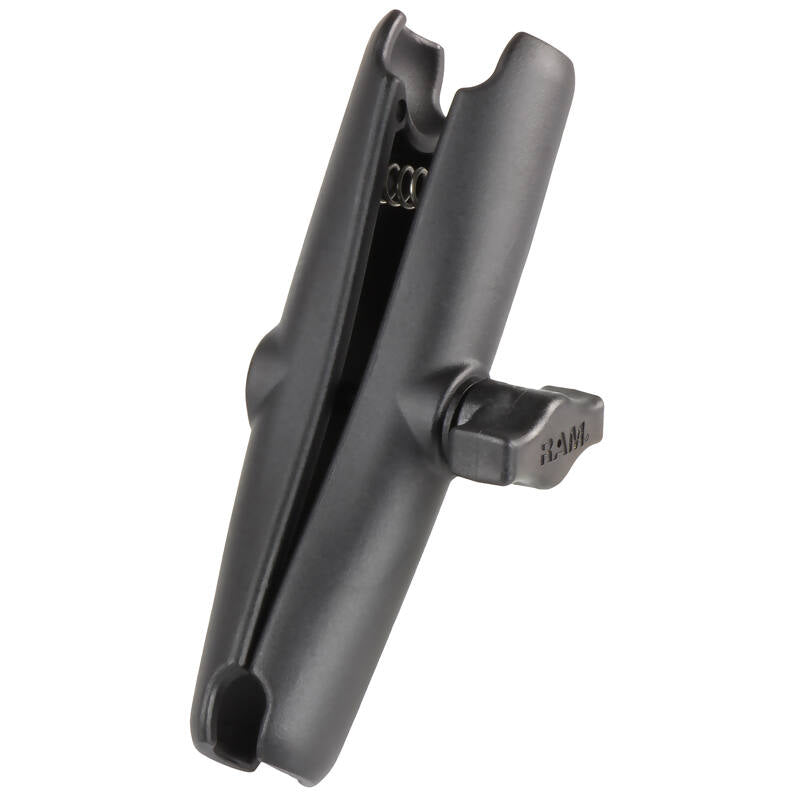

RAM-B-201U-C LONG DOUBLE SOCKET ARM FOR 1" BALL
RAM-HOL-PD4U Quick-Grip XL Spring Loaded Cradle for Larger Cell Phones

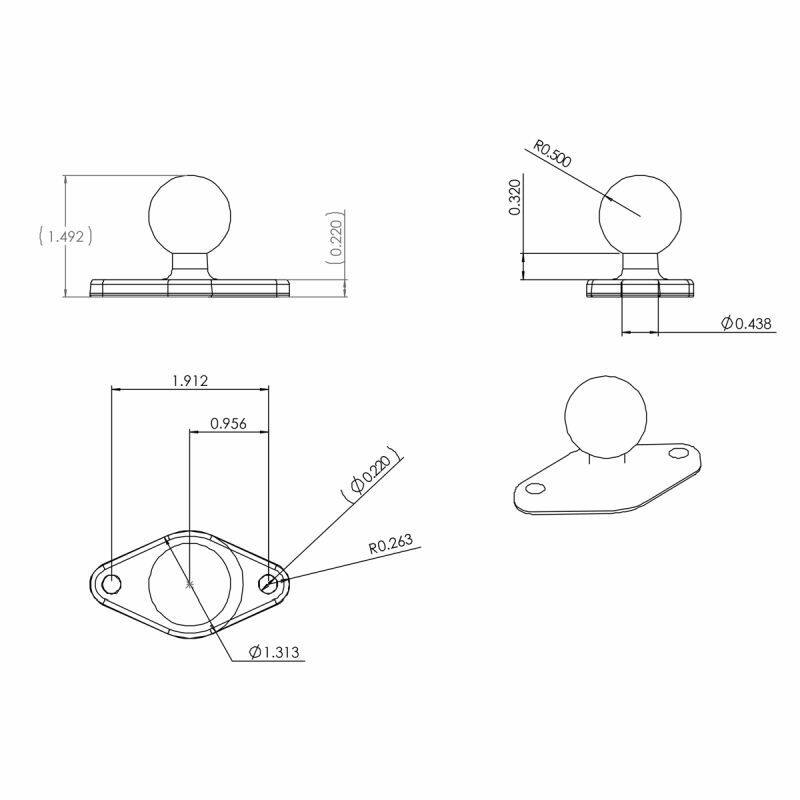

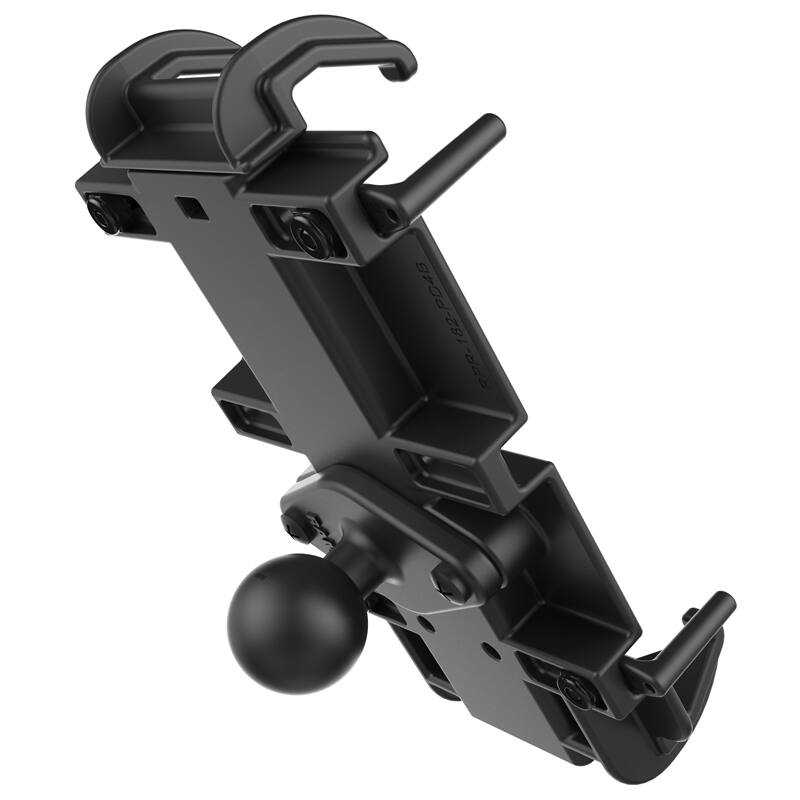

RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL

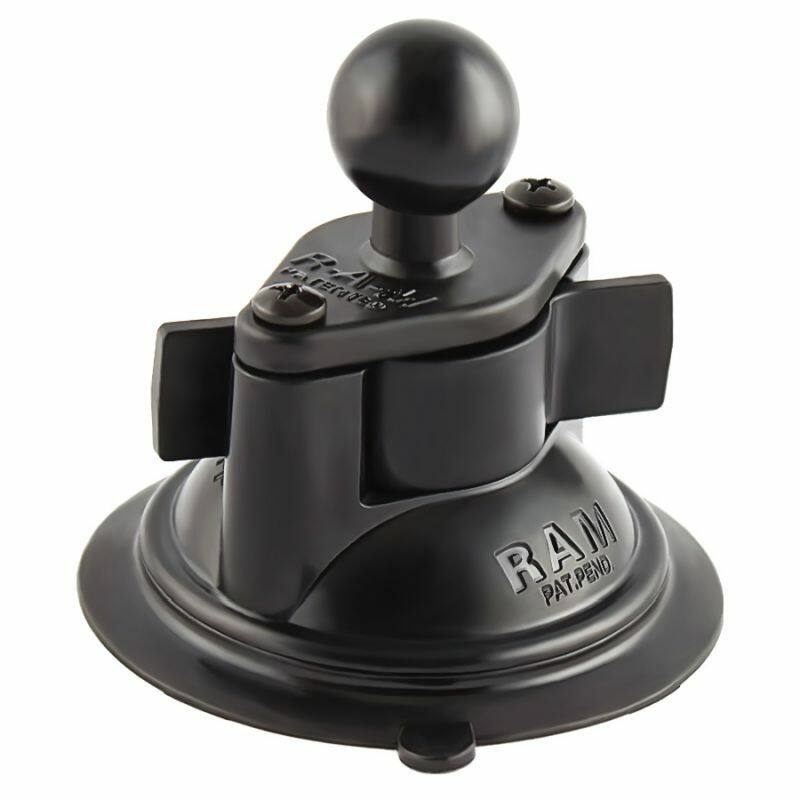

RAM-B-224-1U 83mm DIA. SUCTION CUP BASE with 1" BALL
