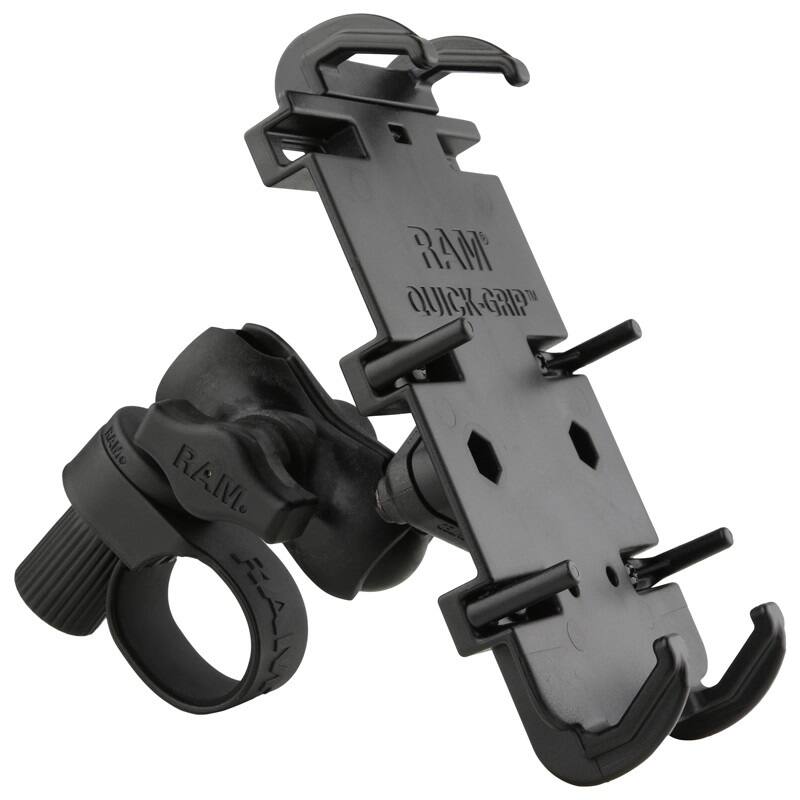

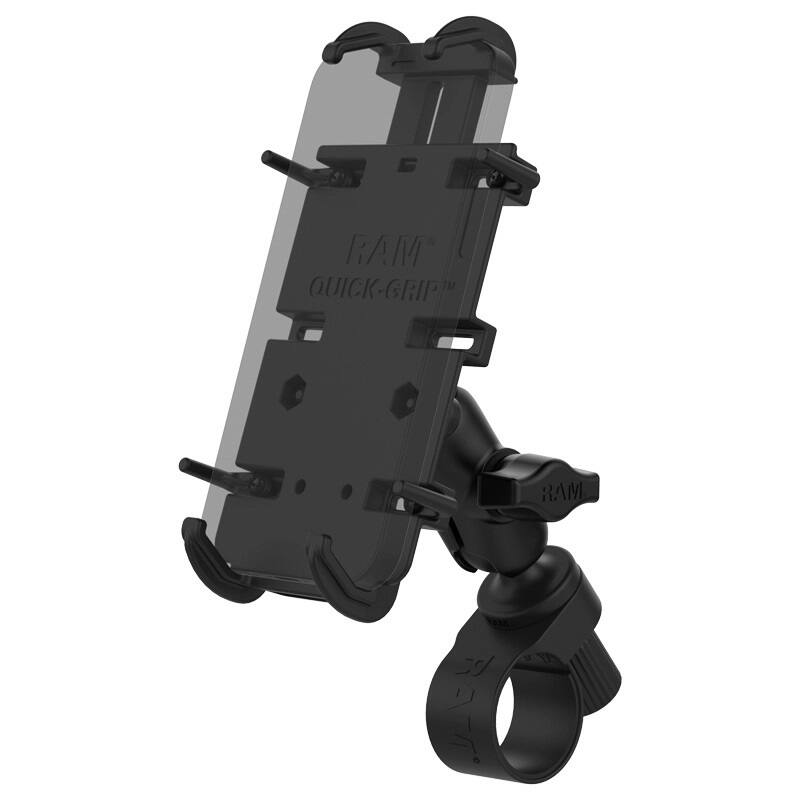

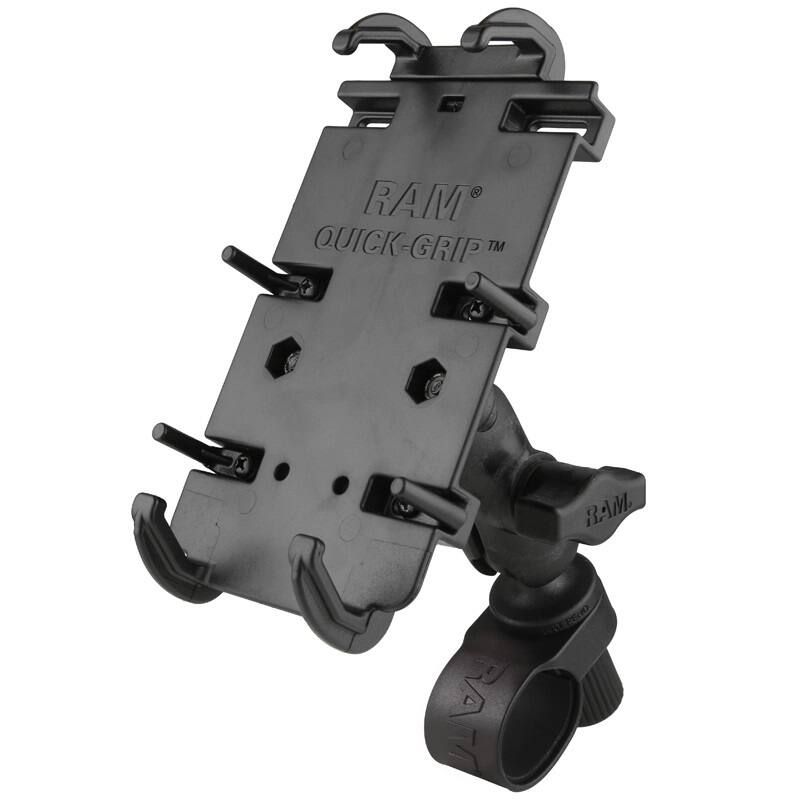

RAP-B-460-A-PD4U RAM® Quick-Grip™ XL Phone Mount with RAM® Tough-Strap™ Handlebar Base
Features:
* Low profile handlebar mount for large size phones includes the new RAM® Tough-Strap™ and RAM® Quick-Grip™ XL, easily attaching to your handlebar with the turn of a single knob
* Includes two different strap sizes for handlebars ranging from 22-35mm
* Ideal handlebar phone mount for all bike types, including mountain bikes, road bikes and e-bikes
* Kit includes a short length RAM® B size socket arm, B size ball base, and spring-loaded
* RAM® Quick-Grip™ XL large phone holder features adjustable side supports that provide a secure fit for a variety of large size phones and other devices with and without a case
* RAM ball and socket technology allows for near-infinite adjustability
* Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM® Tough-Strap™ is lowest profile rugged mounting solution for any bike or motorcycle handlebars. With two different size straps, easily install the RAM® Tough-Strap™ on any mountain bike, road bike or e-bike with a simple twist of a knob. This RAM® Tough-Strap™ Handlebar Mount includes a B size ball base so you can attach any RAM® B size socket arm and your desired device holder to complete your solution. The long strap is used for bar diameters ranging from 31.75mm to 35.01mm (1.25"-1.38") while the short strap is used for diameters ranging from 22.23mm to 25.4mm (0.875"-1"). Utilize the extra rubber strip to cut down to the diameter range of 25 to 28.575mm (1"-1.125") for a more custom fit. Take the RAM® Tough-Strap™ on your next adventure on and off the road.

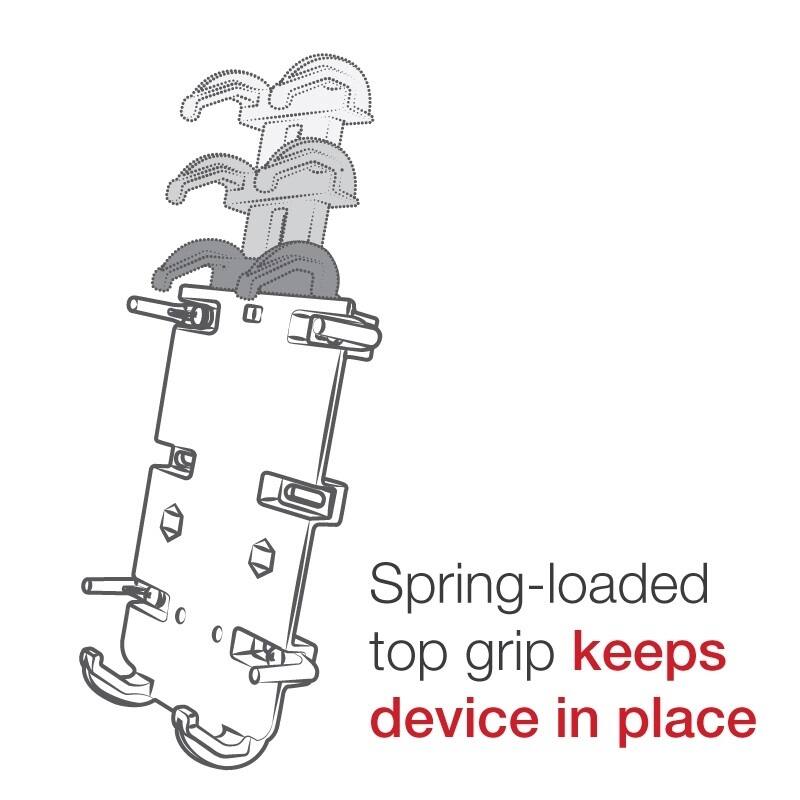

The cradle is the XL version of the spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of large phones and other devices.

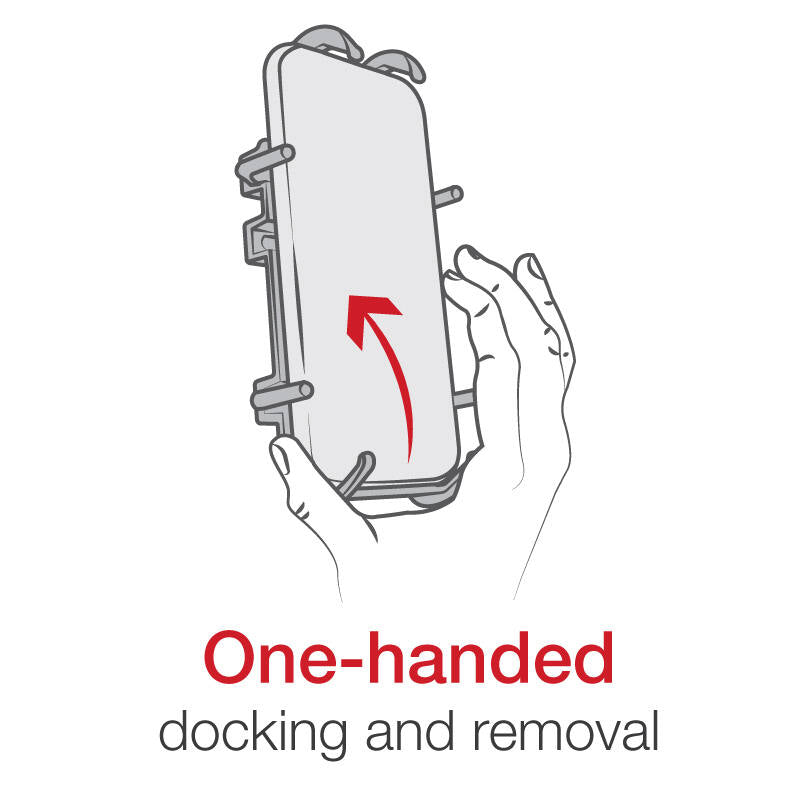

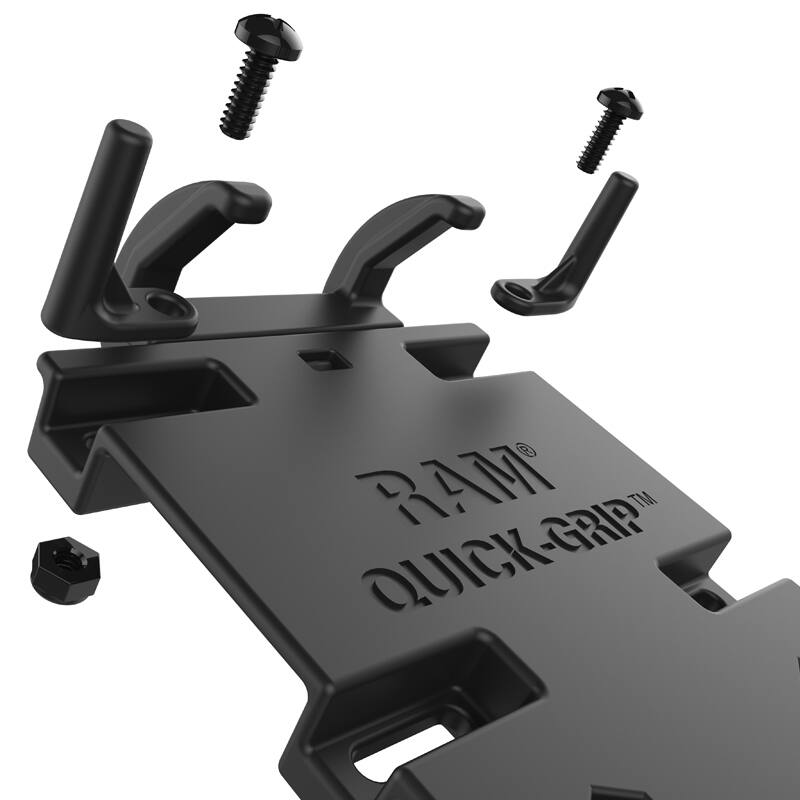

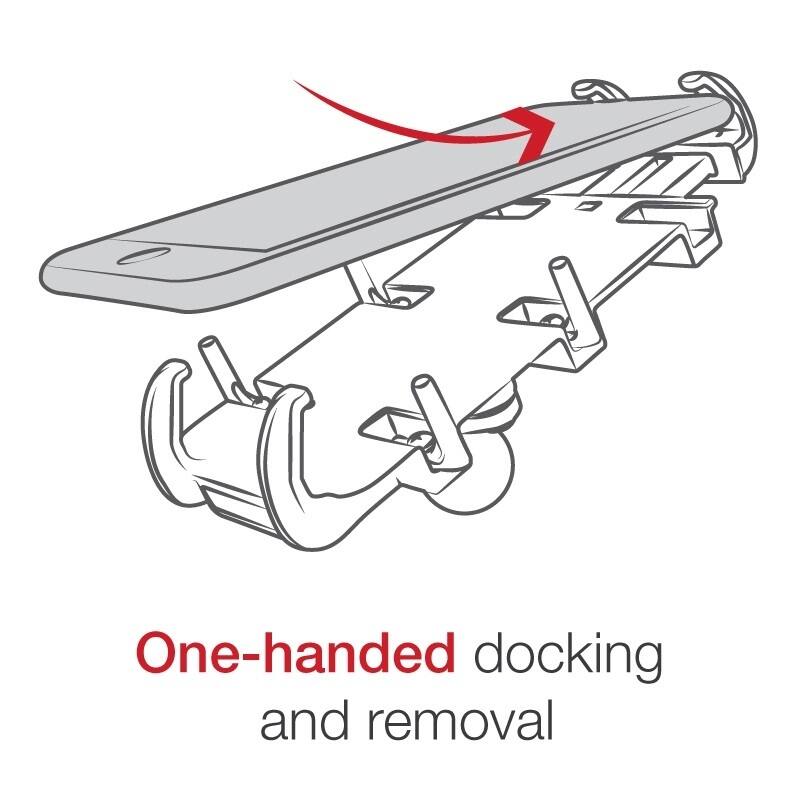

Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices the -PD4U allows you to easily insert and remove your phone with one hand
The adjustable side keepers ensure that devices like GPS units and Bluetooth speakers within the listed compatible dimensions will also fit in the holder.
Cradle Clamping Dimensions:
Height Range: 146.1mm to 184.1mm (5.75" – 7.25")
Width Range: 66.7mm to 92.1mm (2.625" – 3.625")
Max Depth: 18.3mm (0.72")
For a list of compatible devices check the listing for the RAM-HOL-PD4U
Specs & Features
Tough Strap Clamping Range
Long Strap
31.75mm to 35.01mm (1.25"-1.38")
Short strap
22.23mm to 25.4mm (0.875"-1")
Arm Dimensions
60mm overall.
Material:
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Weight:
349 grams (0.77 lbs.)
Components:

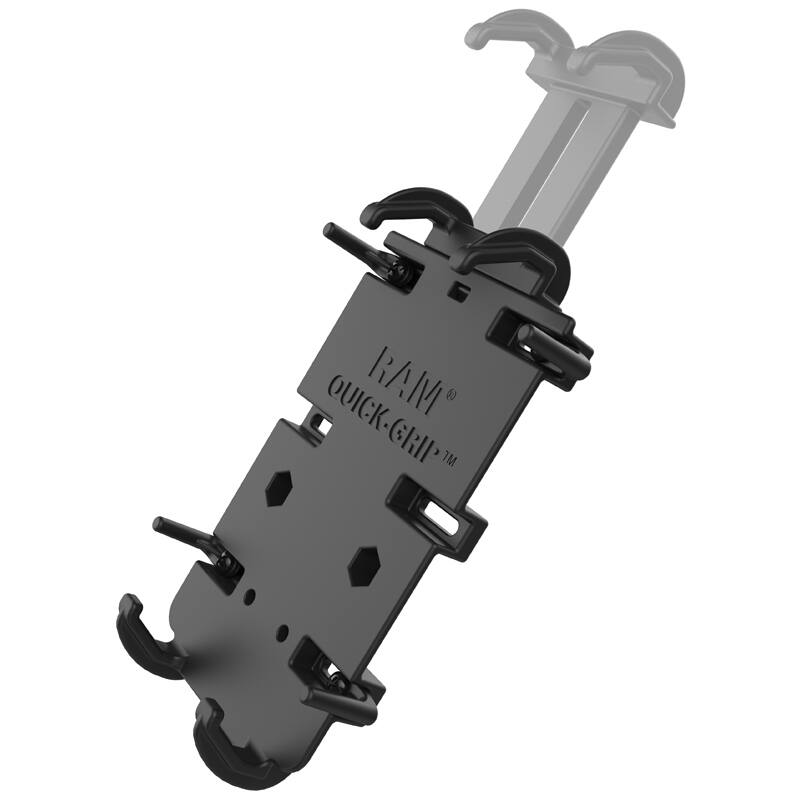

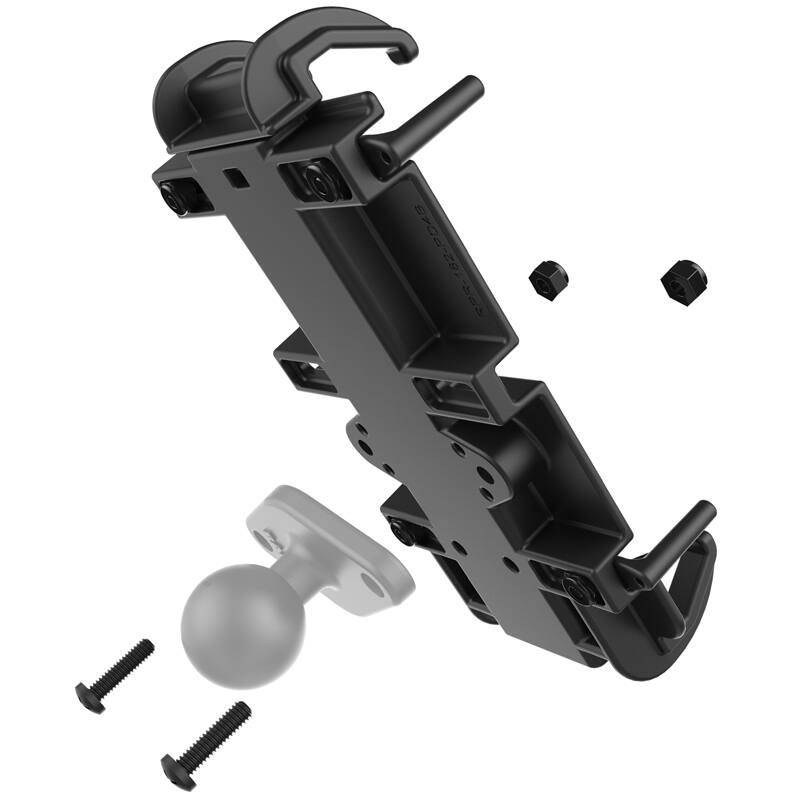

RAM-HOL-PD4U Quick-Grip XL Spring Loaded Cradle

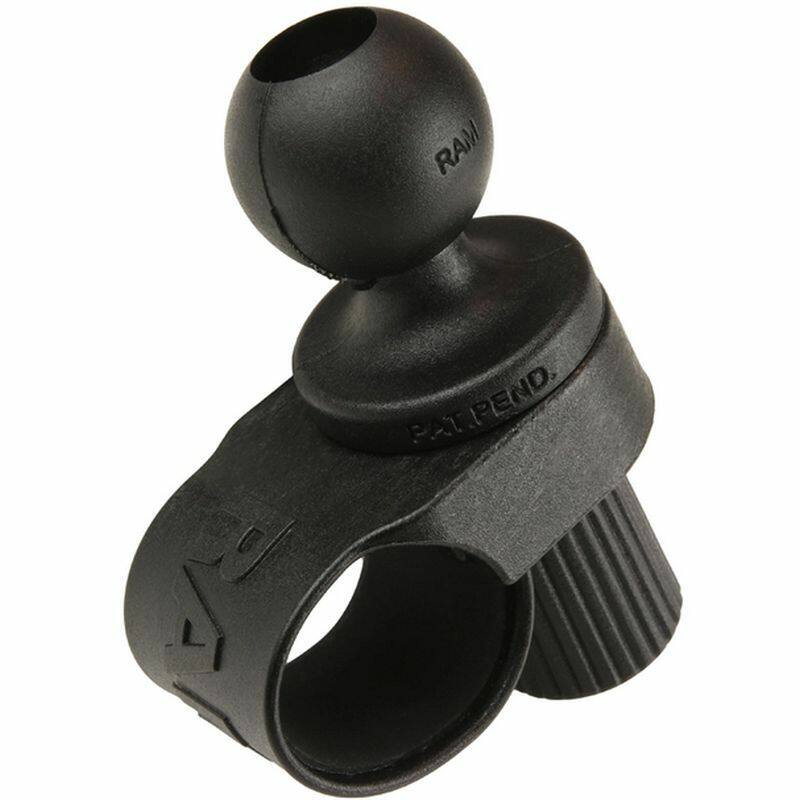

RAP-B-460U RAM Tough-Strap Handlebar Ball Base

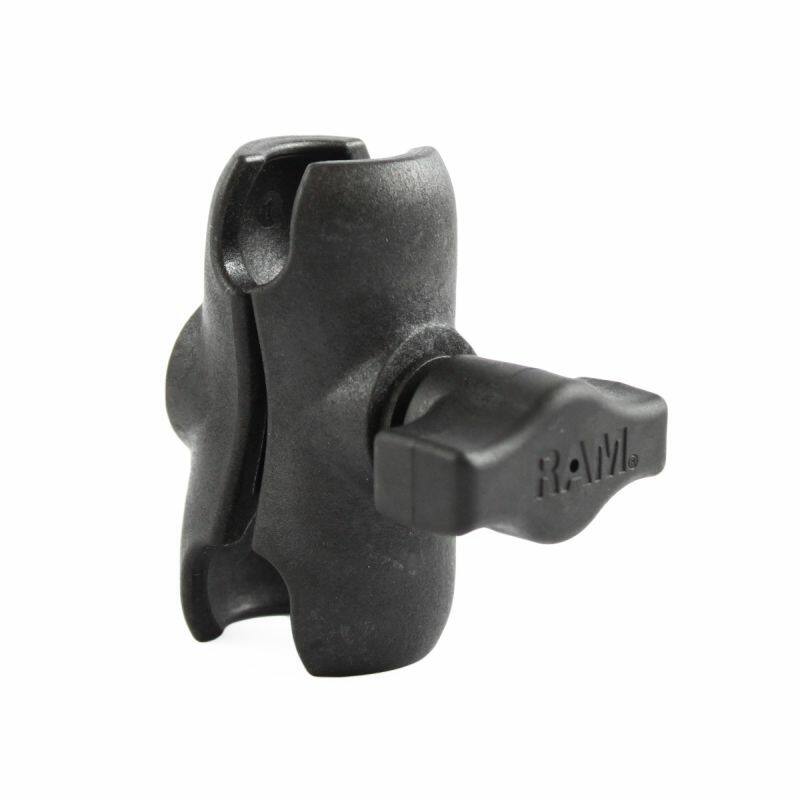

RAP-B-201U-A Composite short DOUBLE SOCKET ARM

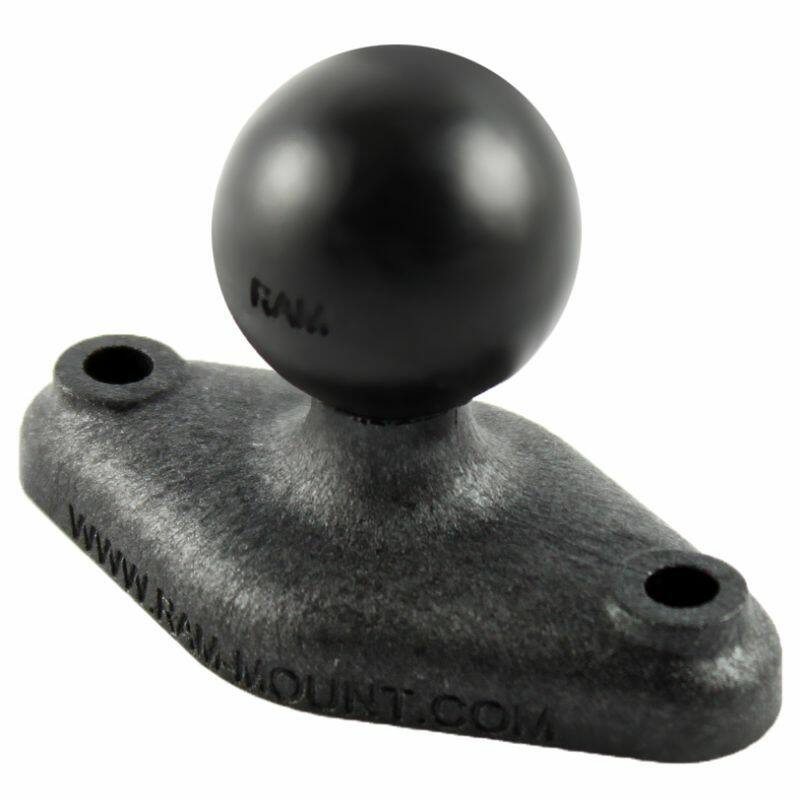

RAP-B-238U Composite DIAMOND BASE
