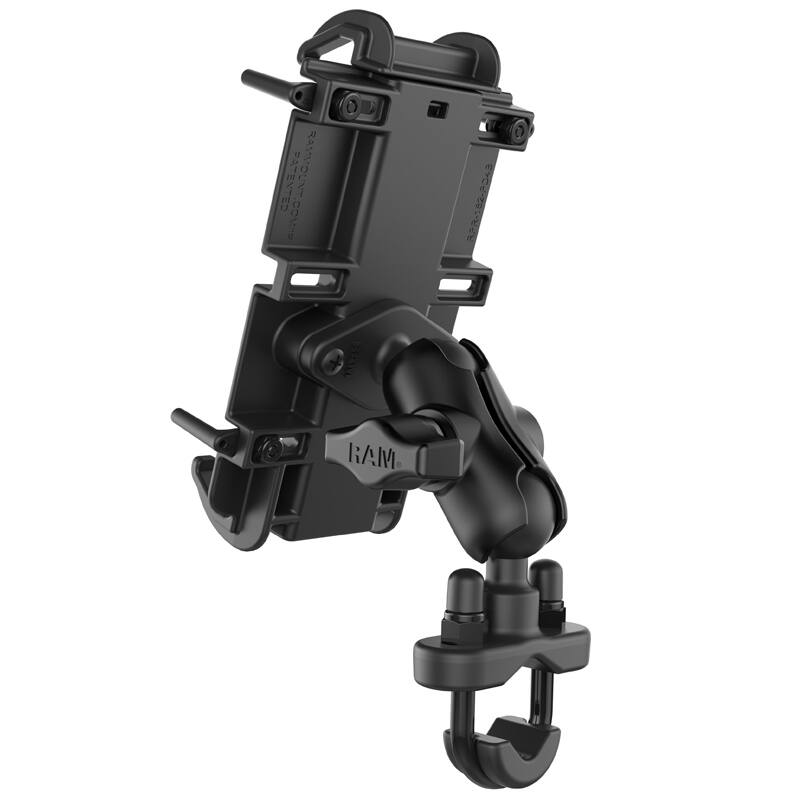

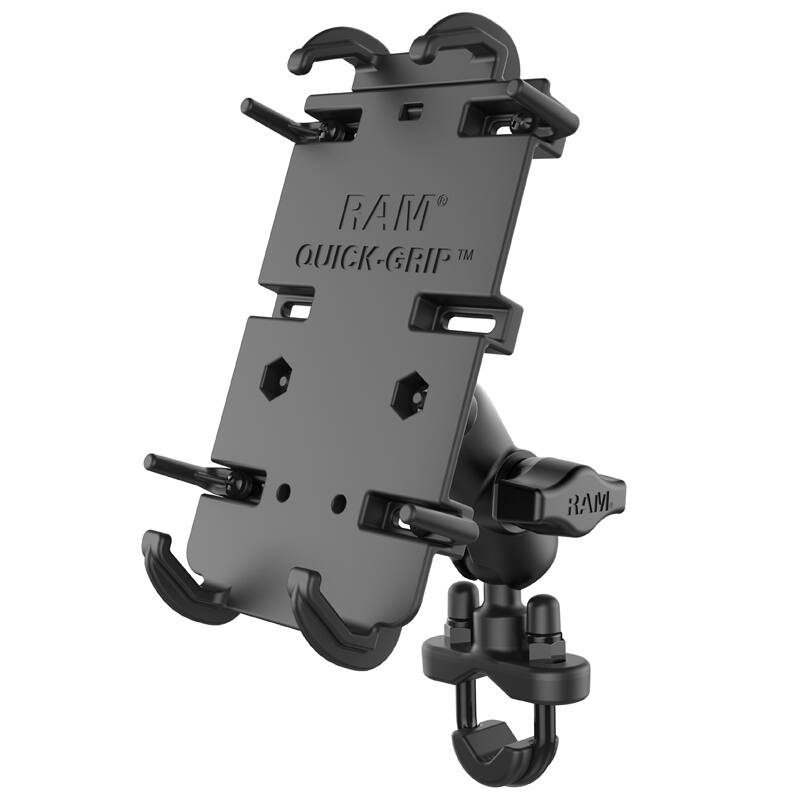

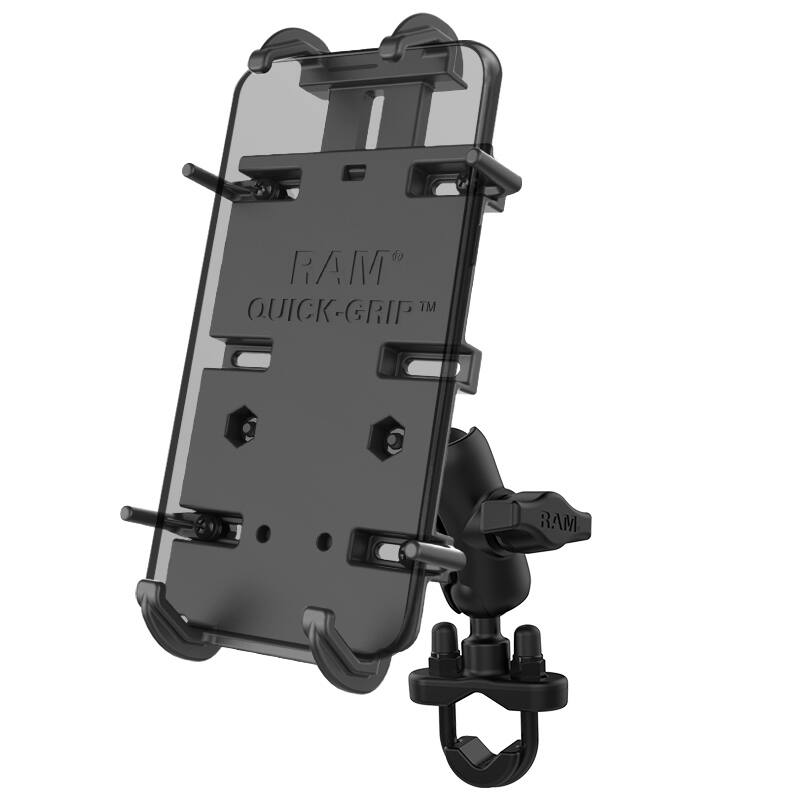

RAM-B-149Z-A-PD4U – RAM® Quick-Grip™ XL Phablet Mount with U-Bolt Rail Base (Short Arm)

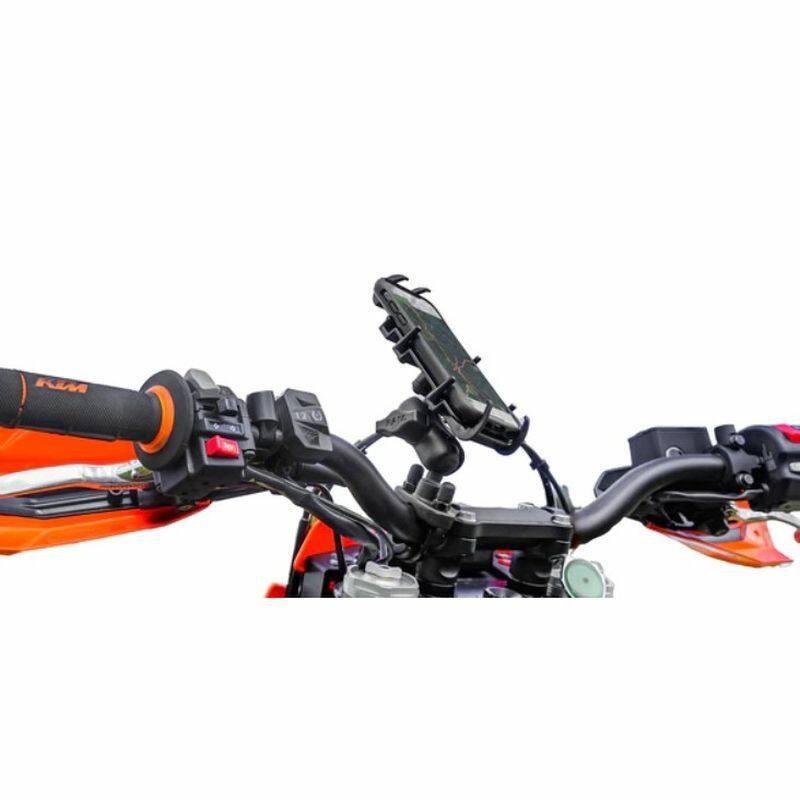

The RAM-B-149Z-A-PD4U is the short-arm version of our U-Bolt handlebar kit for phablets and other large devices, built around RAM® Mounts' XL Quick-Grip™ cradle. It pairs the cradle with a U-Bolt rail base that clamps onto bars from 12.7mm to 31.8mm (0.5" to 1.25") in diameter and a short B Size double socket arm, for a more compact mount where space is tight.
Key Features

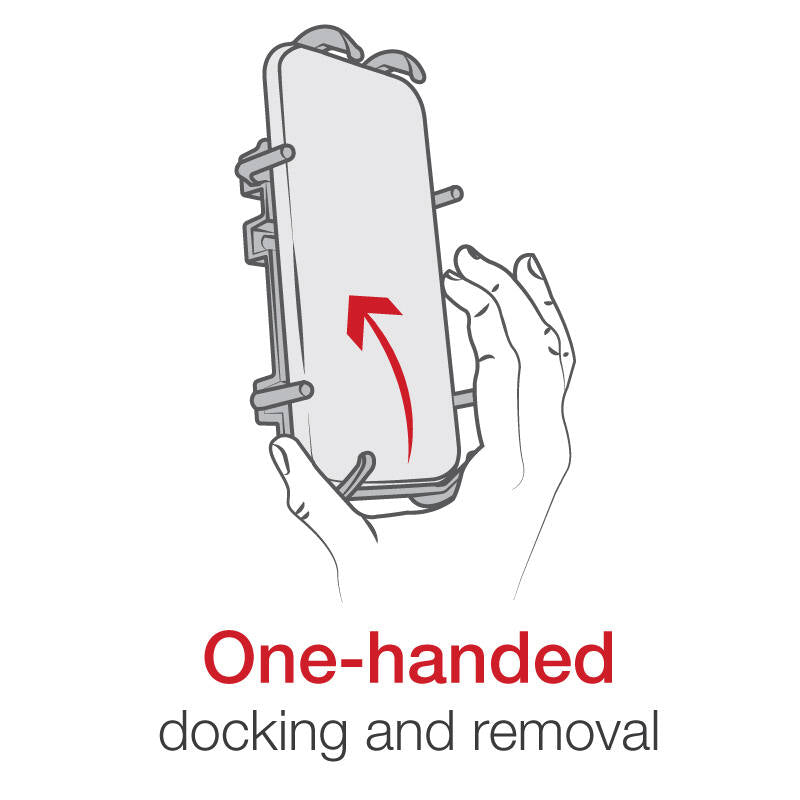

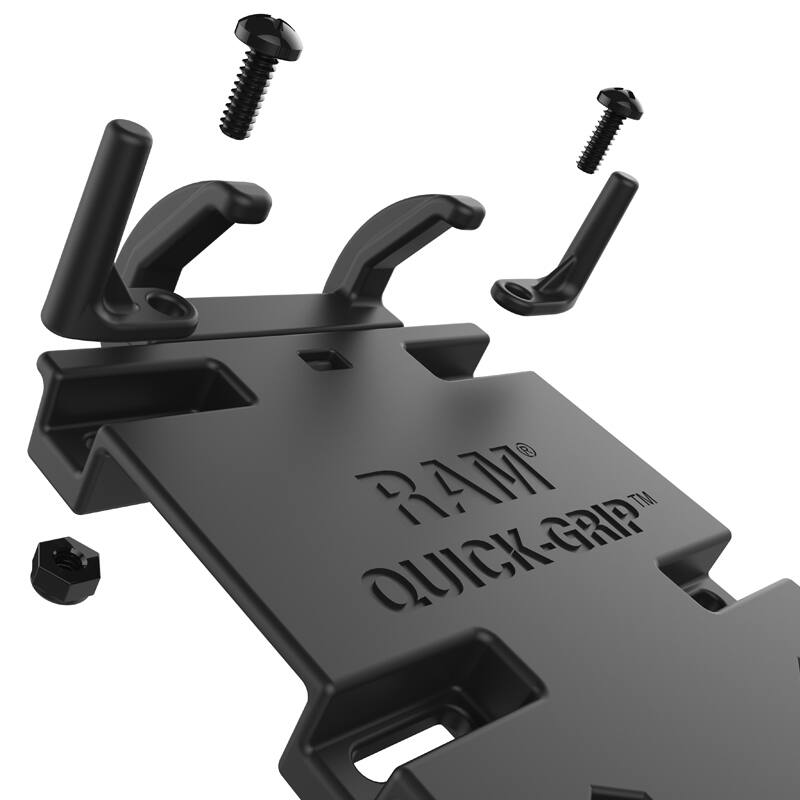

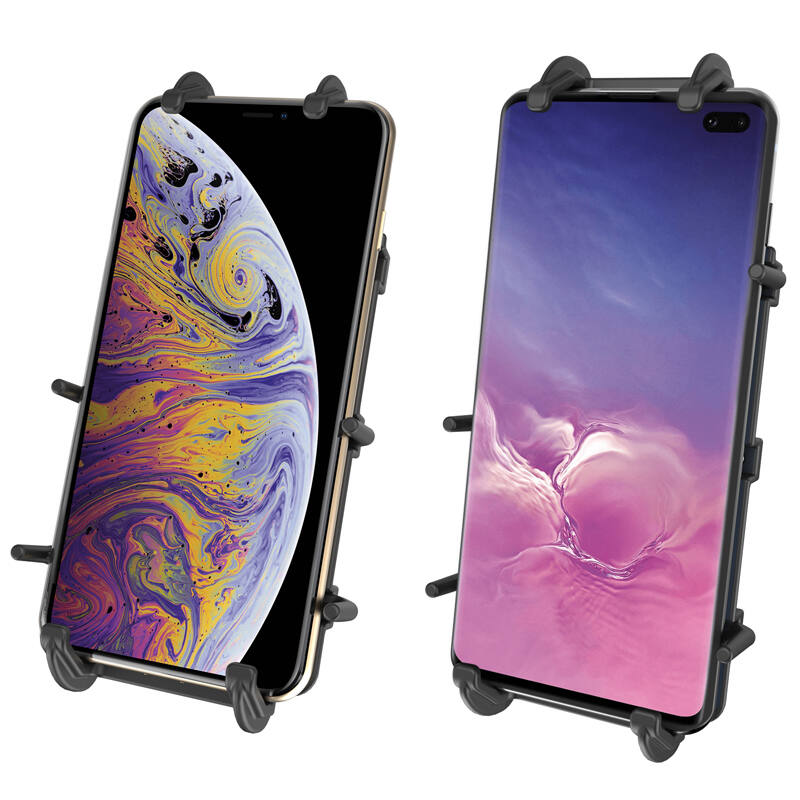

Spring-loaded Quick-Grip™ cradle holds devices 66.7mm to 92.1mm wide, with one-handed insertion and release
U-Bolt rail base clamps bars from 12.7mm to 31.8mm (0.5" to 1.25") in diameter, with a composite adapter narrowing down to 12.7mm and cover caps over the exposed U-bolt ends
Short double socket arm keeps the mount compact, with ball-and-socket adjustment at both ends
Built from powder-coated marine-grade aluminium, stainless steel hardware and high-strength composite
Backed by a lifetime warranty

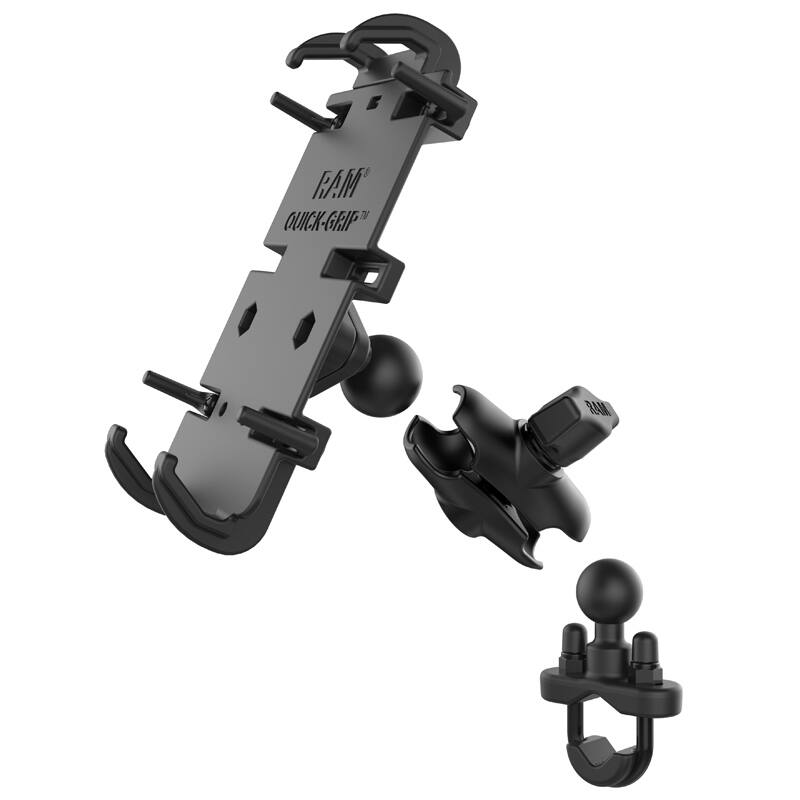

What's Included

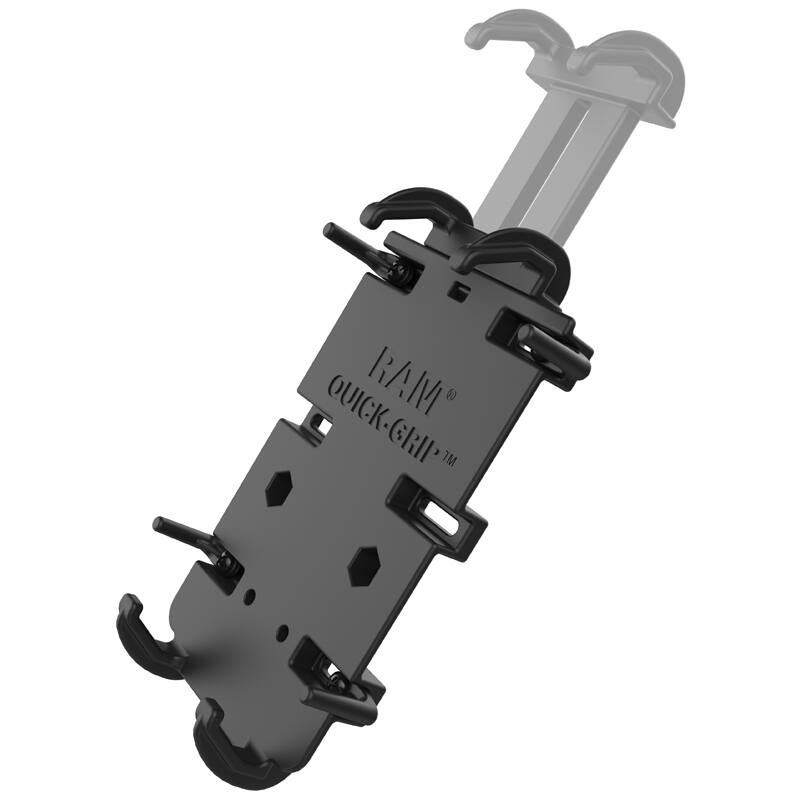

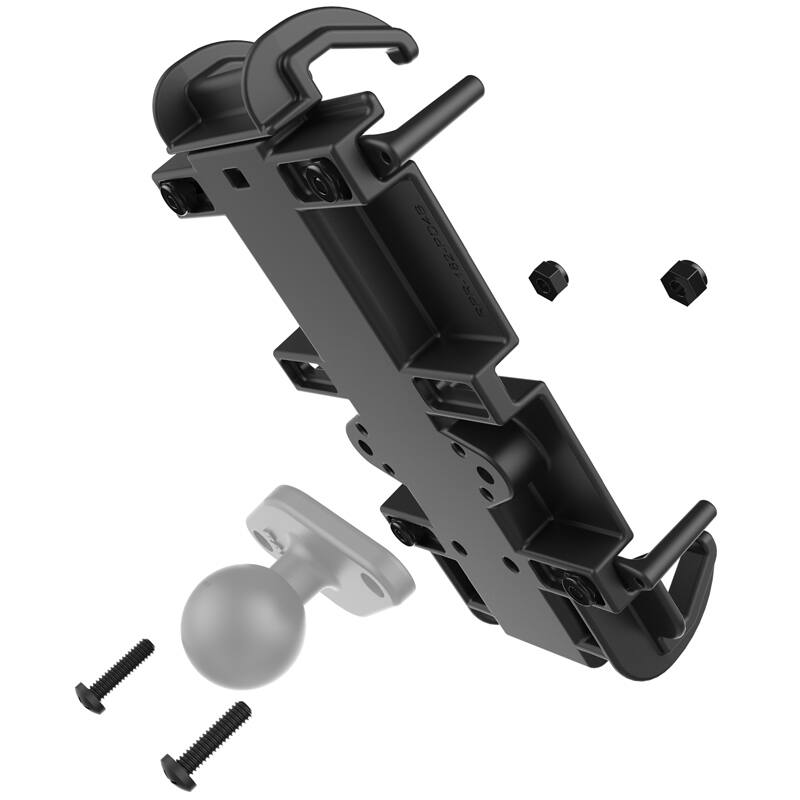

RAM-HOL-PD4U: Quick-Grip™ XL phablet cradle
RAM-B-231ZU: rail base with U-bolt
RAM-B-201U-A: B Size double socket arm, short length
RAM-B-238U: 62mm x 33mm diamond base with 1" ball
Dimensions & Specifications
Cradle width range: 66.7mm to 92.1mm (2.625" – 3.625")
Cradle height range: 146.1mm to 184.1mm (5.75" – 7.25")
Cradle max depth: 18.3mm (0.72")
U-Bolt diameter range: 12.7mm to 31.8mm (0.50" – 1.25")
This kit uses the same RAM-HOL-PD4U cradle across the Quick-Grip™ XL range, so the compatible device list is identical. See the RAM-HOL-PD4U listing for the full brand-by-brand list. As always, check your device's dimensions with any case or sleeve fitted before ordering.
