RAM Mounts

RAM Quick-Grip Universal SmartPhone Cradle - with Suction Cup Base - Composite

RAM Quick-Grip Universal SmartPhone Cradle - with Suction Cup Base - Composite

SKU:RAP-B-166-PD3U-v

Regular price $117.10 NZD
Regular price Sale price $117.10 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAP-B-166-PD3U RAM® Quick-Grip™ Holder with Twist-Lock™ Composite Suction Mount

Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices
* Easily insert and remove your phone with one hand
* RAM medium composite arm and twist lock suction cup base included
* Backed by a lifetime warranty

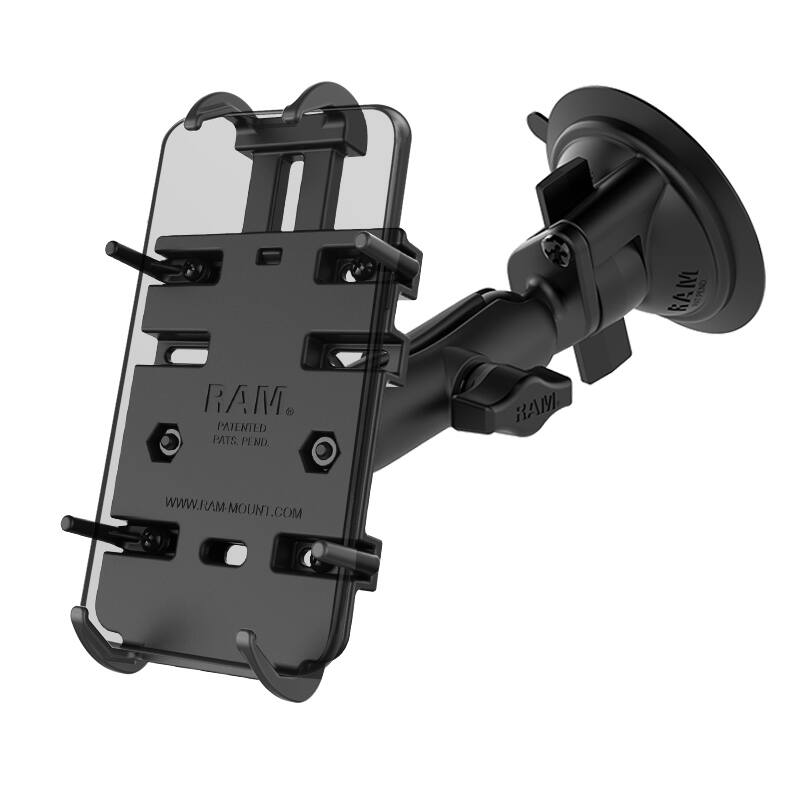

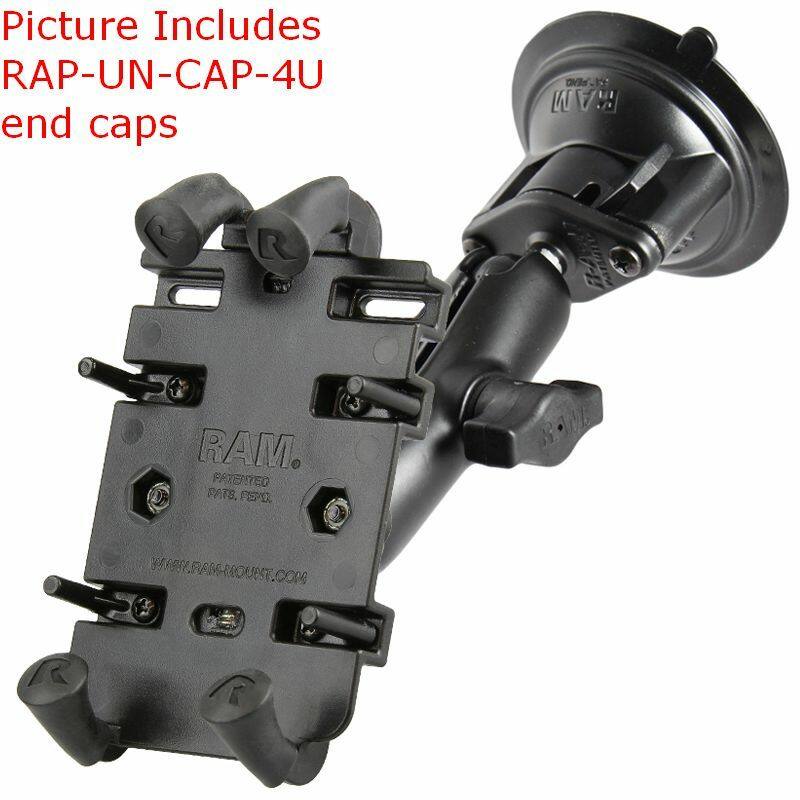

The RAM Quick-Grip™ with Twist-Lock™ Suction Cup consists of a 3.3" diameter suction base, composite double socket arm and spring loaded cradle for supporting most phones.

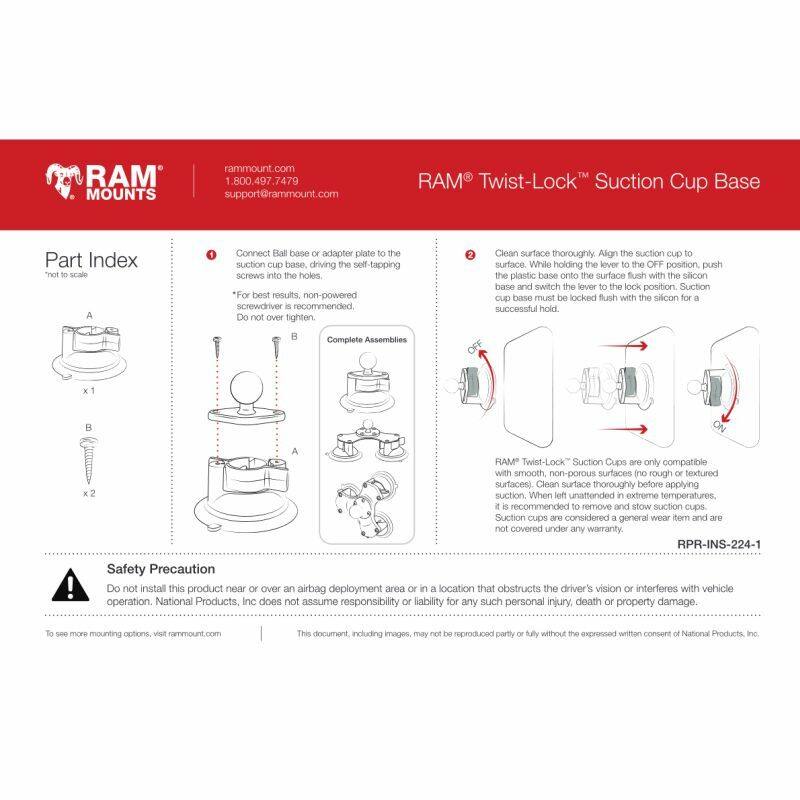

The Twist-Lock™ Suction Cup is designed to have a strong hold on any windshield, glass and non-porous surface. The double ball and socket design provides adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.

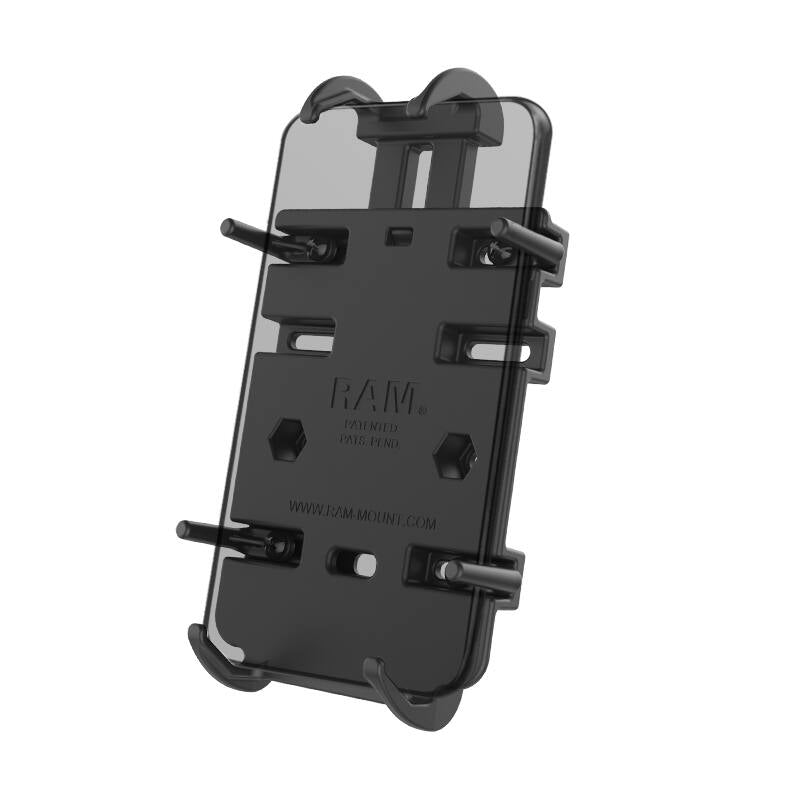

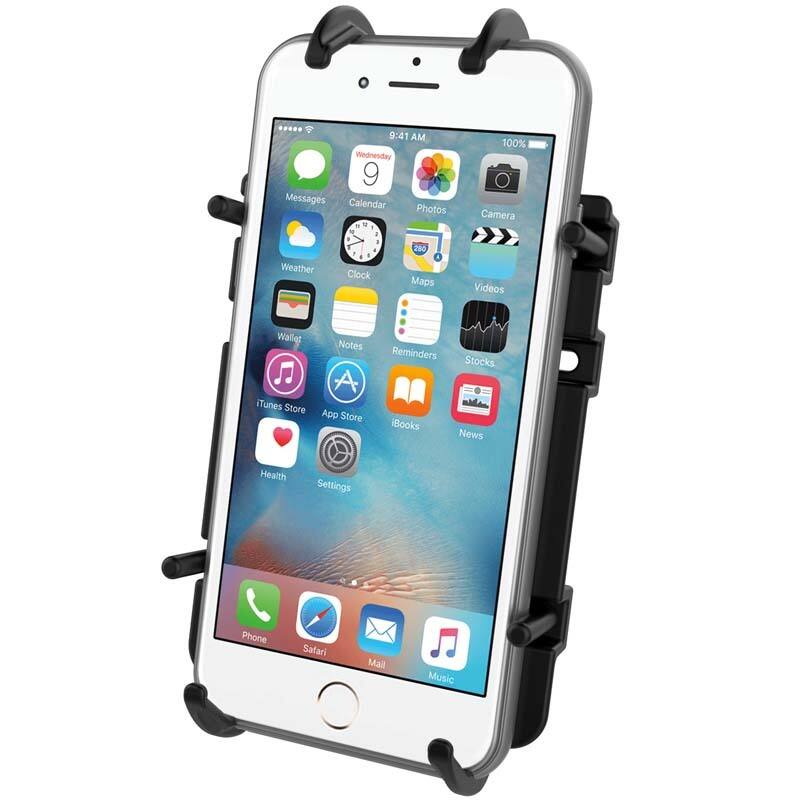

The cradle is the spring-loaded RAM® Quick-Grip™ holder which provides a secure fit for a variety of smartphones and other devices. For Phablets a larger version is available

Featuring adjustable side supports that provide a secure fit for a variety of large phones and other devices such as GPS units and Bluetooth speakers within the listed compatible dimensions

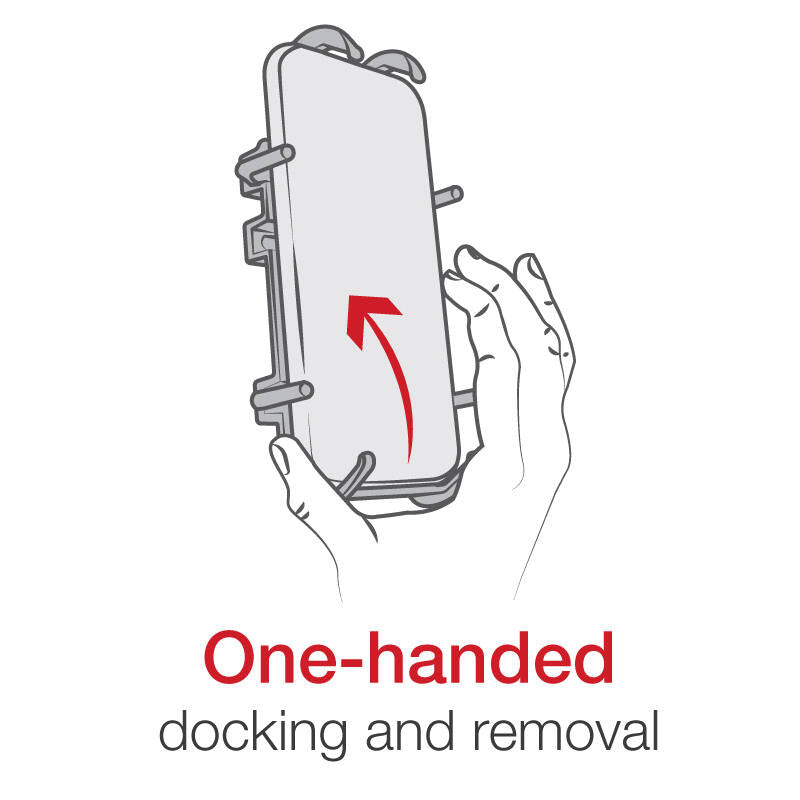

The Quick-Grip™ allows you to easily insert and remove your phone with one hand

Cradle Clamping Dimensions:
Height Range: 120.7mm to 144.1mm (4.75" - 5.75")
Width Range: 31.8mm to 82.6mm (1.25" - 3.25")
Max Depth: 18.3mm (0.72")

For a list of compatible devices check the listing for the RAM-HOL-PD3U


Material:
High Strength Composite

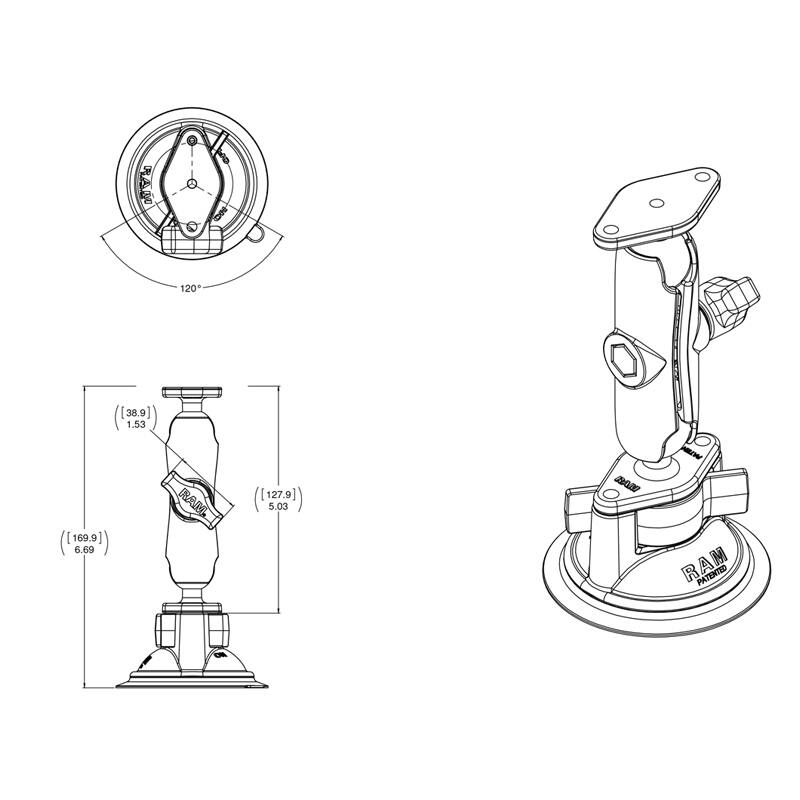

Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")


Ball Size:
1" Rubber Ball "B" Size


Weight:
286 grams / 0.63 lbs.


Components
RAM-HOL-PD3U RAM Quick-Grip Spring Loaded Cradle

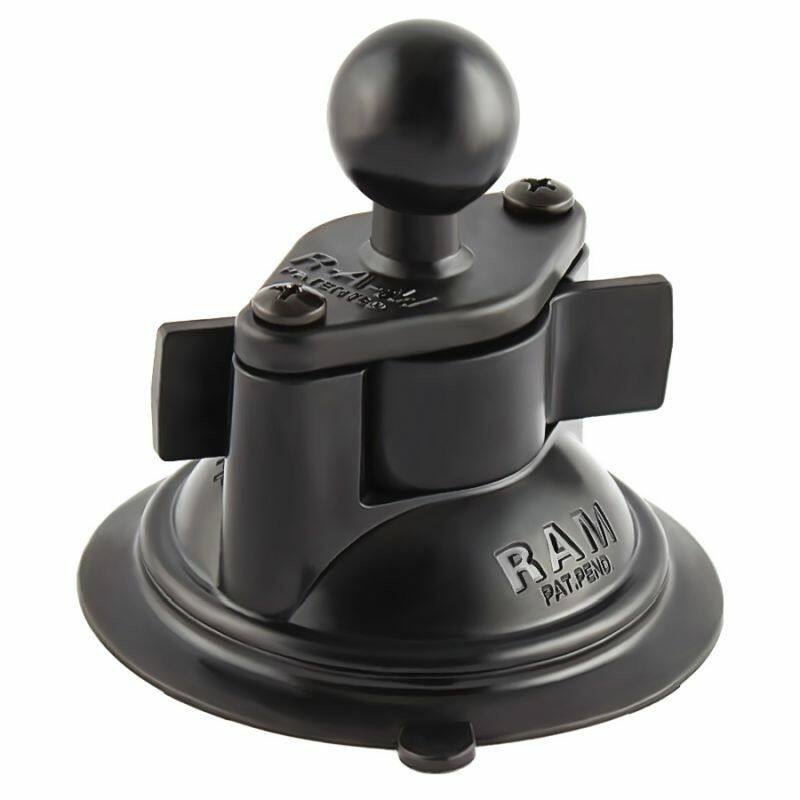

RAP-B-224-1U 3.76mm DIA. SUCT CUP W 1" PLAS BALL
RAP-B-238U 63 X 33mm BASE W/ BALL
RAP-B-201U DOUBLE SOCKET ARM FOR 1" BALL

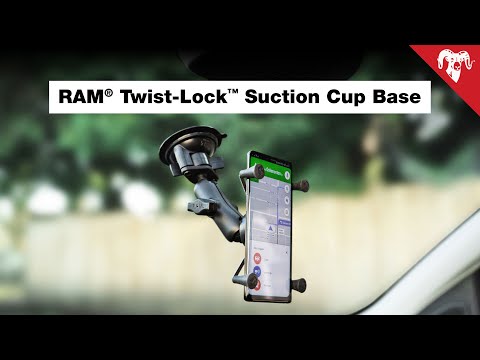

YouTube:
