RAM-B-408-SU-PD3 Quick-Grip with locking arm and Large Torque base
Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices
* Easily insert and remove your phone with one hand
* Torque base is low profile and secure base for bars 28.5-38mm diameter
* Medium length double socket arm incorporates a Pin-Lock™ security nut and key knob
* RAM Double Ball and socket system allows for multiple angles and easy adjustment
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments

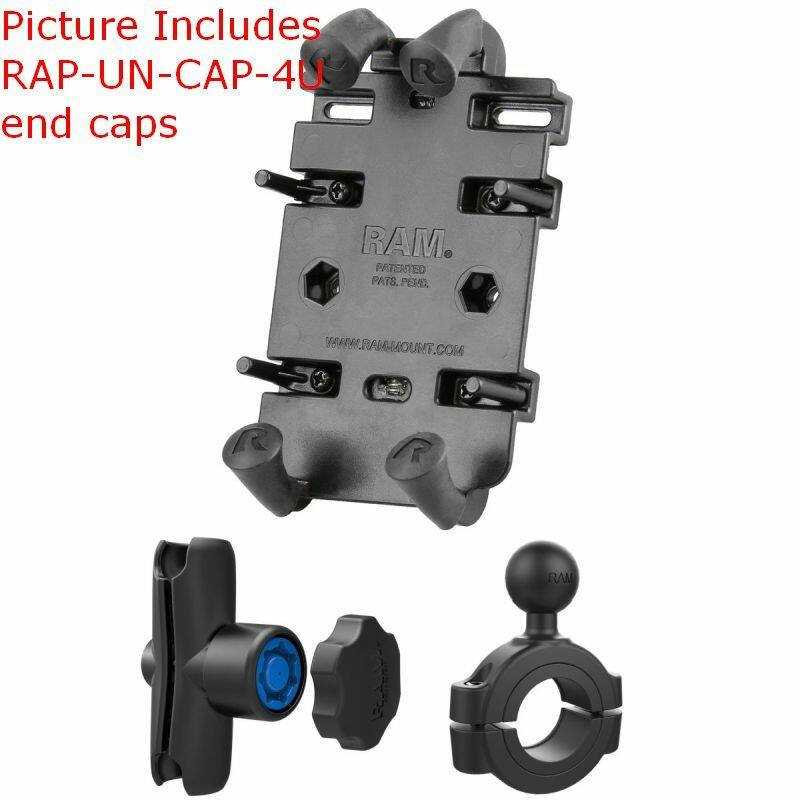

We have combined the RAM favourites to create the ideal set up for motorcyclists needing some extra security: a large Torque base, arm with pin-lock and Quick-Grip cradle for phones.

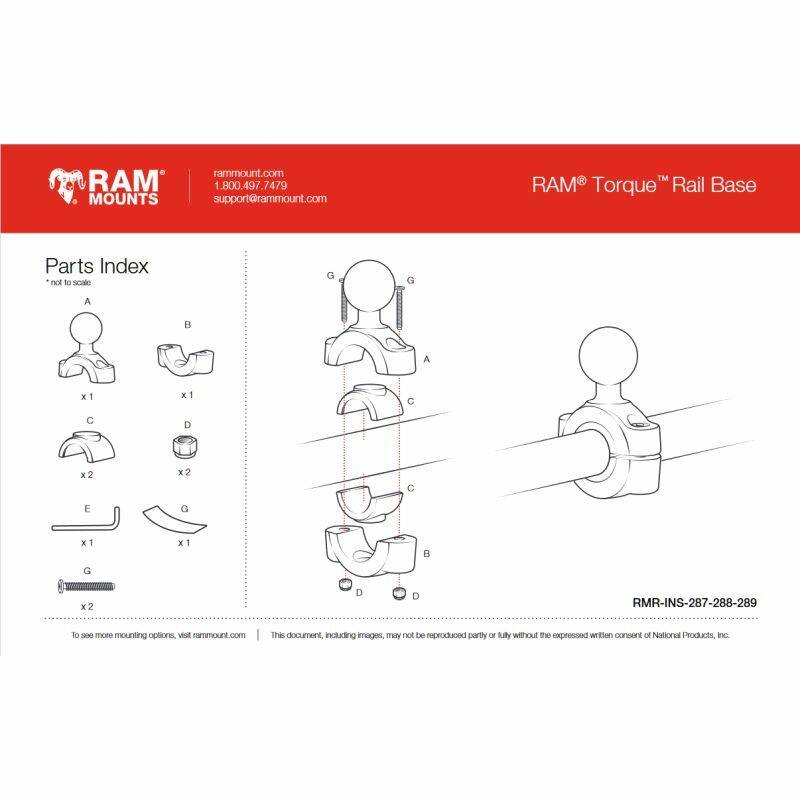

The LARGE Torque Base with 1" Ball accommodates rails 28.5-38mm (1 1/8" to 1.5") in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert lock-nuts to prevent loosening in high vibration environments.
The medium length double socket arm incorporates a mixed combination Pin-Lock™ security nut and key knob. RAM® Pin-Lock™ security solutions are designed to withstand the harshest environments where RAM® Mounts are commonly used. With an emphasis on aesthetics and function, RAM® security nuts/knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included.

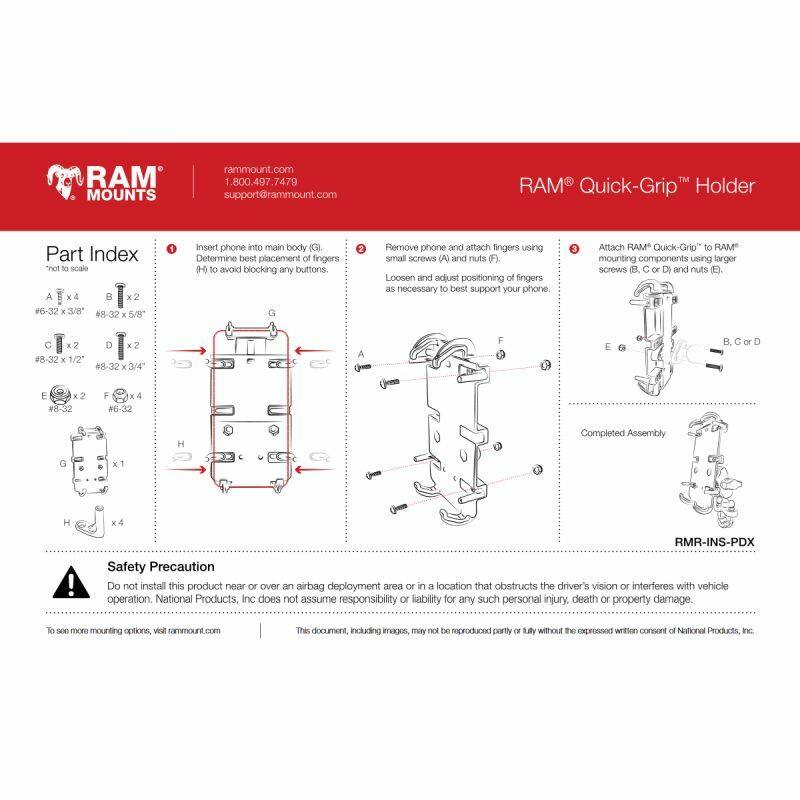

The included -PD3 Quick-Grip cradle has a clever spring loaded design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded holder expands and contracts, allowing for a secure custom fit of your cell phone.
The Quick-Grip looks light but is made from high strength composite.
The cradle is compatible with hand-held devices that will fit the dimensions listed below. It is important to verify the dimensions of your hand-held device with a case/sleeve/skin when determining the overall size
Cradle Dimensions
Width = 55mm - 82mm
Height = 120-146mm
Maximum Thickness = 18mm
Mounting Base Dimensions:
Rails 28.5-38mm (1 1/8" to 1.5") in diameter
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Compatible Devices
For a list of many of the compatible devices for this cradle go to our listing for the RAM-HOL-PD3U
Components:

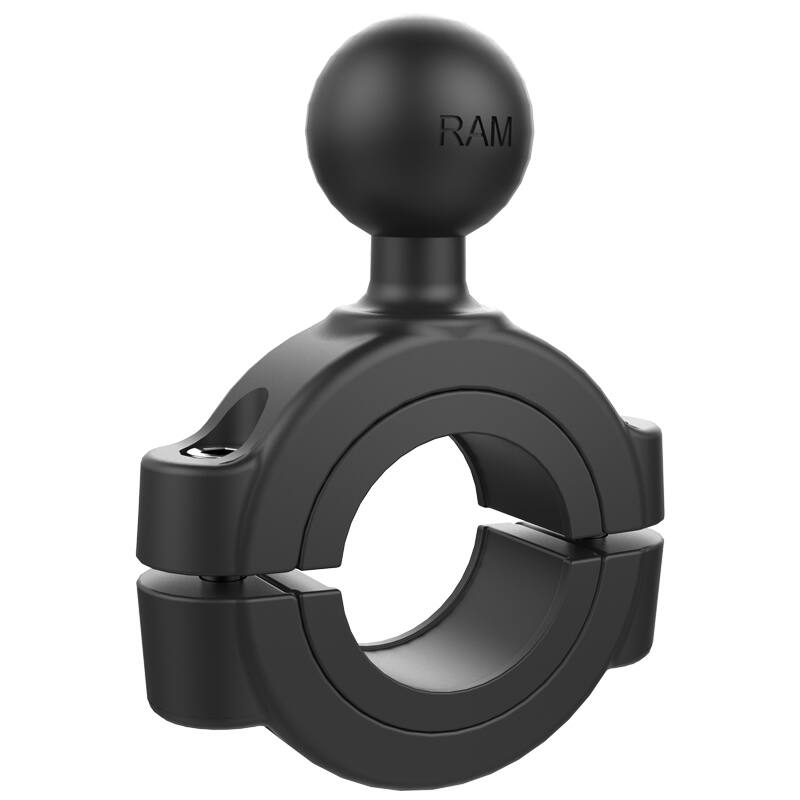

RAM-B-408-112-15U HANDLEBAR MNT 1 1/8"-1 1/2"

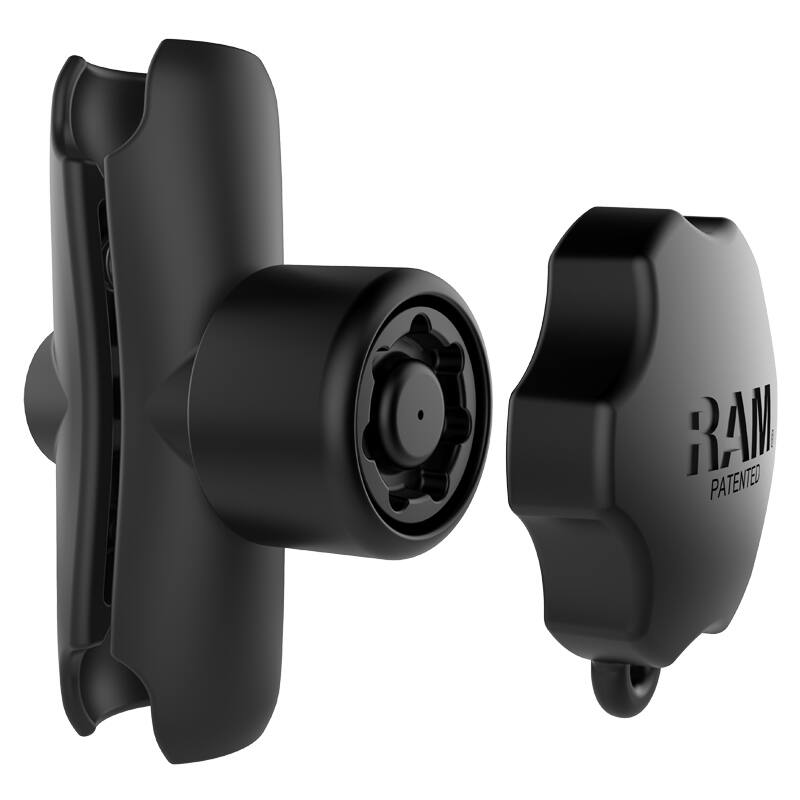

RAM-B-201-SU SEC DBL SOCKET ARM FR 1" BALL

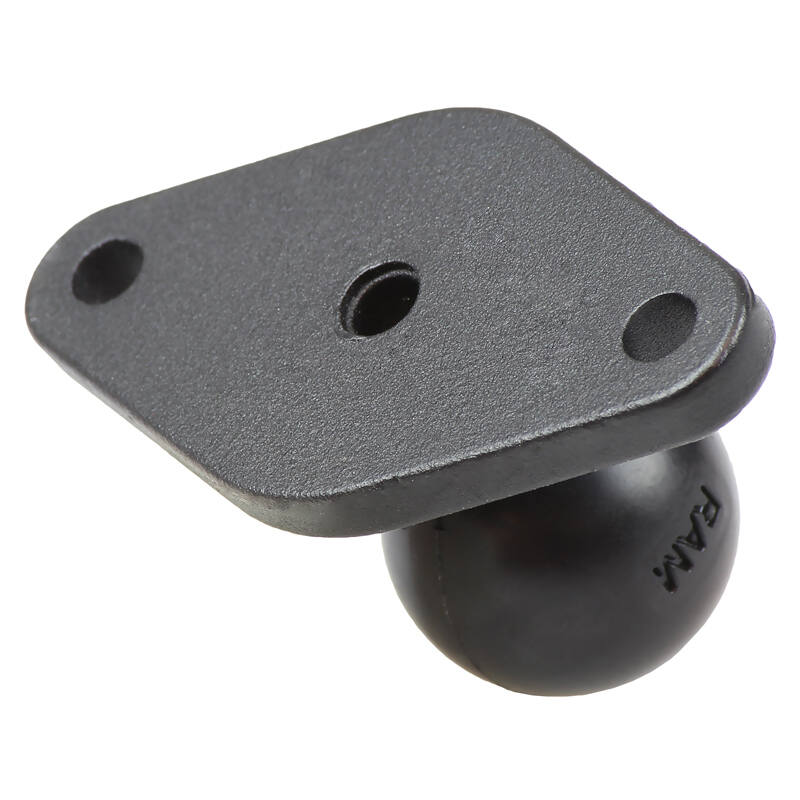

RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL

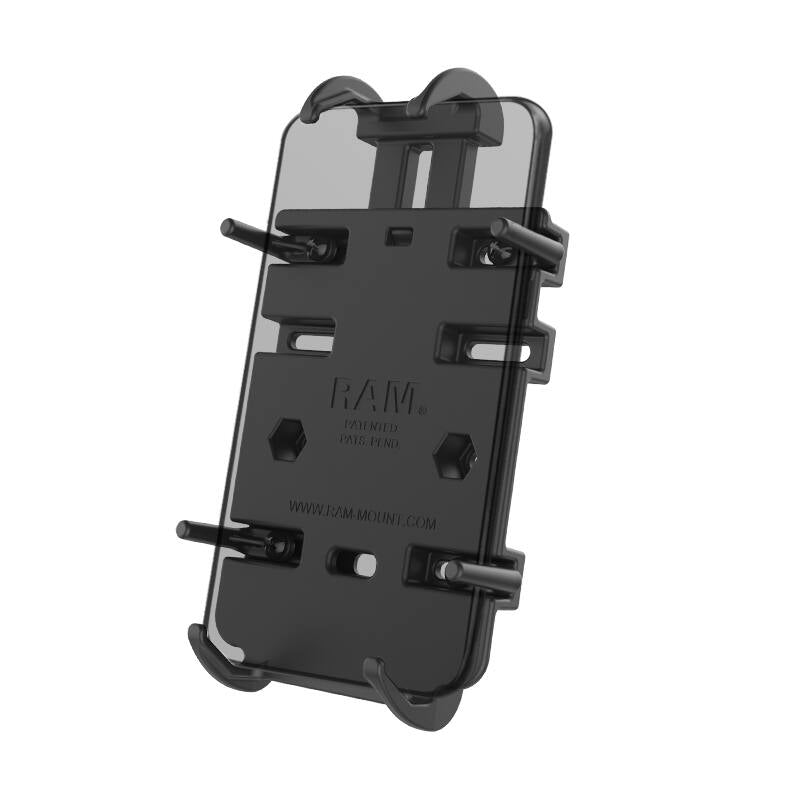

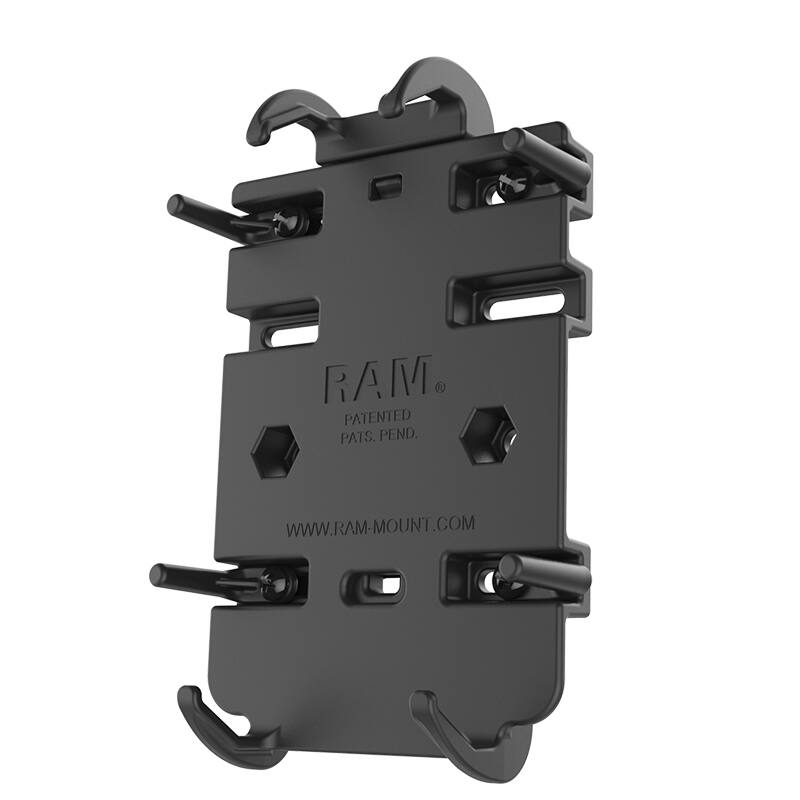

1RAM-HOL-PD3U Quick-Grip Spring Loaded Cradle for Cell Phones
