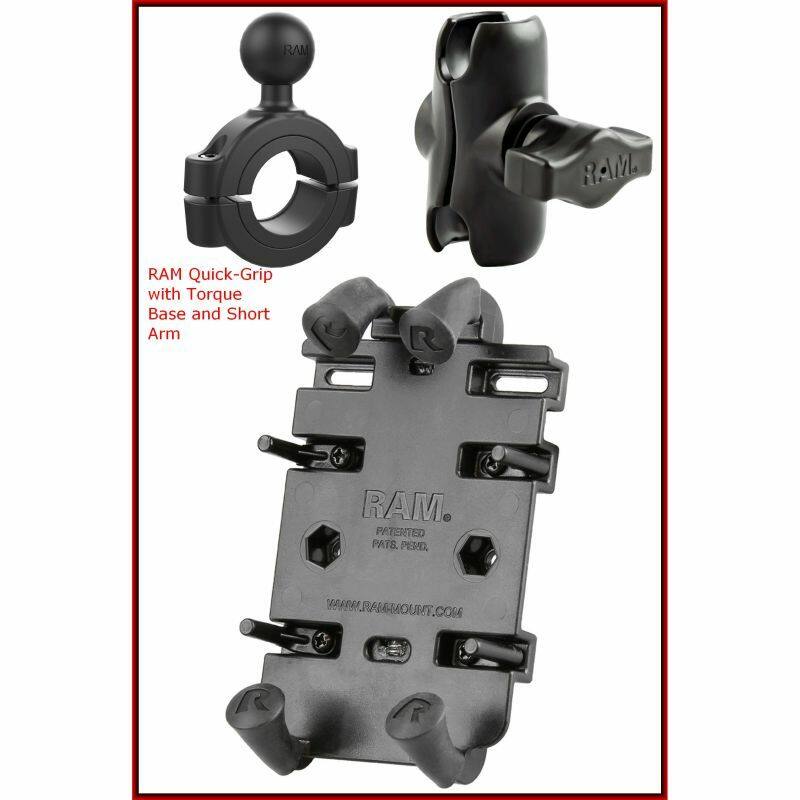

RAM Quick-Grip Universal SmartPhone Cradle - with Torque Base and Short Arm

RAM Quick-Grip Universal SmartPhone Cradle - with Torque Base and Short Arm

SKU:RAM-PD3-408-112-15-A-v

Regular price $135.85 NZD
Regular price Sale price $135.85 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-PD3-408-112-15-A RAM® Quick-Grip™ Holder with Torque Base Handlebar Mount

Features
* Spring-loaded holder features adjustable side supports that provide a secure fit for a variety of phones and other devices

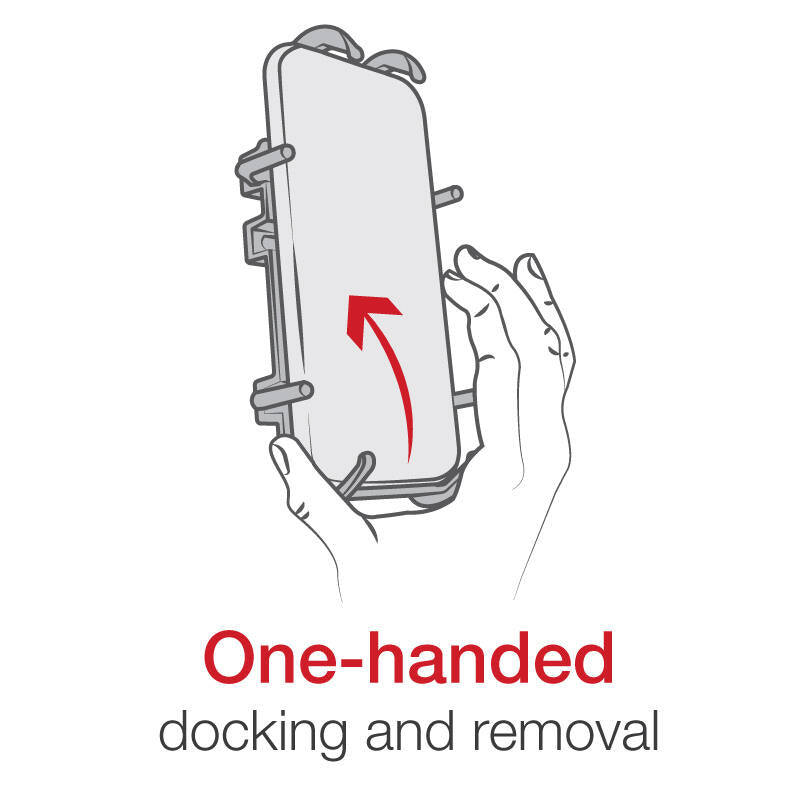

* Easily insert and remove your phone with one hand
* Torque base is low profile and secure base for bars 28.5-38mm diameter
* RAM Double Ball and socket system allows for multiple angles and easy adjustment
* Made of powder-coated, marine-grade aluminium and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

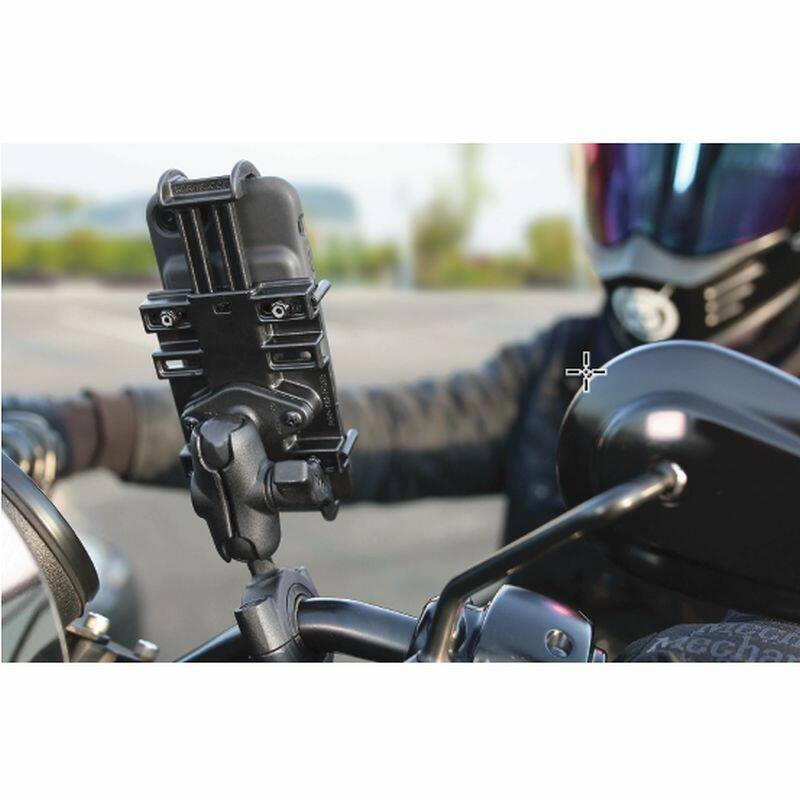

This system cosists of a RAM Torque base, short double socket arm, diamond base and spring loaded cradle for supporting most phones. The double ball and socket design provides adjustment points at both ends of the socket arm with the turn of a single knob, allowing you to set your phone to the optimal viewing position.

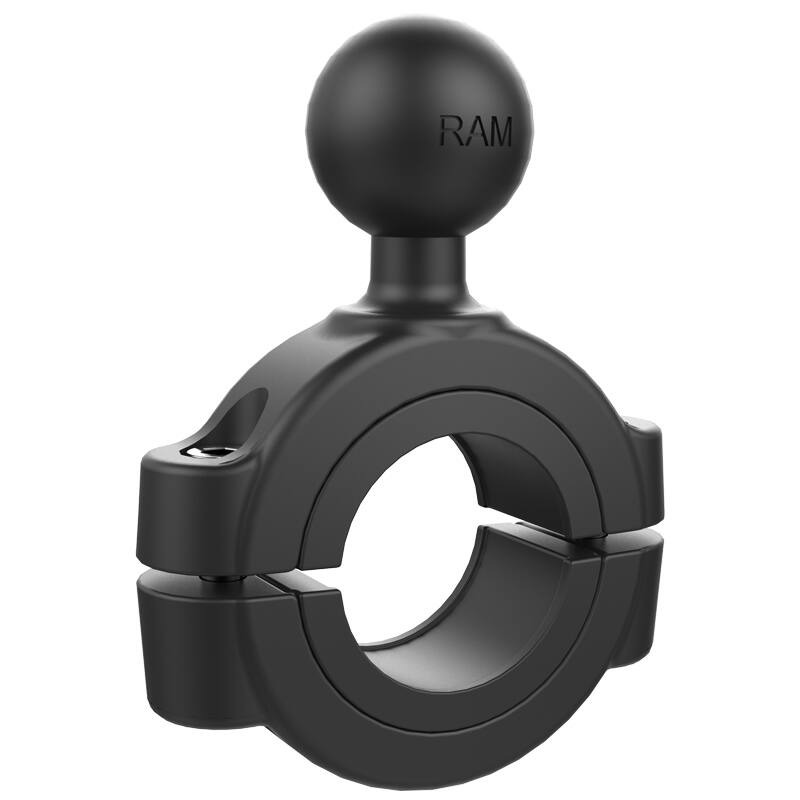

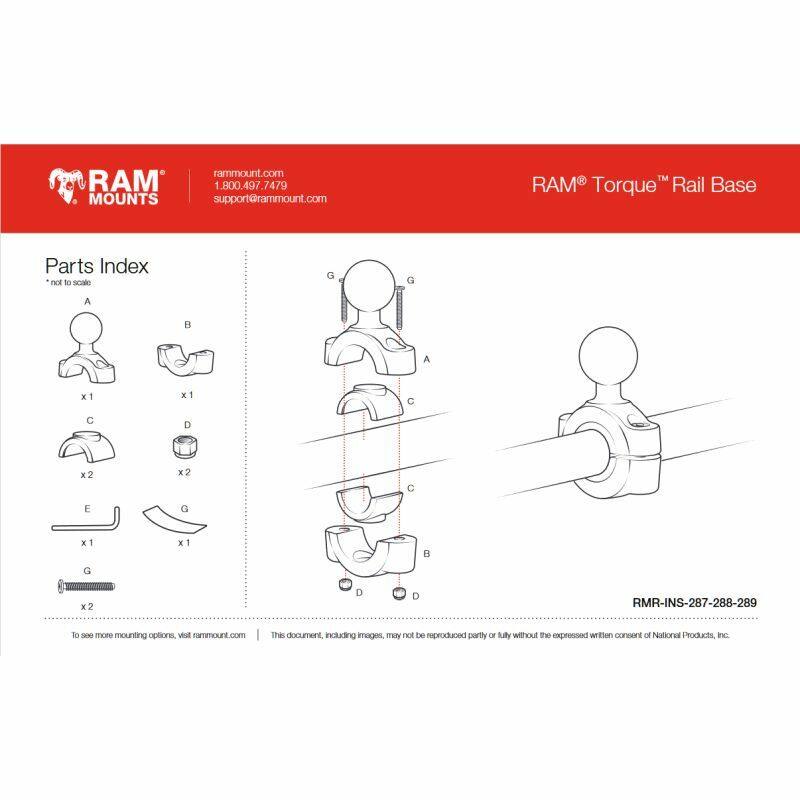

The Torque handlebar and rail mounting base has a 1” rubber ball and accommodates bars 28.5 - 38mm in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments.

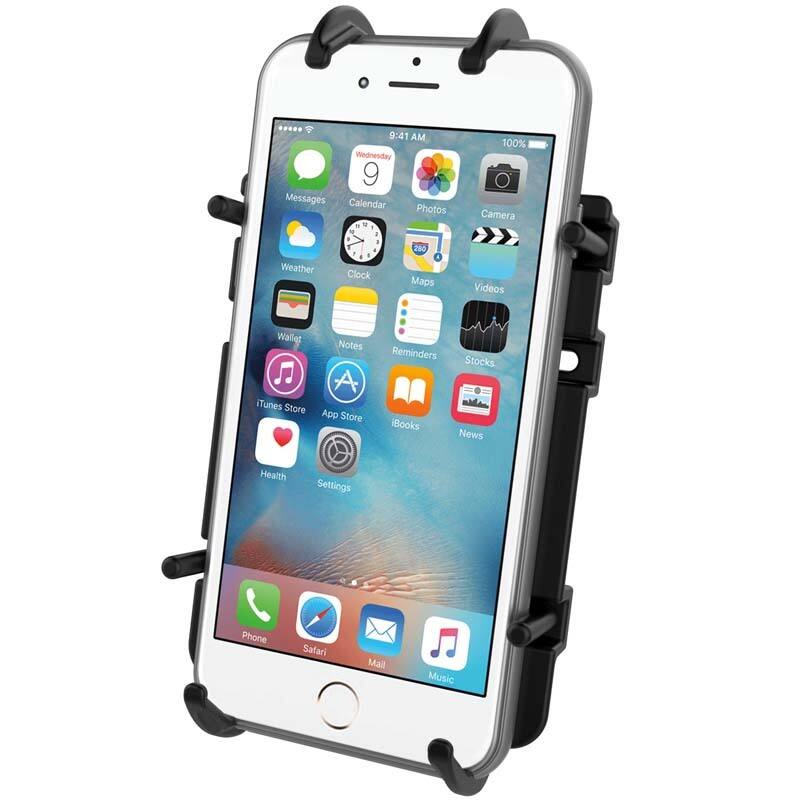

The RAM Quick-Grip™ device mount is capable of holding a broad range of electronic devices. The spring loaded mechanism and the adjustable side keepers allow for a secure grip on your device. Whether it is a cell, GPS, bluetooth speaker or anything that will fit in the dimensions of the cradle, your electronics will be secure.

Compatible with many phones that fit within these dimensions:

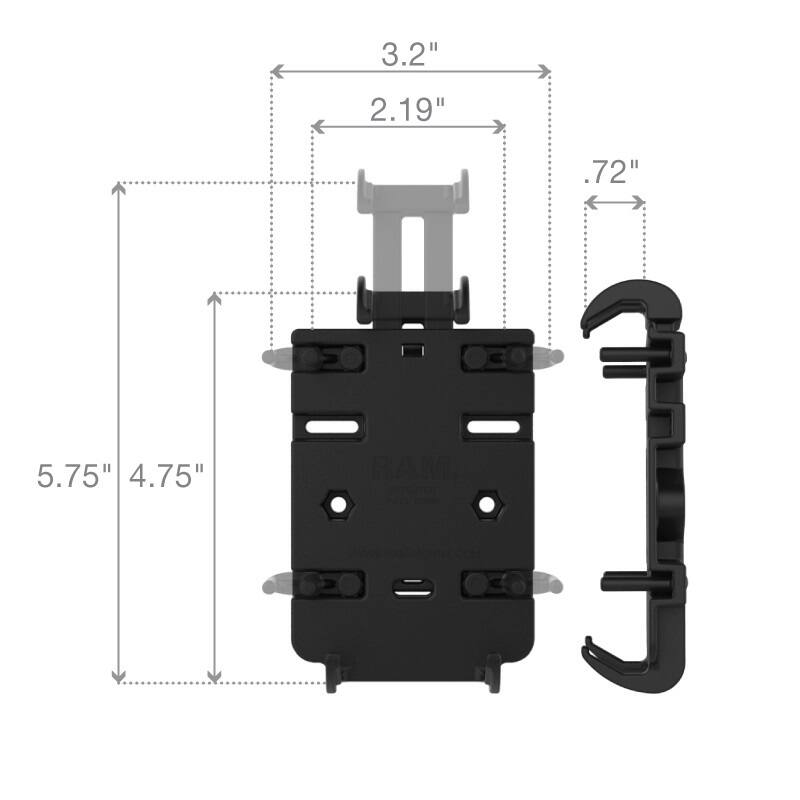

Cradle Clamping Dimensions:
Height Range: 120.7mm to 144.1mm (4.75" - 5.75")
Width Range: 31.8mm to 82.6mm (1.25" - 3.25")
Max Depth: 18.3mm (0.72")


Torque Base Rail Dimensions:
28.5-38mm (1 1/8 to 1.5")


Arm Dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")



Ball Size:
1" Rubber Ball "B" Size

Materials
Powder-coated marine-grade aluminium
High-strength composite


Components

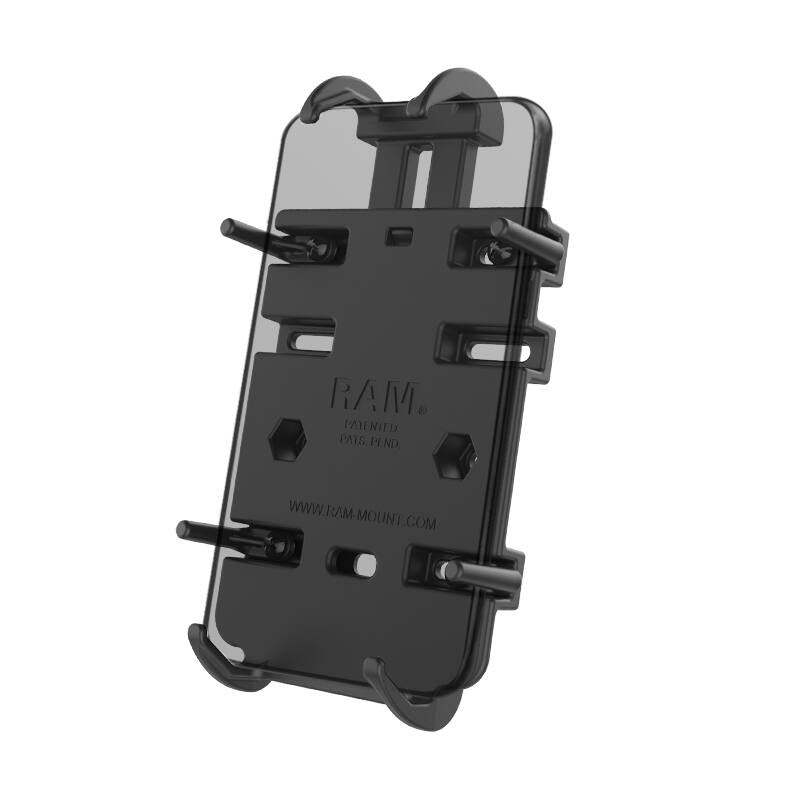

RAM-HOL-PD3U Quick-Grip Spring Loaded Cradle for Cell Phones
RAM-B-408-112-15U Torque Base
RAM-B-238U 63mm Diamond BASE W/ BALL
RAM-B-201U-A Short DOUBLE SOCKET ARM FOR 1" BALL
