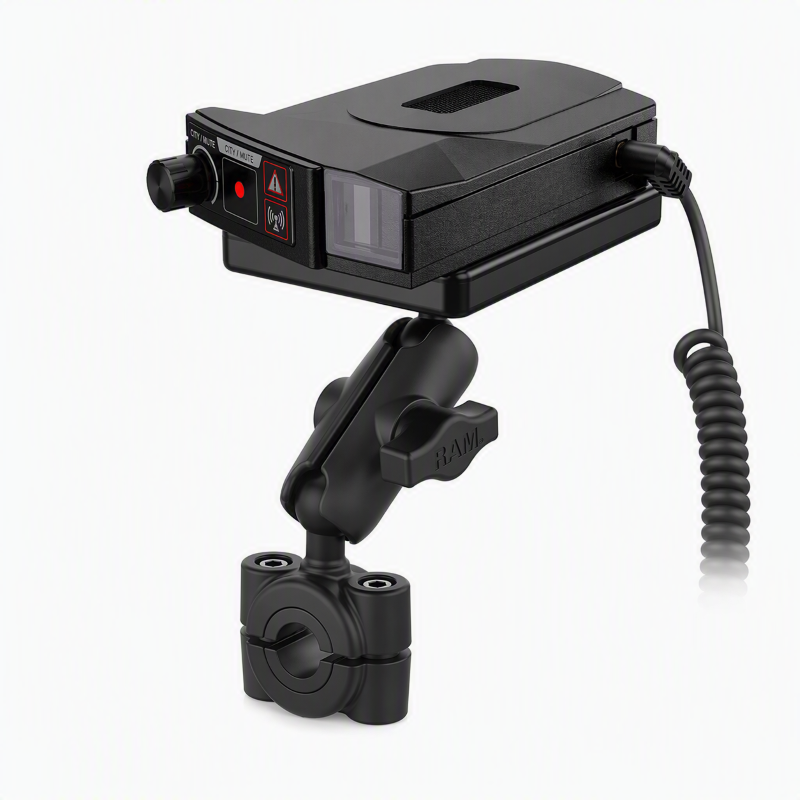

RAM-B-300-408-47-62U-v RAM® Power Plate™ III radar detector mount with mini bar Torque Base - short arm
Features
* Designed to hold a range of devices including radar detectors; rectangular metal plate attaches to the back of your device
* Magnetic plate features adhesive, two powerful magnets, and cradle
* RAM® Torque™ handlebar and rail mounting base accommodates small bars 9.5 to 15.5mm such as mirror posts
* RAM® short alloy arm incorporates ball and socket technology for multiple viewing angles
* Made of Marine Grade Aluminium Alloy and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Thi is an all in one solution for your Radar Detector to mount on your mirror post.

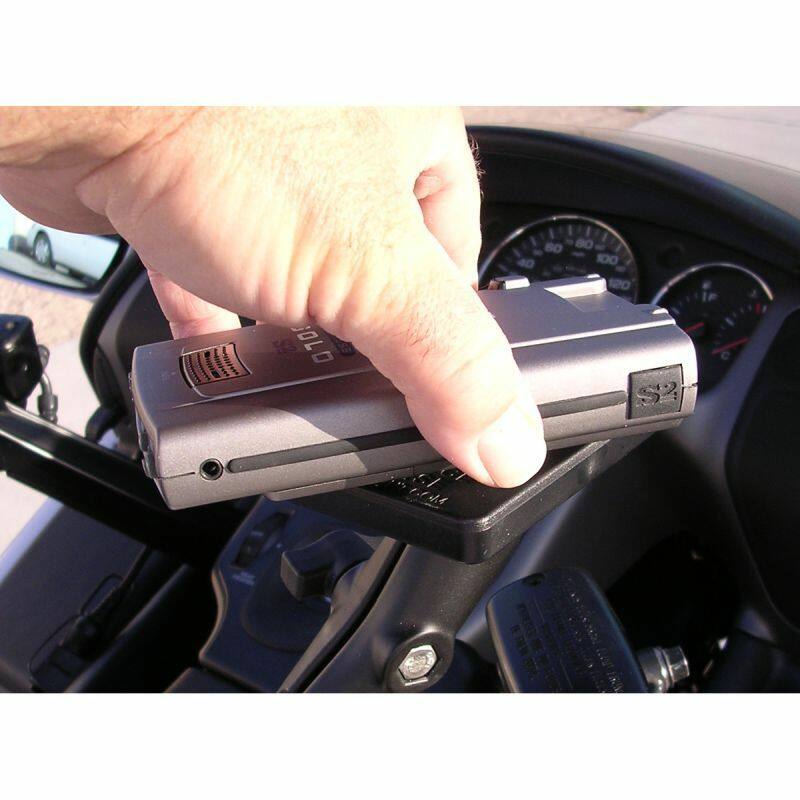

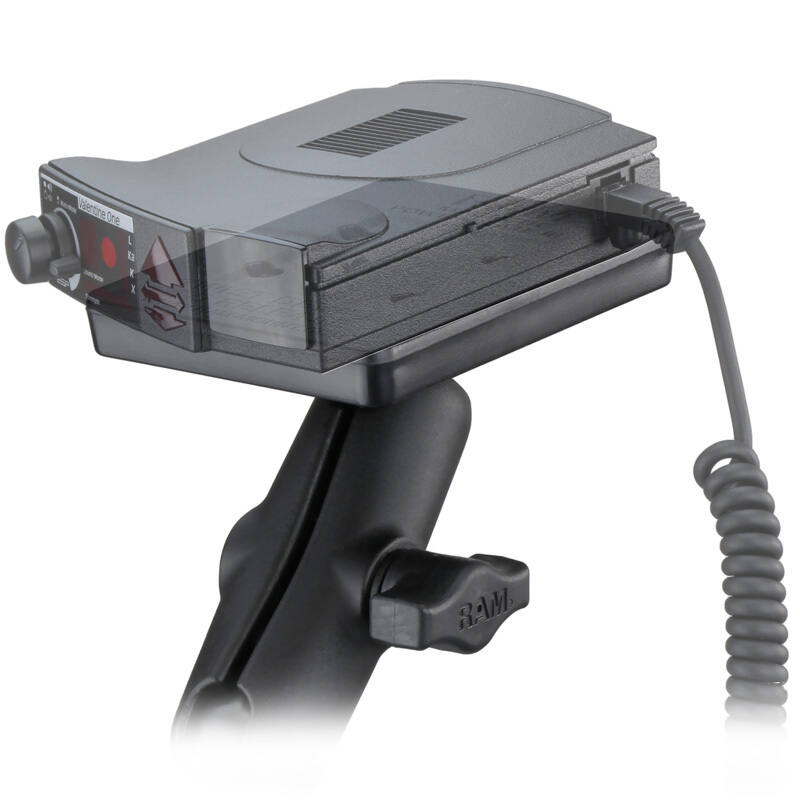

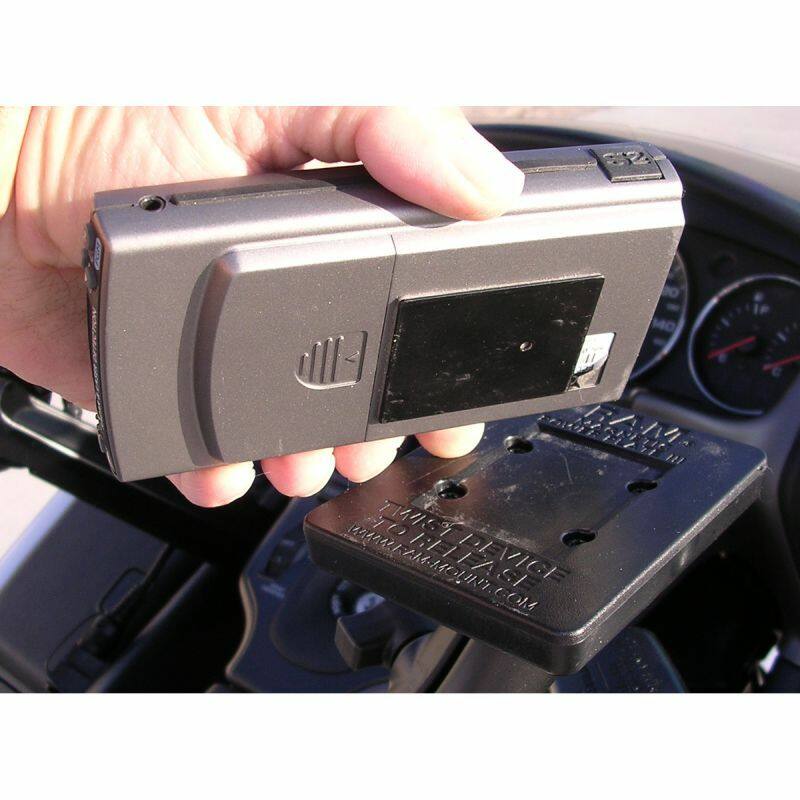

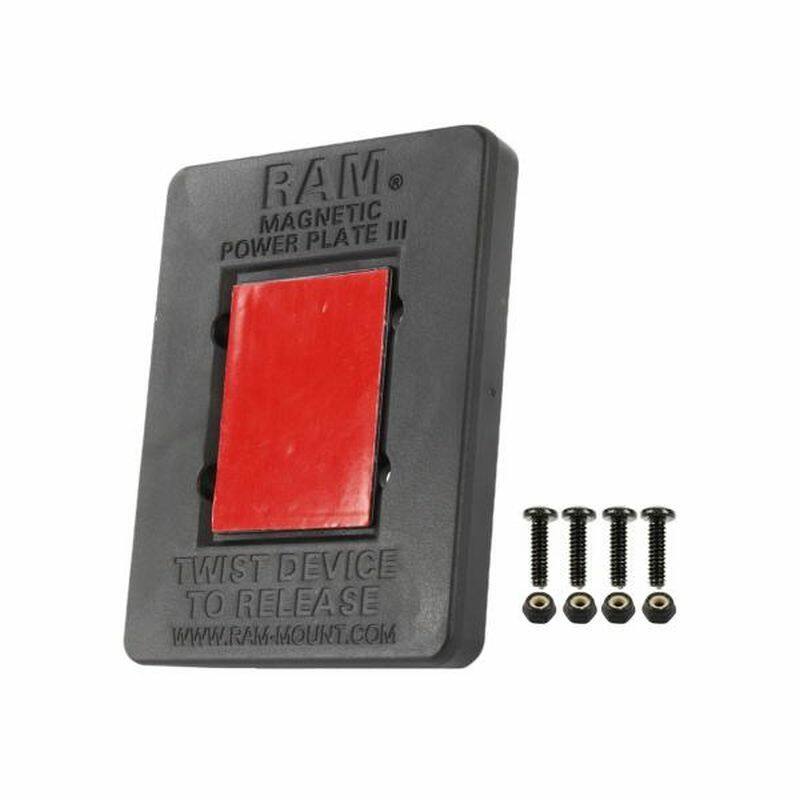

The RAM Magnetic Power Plate™ III, is designed to hold various devices including radar detectors and cellphones. The magnetic plate includes two powerful rare earth magnets, composite cradle and one adhesive metal plate. To mount your device to the magnet, you will need to attach the metal plate to the back of you device. Includes a rectangular 50mm x 38mm x 0.08mm thick metal plate with adhesive back.

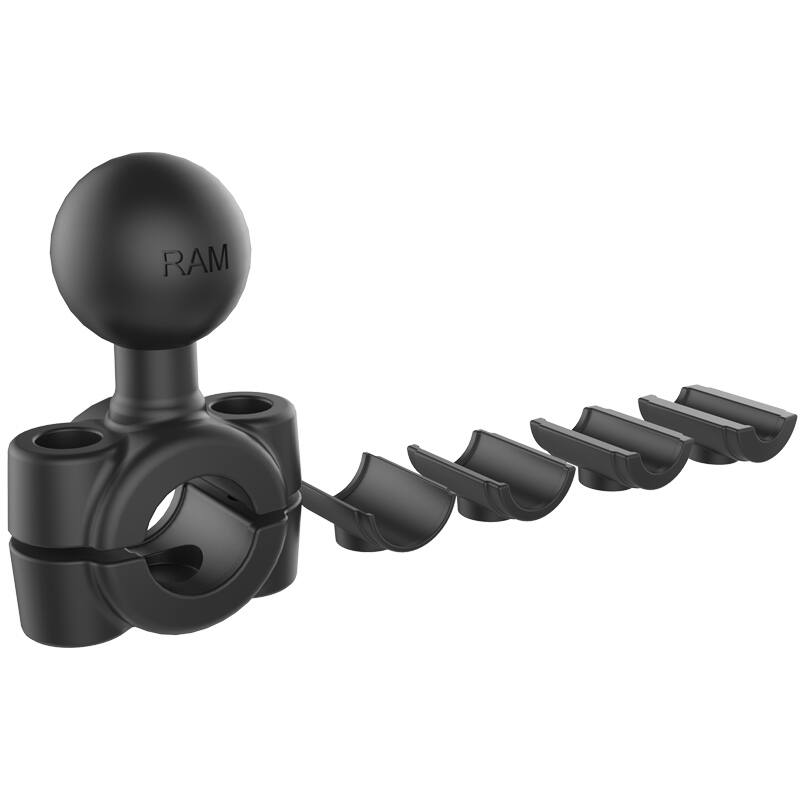

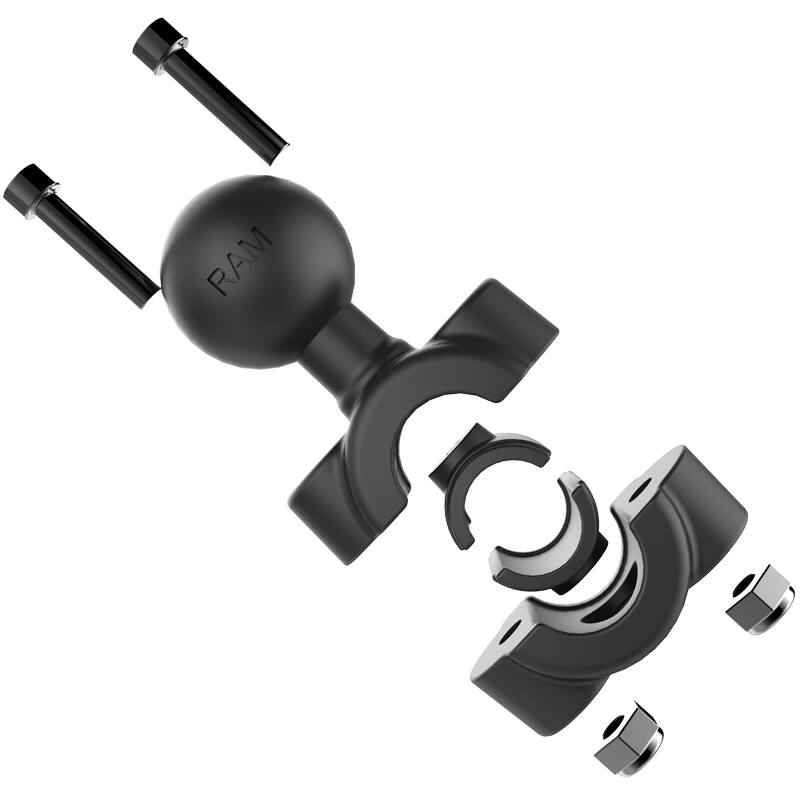

The Base is a RAM® Torque™ mini rail mounting base which has a 1” rubber ball and accommodates bars 9.5 to 15.5mm (3/8” to ⅝”) in diameter. Sizing inserts are included to provide a snug fit and protection of the rail. Sizing inserts are included to provide a snug fit and protection of the rail. The mount utilizes nylon-insert locknuts to prevent loosening in high vibration environments.
A SHORT (60mm) double socket arm and round base connect the Power Plate to the Torque Base.
Compatibility:
Any Radar Detector with 102mm x 76mm (4" x 3") Bottom Flat Surface Area
Including
Beltronics
GT-7
Cobra
ESD 7570
Escort
iX
Max 360
Passport S55
Solo S4
Radenso
XP
Uniden
R3
Valentine
One V1

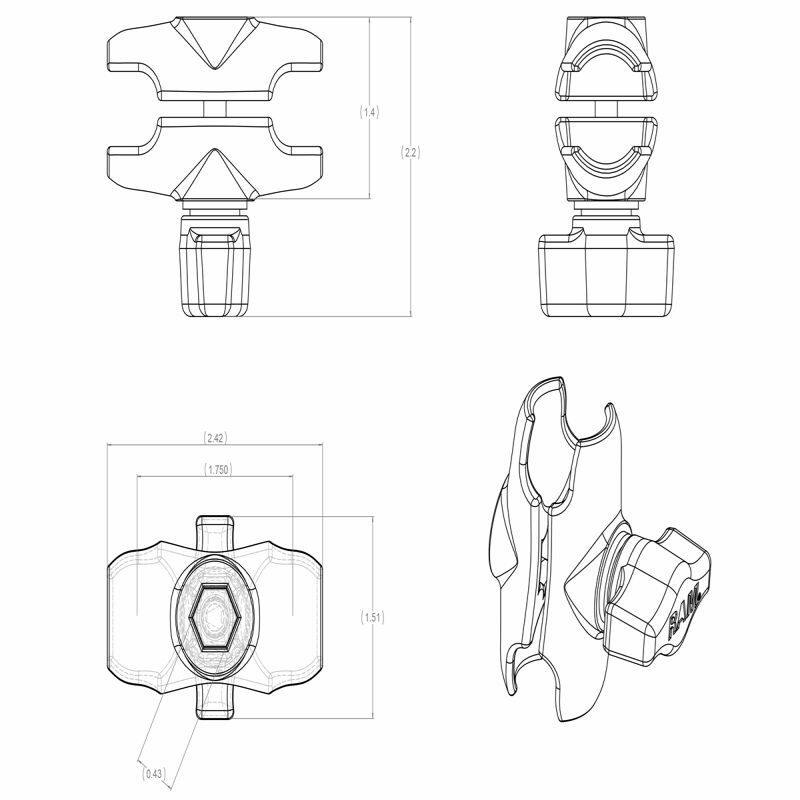

Arm dimensions:
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")
Torque Base Dimensions:
Rails 9.5 - 15.5mm (0.375" to 0.625") diameter.
Materials
Marine Grade Aluminium Alloy
High-strength composites

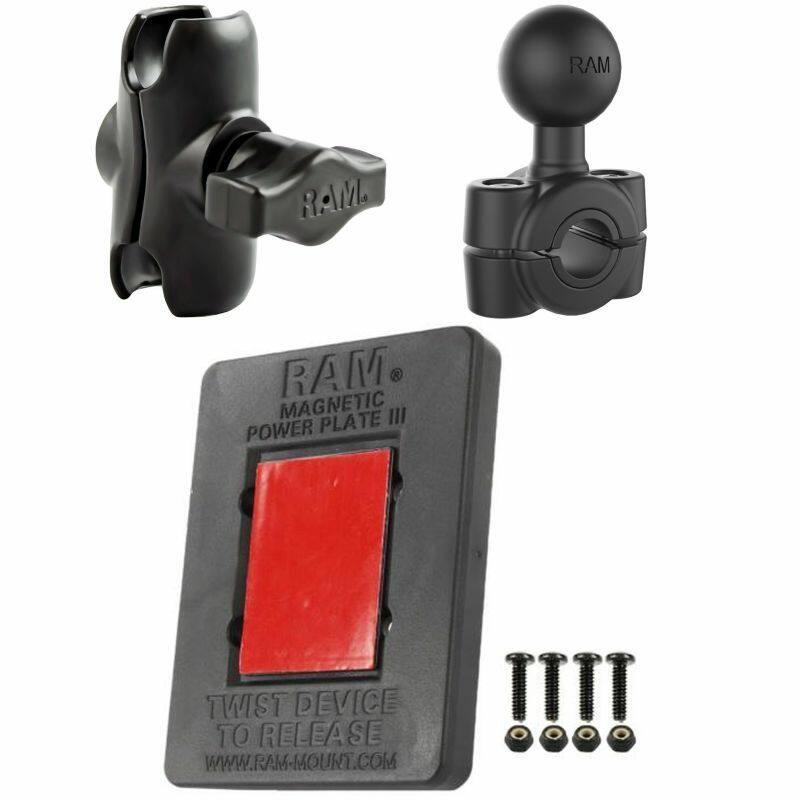

Components:
RAP-300-1U POWER PLATE III for RADAR DETECTORS

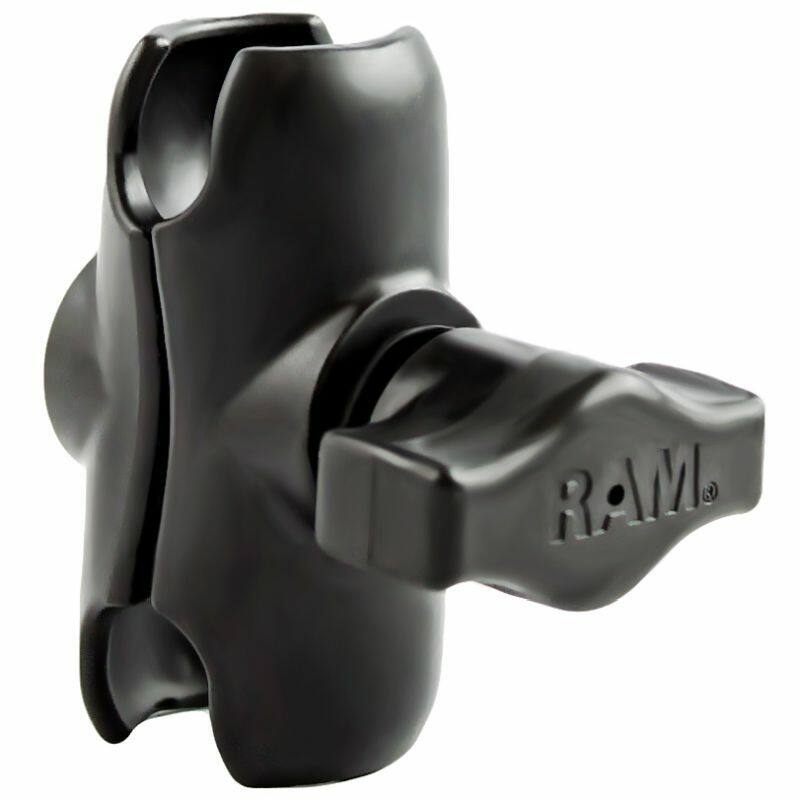

RAM-B-201U-A SHORT DOUBLE SOCKET ARM

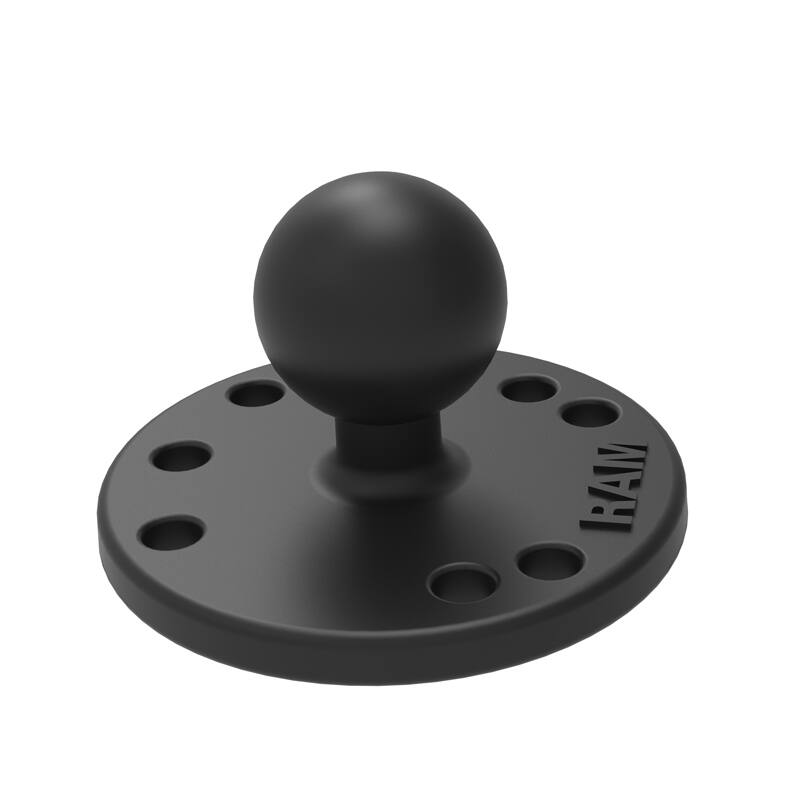

RAM-B-202U ROUND BASE With 1" ball

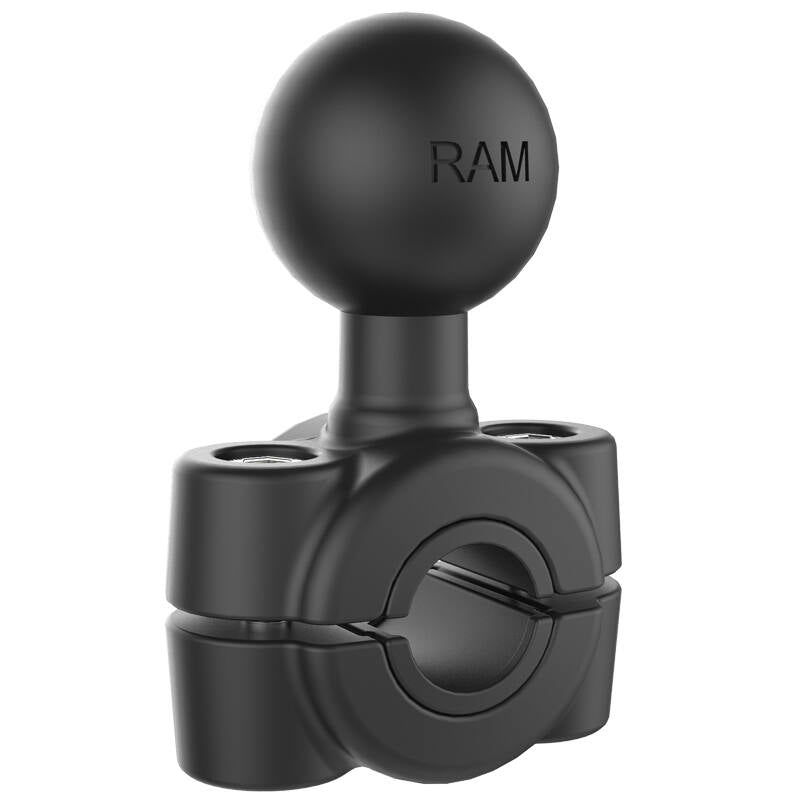

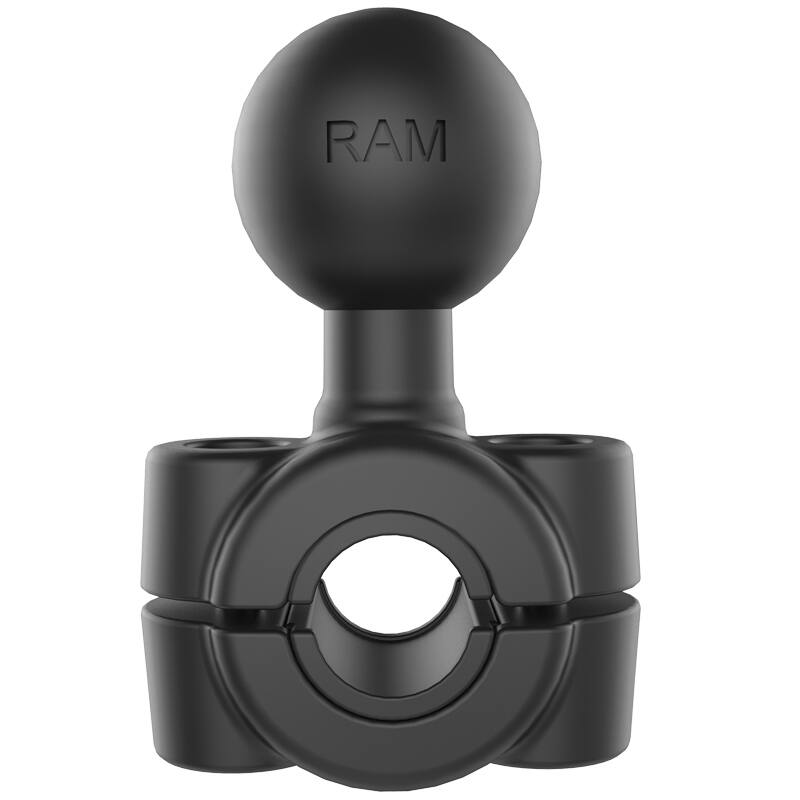

RAM-B-408-37-62U Mini Rail Mount with Ball
