RAM Mounts

RAM Radar Detector Mount - Power Plate with Brake Clutch Reservoir / U-Bolt Base

RAM Radar Detector Mount - Power Plate with Brake Clutch Reservoir / U-Bolt Base

SKU:RAM-B-174-300-1U-v

Regular price $99.95 NZD
Regular price Sale price $99.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

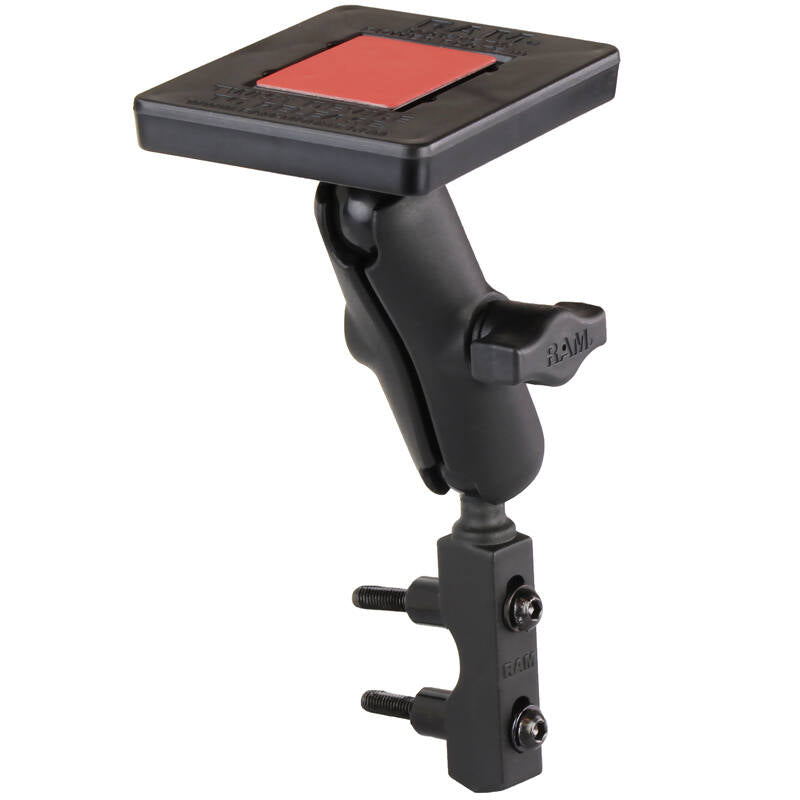

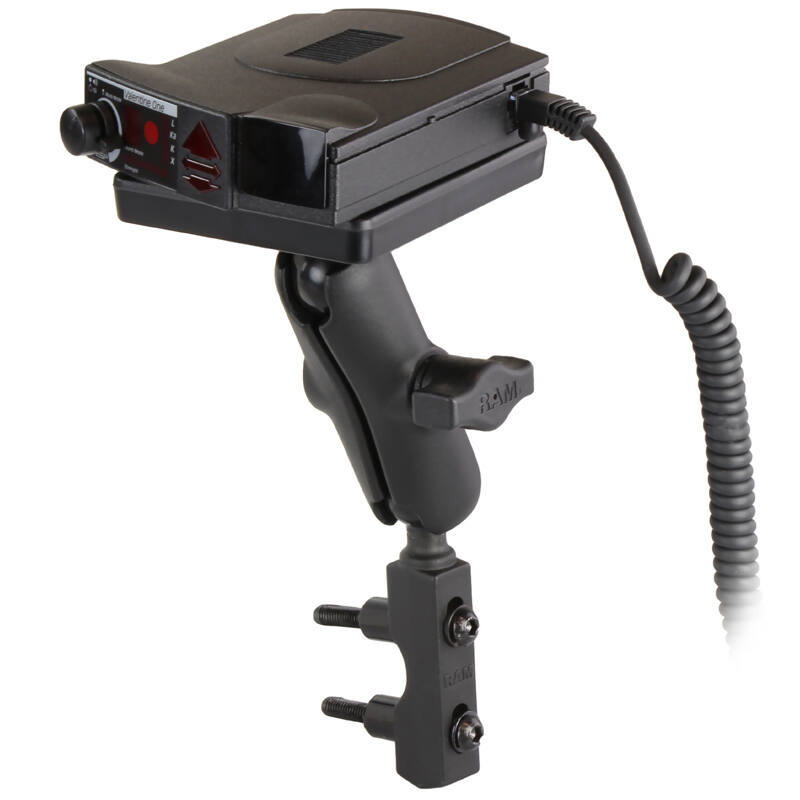

RAM-B-174-300-1U RAM Brake/Clutch Reservoir Mount with Power Plate™ III Radar Detector Holder

Features

* Designed to hold a range of devices including radar detectors; rectangular metal plate attaches to the back of your device
* Magnetic plate features adhesive, two powerful magnets, and cradle
* RAM Brake/Clutch reservoir base and U-Bolt handlebar base included
* Made of high-strength composites and Powder Coated Marine Grade Aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

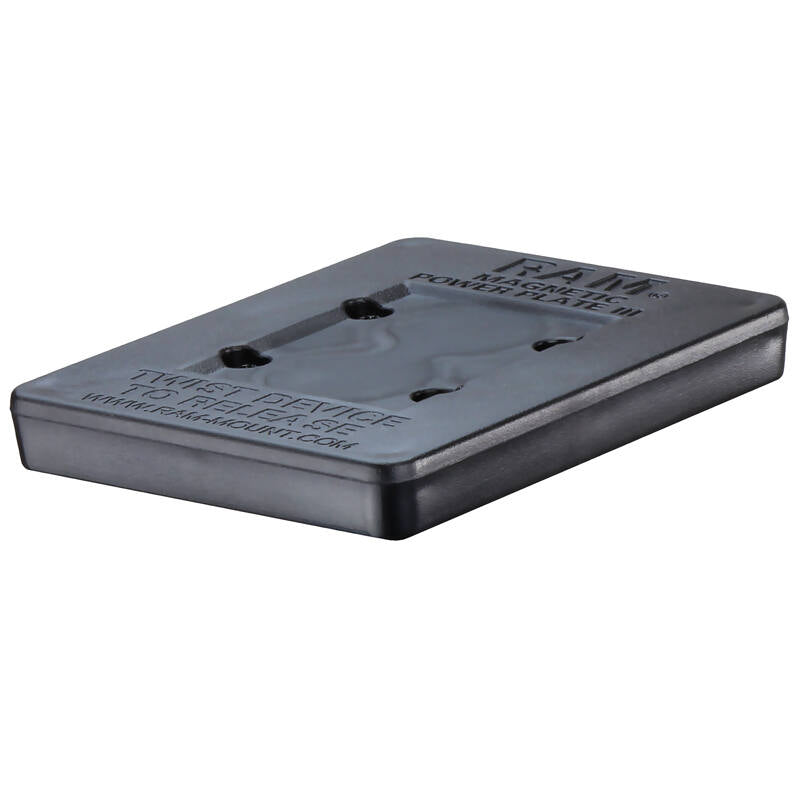

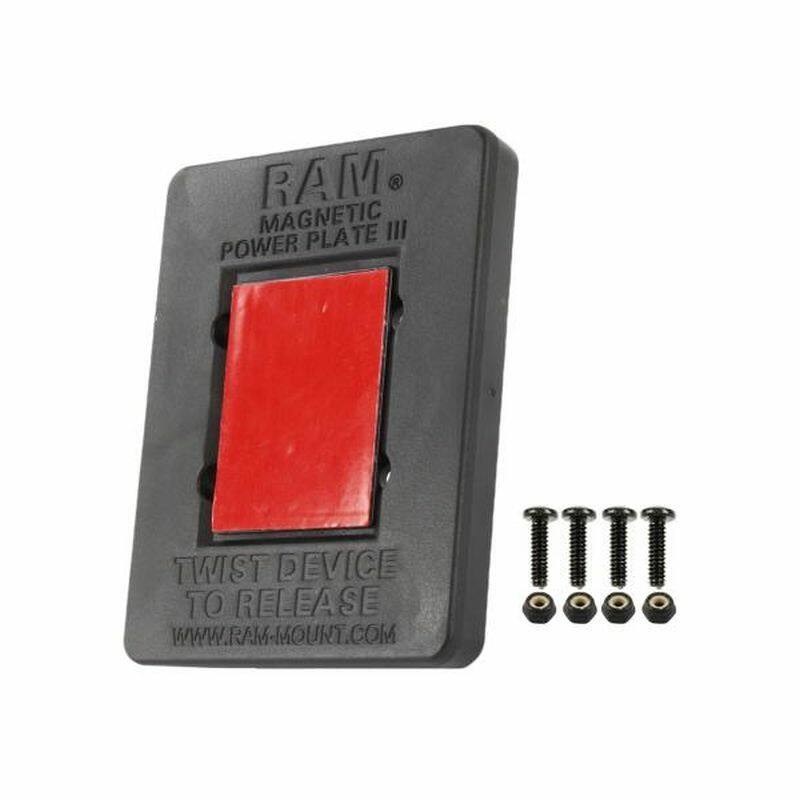

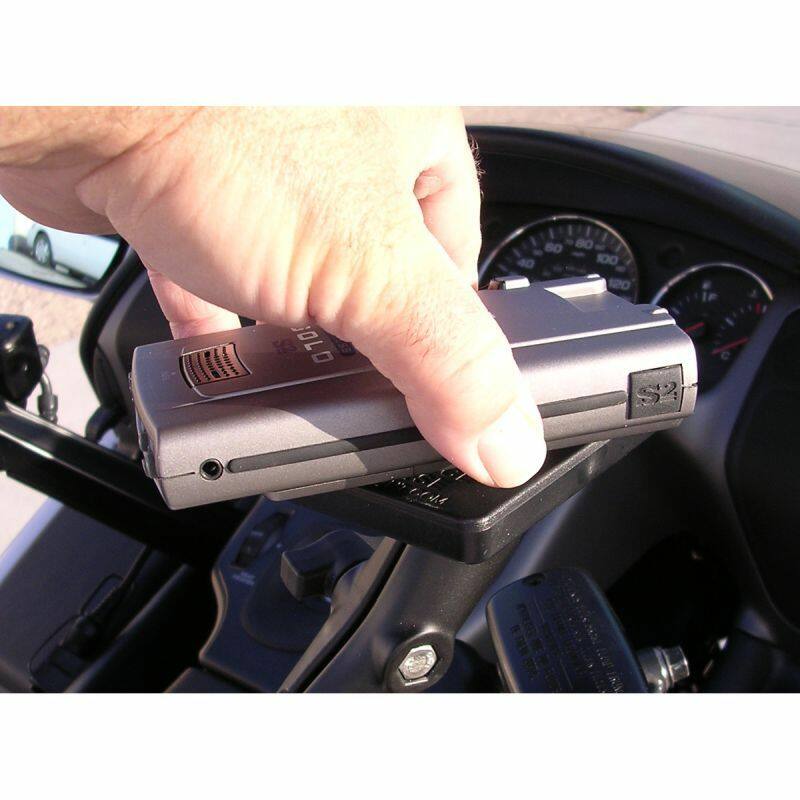

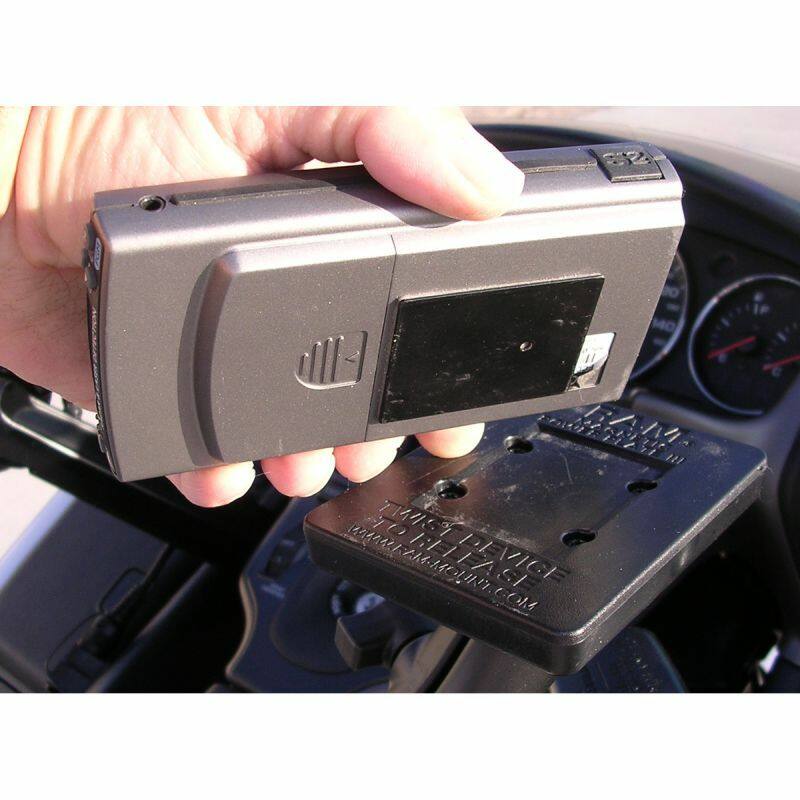

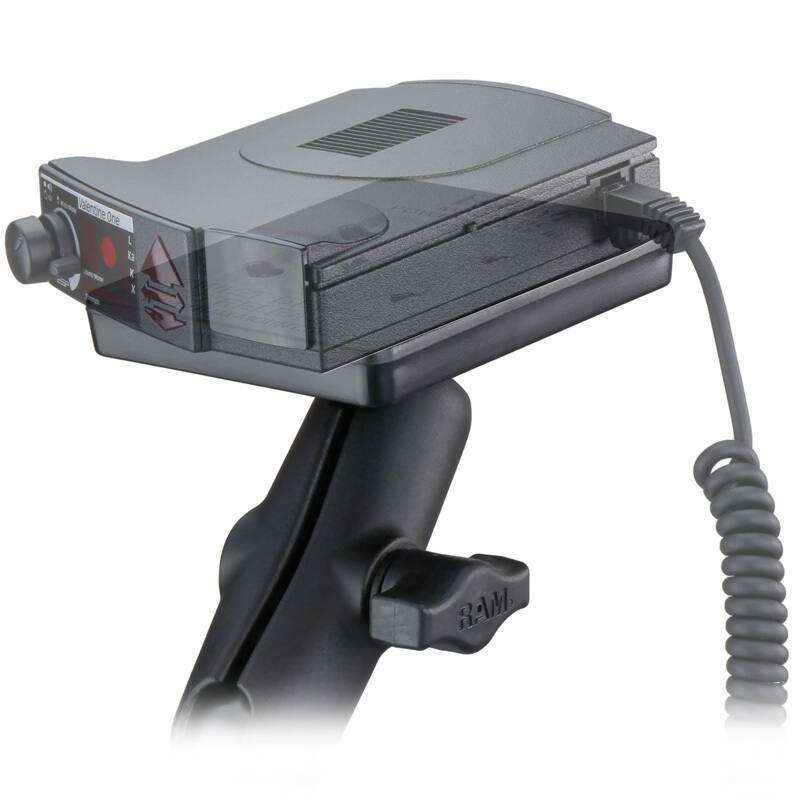

The RAM Magnetic Power Plate™ III includes two powerful rare earth magnets, composite cradle and one adhesive steel plate. To mount your device to the magnet, simply adhere the steel plate to the back of you device and lock up against the holder. This holder includes a quick-release function, where the device conveniently can be removed by twisting out of the holder in one easy motion.

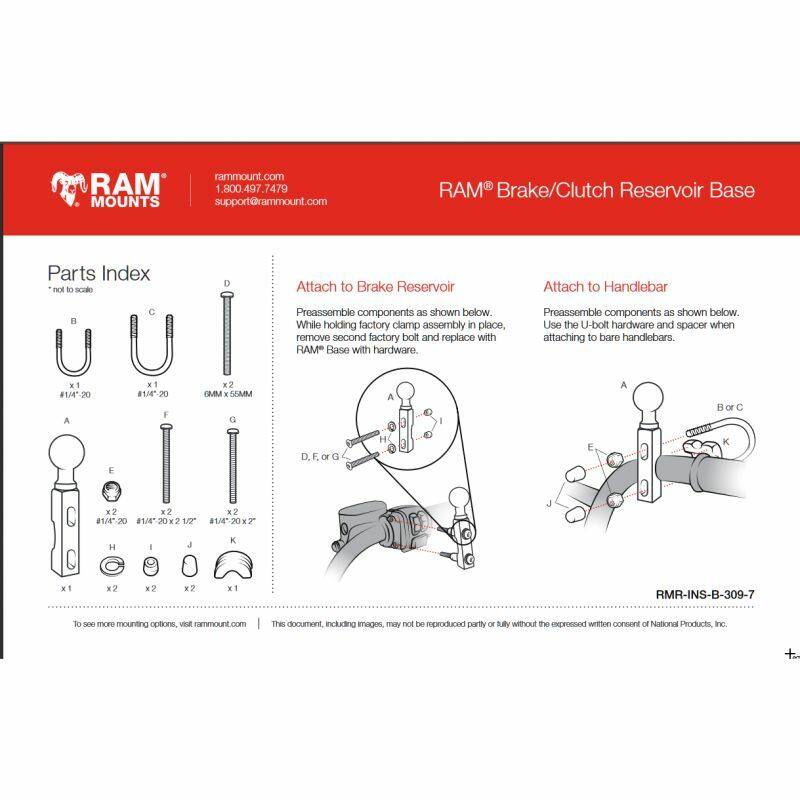

The base allows you to mount to either your handlebar or brake/clutch reservoir and includes both standard and metric stainless steel mounting bolts to replace the factory bolts on your bike. The patented double ball and socket design provides infinite adjust-ability, so you can articulate your radar detector to the perfect viewing and operating angle. The rubber ball components provide shock and vibration dampening, making this mount suitable for any rugged environment.

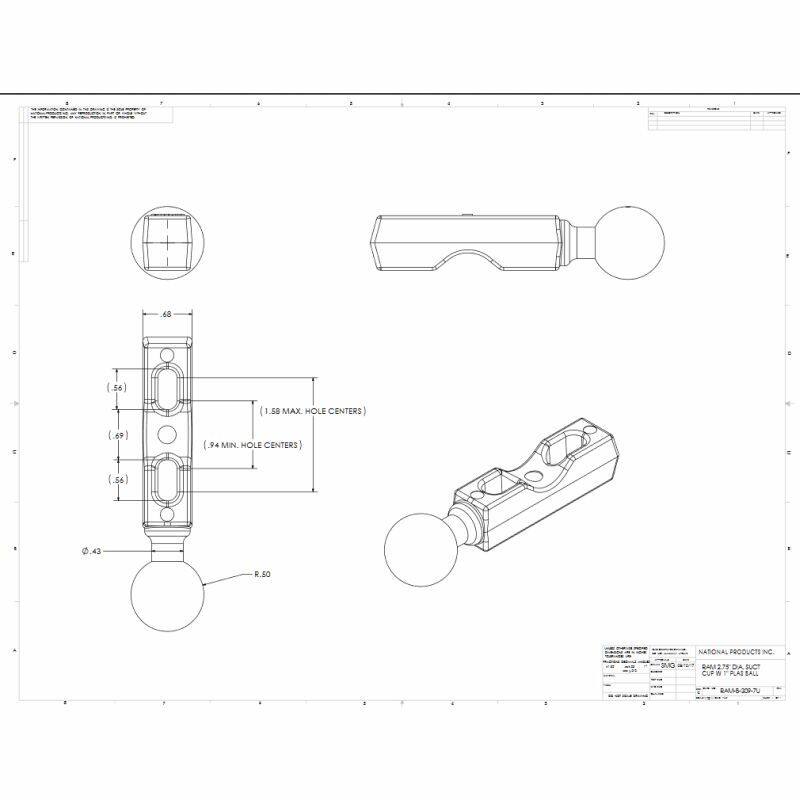

To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The hole centres have a minimum width of 0.94" (23.8mm) and a maximum of 1.58" (40.1mm).


If you want to go straight onto the handlebars the zinc coated metal U-bolt accommodates rails from 12.7 to 31.7mm in diameter.

Compatibility:

Any Radar Detector with 102mm x 76mm (4" x 3") Bottom Flat Surface Area

Including

Beltronics
GT-7

Cobra
ESD 7570

Escort
iX
Max 360
Passport S55
Solo S4

Radenso
XP

Uniden
R3

Valentine
One V1


Arm dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")

U-Bolt Dimensions
12.7 to 31.75mm (0.5 to 1.25") diameter


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
1" "B" Size


Components:

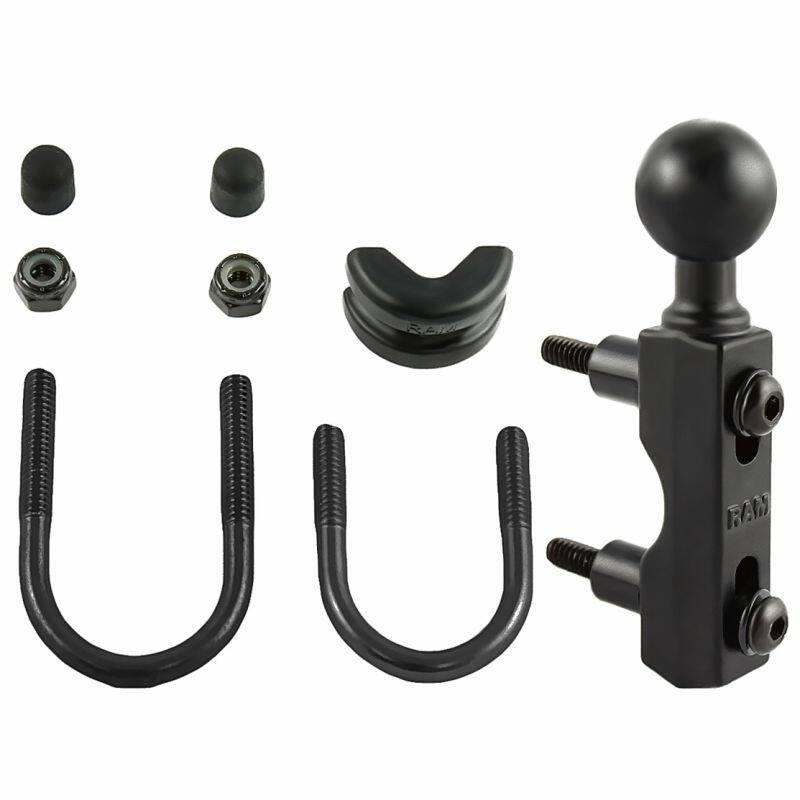

RAM-B-309-7U BRAKE/CLUTCH RESERVOIR & U-BOLT MOUNT COMBO
RAP-300-1U POWER PLATE III

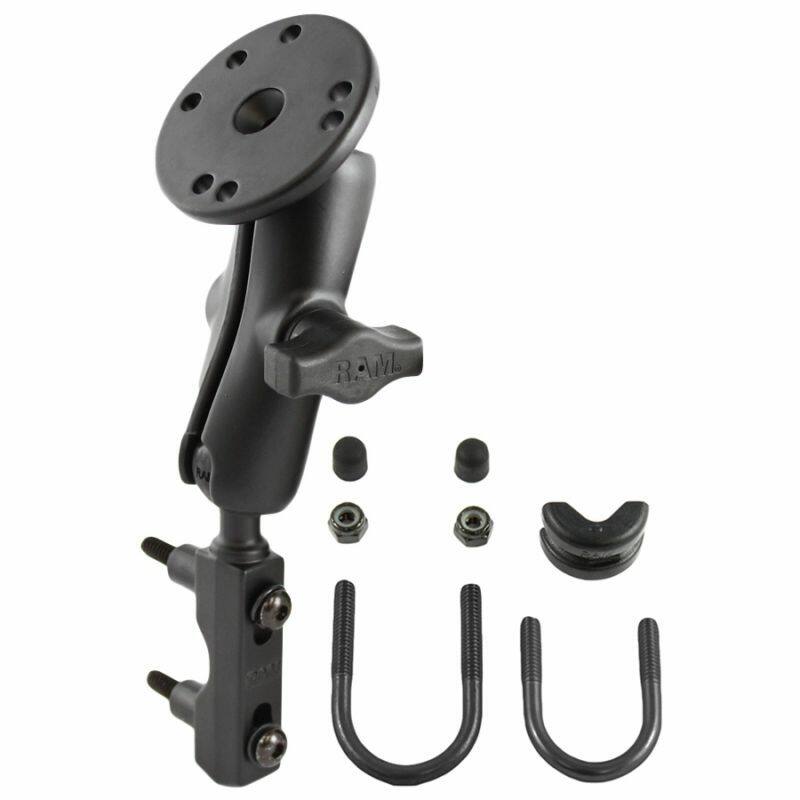

RAM-B-202U 62mm DIA.BASE WITH 1" BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
