RAM Radar Detector Mount - Suction Cup Base - Medium Arm

RAM Radar Detector Mount - Suction Cup Base - Medium Arm

SKU:RAM-B-166-300U-v

Regular price $132.05 NZD
Regular price Sale price $132.05 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

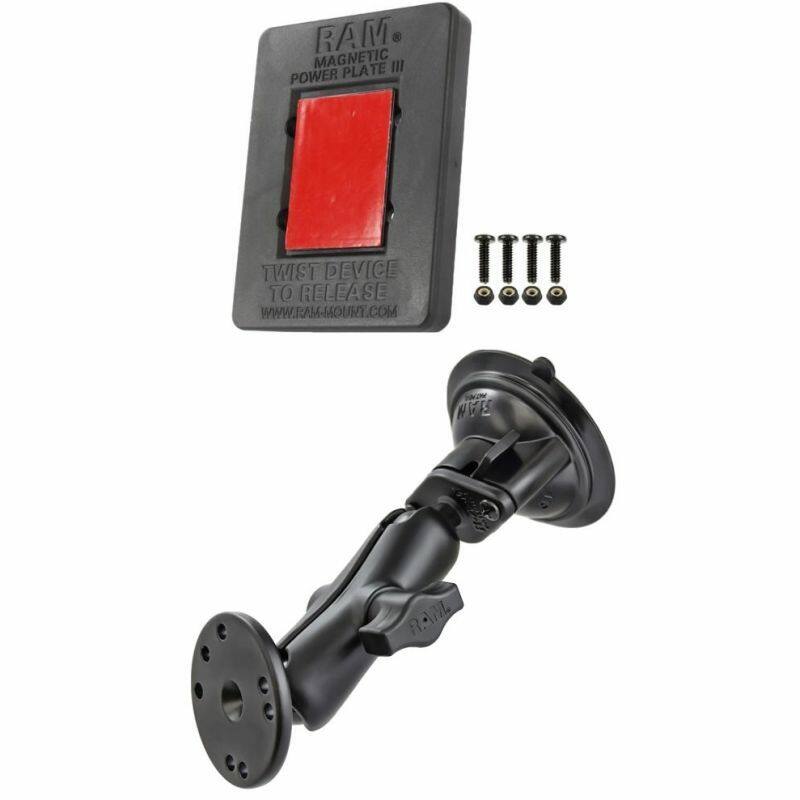

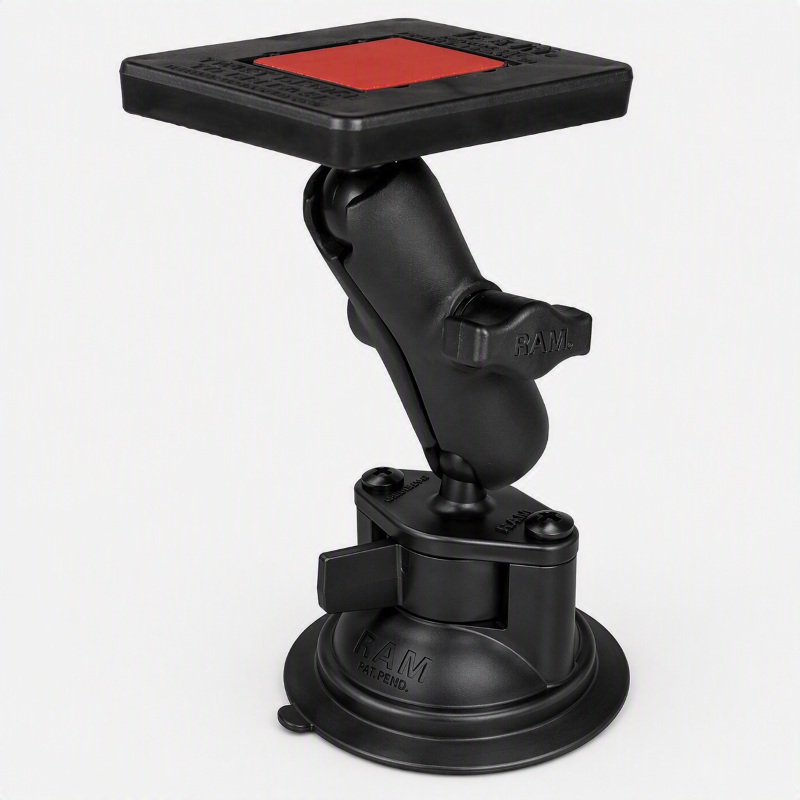

RAM-B-166-300U RAM Radar Detector Plate with a Twist Lock Suction Cup with Double Socket Arm

Features

* Designed to hold a range of devices including radar detectors; rectangular metal plate attaches to the back of your device
* Magnetic plate features adhesive, two powerful magnets, and cradle
* Includes RAM suction mount base which will mount securely to windshields or other flat non porous surfaces
* Made of high-strength composites and Powder Coated Marine Grade Aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

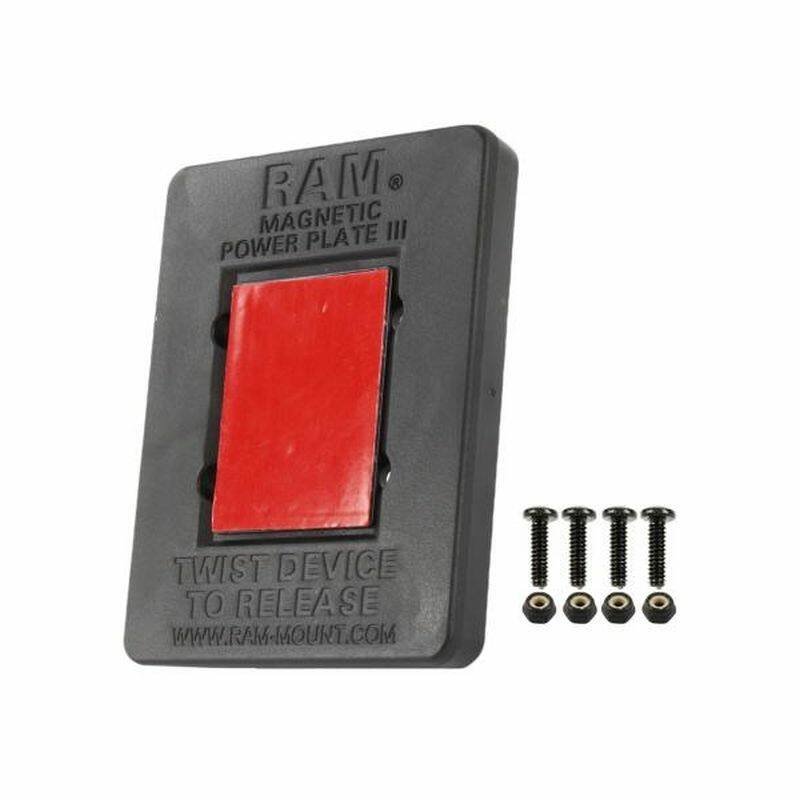

The RAM® Power Plate™ III Universal Magnetic Holder is designed to hold various devices including radar detectors and cellphones. It is larger than the RAP-300U Power Plate II so can hold larger devices. The magnetic plate includes two powerful rare earth magnets, composite cradle and one adhesive metal plate. To mount your device to the magnet, attach the metal plate to the back of your device. Includes a rectangular 50mm x 38mm x 0.08mm thick metal plate with adhesive back. Overall Plate Size is 79.5mm x 101.6mm (3.13" x 4")

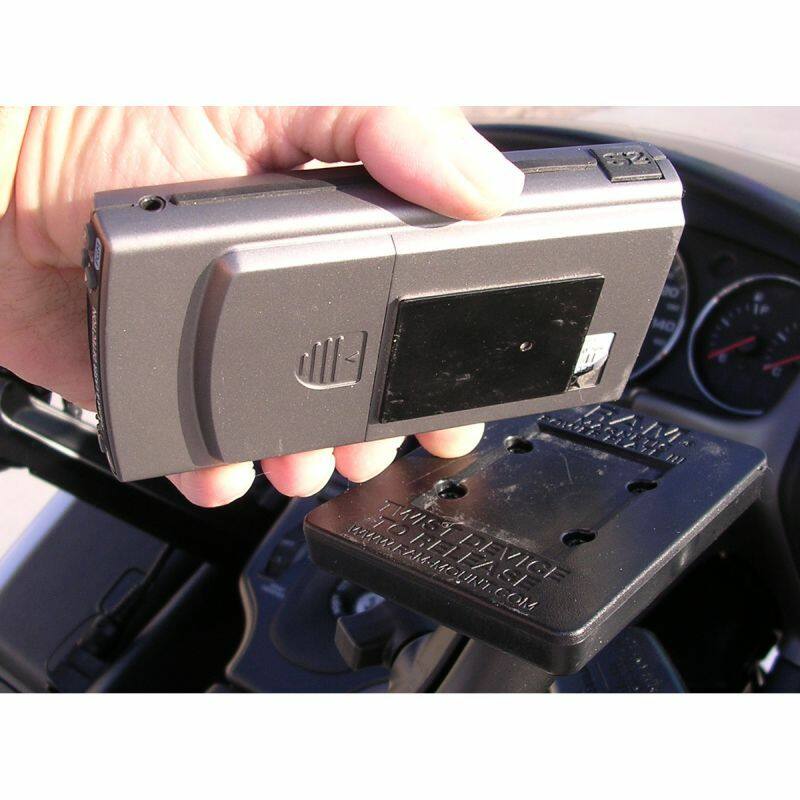

To separate the device from the base plate just twist - so you can easily remove the detector while parked.

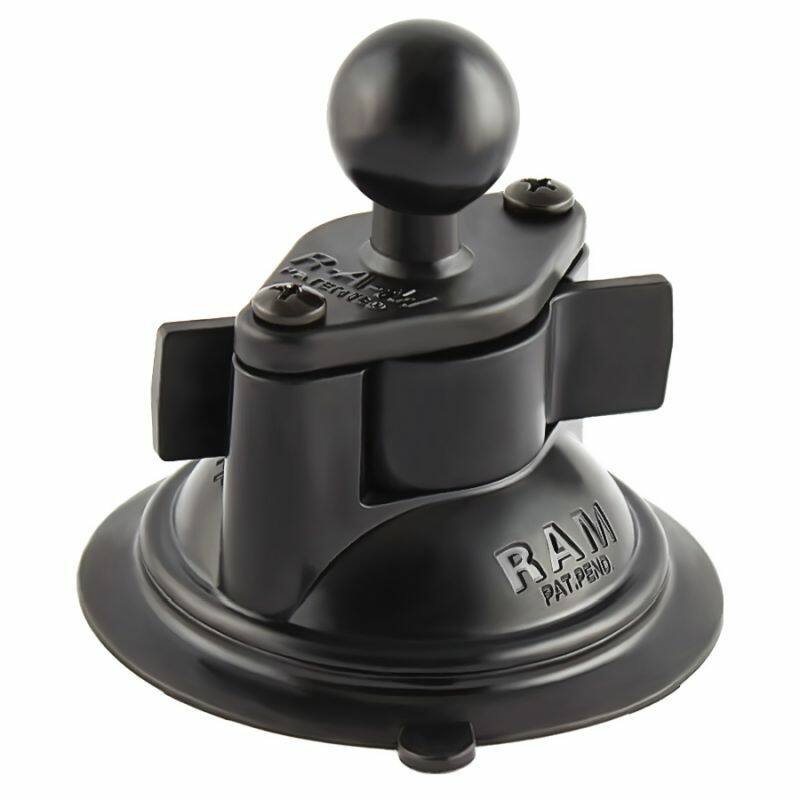

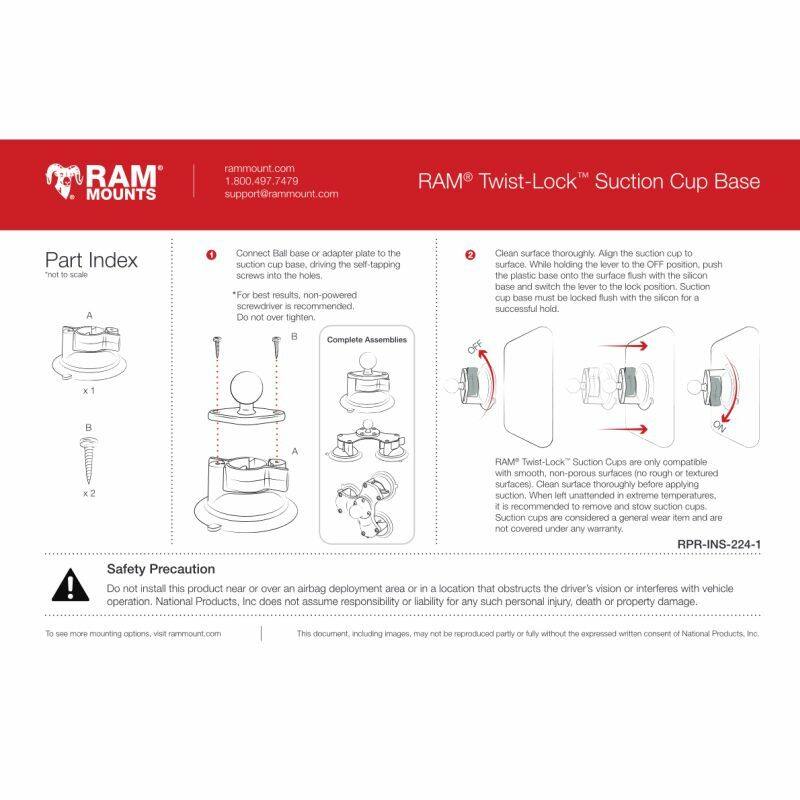

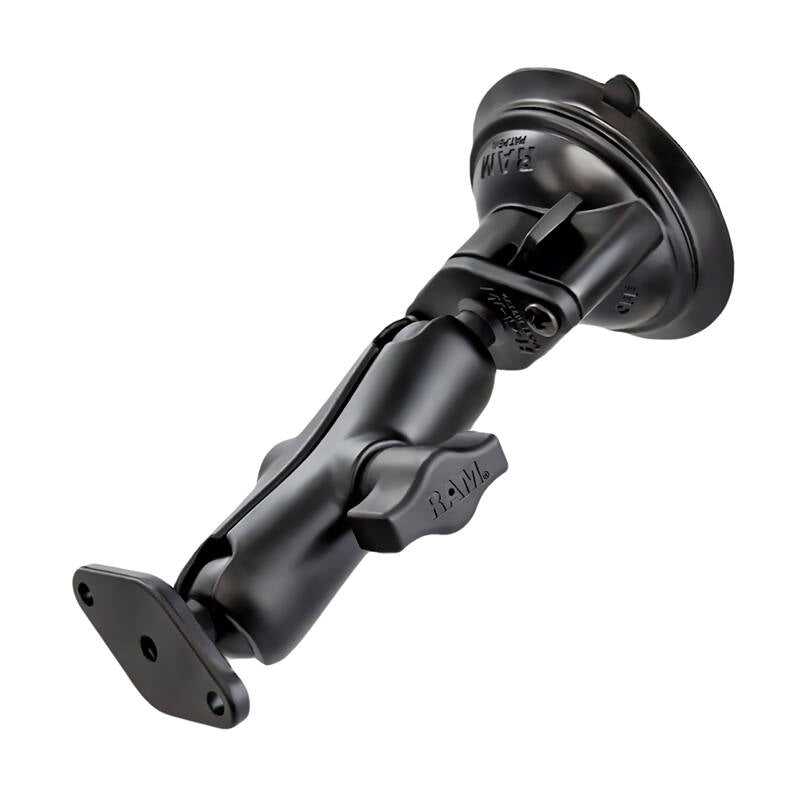

The 84mm diameter suction cup twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The double socket arm and round base adapter with a RAM 1" diameter patented rubber ball and socket system allow for almost infinite adjustment and perfect viewing angles.



Compatibility:
Any Radar Detector with 102mm x 76mm (4" x 3") Bottom Flat Surface Area

Including

Beltronics
GT-7

Cobra
ESD 7570

Escort
iX
Max 360
Passport S55
Solo S4

Radenso
XP

Uniden
R3

Valentine
One V1


Note:
The magnetic mount should NOT be used to hold any device that has an internal hard drive. The magnet may damage the drive. This includes the Apple iPod and other small battery operated devices.


Hardware Included
(1) 50mm x 38mm Steel Adhesive Plate
(2) Rare Earth Magnets
(4) #6-32 x 1/2" Machine Screws
(4) #6-32 Nylock Nuts

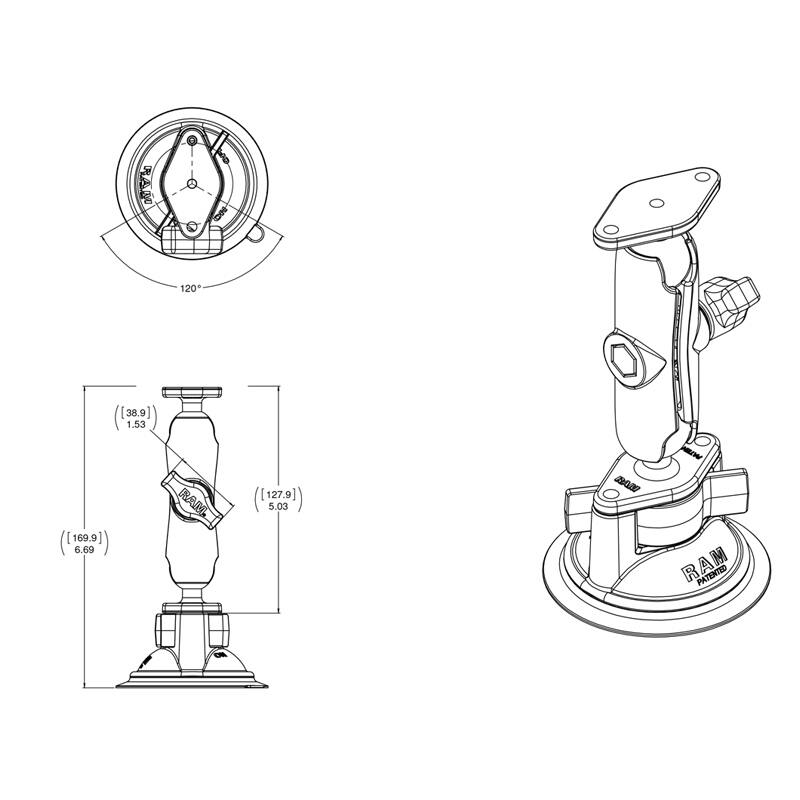

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

Material:
Marine grade powder coated aluminium
High Strength Composite


Components:
RAM-B-224-1U - Suction cup with 1" ball
RAM-B-201U - Standard double socket arm

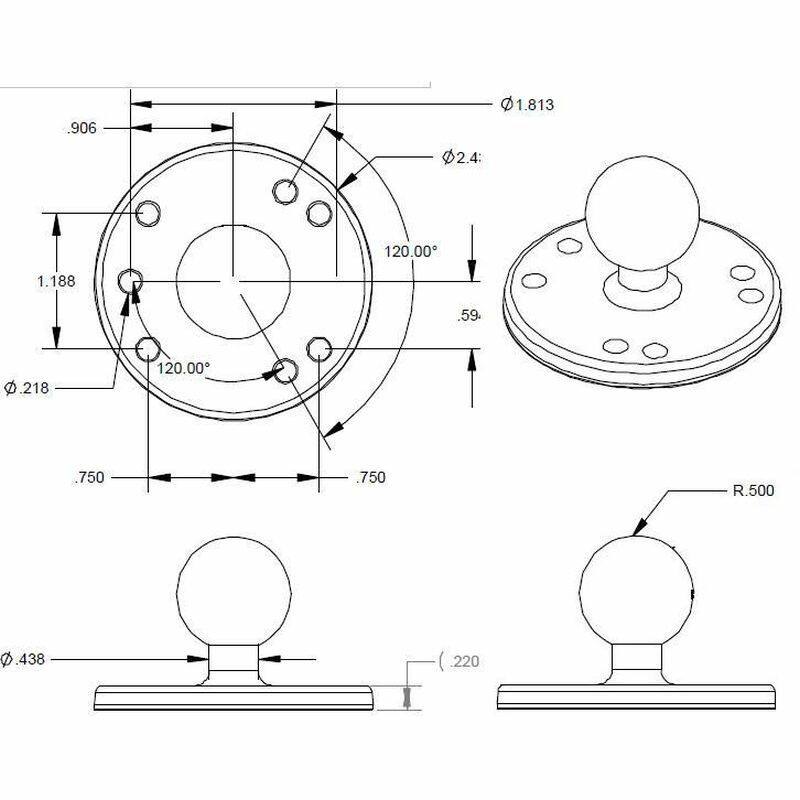

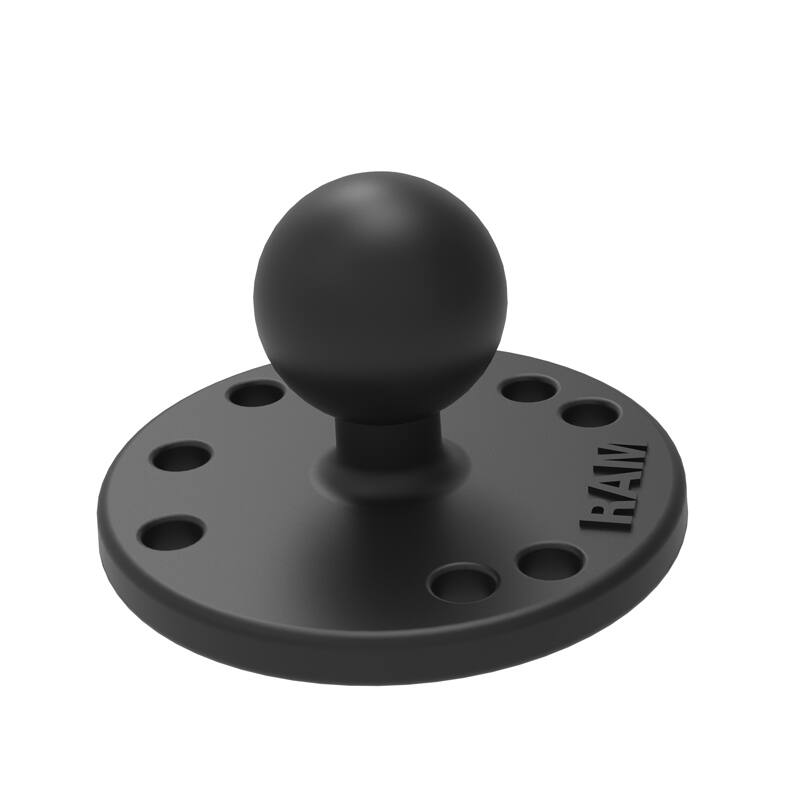

RAM-B-202U - 63mm round base with 1" ball
RAP-300-1U - POWER PLATE III
