RAM Rail Clamp Ball Base for 32 to 47mm Rails (C Series 1.5" Ball)

RAM-271U-12 RAM® Rail Clamp Ball Base for 31.75–47.625mm Rails

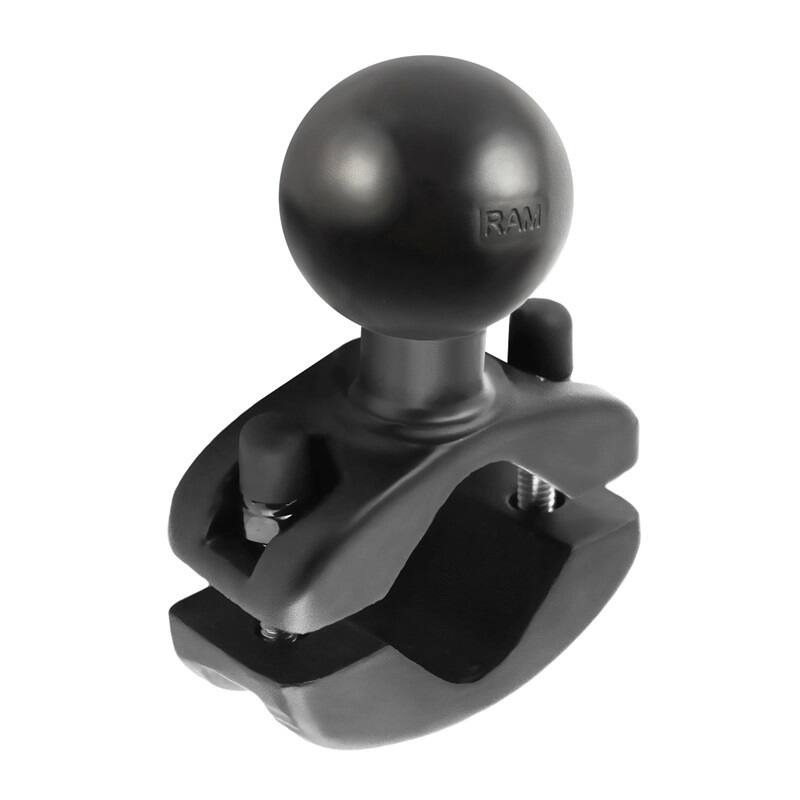

The RAM-271U-12 is a round rail clamp base that grips pipe or tubing from 31.75mm to 47.625mm (1.25"–1.875") in diameter and terminates in a C Size (1.5") rubber ball for connection to any C Series RAM® double socket arm.

Key Features

• Clamping base ideal for posts from 1.25" to 1.875" in diameter
• C Size 1.5" RAM® rubber ball allows near-infinite adjustability via ball-and-socket connection to any C Size double socket arm
• Made from powder-coated, marine-grade aluminium for durability in demanding environments
• Backed by RAM's lifetime warranty against breakage

Works With

Pairs with any C Size (1.5" ball) RAM® double socket arm, cradle, or accessory to build a complete mounting solution.

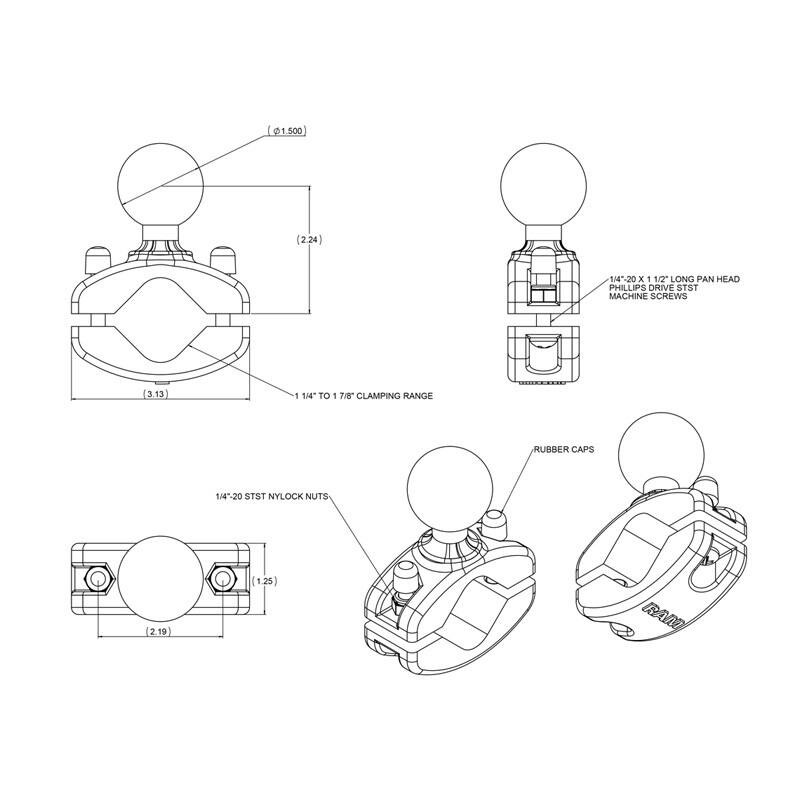

Dimensions & Specifications

• Clamp range: 31.75mm–47.625mm (1.25"–1.875") diameter
• Ball size: C Size (1.5") rubber ball
• Weight capacity: 1.814kg (4 lbs) standard use; 1.36kg (3 lbs) heavy-duty use
• Material: powder-coated, marine-grade aluminium
• Hardware included: 2x 1/4"-20 x 1.5" screws, 2x 1/4"-20 nylock nuts, 2x rubber caps
