RAM Rail Clamp Base for 51 to 64mm Diameter Rails (C Series 1.5" Ball)

RAM-271U-2 RAM® Rail Clamp Ball Base for 50.8–63.5mm (2"–2.5") Rails

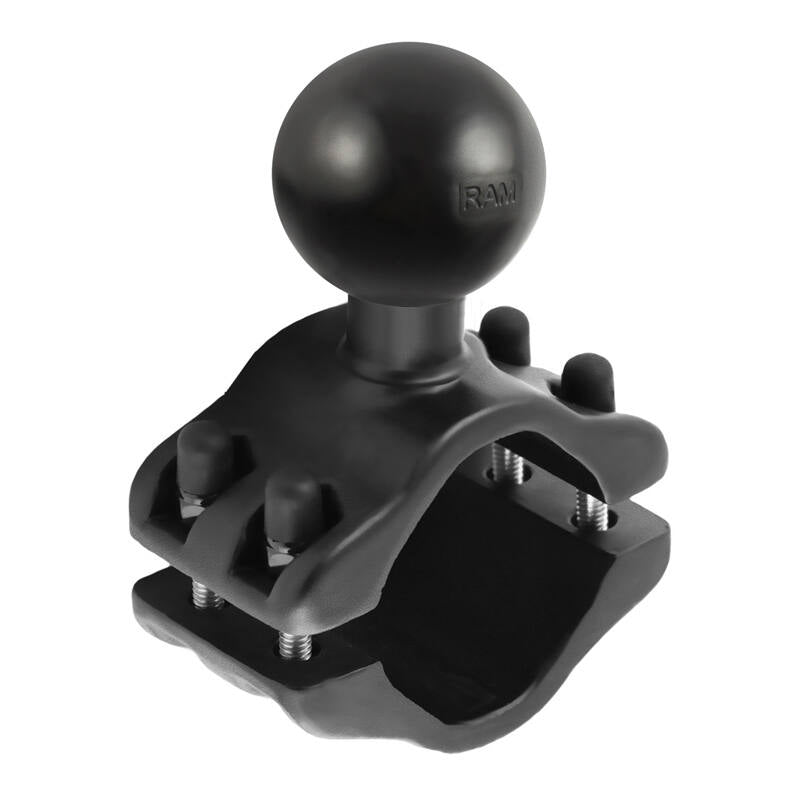

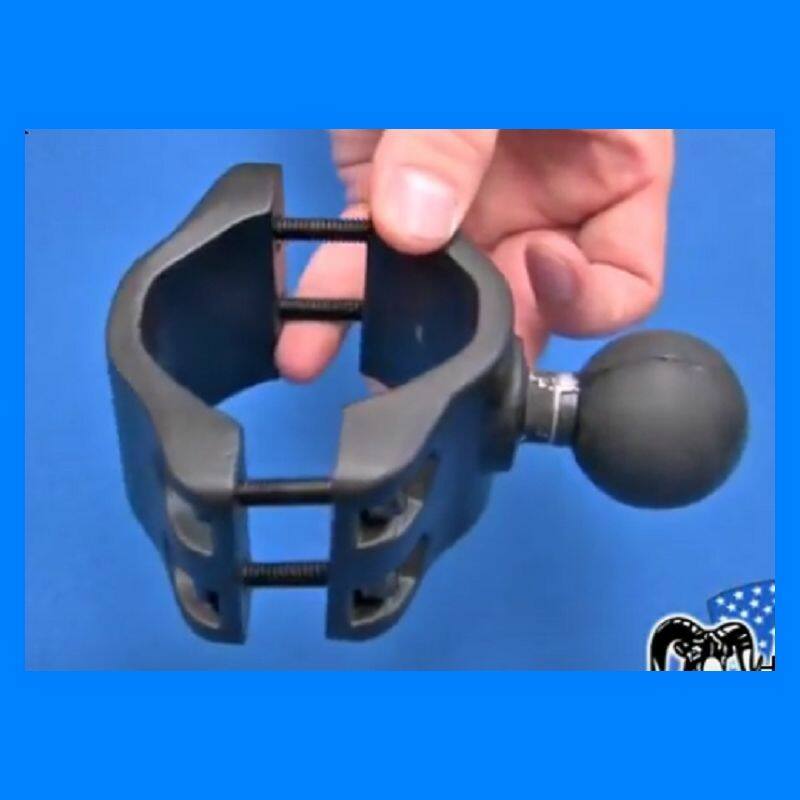

The RAM-271U-2 is a round rail clamp base that grips pipe or tubing from 50.8mm to 63.5mm (2"–2.5") in diameter and terminates in a C Size (1.5") rubber ball for connection to any C Series RAM® double socket arm.

Key Features

• Clamping base ideal for posts or rails from 50.8mm to 63.5mm (2"–2.5") in diameter
• C Size 1.5" RAM® rubber ball allows near-infinite adjustability via ball-and-socket connection to any C Size double socket arm
• Made from powder-coated, marine-grade aluminium for durability in demanding environments
• Backed by RAM's lifetime warranty against breakage

Works With

Pairs with any C Size (1.5" ball) RAM® double socket arm, cradle, or accessory to build a complete mounting solution.

Dimensions & Specifications

• Clamp range: 50.8mm–63.5mm (2"–2.5") diameter
• Ball/socket size: C Size (1.5") rubber ball
• Weight capacity: 1.814kg (4 lbs) standard use; 1.36kg (3 lbs) heavy-duty use
• Material: powder-coated, marine-grade aluminium
• Weight: 408g (0.9 lbs)
