RAM-138U-R – RAM® Drill-Down Base for Raven Cruizer Agricultural GPS

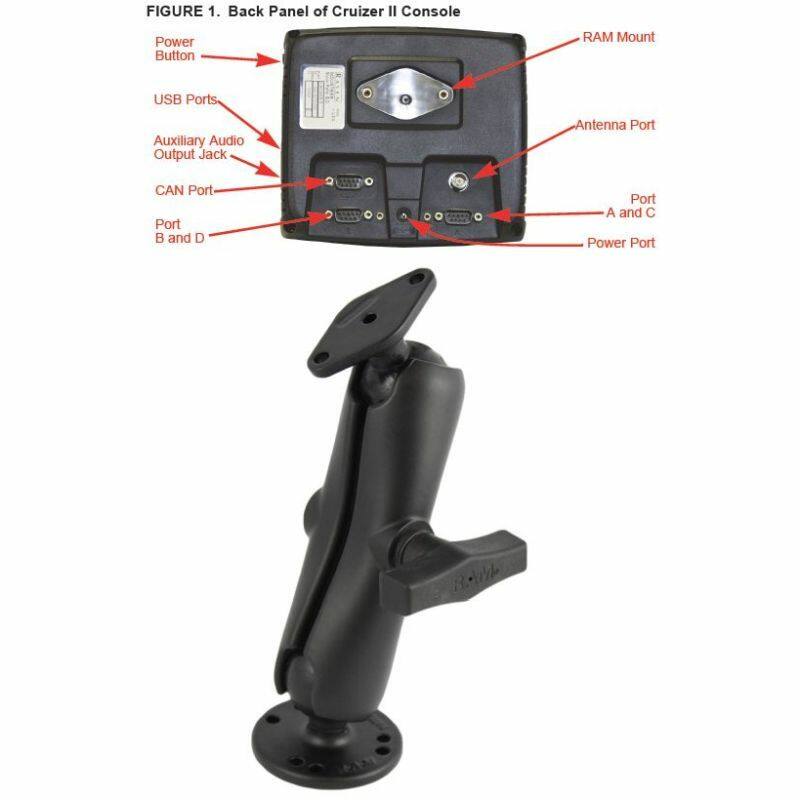

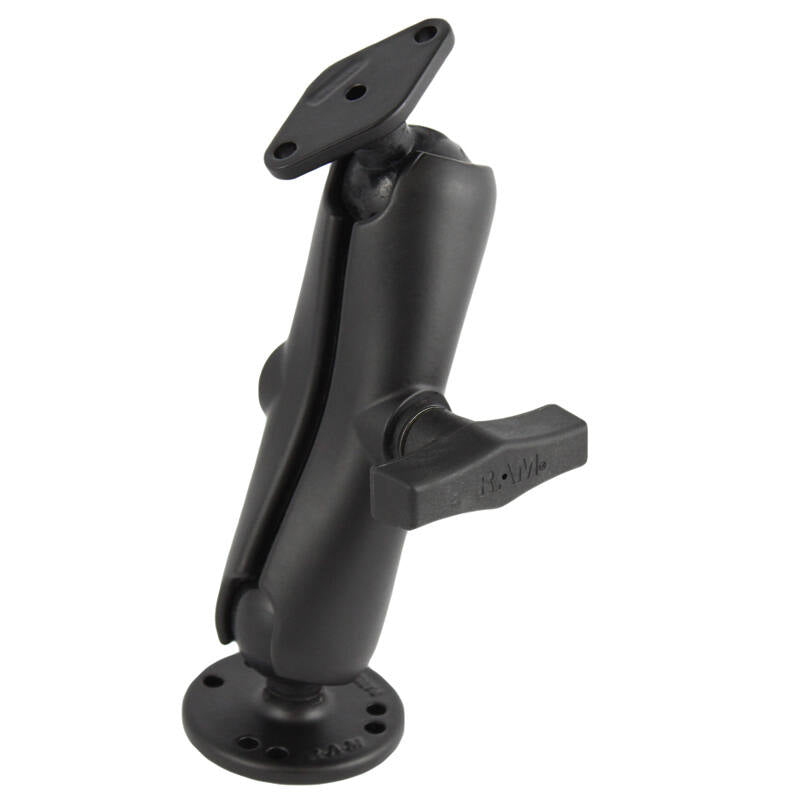

The RAM-138U-R is a drill-down mounting base built for the Raven Cruizer and Cruizer II agricultural GPS, pairing a round AMPS base bolted to a flat surface with a C size double socket arm and a diamond plate adapter. The ball-and-socket arm dampens the shock and vibration of farm machinery while letting you set the perfect viewing angle.
Key Features
Drill-down mounting solution; the round base bolts to a flat surface and the diamond plate carries the GPS cradle

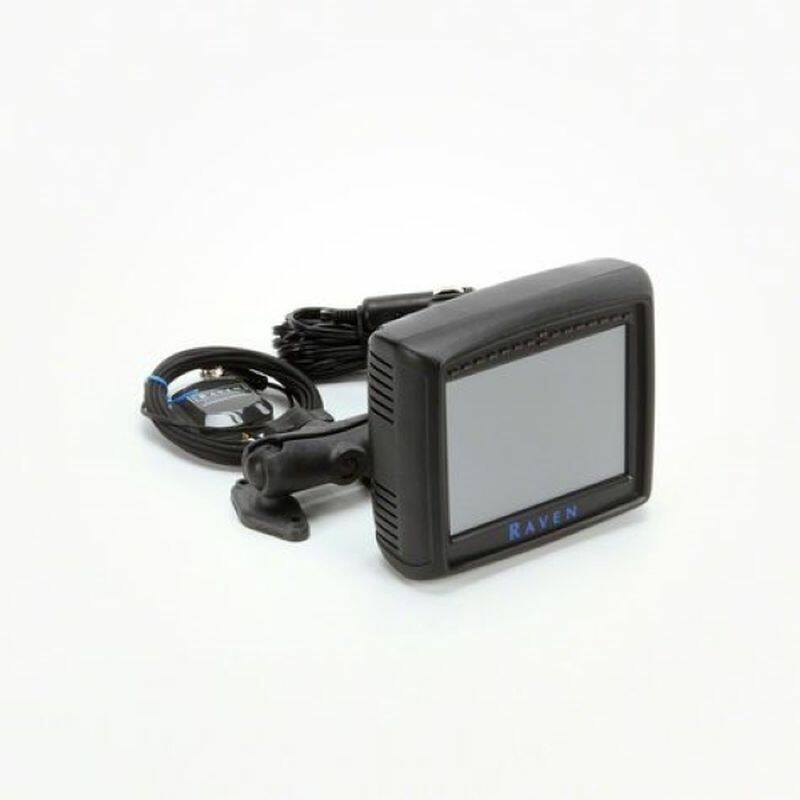

Ideal for the Raven Cruizer / Cruizer II agricultural GPS
C size double socket arm with the larger 1.5" ball; near-infinite adjustment
Diamond plate with the 2-hole AMPS pattern connects to most RAM cradles
Powder-coated marine-grade aluminium; backed by a lifetime warranty
Works With

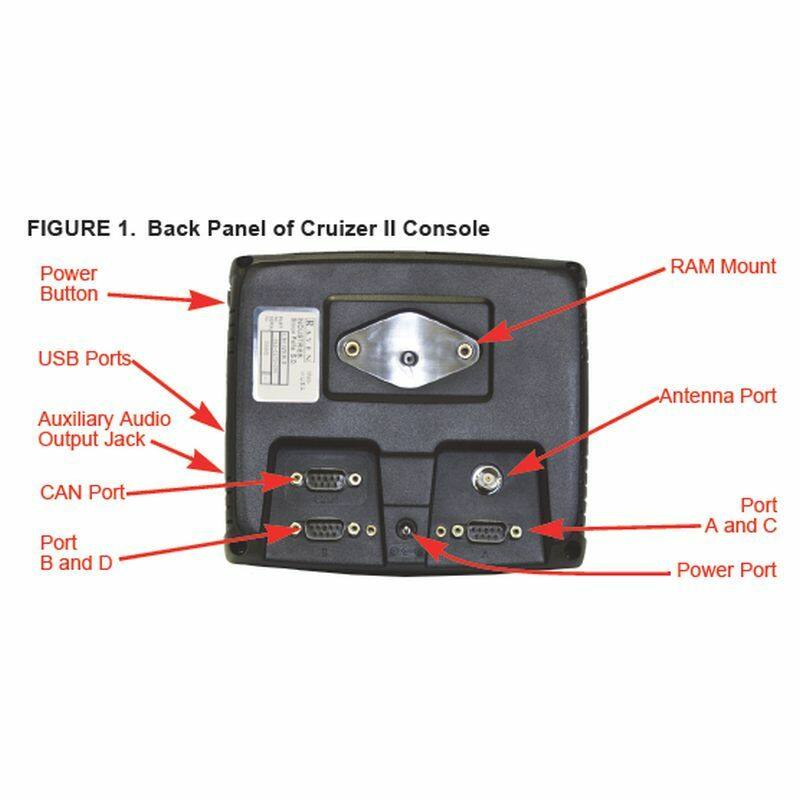

The Raven Cruizer and Cruizer II agricultural GPS (cradle/GPS not included). The diamond plate's 2-hole AMPS pattern also connects to most other RAM cradles.
Dimensions & Specifications
Diamond base 2-hole AMPS pattern: 1.912" (48.5mm)
Round base 4-hole AMPS pattern: 1.181" x 1.496" (30mm x 38mm)
Round base 3-hole AMPS 120-degree pattern: 1.812" (46.0mm)
Overall height: 187mm (7.35")
Arm: C size medium double socket arm
Ball size: C size, 1.5" rubber ball
Weight capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
Unit weight: 404g (1.09 lb)
Material: powder-coated marine-grade aluminium
What's Included
RAM-201U C size double socket arm
RAM-202U round AMPS base with 1.5" ball

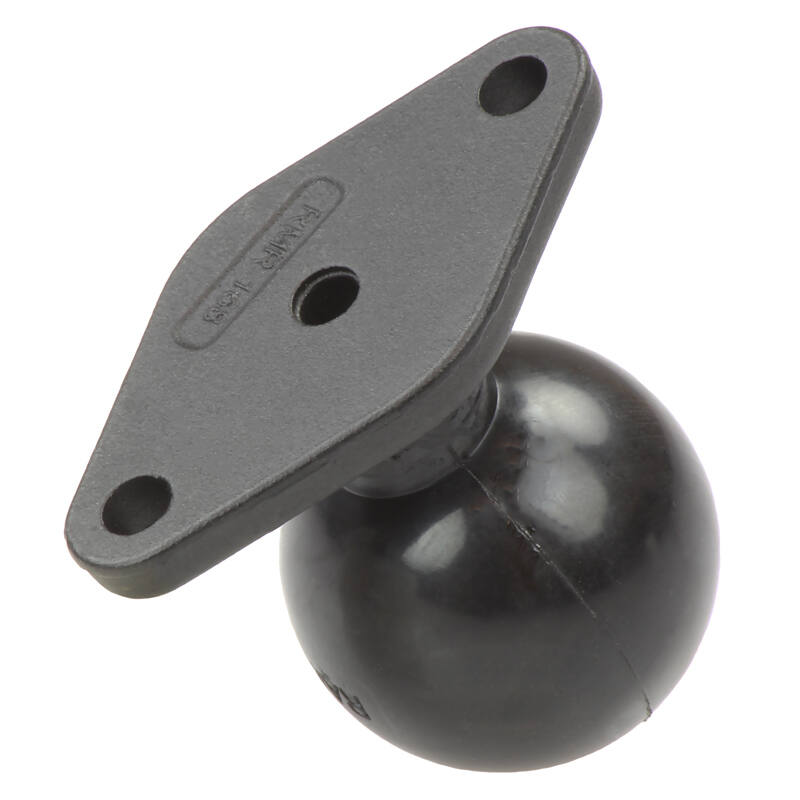

RAM-238U diamond base with 1.5" ball
Note: the Raven Cruizer GPS unit itself is not included.
FAQs
Does this include the GPS? No — this is the mounting base only, designed to suit the Raven Cruizer / Cruizer II GPS.
How does it mount? The round base drills down to a flat surface; the diamond plate then carries the GPS cradle and adjusts on the double socket arm.
How fast does it ship? Items shown in stock will normally be shipped from our Auckland warehouse in 1 business day. For out of stock items please enquire.
