RAM-B-202U-12 - Rectangular Base 25×51mm - B Series (1" Ball)

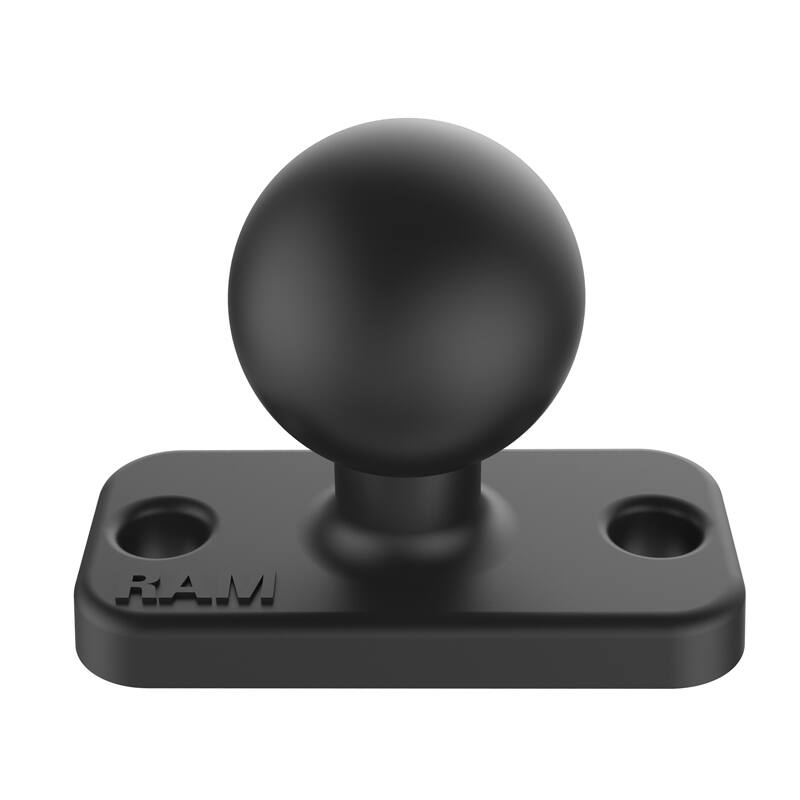

RAM-B-202U-12 RAM® Ball Base with 2-Hole Pattern - B Size

The RAM-B-202U-12 is a rectangular base plate with a 2-hole 38.1mm (1.5") pattern and a B Size 1" rubber ball, for connecting any RAM double socket arm to a bolt-on mounting point. This base requires an arm and cradle to form a complete mounting solution.

Key Features

• Rectangular plate with a 2-hole pattern, holes spaced 38.1mm (1.5") apart
• Included B Size 1" rubber ball connects to any B Size double socket arm
• Ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Dimensions & Specifications

• Plate dimensions: 25.4mm x 50.8mm (1" x 2")
• Hole pattern: 2-hole, 38.1mm (1.5") centre to centre
• Ball size: 1" rubber ball, B Size
• Material: Powder-coated marine-grade aluminium
• Weight: 45g (0.1 lbs)
• Weight capacity: 907g standard use, 454g heavy-duty use
