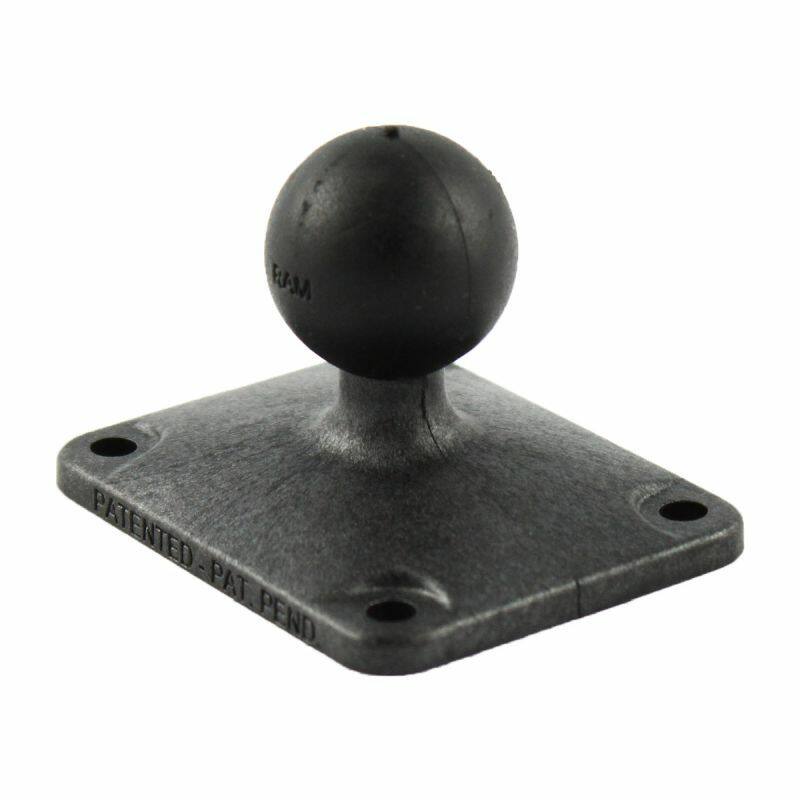

RAP-B-202U-225 - Rectangular Base 38×50mm - B Series (1" Ball) - Composite

RAP-B-202U-225 – RAM® Composite Ball Base with 4-Hole AMPS Pattern

The RAP-B-202U-225 is a rectangular composite base with a 1" B-size ball and a four-hole AMPS pattern, giving you a low-profile bolt-on mounting point for any B-size RAM® arm. The 38.1 x 50.8mm hole pattern lines up with the universal AMPS standard.

Key Features

• Rectangular ball base measuring 38.1 x 50.8mm (1.5" x 2") with a 4-hole universal AMPS pattern
• 1" B-size rubber ball connects to any B-size RAM® double socket arm
• High-strength composite for a light, corrosion-free base
• Backed by a lifetime warranty

Works With

Any B-size RAM® double socket arm; bolts to any surface or bracket drilled to the 4-hole AMPS pattern.

Dimensions & Specifications

• Hole pattern: 4-hole AMPS, 38.1 x 50.8mm (1.5" x 2") centre-to-centre
• Ball size: 25mm (1") rubber, B size
• Material: high-strength composite
• Weight: 22g (0.05 lb)
• Weight capacity: 907g (2 lb)

FAQs

What arm do I need? Any B-size RAM® double socket arm will connect to the 1" ball.
