RAM Rectangular Base - B Series - 51 x 43 mm - 4 hole AMPS pattern / TomTom

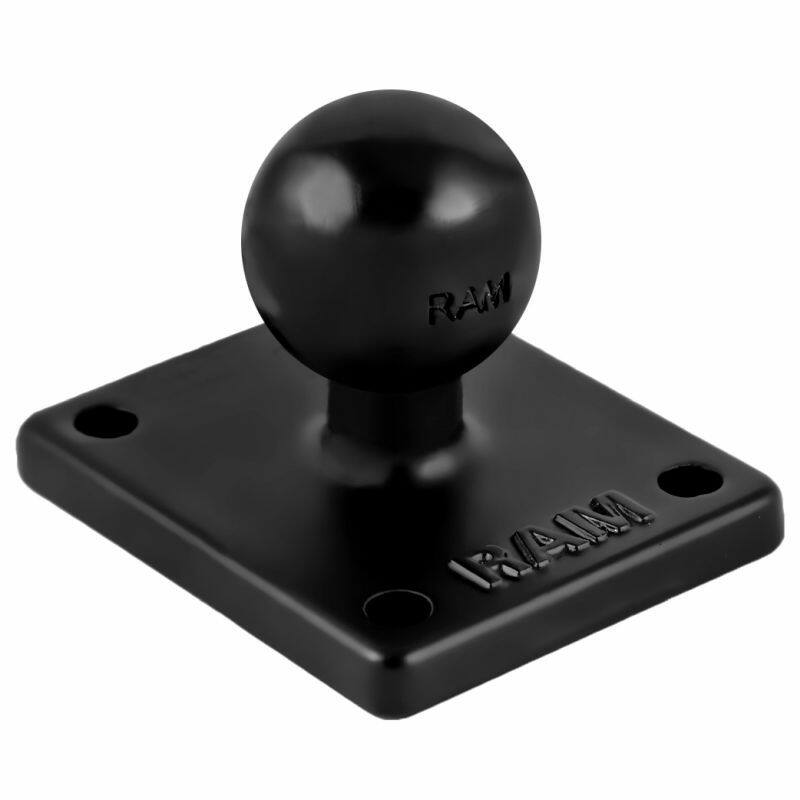

RAM-B-347U-TOM1 – RAM® Ball Adaptor with AMPS Plate for TomTom Bridge & Rider

The RAM-B-347U-TOM1 is a rectangular AMPS plate with a B size 1" rubber ball and screws that match the threads on the back of the TomTom Rider 2 and Urban Rider factory cradle, connecting the sat nav to the RAM® ball and socket system.

Key Features

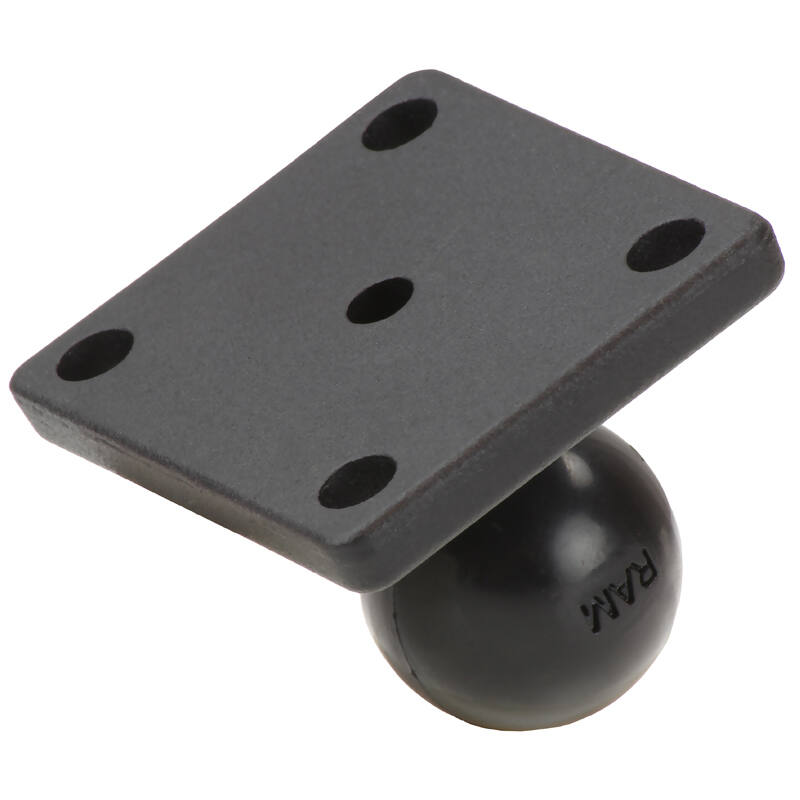

• 50.8 x 43.2mm (2" x 1.7") plate with the industry-standard 4-hole AMPS pattern
• Included M5 screws match the threads on the back of the Rider 2 / Urban Rider factory cradle
• B size 1" rubber ball connects to any B size RAM® double socket arm; near-infinite adjustability
• Powder-coated marine-grade aluminium construction
• Backed by a lifetime warranty

Works With

TomTom Bridge, Rider 2, Rider 550 and Urban Rider. Not compatible with the original TomTom Rider (version 1).

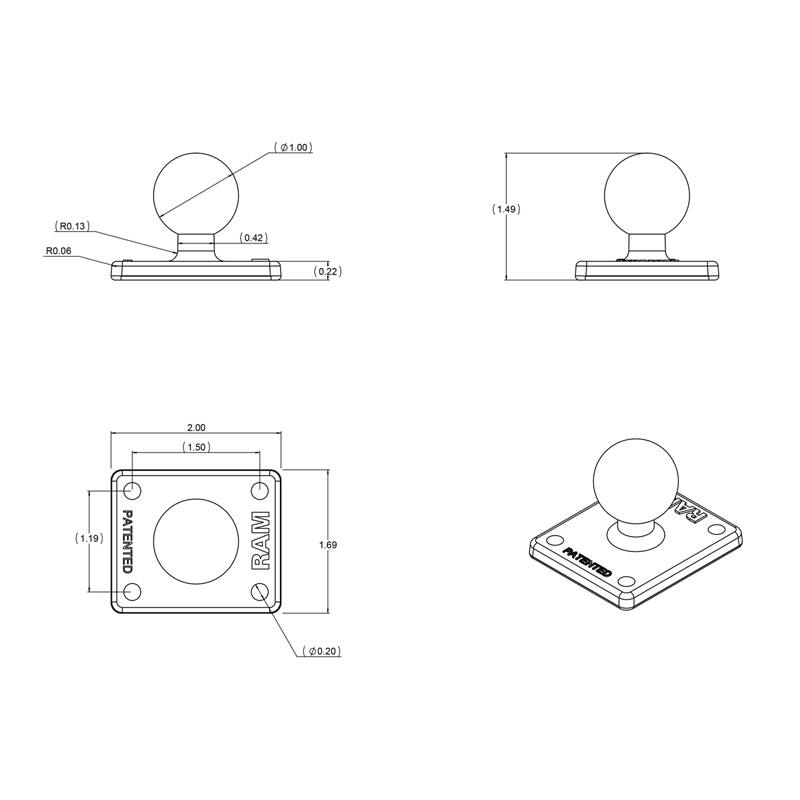

Dimensions & Specifications

• Plate size: 50.8 x 43.2mm (2" x 1.7")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Ball size: B (1")
• Weight: 68g (0.15 lb)

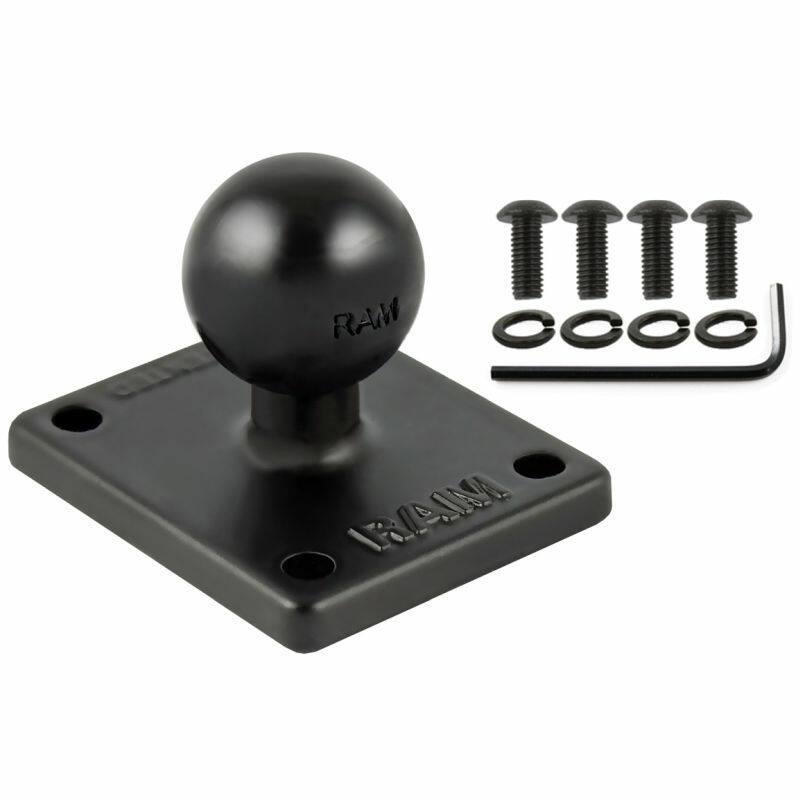

• Hardware included: (4) M5 x 12mm machine screws, (4) M5 stainless steel lock washers, (1) M3 hex key wrench
• Material: powder-coated marine-grade aluminium
• Warranty: lifetime

FAQs

Will this fit my original TomTom Rider?

No; this plate does not connect to the original Rider (version 1). It suits the Bridge, Rider 2, Rider 550 and Urban Rider.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

RAM® TomTom adaptor overview
