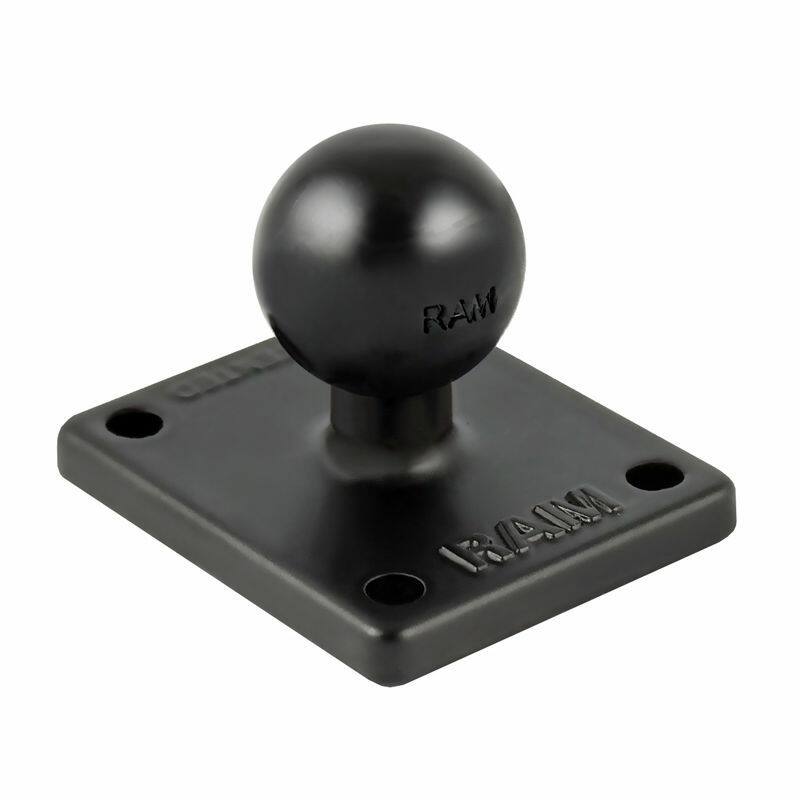

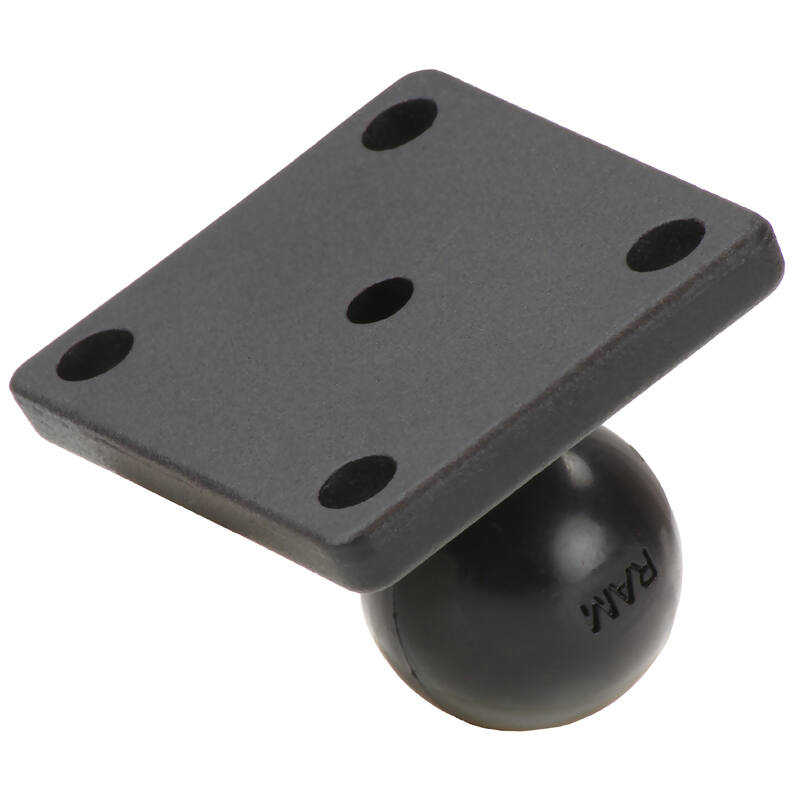

RAM-B-347U RAM® Ball Adaptor with AMPS Plate - B Size
Features
* 51 x 43mm square ball base features industry-standard AMPS hole pattern with four pre-drilled holes at each corner
* Included B size 1" RAM® rubber ball allows for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

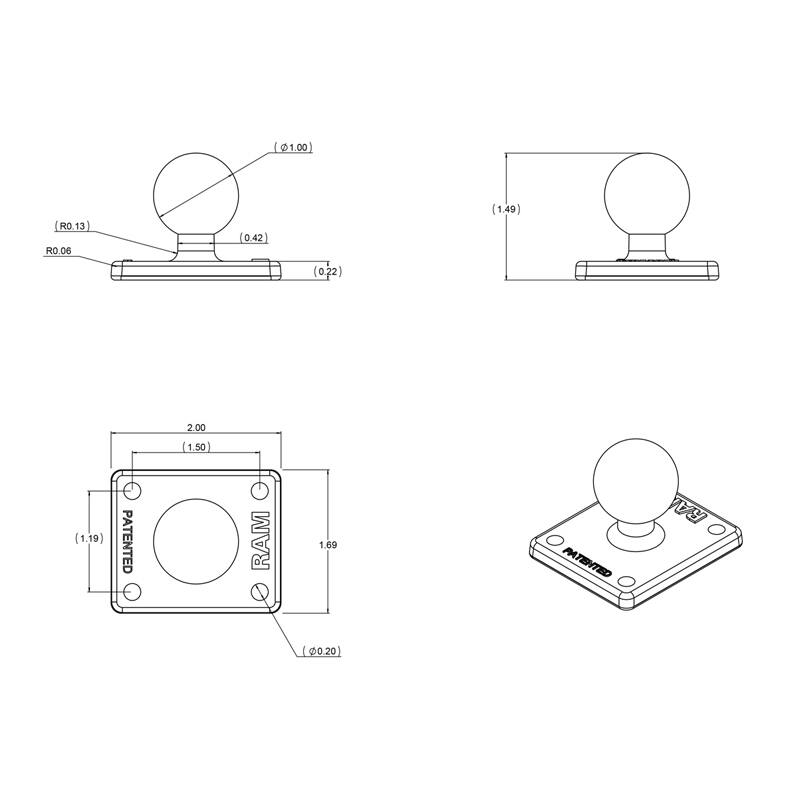

This 51 x 43mm (2" x 1.7") rectangular ball base features industry-standard AMPS hole pattern (38MM X 30MM / 1.5" x 1.188") with four pre-drilled holes at each corner
Ideal for the Garmin Zumo, TomTom Rider & Urban Rider
Compatible Devices Include
Garmin
GPSMAP 276Cx
zumo 390LM
zumo 396 LMT-S
zumo 400
zumo 450
zumo 500
zumo 550
zumo 590
zumo 595LM
zumo 660
zumo 665
Magellan
TRX7
TRX7 CS
Road
Tech Zumo 590
Tech Zumo 660
Tech Zumo 665
TomTom
Rider 2
Urban Rider
Specs & Features
Hole Pattern
4 Hole AMPs
1.181" x 1.496" (30mm x 38mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight:
54 grams (0.12 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
YouTube:
https://www.youtube.com/watch?v=vNOIxbicdPg
QUESTIONS & ANSWERS
Q: Do I need to use the plastic shim that is provided while installing this part?
A: No, the plastic shim is just there in case your handlebar is too narrow for the U-Bolt without it. If the U-Bolt will fit without the shim there is no reason to use that part.
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
