RAM-B-125BU – RAM® Curved Extension Base with 1" B-Size Ball

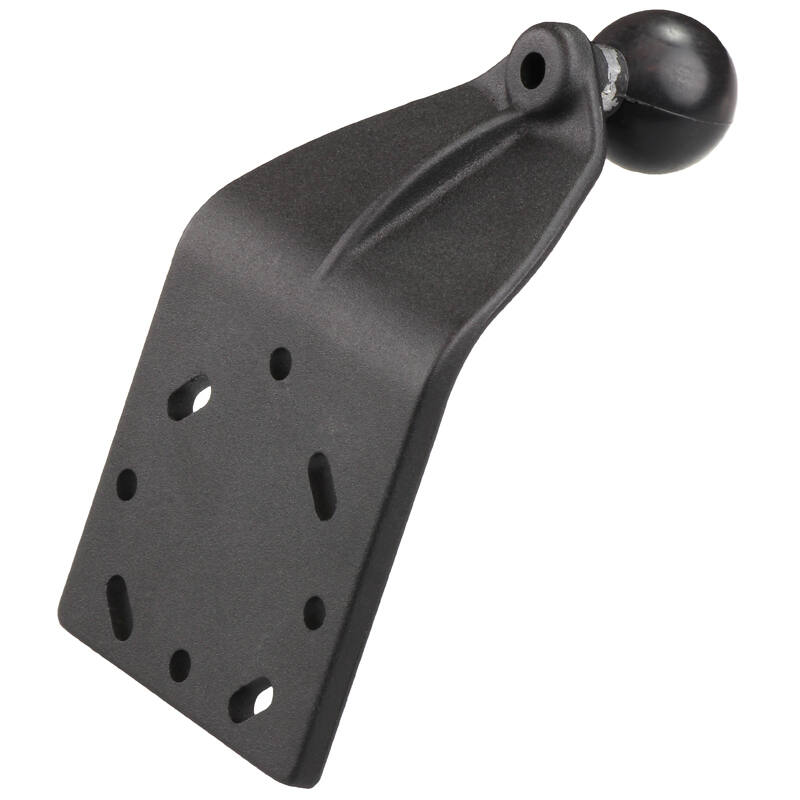

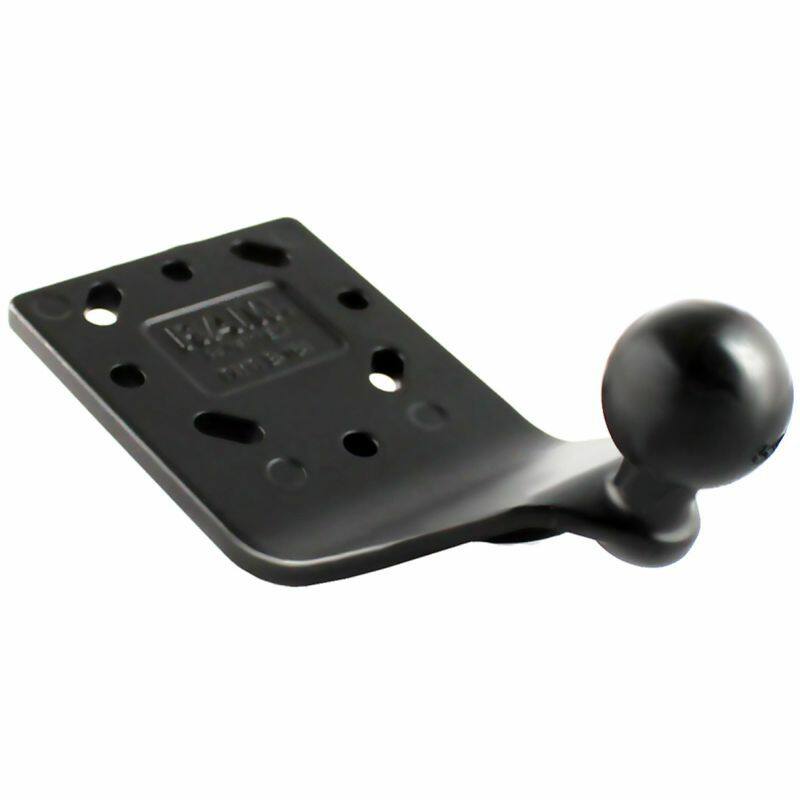

The RAM-B-125BU is a curved offset base with a 1" B-size rubber ball, giving you an adjustable, angled mounting point for medium-weight devices such as GPS units and radar detectors. Originally designed to sit a GPS ahead of an aircraft yoke, the offset works just as well on a dash or panel where you need the device pushed forward and up.

Key Features

• Curved base with 1" B-size rubber ball connects to any B-size RAM® double socket arm
• Mounting plate carries the universal AMPS hole pattern, so it accepts most RAM® cradles and many third-party devices
• Offset geometry positions the device forward and up for a better viewing angle
• Powder-coated marine-grade aluminium for corrosion resistance
• Backed by a lifetime warranty

Works With

Any B-size RAM® double socket arm and any cradle or device using the universal AMPS hole pattern. Common fixing screw sizes are #8, #10, M4 and M5; if you pair it with a RAM® holder, that holder supplies its own hardware.

Dimensions & Specifications

• Mounting plate: 63mm square
• Offset: extends approximately 57mm forward at 45° from the centre of the ball, and approximately 38mm above the ball
• Ball size: 25mm (1") rubber, B size
• Hole pattern: universal AMPS (multiple patterns pre-drilled)
• Material: powder-coated marine-grade aluminium
• Weight: 113g (0.25 lb)
• Weight capacity: 907g (2 lb) standard use; 454g (1 lb) heavy-duty use

FAQs

What screws fit the plate? The most common sizes are #8, #10, M4 and M5. If you're pairing this with a RAM® holder, the holder comes with the hardware it needs to attach.

Will it fit a standard AMPS device? Yes — the plate carries the industry-standard AMPS pattern, so it lines up with most AMPS-compatible cradles and adapter plates.
