RAM Mounts

RAM Rectangular base - B Series - Curved extension plate with Yoke Clamp Base

RAM Rectangular base - B Series - Curved extension plate with Yoke Clamp Base

SKU:RAP-B-125U-v

Regular price $104.00 NZD
Regular price Sale price $104.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

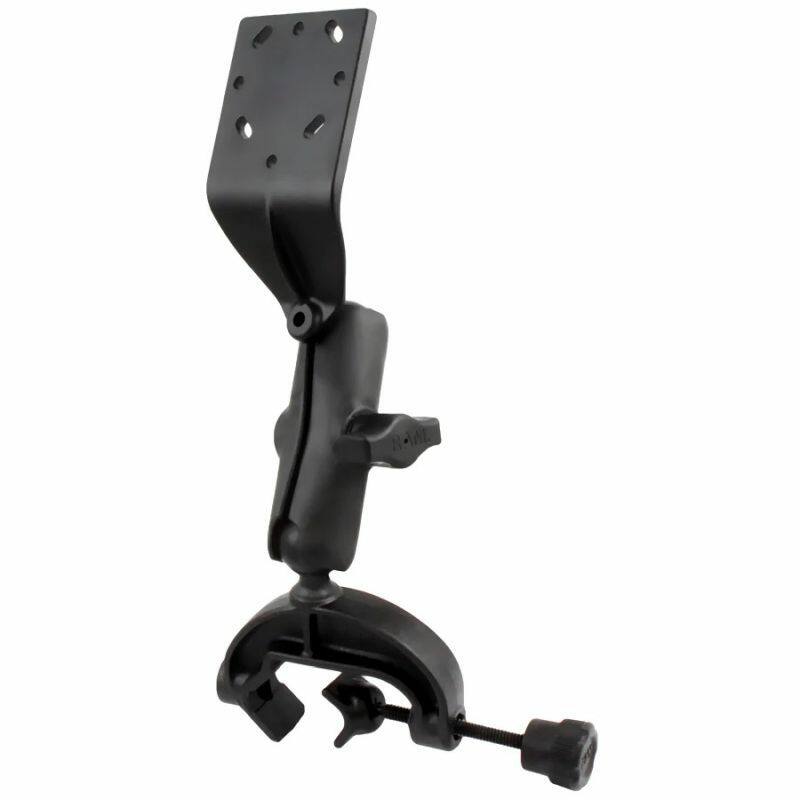

RAP-B-125U RAM® Composite Yoke Clamp Mount with Angled Plate

Features

* Clamp Base will work on yokes / rails / other surfaces 15.9 to 31.8mm diameter

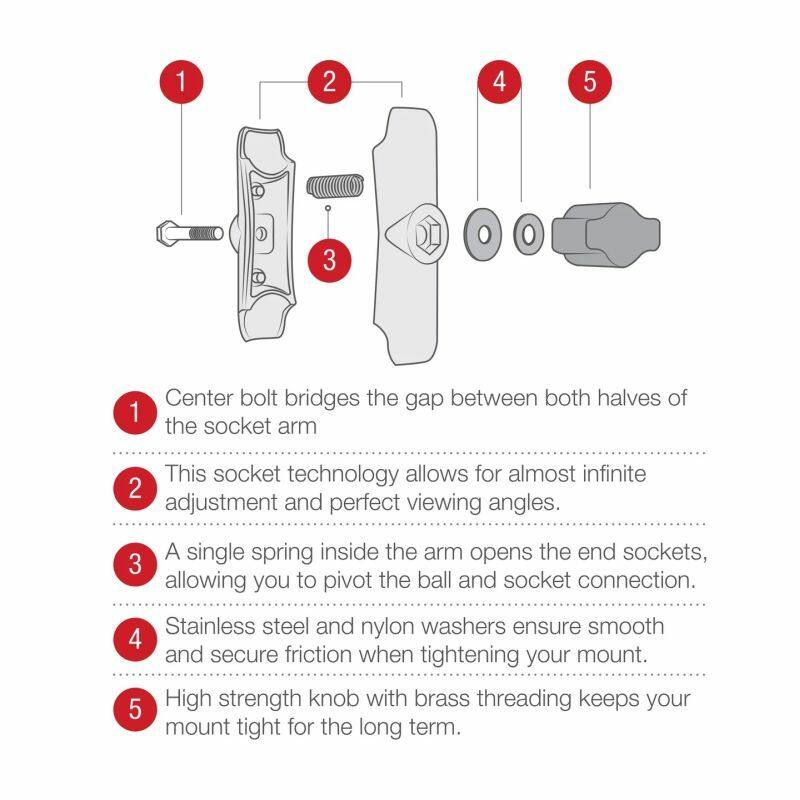

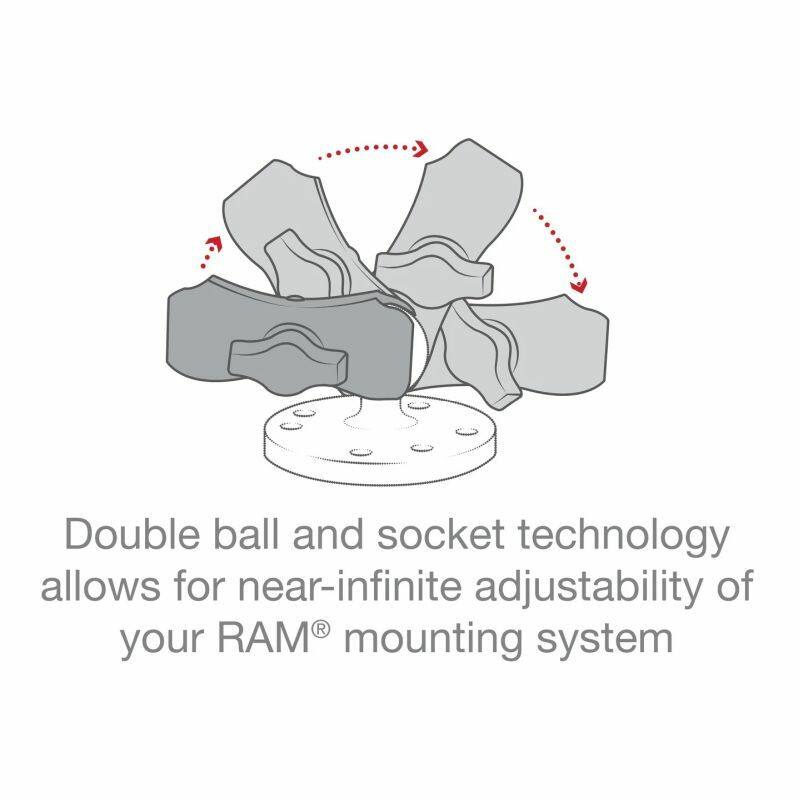

* Included B RAM® double socket arm with RAM® ball and socket technology allows for near-infinite adjustability
* Curved mounting plate has pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern
* Made of high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

An ideal backing plate for fixing to an aircraft yoke.

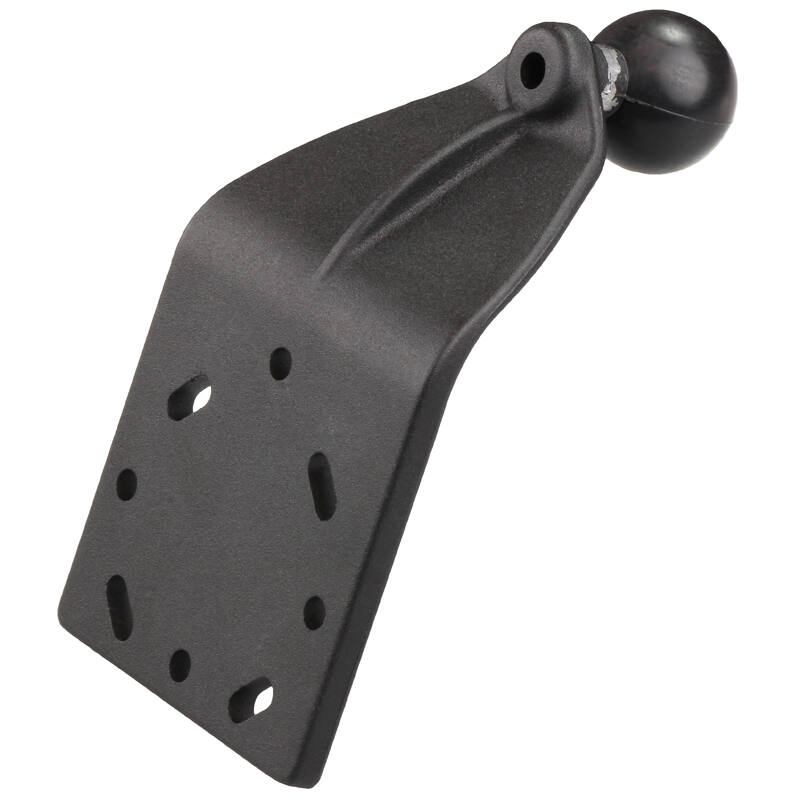

The backing plate is a curved extension base with 1" rubber ball which provides almost infinite adjustment and perfect viewing angles. Designed to position your GPS in front of the yoke on your plane

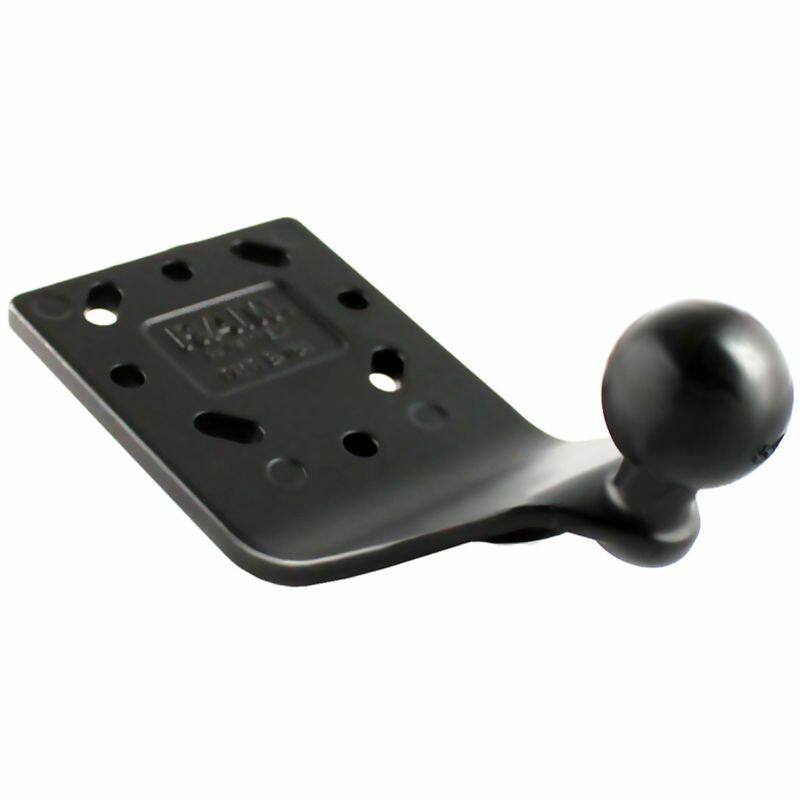

The mounting section of the plate is 63mm square, pre-drilled holes for many different screw hole patterns, including the universal AMPS hole pattern and all RAM made cradles. The connection section extends approximately 57mm forward, at a 45 degree angle from the centre of the 1" ball and approximately 38mm above the 1" ball (to the bottom of the connection section of the plate).

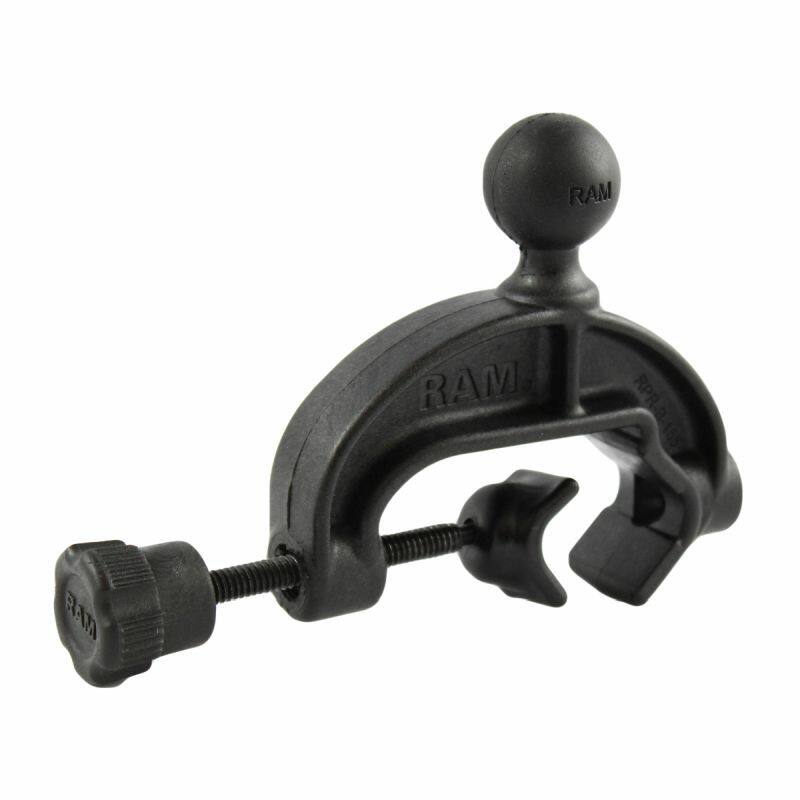

The Yoke Clamp is a G-clamp style mount with a 1" ball for use with the RAM B-series range of fittings. Attaches to a round bar such as a control column yoke but could also fit roll bars or small struts from 15.9mm to 31.8mm (0.625" to a maximum of 1.25") diameter. Both strong and lightweight, this is perfect for numerous electronic devices.

Note: The bar does not need to be perfectly round for this clamp to work.

The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.


Yoke Clamp Dimensions:
15.9mm to 31.8mm (0.625" to 1.25").


Plate Hole pattern
Various AMPS Hole Patterns

Material:
Powder Coated Marine Grade Aluminium
High Strength Composite

Ball Size:
1" "B" Size

Weight:
113 grams (0.25 lbs.)

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

Arm Dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")


Components:
RAM-B-125BU CURVED YOKE MOUNT PLATE

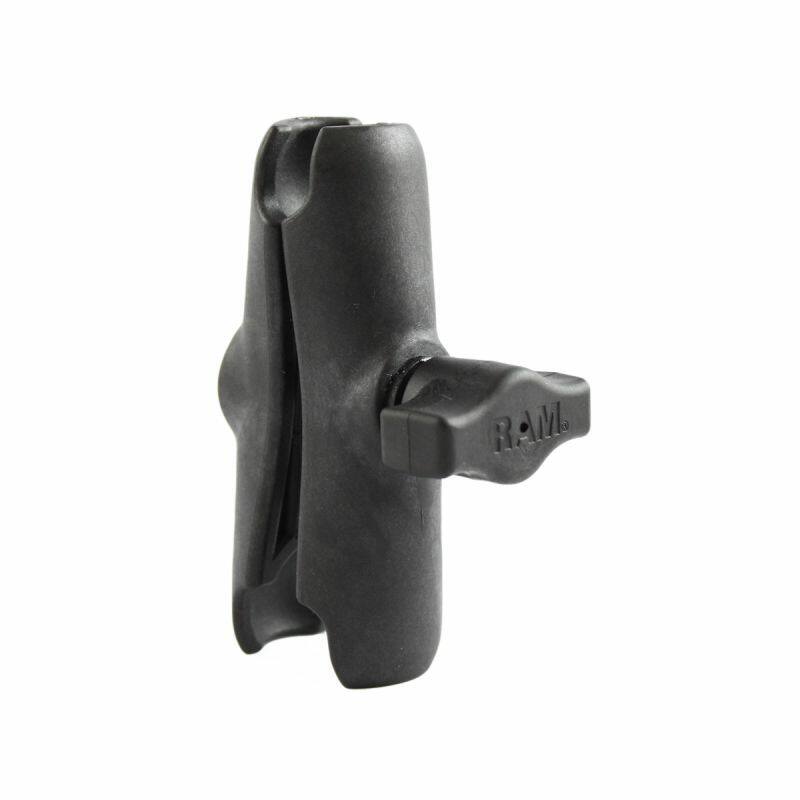

RAP-B-201U Composite DOUBLE SOCKET ARM FOR 1" BALL
RAP-B-121BU UNIVERSAL CLAMP



QUESTIONS & ANSWERS

Q: What size screws are needed for the holes on this ball plate?

A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
