RAM-202U-153 - Rectangular Base 25×64mm - C Series (1.5" Ball)

RAM-202U-153 RAM® Ball Base with 1" x 2.5" 4-Hole Pattern – C Size

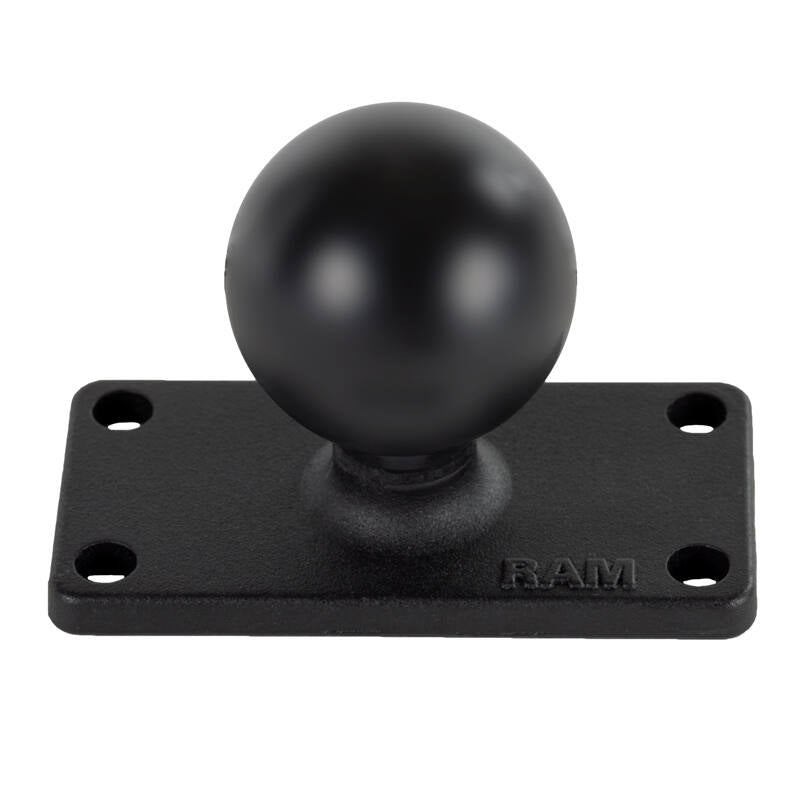

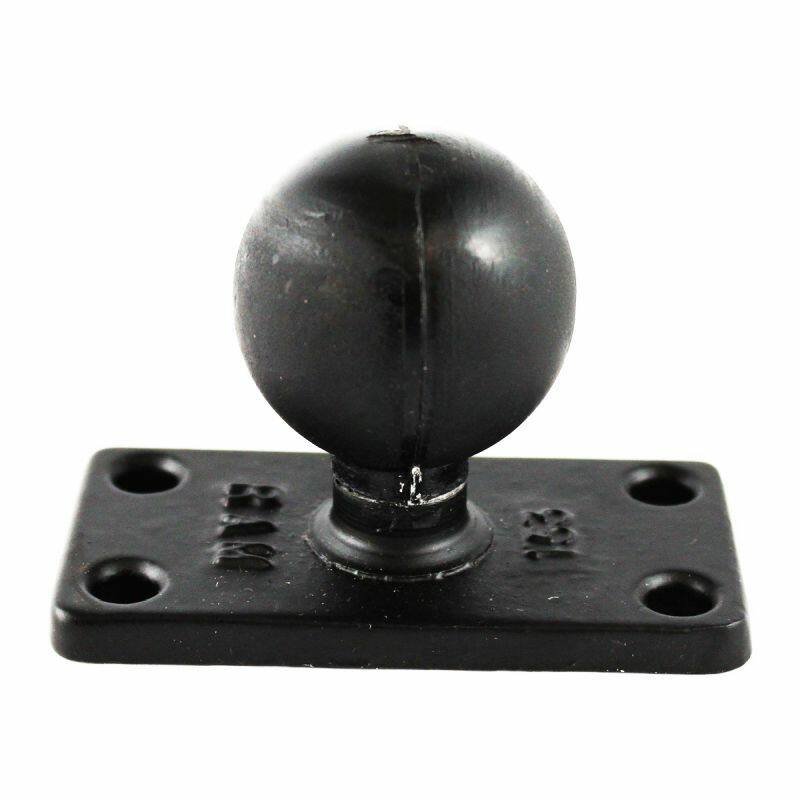

The RAM-202U-153 is a rectangular base plate with a 4-hole pattern spaced 25.4mm x 63.5mm (1" x 2.5") apart and a 1.5" C Size rubber ball, connecting to any C Size double socket arm.

Key Features

• Rectangular plate with a 4-hole pattern, 25.4mm x 63.5mm (1" x 2.5") centre to centre
• 1.5" C Size rubber ball connects to any C Size RAM® double socket arm
• Ball-and-socket design allows near-infinite adjustability
• Powder-coated marine-grade aluminium construction
• Backed by RAM's lifetime warranty

Dimensions & Specifications

• Hole pattern: 25.4mm x 63.5mm (1" x 2.5")
• Plate dimensions: 38.1mm x 76.22mm (1.5" x 3")
• Ball size: C Size (1.5" rubber)
• Material: Powder-coated marine-grade aluminium
• Weight: 86 grams (0.19 lbs)
• Weight capacity: 1.814kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

FAQs

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
