RAM-202U-23 RAM® Ball Base with 1.5" x 2.5" 4-Hole Pattern - C Size
Features
* Rectangular plate features a 4-hole pattern of 38.1mm x 63.5mm (1.5" x 2.5")
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

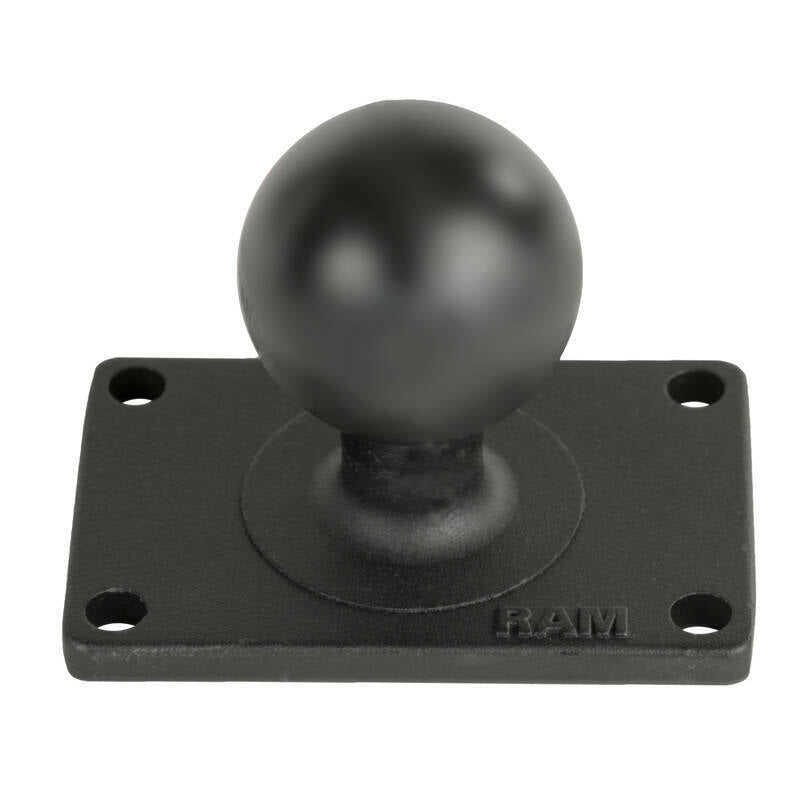

The RAM-202U-23 contains a 1.5" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 38.1mm x 63.5mm (1.5" x 2.5") centre to centre.

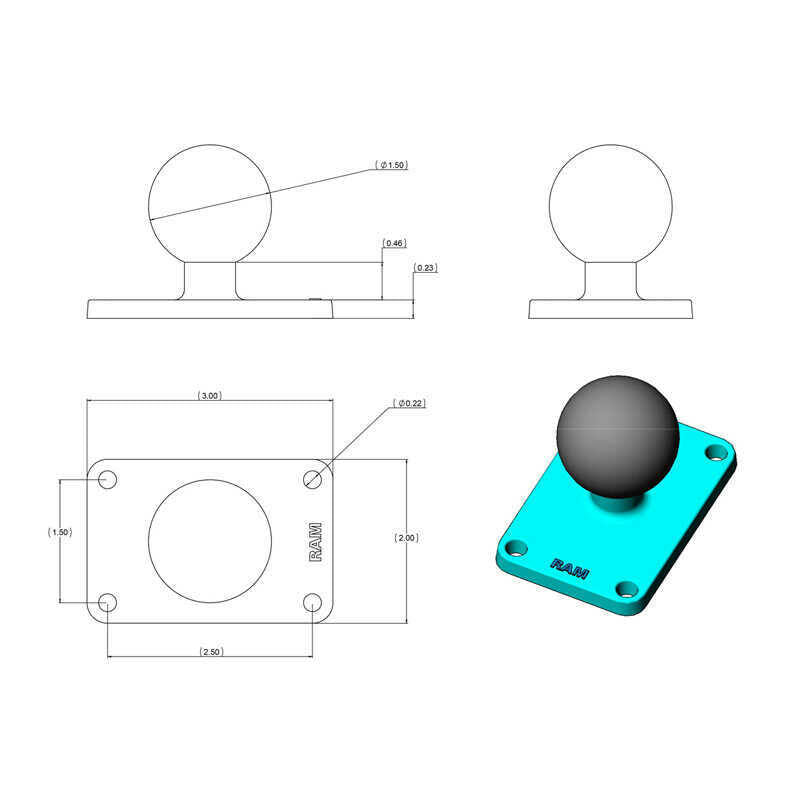

Overall plate dimensions are 50.8mm x 101.6mm (2" x 4")
Specs & Features
Hole Pattern
38.1mm x 63.5mm (1.5" x 2.5")
Plate Size
50.8mm x 76.2mm (2" x 3")
Ball/Socket Size
C Size (1.5")
Weight
136 grams (0.3 lbs.)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
