RAM Mounts

RAM Rectangular Base - C Series - 51 x 64mm - 4-Hole Pattern

RAM Rectangular Base - C Series - 51 x 64mm - 4-Hole Pattern


Regular price $38.23 NZD
Regular price Sale price $38.23 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

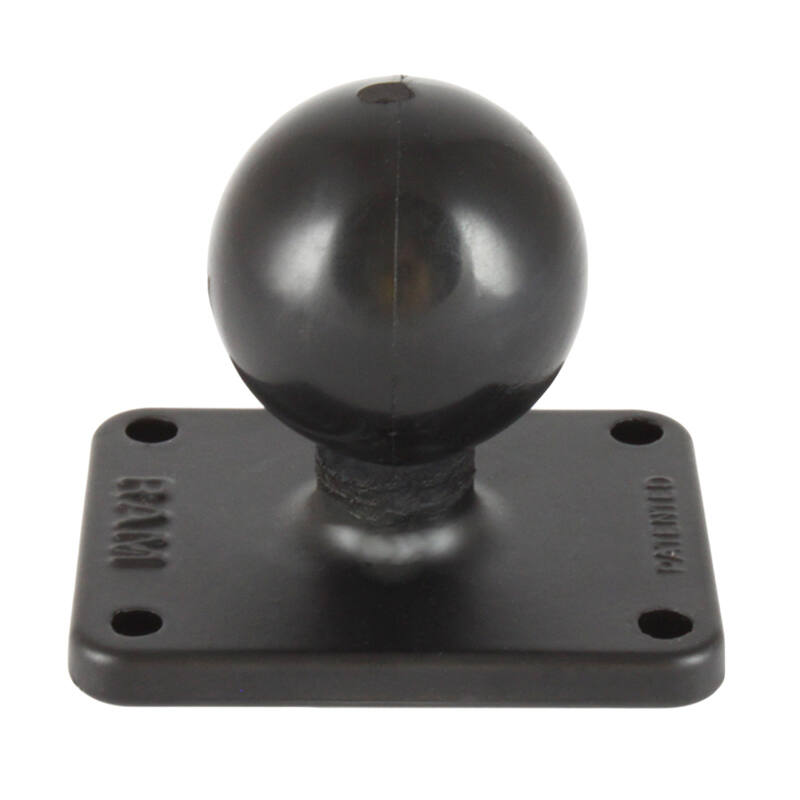

RAM-202U-225 RAM® Ball Base with 1.5" x 2" 4-Hole Pattern - C Size


* 1.5" x 2" rectangular plate connects to RAM® components containing the universal AMPS hole pattern
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

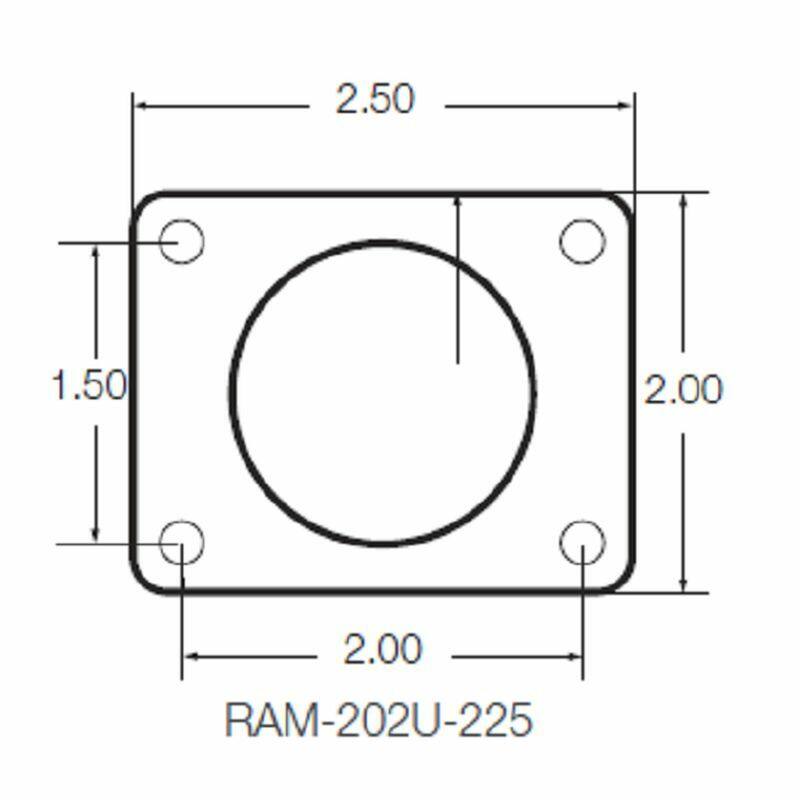

This base plate contains a 1.5" diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 38.1 x 50.8mm (1.5" x 2") centre to centre.

Specs & Features

Plate Dimensions
51mm x 63.5mm (2" x 2.5").

Hole Pattern
38.1 x 50.8mm (1.5" x 2")

Powder Coated Marine Grade Aluminium

Ball Size:
1.5" Rubber Ball Size

108 grams (0.24lbs)

Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
