RAM Rectangular Base - C Series for Crown Work Assist

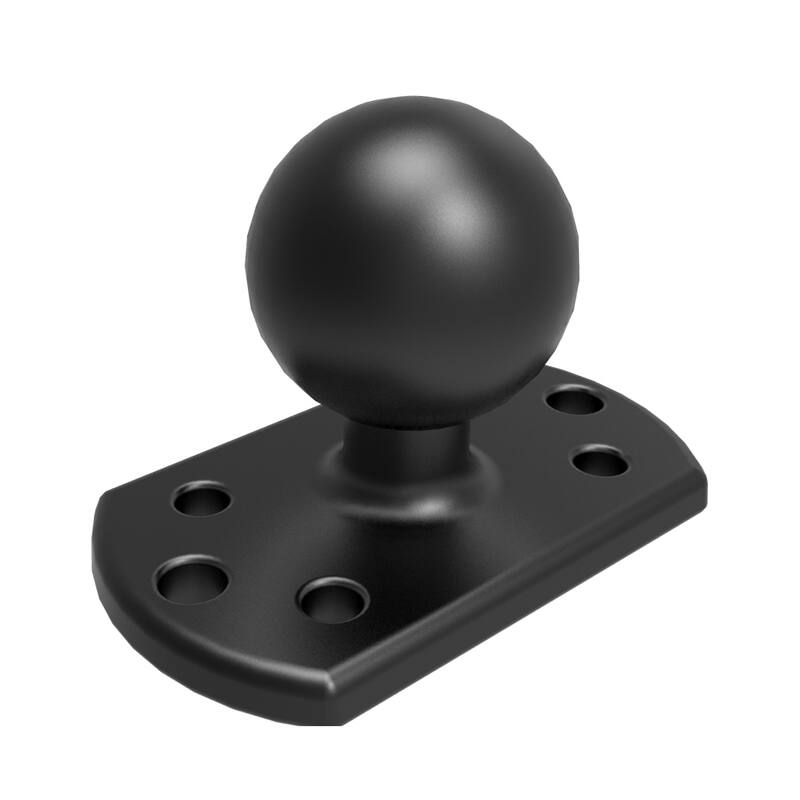

RAM-202U-CRO1 RAM® Rectangular Ball Base for Crown Work Assist®

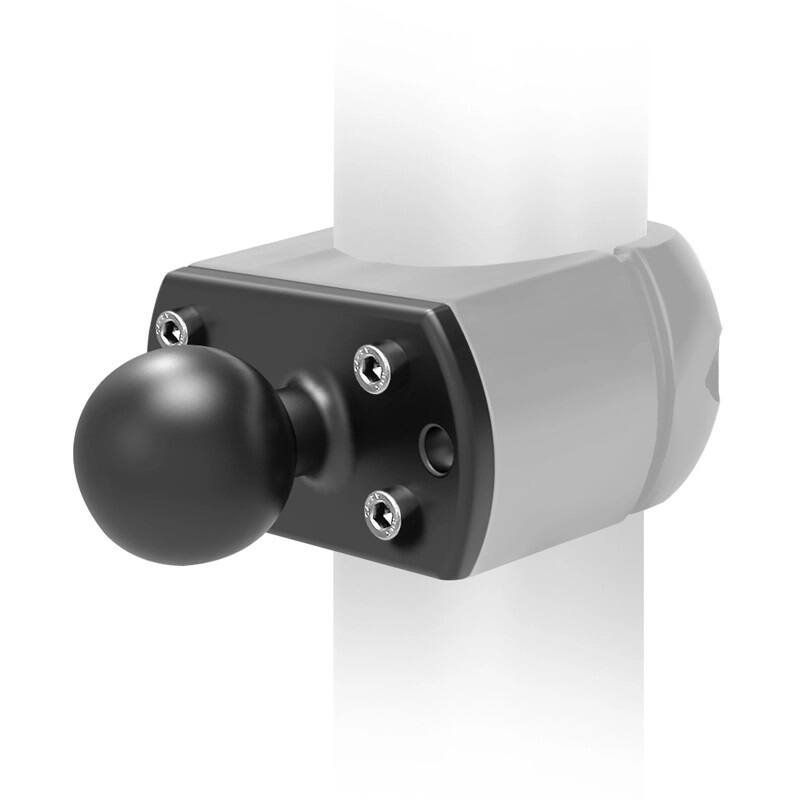

RAM-202U-CRO1 is a rectangular ball base with mounting holes aligned to Crown Work Assist® clamp accessories, finished with a RAM® C Size (1.5") ball for connecting any C Size RAM® double socket arm.

Key Features

• Purpose-built hole pattern: mounting holes align directly with Crown Work Assist® clamp accessories.
• Near-infinite adjustability via RAM® ball and socket technology.
• Powder-coated marine-grade aluminium construction.
• Lifetime warranty.

Works With

Requires a Crown Work Assist® clamp, sold separately, not included with this base. Pair with any C Size RAM® double socket arm and cradle.

Dimensions & Specifications

• Hole pattern: 4-hole, 25.4mm x 44.45mm (1" x 1.75"), with 63.5mm (2.5") spacing between the wider 2-hole pattern
• Ball/socket size: C Series, 1.5" ball
• Weight capacity: 1.814kg (4lb) standard use, 1.36kg (3lb) heavy-duty use
• Materials: marine-grade aluminium

FAQs

Does this include the Crown Work Assist clamp? No, the clamp is sold separately. This is just the RAM ball base that aligns with it.

How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
