RAM Mounts

RAM Rectangular Base - Crown Work Assist with Double Ball Mount - long

RAM Rectangular Base - Crown Work Assist with Double Ball Mount - long

SKU:RAM-101U-D-CRO1-v

Regular price $185.65 NZD
Regular price Sale price $185.65 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

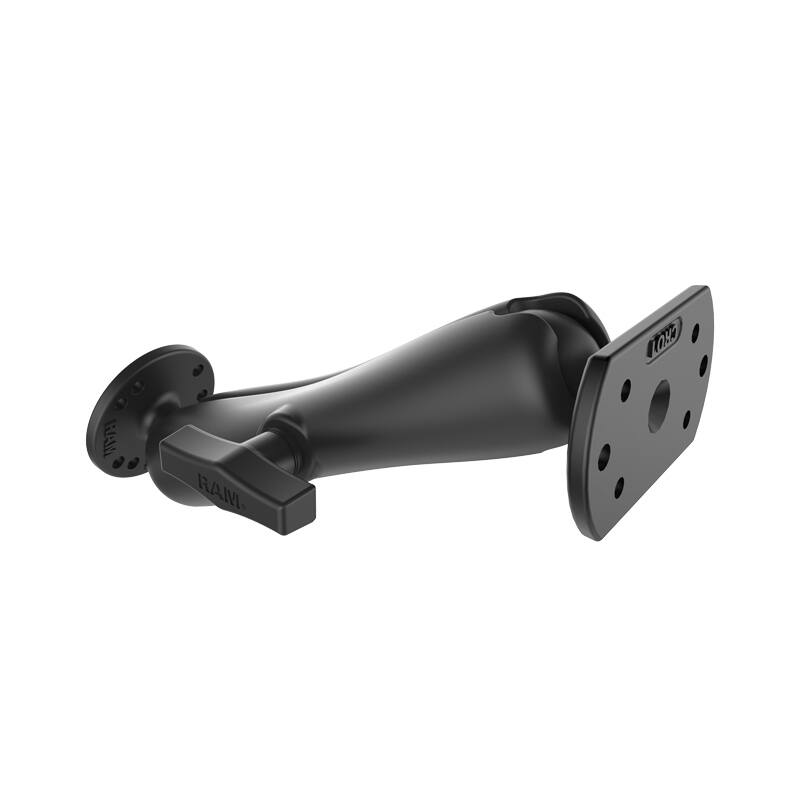

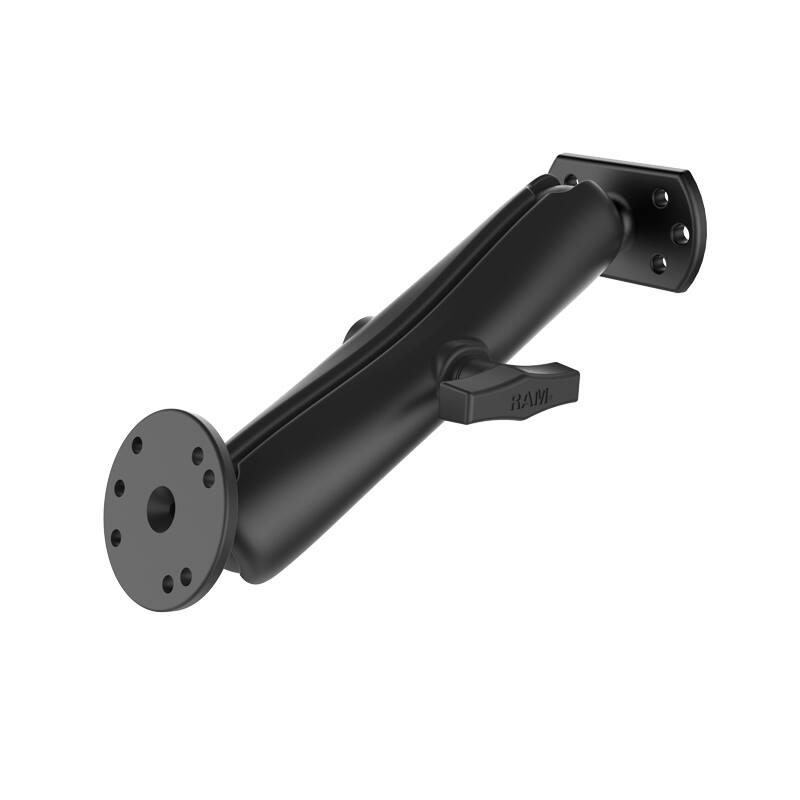

RAM-101U-D-CRO1 RAM® Universal Double Ball Mount for Crown Work Assist® - long arm



Features

* Crown double ball mount with long C Size arm contains mounting holes on the base aligned to work with Crown Work Assist® clamp accessories
* Compatible with RAM® C Size components
* Made of powder-coated steel and marine-grade aluminum
* Backed by a lifetime warranty



This Crown double ball mount comes with a medium C Size arm, Crown ball base and 2.5" round ball adapter with universal AMPS hole pattern aligned to work with Crown Work Assist® clamp accessories. This double ball mount is the ideal mounting solution for forklifts and other Material Handling applications.

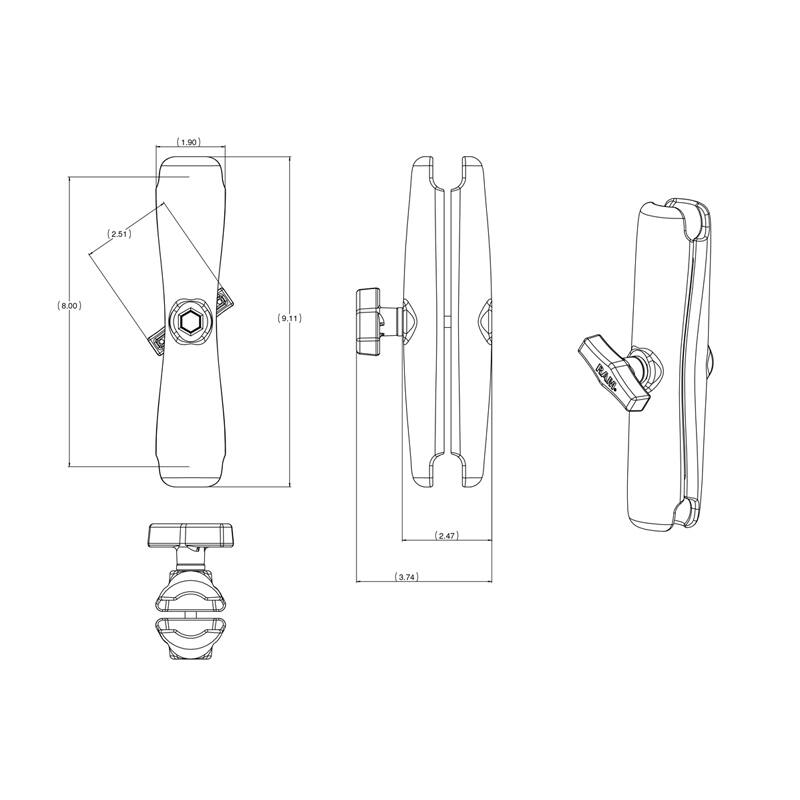

product dimensions



Overall Height:
275.6mm / 10.85"

Socket to socket length:
203.2mm / 8"



Hole pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)



Ball size
C Size (1.5")


Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)

Materials:
Marine-grade aluminum


Weight
952 grams / 2.1 lb

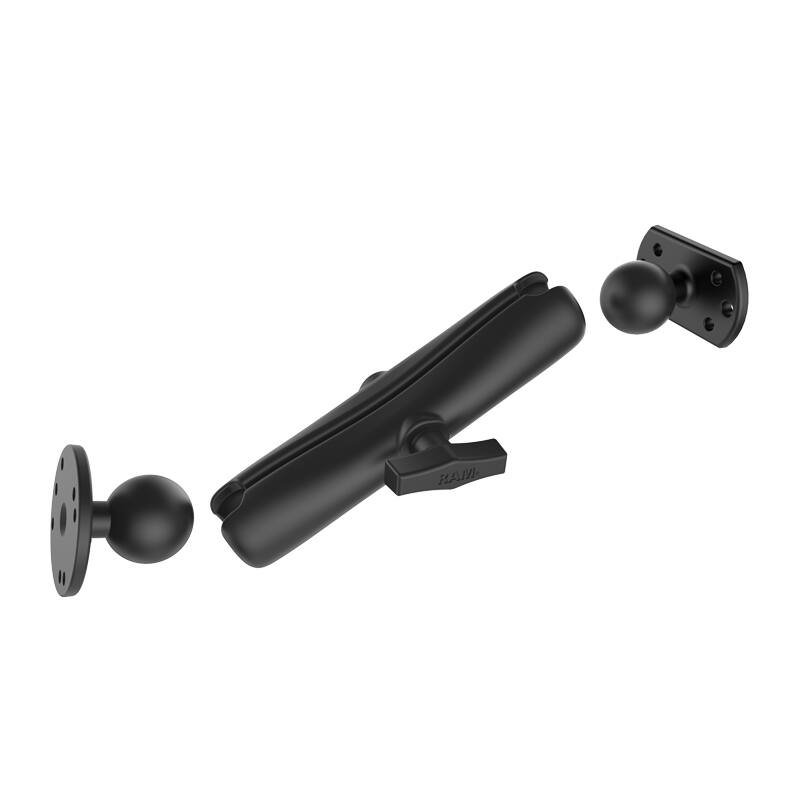

Components:

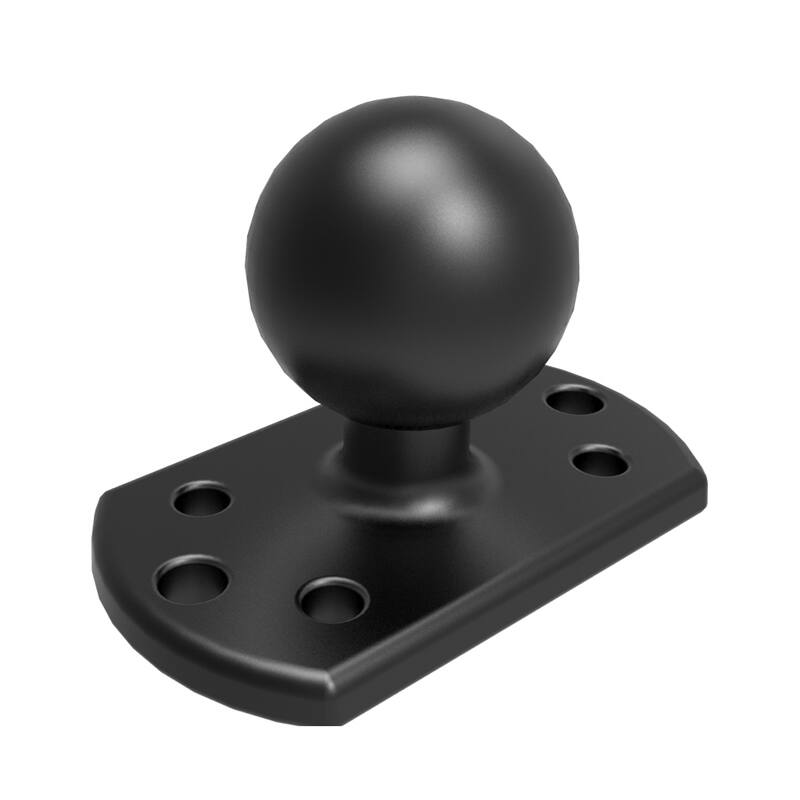

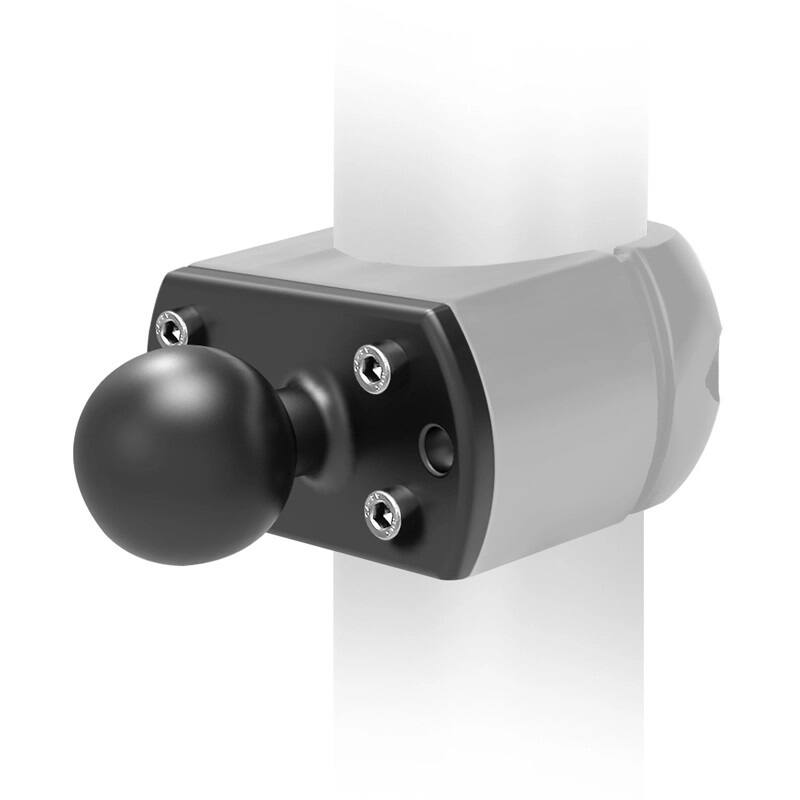

RAM-202U-CRO1 RAM BASE CROWN LIFT TRUCKS 1.5" BALL

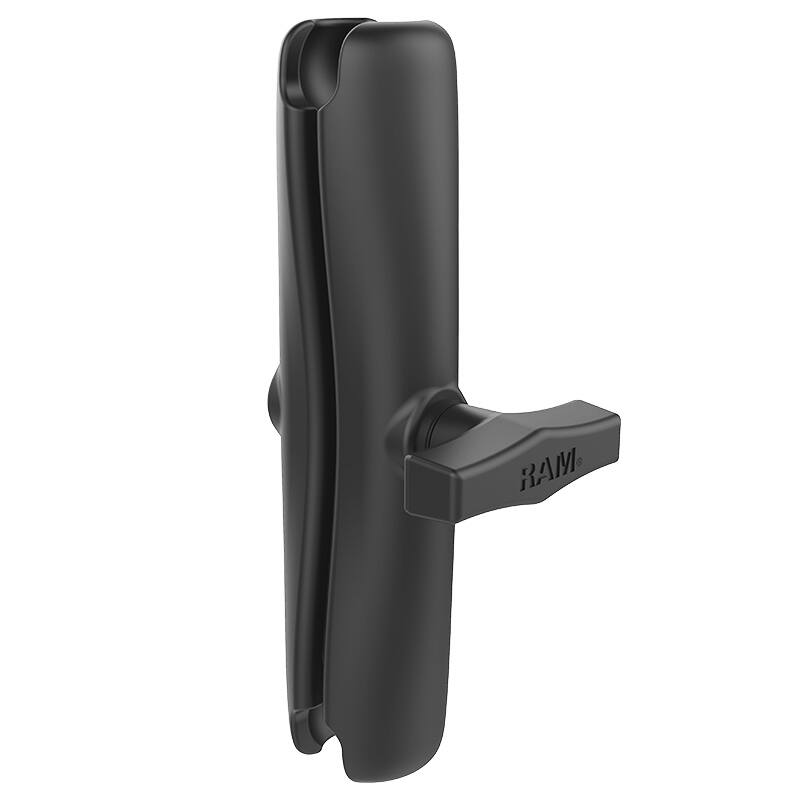

RAM-201U-D RAM DBL SOCKET ARM C BALL D LENGTH

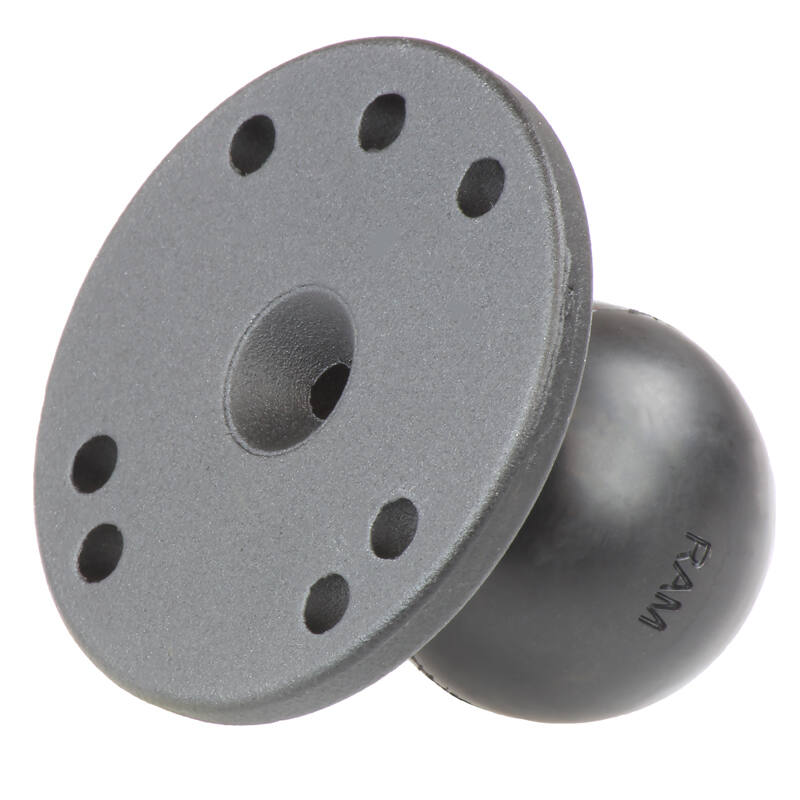

RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
