RAM-101U-CRO1 RAM® Universal Double Ball Mount for Crown Work Assist® - medium arm
Features
* Crown double ball mount with medium C Size arm contains mounting holes on the base aligned to work with Crown Work Assist® clamp accessories
* Compatible with RAM® C Size components
* Made of powder-coated steel and marine-grade aluminum
* Backed by a lifetime warranty

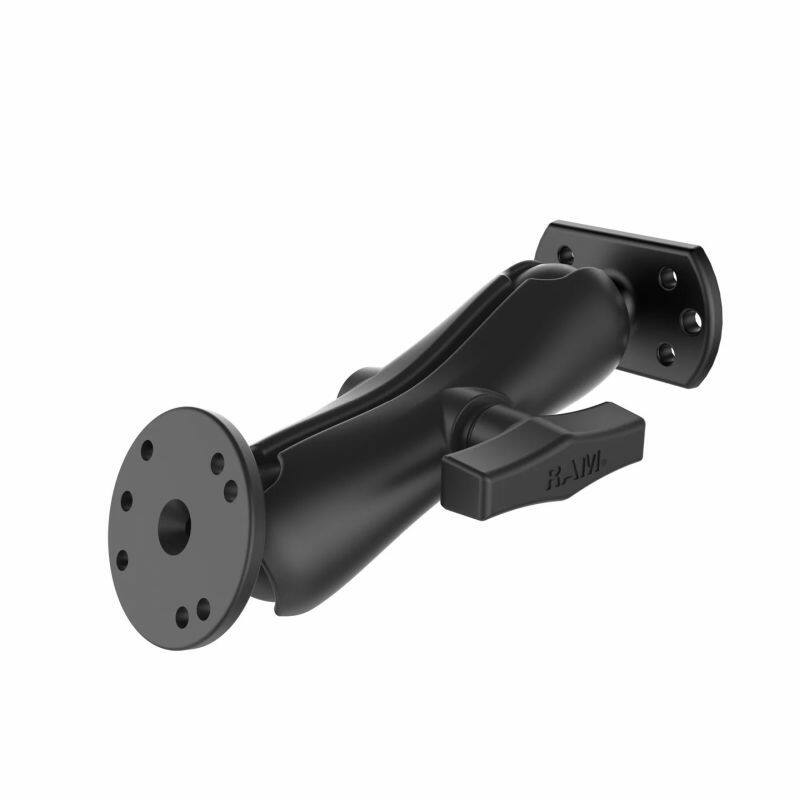

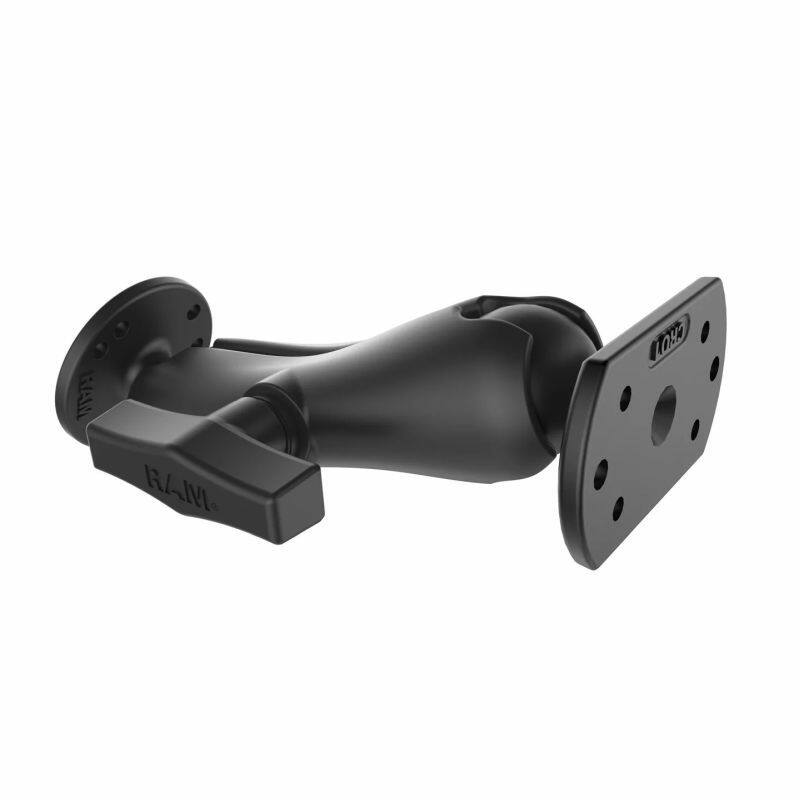

This Crown double ball mount comes with a medium C Size arm, Crown ball base and 2.5" round ball adapter with universal AMPS hole pattern aligned to work with Crown Work Assist® clamp accessories. This double ball mount is the ideal mounting solution for forklifts and other Material Handling applications.
product dimensions
Overall Height:
186.7mm / 7.35"
Socket to socket length:
118.4mm / 4.66"
Hole pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Ball size
C Size (1.5")
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
Materials:
Marine-grade aluminum
Weight
498 grams / 1.1 lb

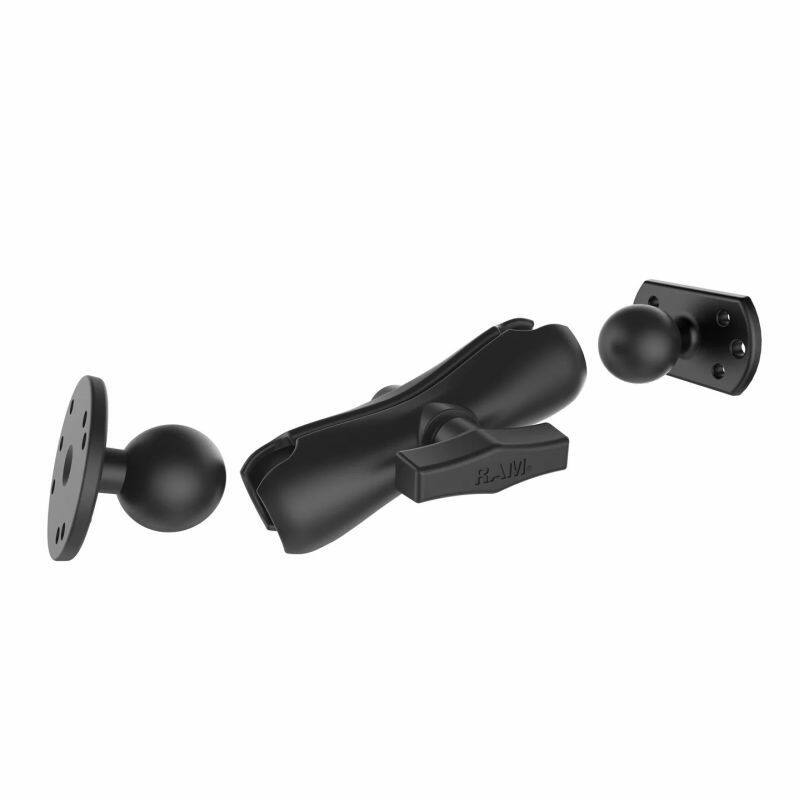

Components:

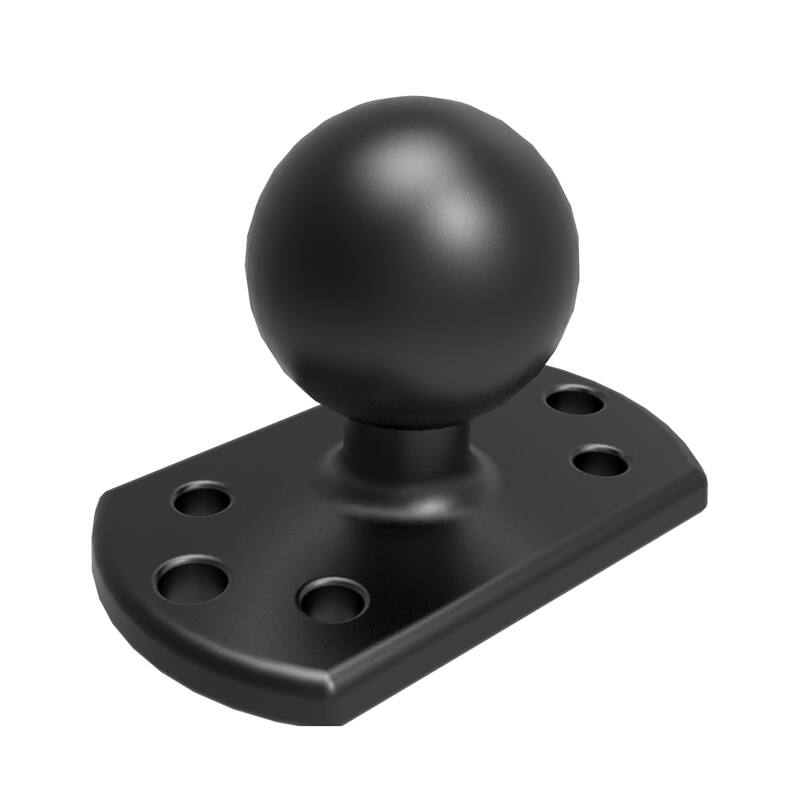

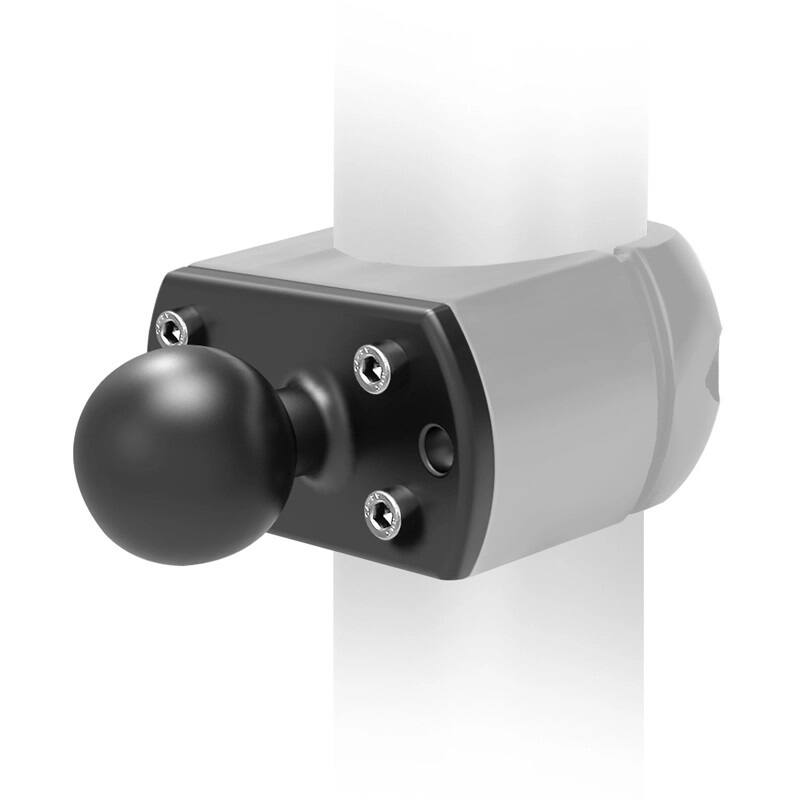

RAM-202U-CRO1 RAM BASE CROWN LIFT TRUCKS 1.5" BALL

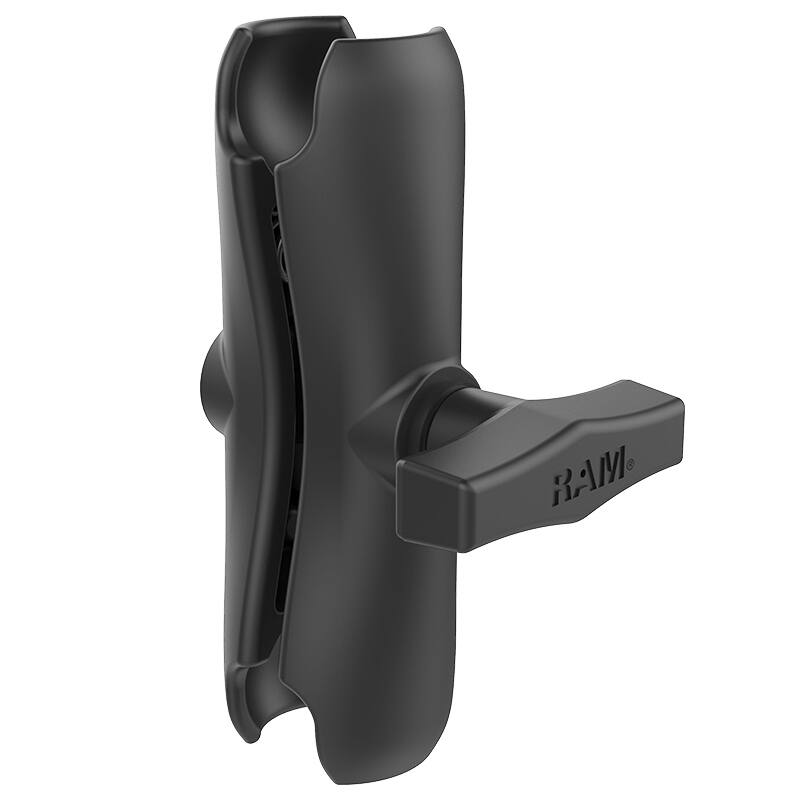

RAM-201U RAM 1.5" (C-Series) Alloy Arm

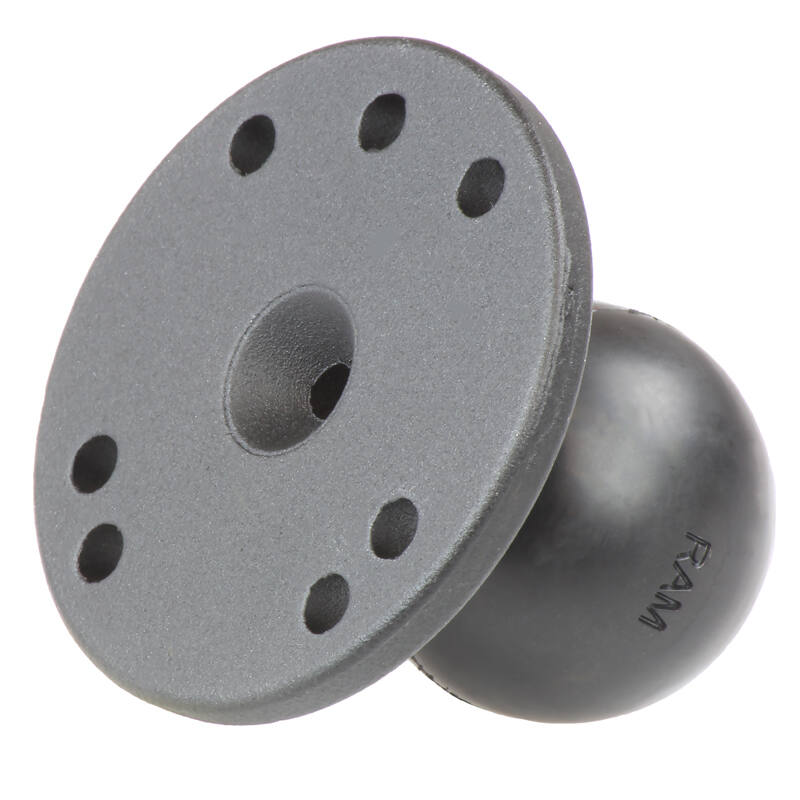

RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
