RAM-101U-B-CRO1 RAM® Double Ball Mount for Crown Work Assist®, Short Arm

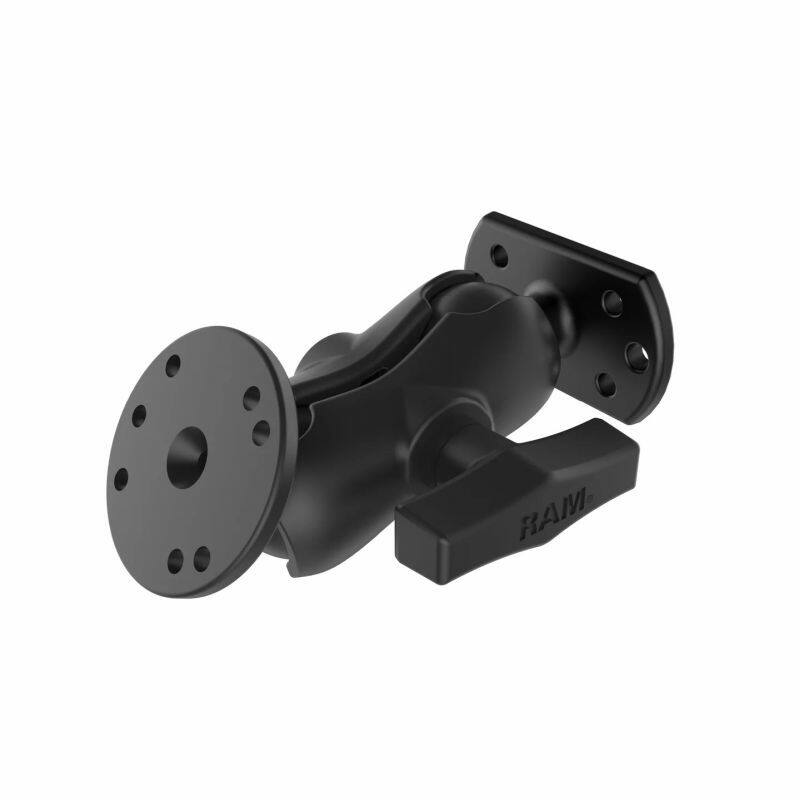

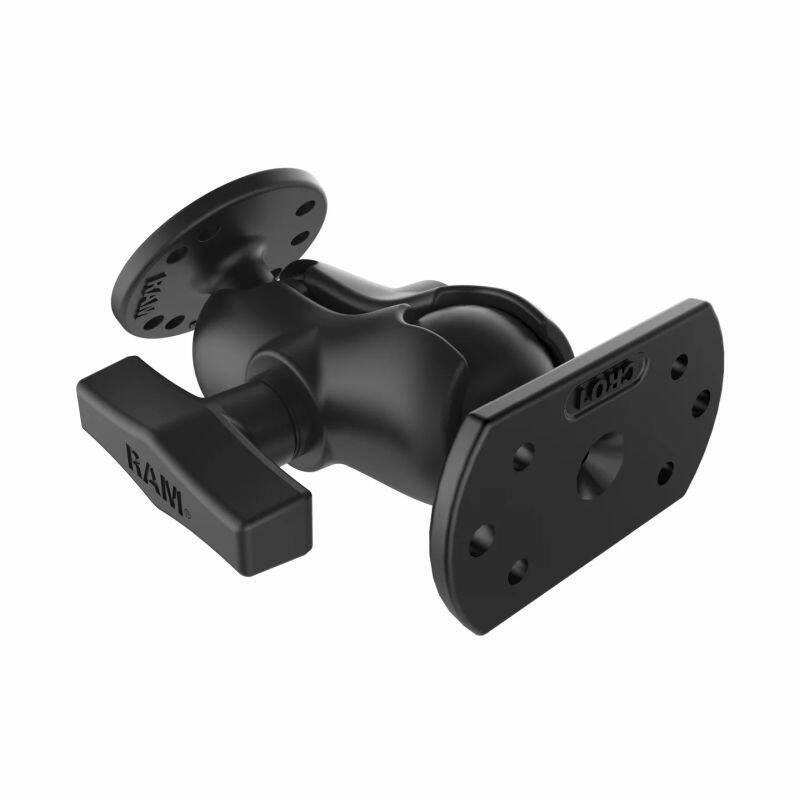

RAM-101U-B-CRO1 is a complete double ball mount for Crown Work Assist®, pairing the Crown-aligned ball base with a short C Size arm and a 63.5mm (2.5") round ball adapter. It's a ready-to-use mounting solution for forklifts and other material handling applications.
Key Features

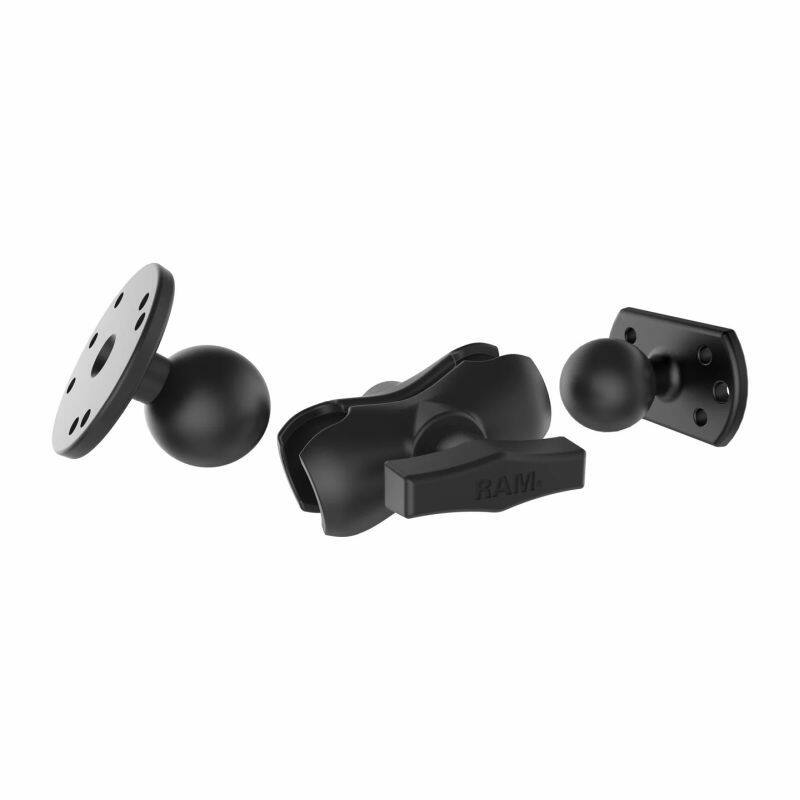

Complete kit: Crown-aligned base, short arm, and round AMPS adapter in one.
Built for material handling: designed for forklift and warehouse mounting.
Powder-coated steel and marine-grade aluminium construction.
Lifetime warranty.
Works With

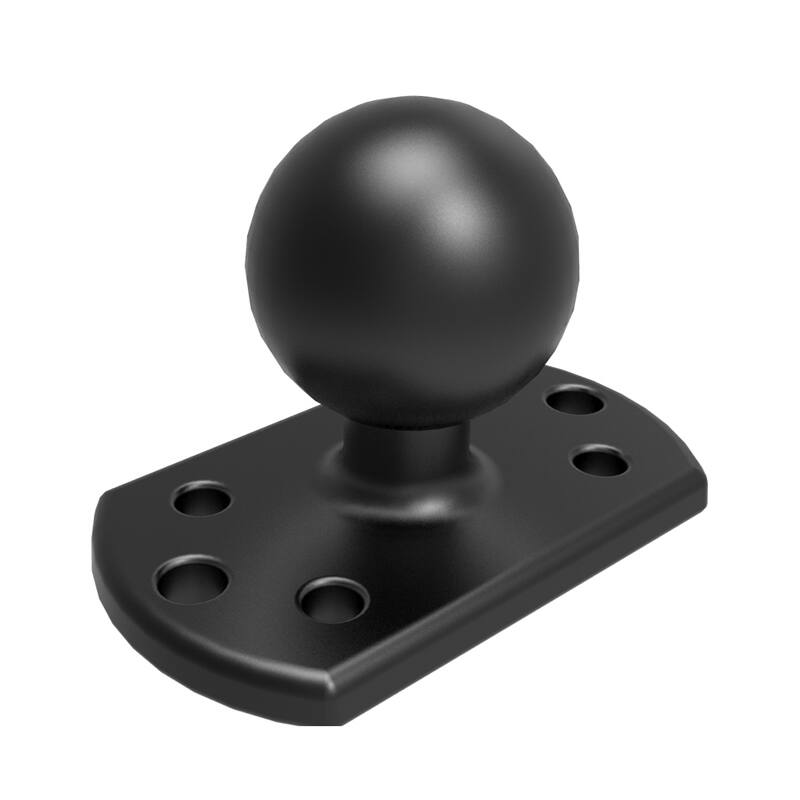

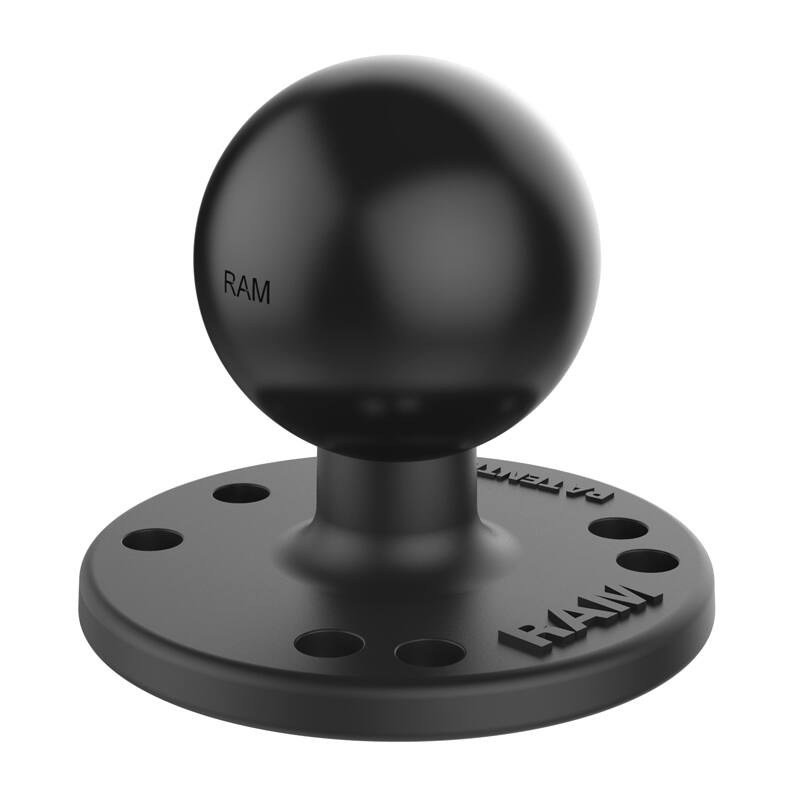

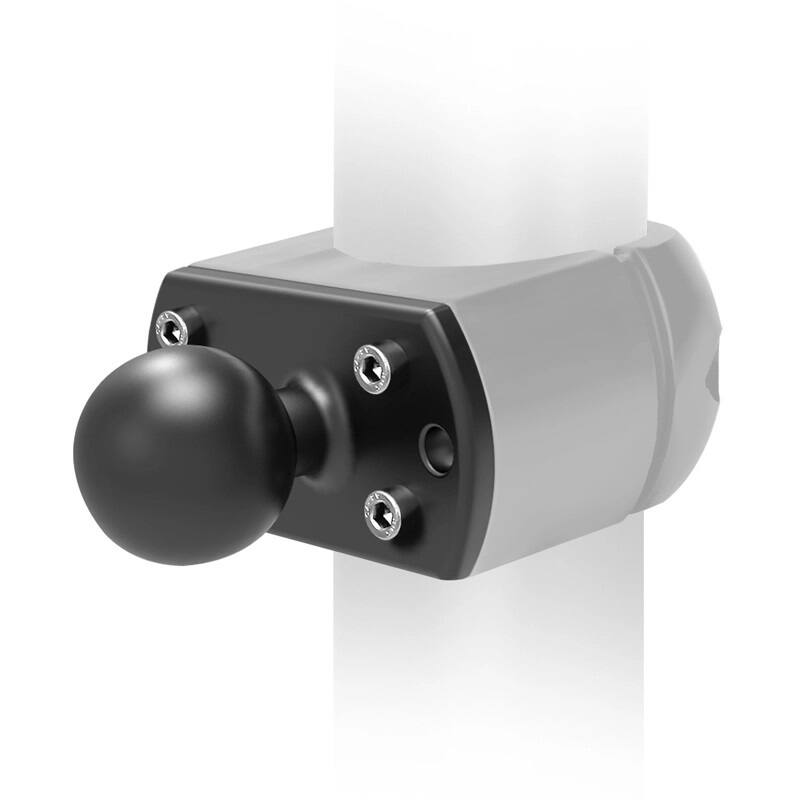

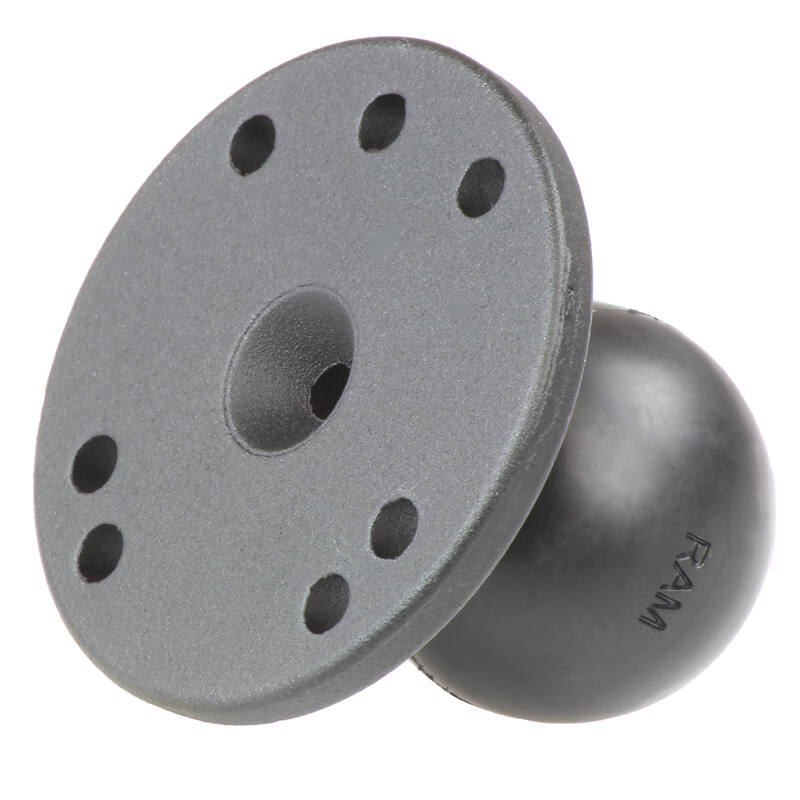

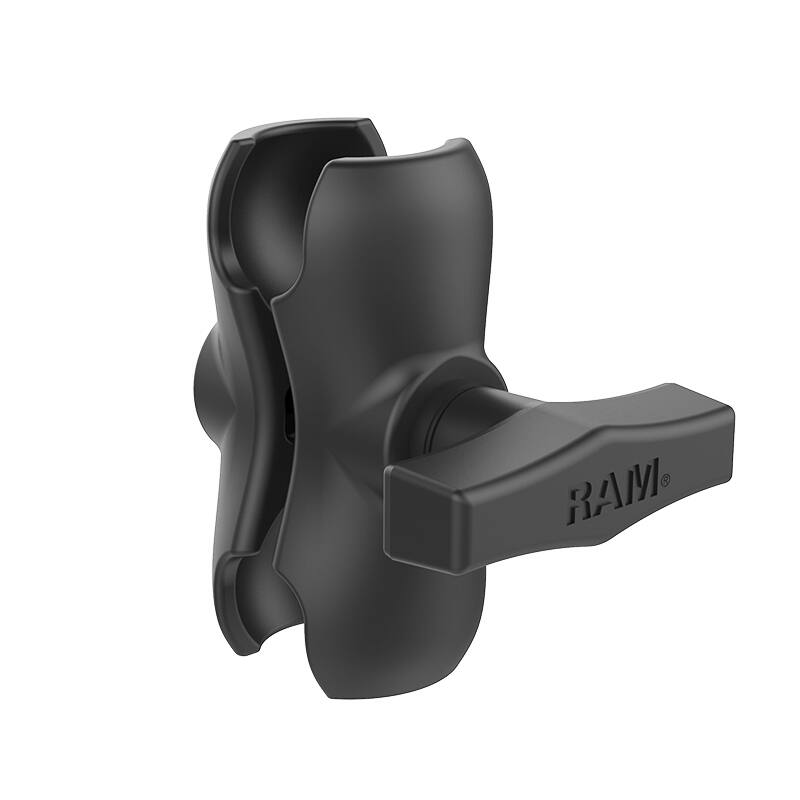

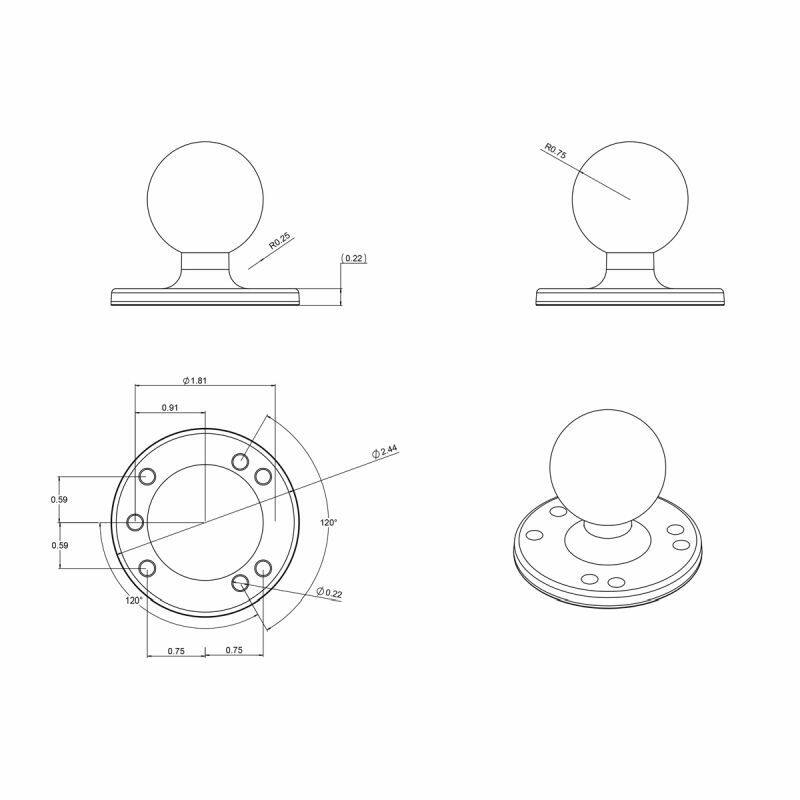

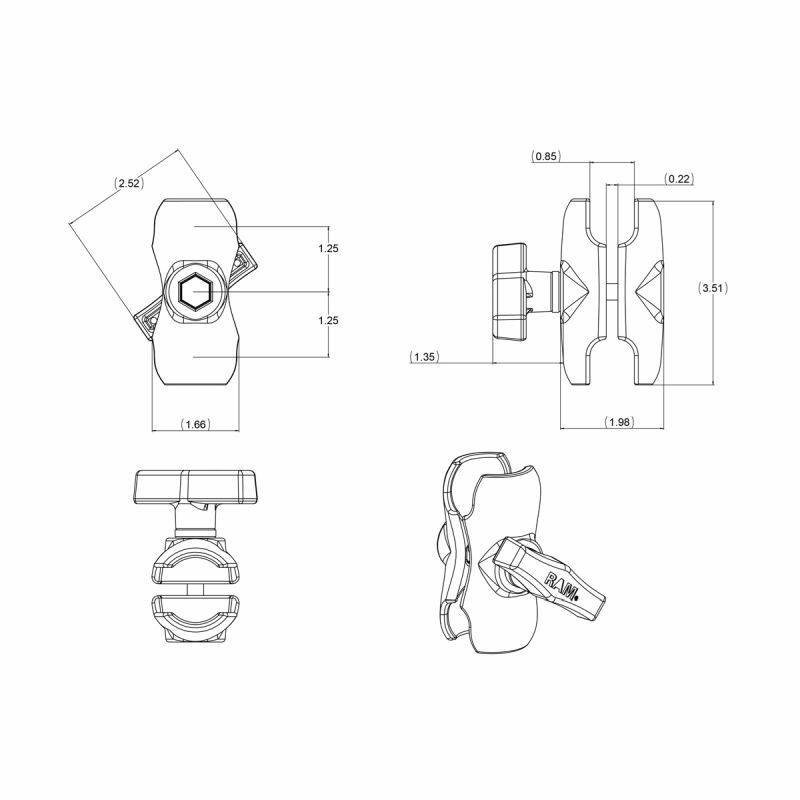

Requires a Crown Work Assist® clamp, sold separately. Made up of RAM-202U-CRO1 (Crown ball base), RAM-201U-B (short C Series arm), and RAM-202U (round AMPS base).
Dimensions & Specifications
Overall height: 132.7mm (5.225")
Socket-to-socket length: 63.5mm (2.5")
Hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° AMPS, 46.0mm (1.812") diameter
Ball size: C Size (1.5")
Weight capacity: 1.814kg (4lb) standard use, 1.36kg (3lb) heavy-duty use
Materials: marine-grade aluminium
Weight: 444g (0.98lb)
FAQs
Does this include the Crown Work Assist clamp? No, the clamp is sold separately.
