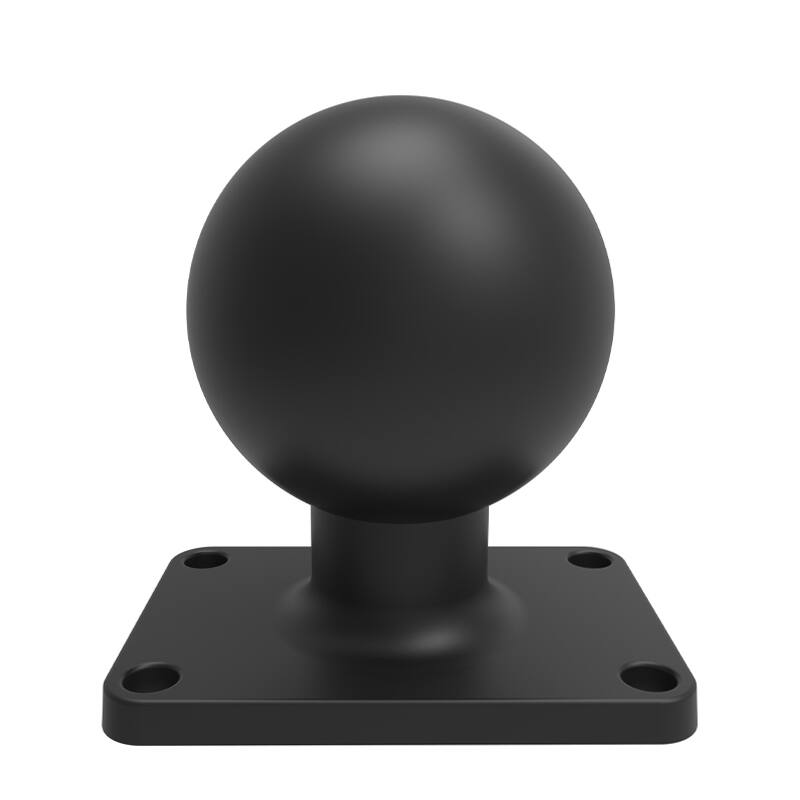

RAM-D-202U-23 RAM® Ball Base with 1.5" x 2.5" 4-Hole Pattern - D Size
Features
* Rectangular plate with 4-hole mounting pattern of 38.1 x 63.5mm (1." x 2.5")
* Overall plate size is 51 x 76mm (2 x 3")
* Included D size 2.25" RAM® rubber ball allows for connection to any D size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

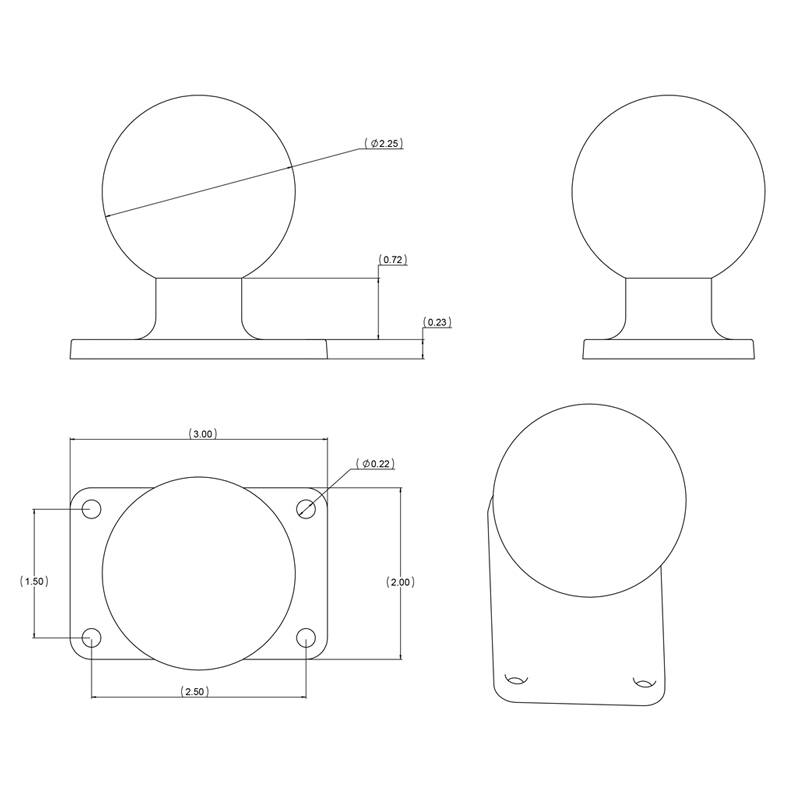

The RAM-D-202U-23 contains a 2.25" (57mm) diameter rubber ball connected to a rectangular plate with a 4-hole pattern of 1.5" x 2.5" centre to centre.
Overall plate dimensions are 50.8 x 76.2mm (2" x 3).
Specs & Features
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
2.25" (57mm) D Series Rubber Ball
Hole Pattern
38.1 x 63.5mm (1.5 x 2.5")
Plate Dimensions
50.8 x 76.2mm (2 x 3")
Weight:
227 grams (0.5 lbs)
Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.27kg (5 lbs)
