RAM Mounts

RAM Rectangular VESA Base - 35mm x 75mm - C Series (1.5" Ball)

RAM Rectangular VESA Base - 35mm x 75mm - C Series (1.5" Ball)

SKU:RAM-2462U

Regular price $50.00 NZD
Regular price Sale price $50.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

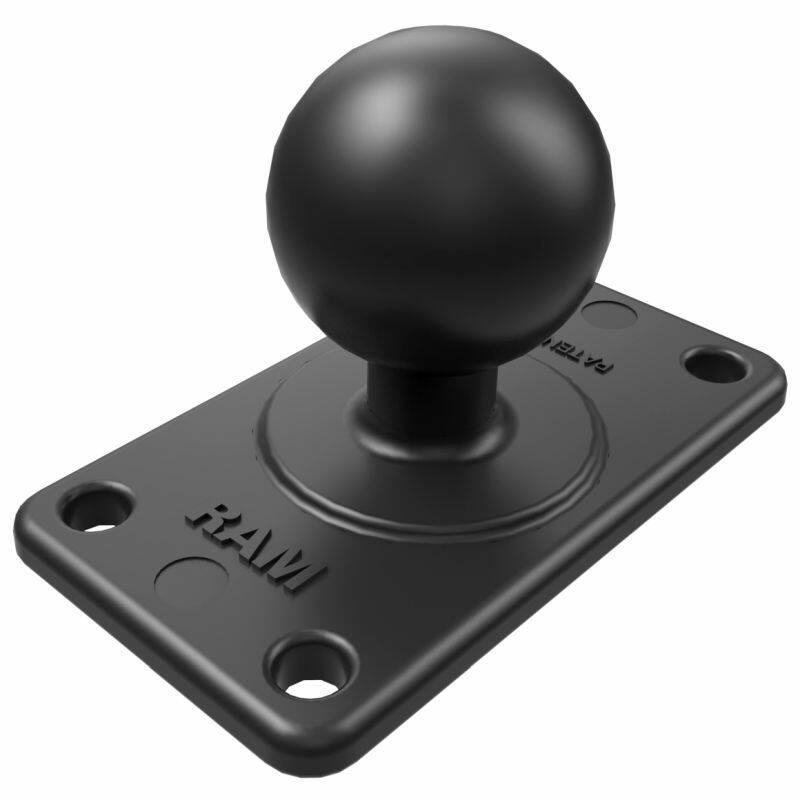

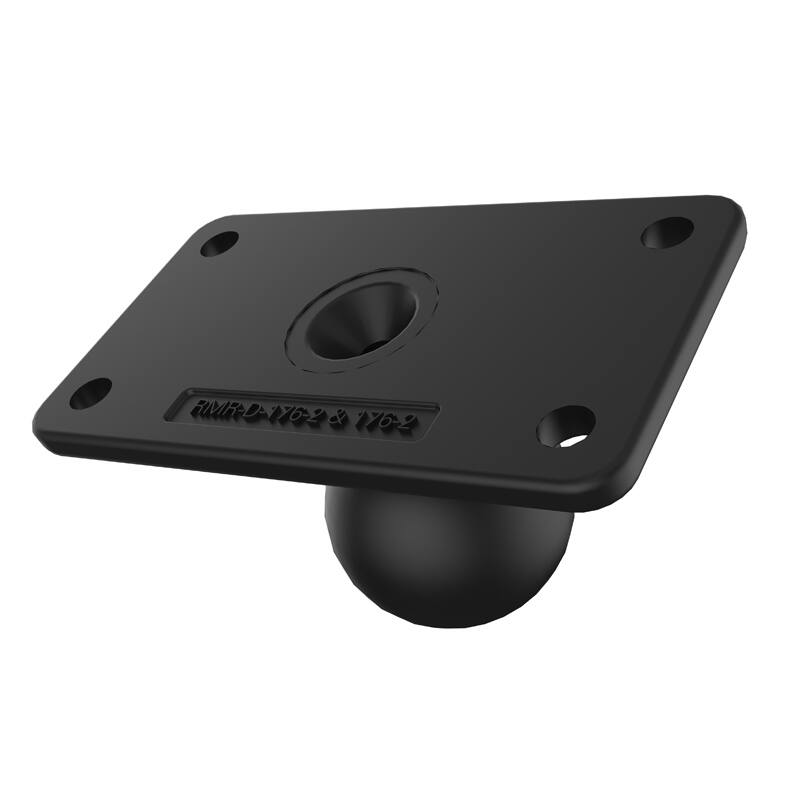

RAM-2462U RAM® 35x75mm VESA Plate with Ball

Features

* Rectangular 91 x 53mm plate features the 35 x 75mm VESA hole pattern for connection to a wide variety of devices
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of power-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty


This RAM-2462U consists of a 1.5" rubber ball, connected to a 91.4mm x 53.3mm (3.6" x 2.1") plate with a 35mm X 75mm VESA hole pattern.

Hole Pattern
35 x 75mm VESA

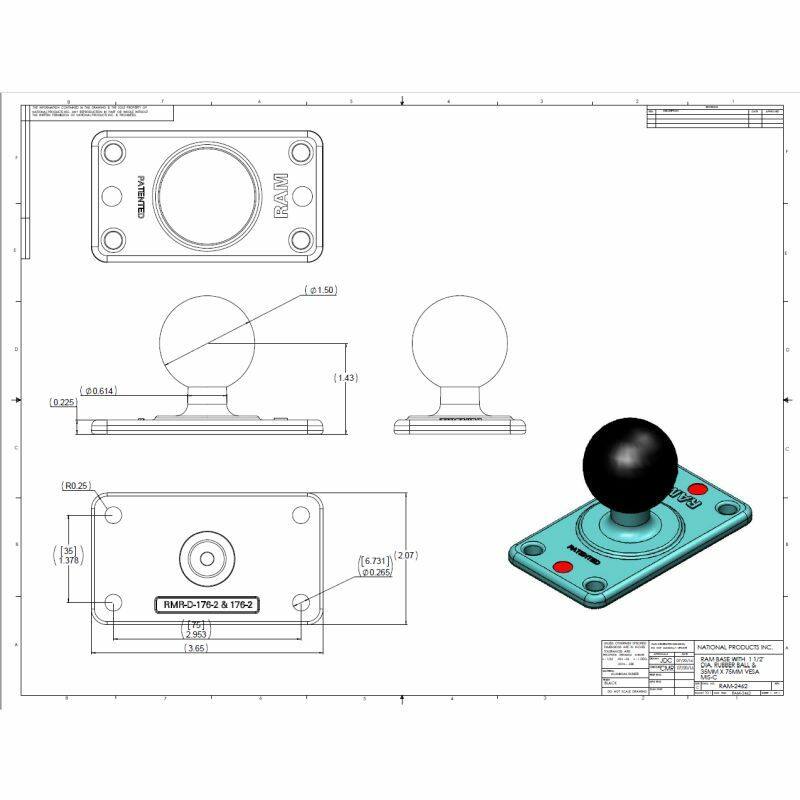

See drawing

Plate Size
91.4mm x 53.3mm (3.6" x 2.1")

Ball Size
C Size (1.5")

Materials
Marine-grade aluminium


Weight
136 grams (0.3 lbs.)


Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
