RAM Mounts

RAM Round Base (62mm diameter) - D Sized (2.25") Ball - 4 Hole AMPS pattern

RAM Round Base (62mm diameter) - D Sized (2.25") Ball - 4 Hole AMPS pattern

SKU:RAM-D-254U

Regular price $65.19 NZD
Regular price Sale price $65.19 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

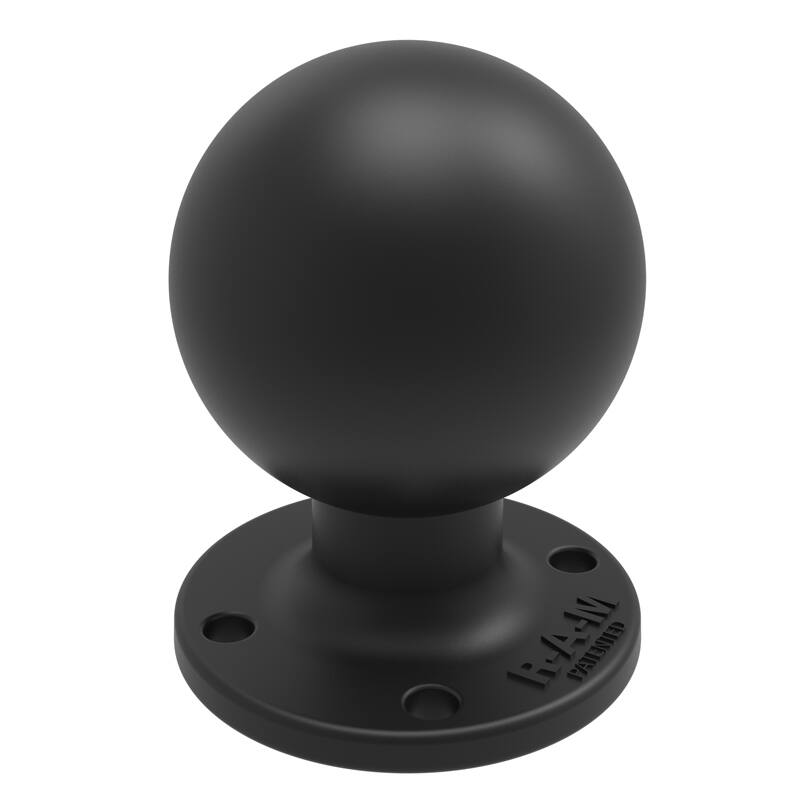

RAM-D-254U RAM® Round AMPS Plate with Ball


Features

* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Included D size 2.25" RAM® rubber ball allows for connection to any D size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

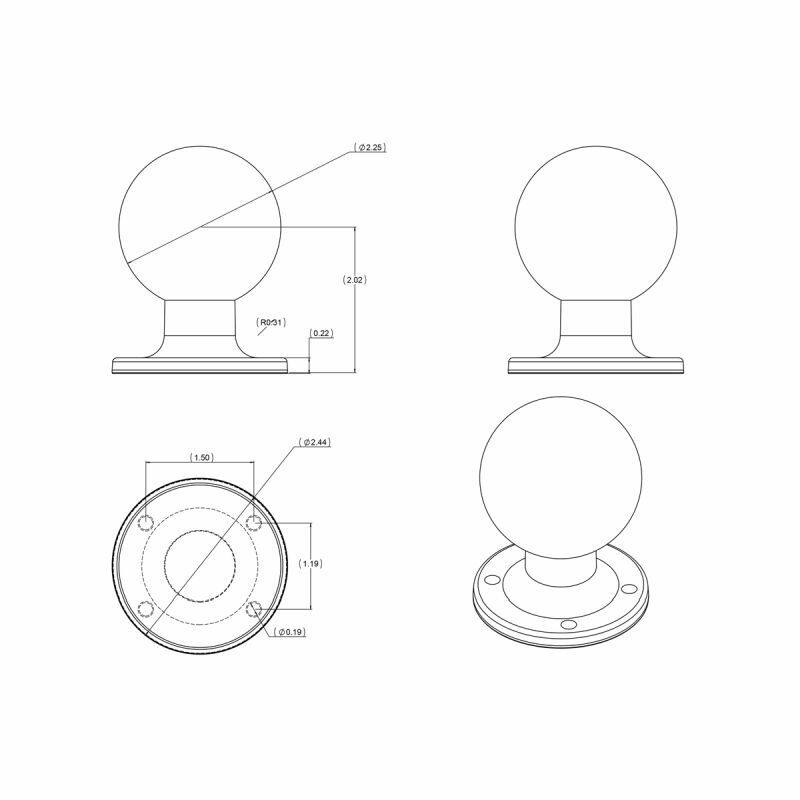

This is the round base needed to mount a D series Arm to most RAM Cradles - a D Size (57mm / 2.25") Ball on 61.9mm / 2.4375" Round Plate with AMPS Hole Pattern (1.181" x 1.496"). The RAM-D-202U is too large to attach to the cradles.


The plate has pre-drilled holes in the base plate, including two holes at 180 degrees.


Specs & Features

Plate Size:
63.5mm (2.5") Diameter

Hole Pattern:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
57mm (2.25") Rubber Ball "D" Size


Weight:
272 grams (0.6 lbs.)

Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)
