RAP-B-202U - Round Base 63mm - B Series (1" Ball) - Composite

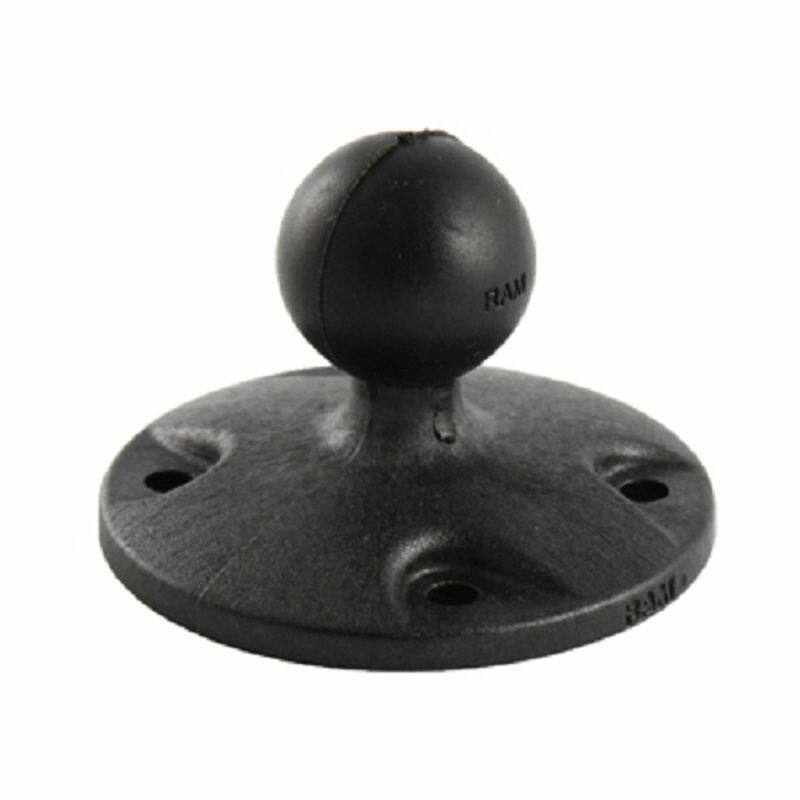

RAP-B-202U – RAM® Composite Round Base with 1" Ball, B Size

The RAP-B-202U is a 63.5mm (2.5") composite round base with a 1" B size RAM® ball and pre-drilled AMPS holes, giving a light, low-cost mounting point for any B size RAM® double socket arm.

Key Features

• 63.5mm (2.5") round plate connects to RAM® holders and devices with the AMPS hole pattern
• 1" B size RAM® rubber ball connects to any B size double socket arm; near-infinite adjustability
• Pre-drilled 4-hole AMPS pattern
• High-strength composite construction; backed by a lifetime warranty

Works With

Any B size (1") RAM® double socket arm and holder. Surface-mounts via the AMPS holes.

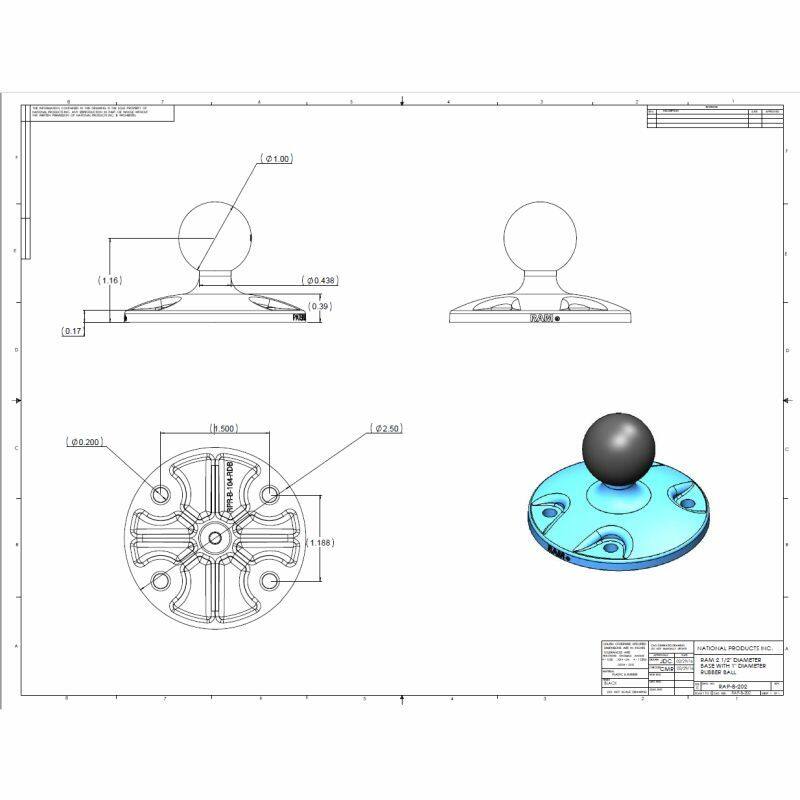

Dimensions & Specifications

• Base diameter: 63.5mm (2.5")
• Hole pattern: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm)
• Ball size: B (1")
• Load capacity: 907g (2 lb)
• Weight: 45g (0.1 lb)
• Material: high-strength composite
• Warranty: lifetime

FAQs

What size screws do the holes take?

The most common sizes are #8, #10, M4 and M5. If you pair this with a RAM® holder, that holder ships with the hardware needed to connect to this base.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
