RAM Round Base (63.5mm diameter) - C Series (1.5" Ball) with Backing Plate

RAM-202-225-2U RAM® Round Base with Backing Plate – C Size (1.5" Ball)

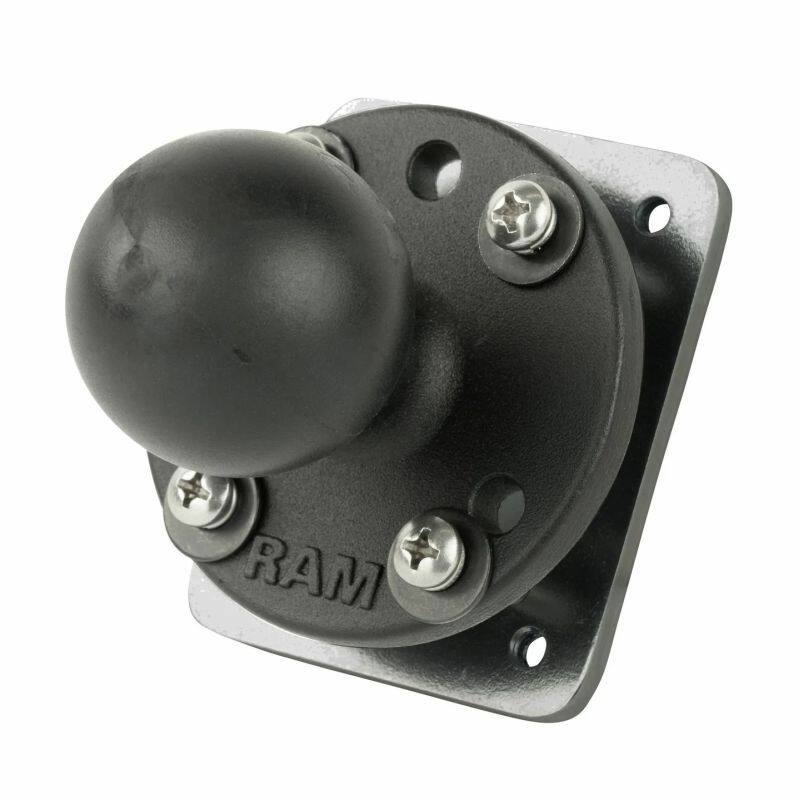

The RAM-202-225-2U is a drill-down dashboard mount combining a 63.5mm (2.5") round AMPS base, a 1.5" C Size rubber ball, and a steel backing plate for a secure, low-clearance fixing.

Key Features

• 63.5mm (2.5") round plate with universal AMPS hole pattern
• 1.5" C Size rubber ball connects to any C Size double socket arm and device holder

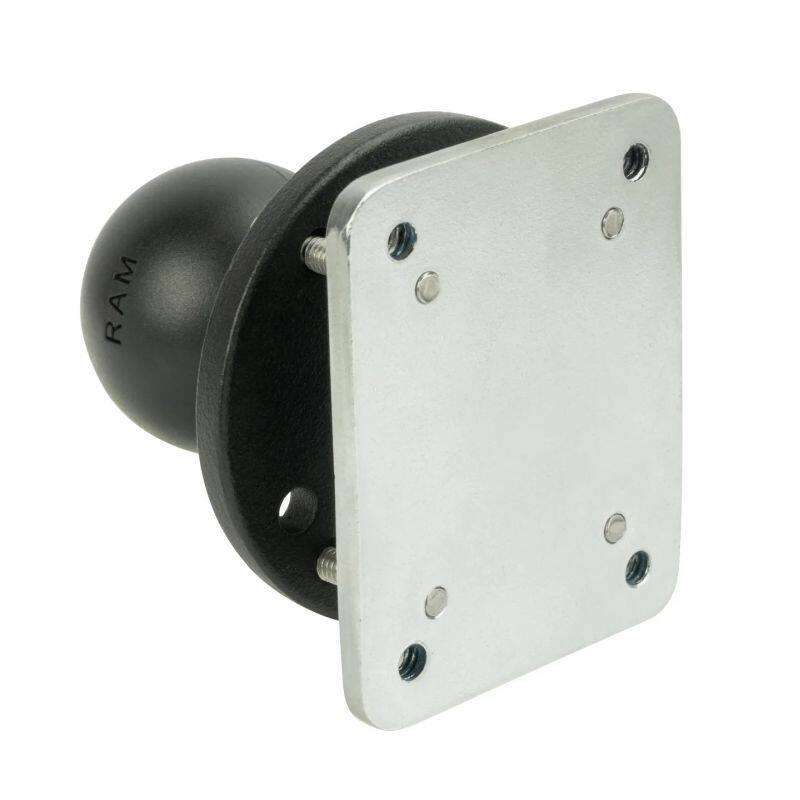

• Includes 53.3mm x 66mm (2.10" x 2.60") steel backing plate and hardware
• Patented rubber ball-and-socket design dampens shock and vibration with near-infinite adjustment
• Marine-grade aluminium and steel construction
• Backed by RAM's lifetime warranty

Works With

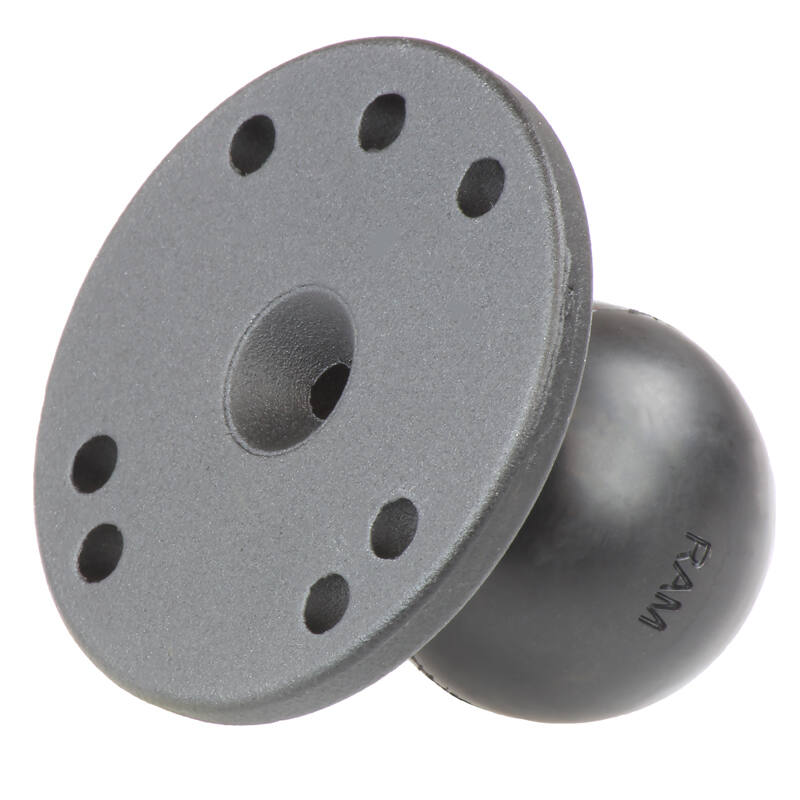

Pairs with a C Series double socket arm (e.g. RAM-201U) and your chosen device holder. Components: RAM-202U (round base with 1.5" ball) and RAM-202-225BU (backing plate adaptor).

Dimensions & Specifications

• Base diameter: 63.5mm (2.5")
• Ball size: C Size (1.5")
• 4-Hole AMPS: 1.181" x 1.496" (30mm x 38mm)
• 3-Hole AMPS 120°: 1.812" (46.0mm)
• Backing plate: 53.3mm x 66mm (2.10" x 2.60") steel
• Weight: 227 grams (0.5 lb)
• Weight capacity: 1.814kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use
• Materials: Marine-grade aluminium, steel

Hardware Included

• 1 x 2.10" x 2.60" steel backing plate
• 4 x #8-32 x 1" machine screws
• 4 x #8 split lock washers
• 4 x #8 flat washers
