RAM-E-202U - Round Base 93.5mm - E Series (3.38" Ball)

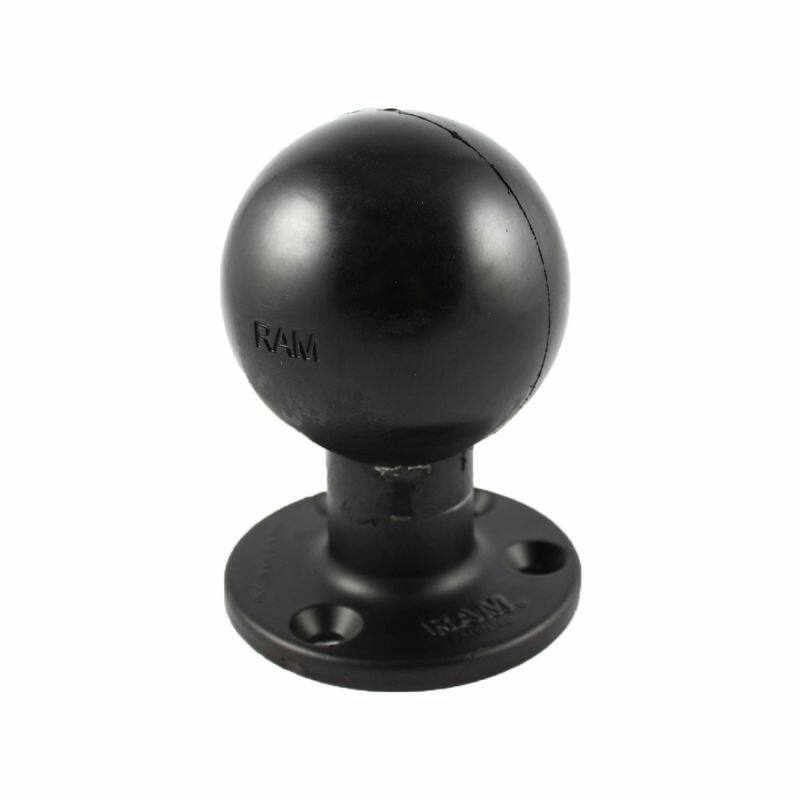

RAM-E-202U RAM® Large Round Drill-Down Base with E Size Ball

The RAM-E-202U is a 93.5mm (3.69") round drill-down base fitted with a large E-size rubber ball. Bolt it down to a deck, floor or bulkhead and it connects to any RAM® E-size double socket arm, giving you the heaviest-duty RAM® base for large screens, marine electronics and industrial gear.

Key Features

• 93.5mm (3.69") round plate for solid drill-down mounting to any flat surface.
• Large E-size rubber ball connects to any RAM® E-size double socket arm; ball-and-socket gives near-infinite angle adjustment.
• Pre-drilled mounting holes: two at 180 degrees and three at 120 degrees.
• Powder-coated marine-grade aluminium for the most demanding marine, military and industrial use. Lifetime warranty.

Works With

Any RAM® E-size (3.38") double socket arm and matching RAM® E-size components.

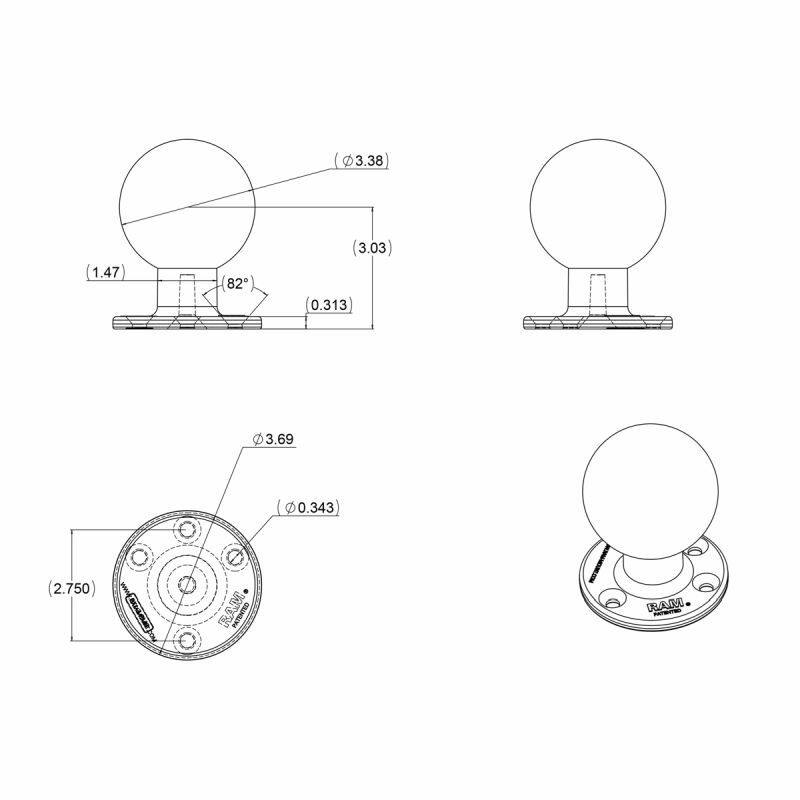

Dimensions & Specifications

• Plate diameter: 93.5mm (3.69")
• Mounting holes: two at 180 degrees (2.750" centres), three at 120 degrees; drilled holes 0.343" diameter
• Ball size: E Size (3.38"), 85.5mm
• Weight capacity: standard use 6.8kg (15 lb), heavy-duty 4.53kg (10 lb)
• Material: powder-coated marine-grade aluminium
• Weight: 703g (1.55 lb)

FAQs

Does it include mounting hardware?
No. These bases get fitted to so many different surfaces that we leave the fixings to you; a local hardware store can sort the right screws or bolts for your surface.

Which arm do I need?
Any RAM® E-size double socket arm drops straight onto the ball.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
