RAM Round Base - C Series - with #6-32 Hardware for Garmin Fishfinders

RAM-202-G2U – RAM® Ball Adapter with #6-32 Hardware for Garmin Fishfinders

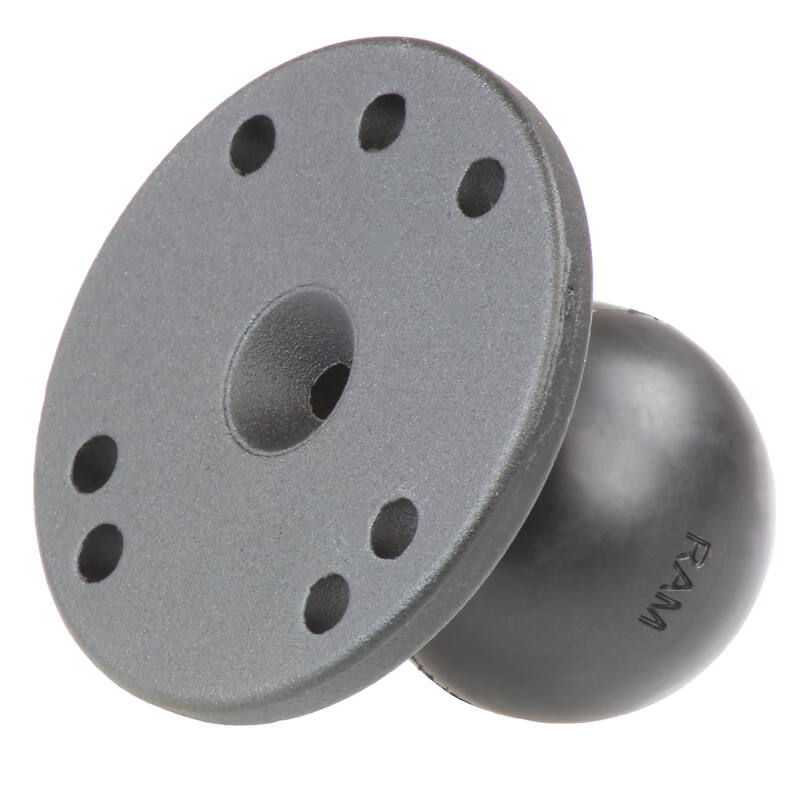

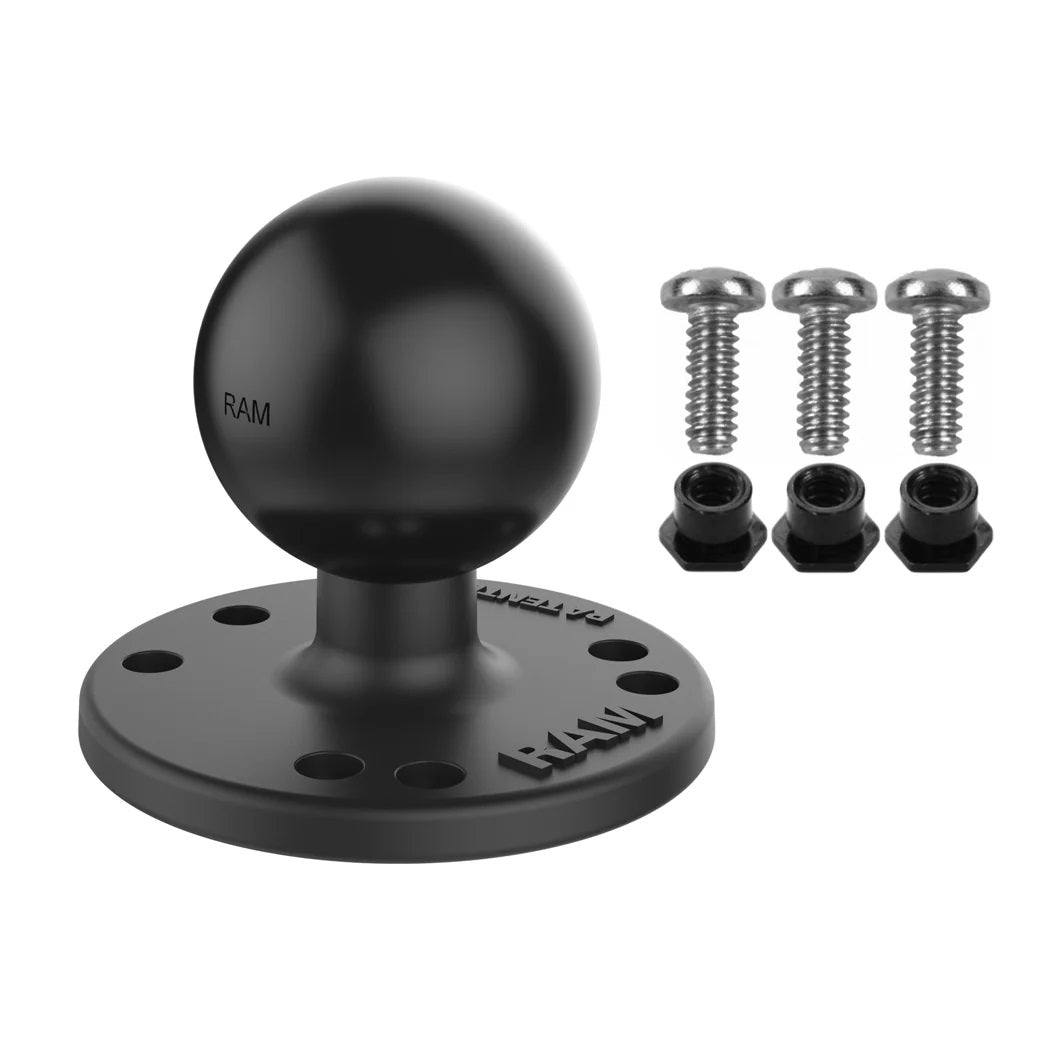

The RAM-202-G2U is a C size 1.5" rubber ball on a 63.5mm (2.5") round base, supplied with a #6-32 hardware pack for assembling Garmin fishfinder swivel mounts onto the RAM® ball and socket system.

Key Features

• Includes hardware pack for assembly of your Garmin fishfinder swivel mount
• 63.5mm (2.5") round plate with the universal AMPS hole pattern connects to RAM® device holders
• C size 1.5" rubber ball connects to any C size RAM® double socket arm; near-infinite adjustability
• Powder-coated marine-grade aluminium for marine environments
• Backed by a lifetime warranty

Works With

Garmin Fishfinder 80–120 and GPSMAP 172–555 series swivel mounts, paired with C size (1.5") RAM® double socket arms.

Dimensions & Specifications

• Plate diameter: 63.5mm (2.5"); overall height 57.2mm (2.25")
• Hole patterns: 4-hole AMPS, 1.181" x 1.496" (30mm x 38mm); 3-hole 120° AMPS, 1.812" (46.0mm)
• Ball size: C (1.5")
• Load capacity: 1.814kg (4 lb) standard use; 1.36kg (3 lb) heavy-duty use
• Weight: 100g (0.22 lb)
• Material: powder-coated marine-grade aluminium
• Warranty: lifetime

FAQs

What size screws fit the plate holes?

The most common sizes are #8, #10, M4 and M5 screws; RAM® holders come with the hardware needed to connect to the plate, and this base includes the #6-32 pack for the Garmin swivel mount.

When will my order ship?

If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
