RAM Mounts

RAM Round Base Rail Adaptor Kit

RAM Round Base Rail Adaptor Kit

SKU:RAM-233U

Regular price $49.95 NZD
Regular price Sale price $49.95 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-233U RAM® Rail Adaptor Kit for Round Bases

Features
* Adaptor collar to allow RAM round bases (RAM-B-202U, RAM-202U, RAP-B-202U) to adapt to round rials or handlebars
* Suits Rails and bars from 19.05 to 25.4mm diameter (3/4” to 1”)
* Included rubber strip ensures a tight grip on the rail
* Made of marine-grade aluminum alloy for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

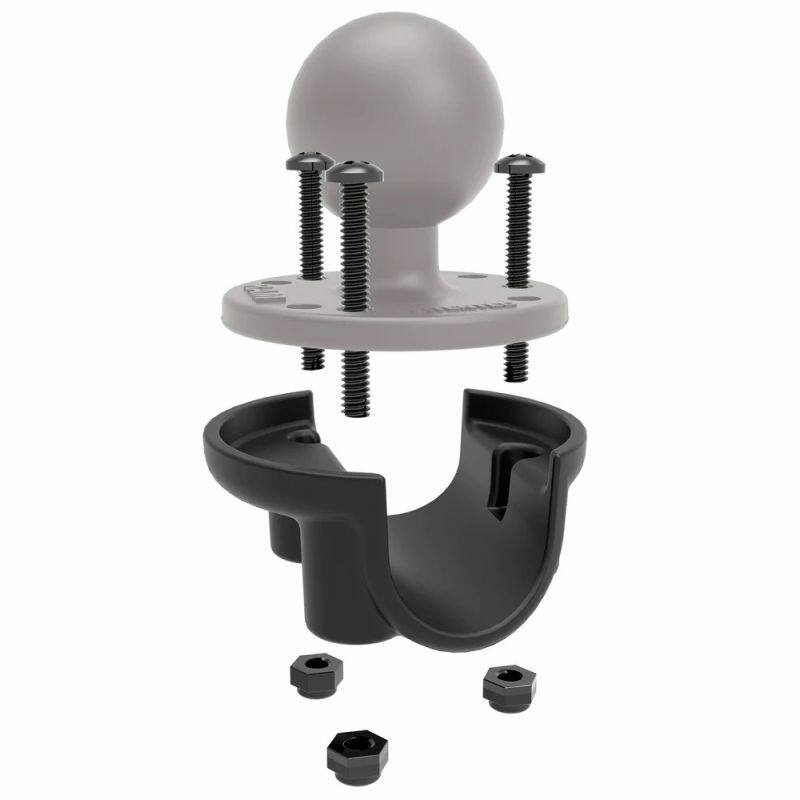

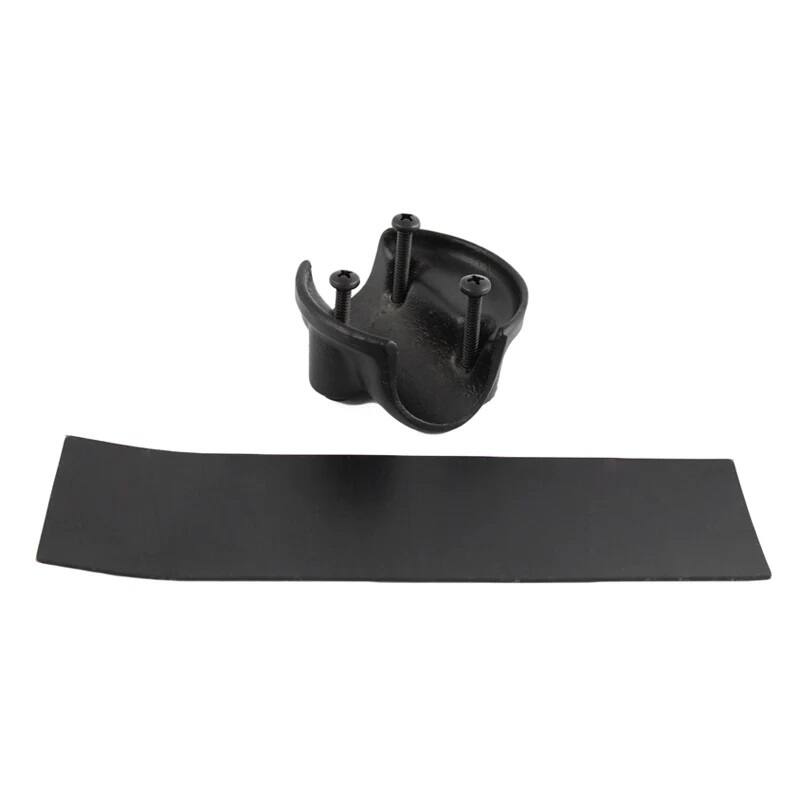

The RAM-233U rail kit consists of a U shaped rail adaptor that connects to a round 2.5" base. All hardware to connect the rail adapter to the plate is included, along with a rubber strip to allow a tight grip on the rail.

Suits Rails and bars from 19.05 to 25.4mm (3/4” to 1”)


Hardware Included
(3) #10-24 x 1.5" Machine Screws
(3) #10-24 Nylock Nuts
(1) #8 x 3/4" Sheet Metal Screw
(1) 2" x 7.5" Rubber Adhesive Strip

Suits Rails and bars
19.05 to 25.4mm (.75" - 1" diameter)


Hole Pattern
3-Hole 120-Degree: 1.812" Diameter - which will suit RAM-B-202U or RAM-202U round bases.

Materials
Marine-grade aluminum

Weight
140 grams (0.31 lb)

Instructions
RAM-233 RAM Rail Mount Adaptor Kit is used with any standard 2 7/16” diameter base to convert it to rails ranging from 3/4” to 1” dia.

Wrap the necessary length of rubber strip around the rail where the base will be attached. Assemble base with adapter around the rubber strip using 3 screw and nuts, drill a 5/32” hole through the adaptor and rail where it won’t be visible, apply some soap to lock screw and tighten.
