RAM-450-101U-247-4 RAM® Power-Grip™ XL Universal Scanner Gun Holder with Square Post Clamp Base
Features
* XL Size scanner basket ideal for large scanner / computers
* Scanner basket mated to 1.5" ball which allows great adjustability
* RAM Clamping base ideal for square posts up to 102mm in width; adjustable and easily removable
* C size RAM short double socket arm measures 63mm socket to socket

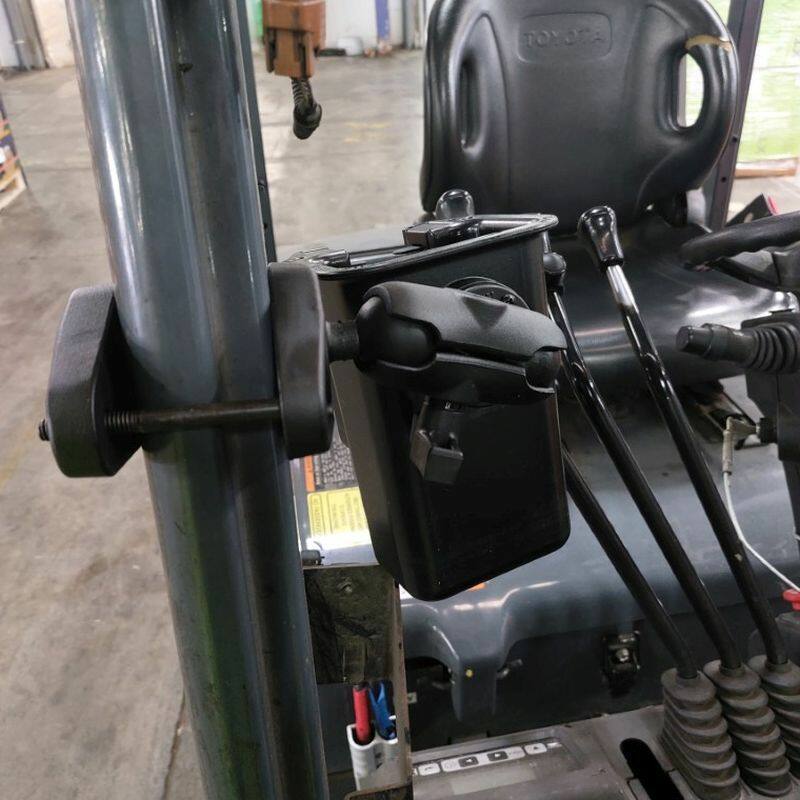

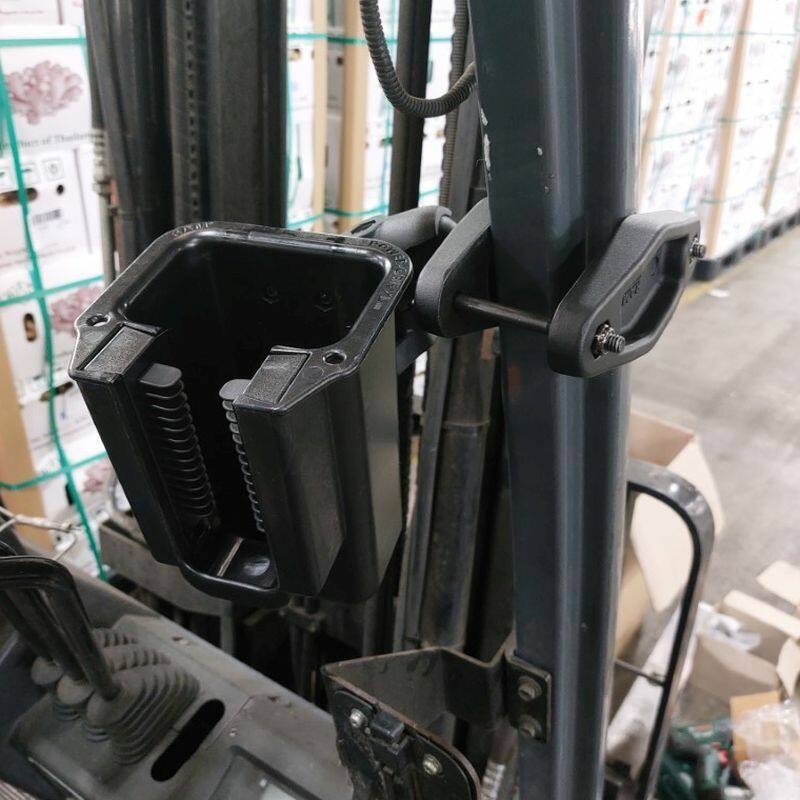

* Ideal for mounting to the guard rail of forklifts
* Made of high-strength coposites and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
The RAM-450-101U-247-4 consists of a RAM® Power-Grip™ XL Universal Scanner Gun Holder, short double socket arm and a post clamp base.

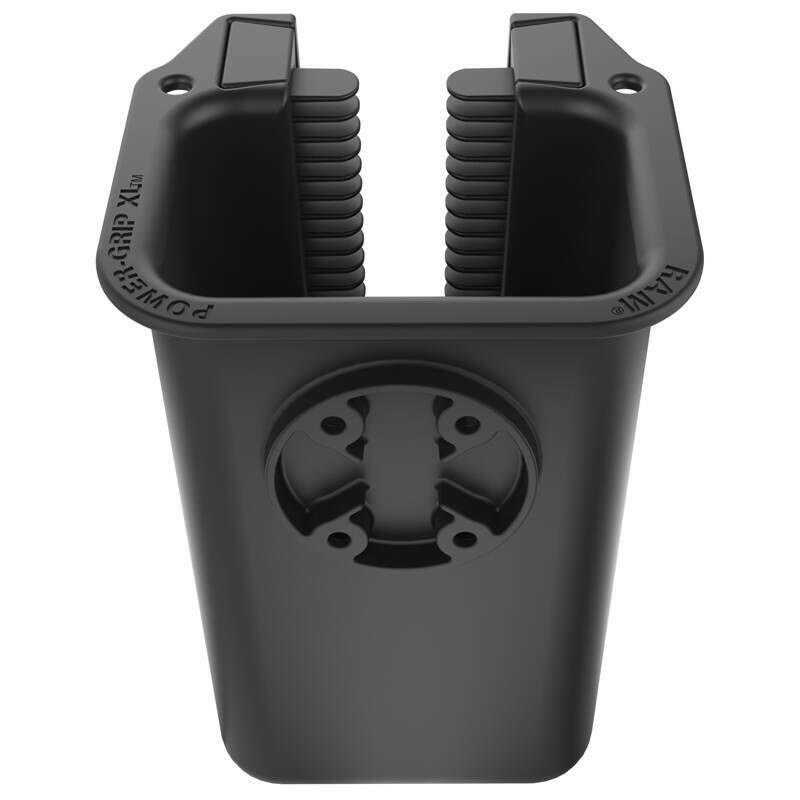

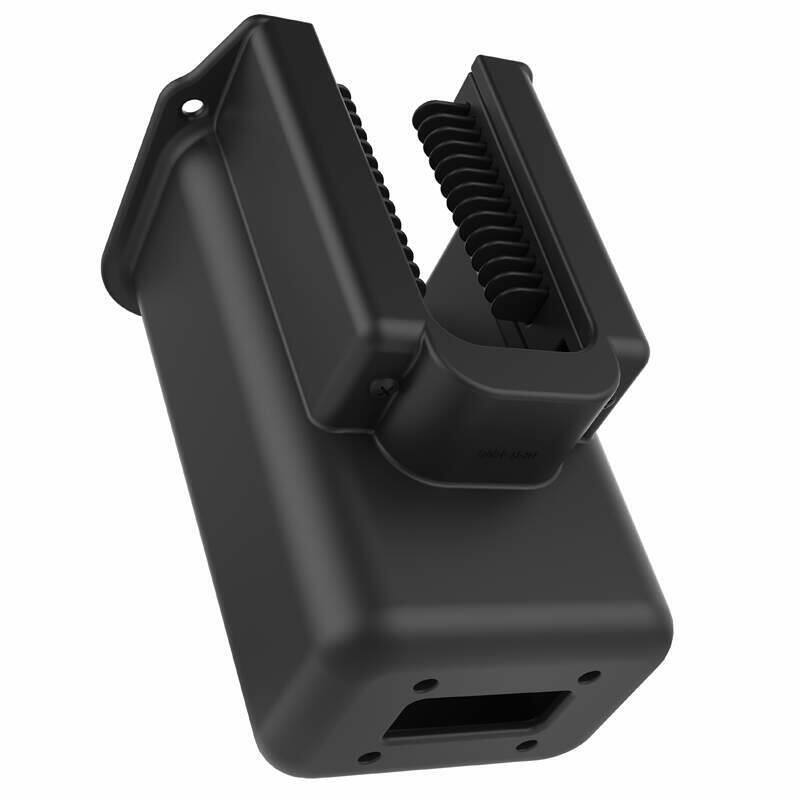

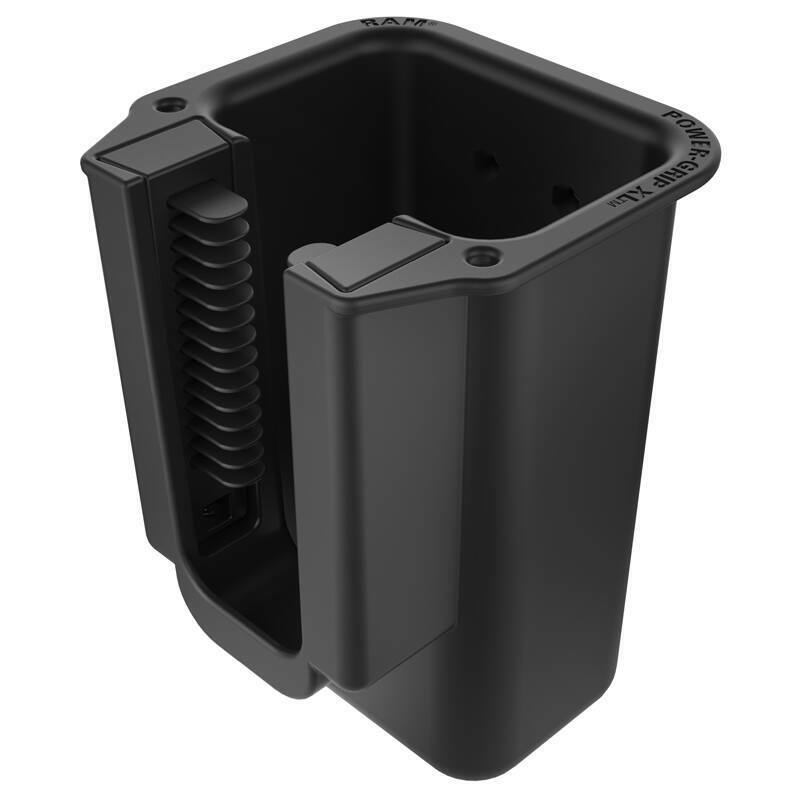

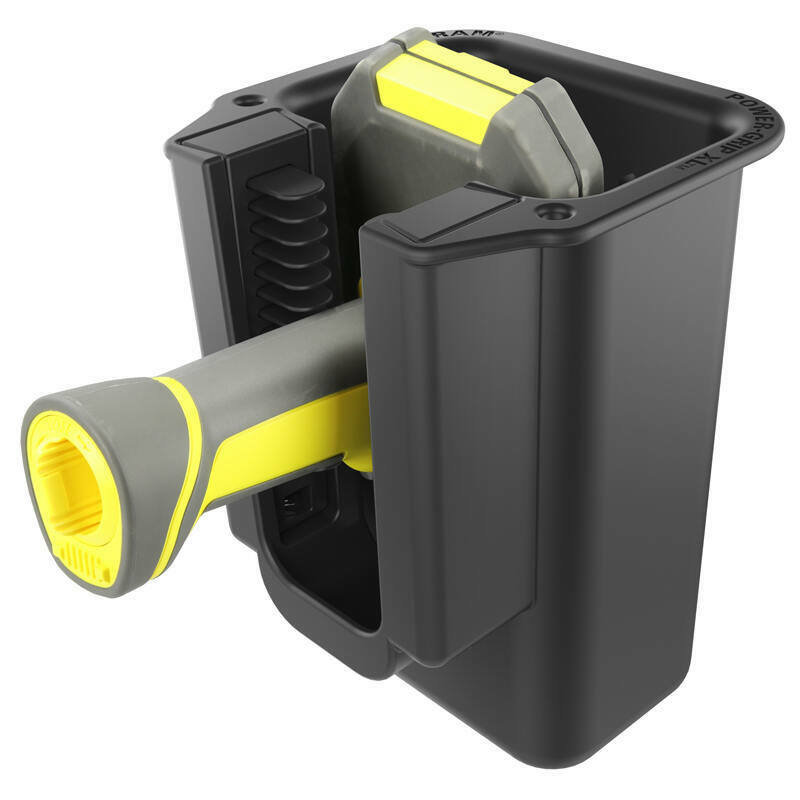

The RAM® Power-Grip™ XL is ideal for storing the barcode scanning gun on forklifts / reach trucks and other warehousing equipment. It is designed for use with several large form factor scanner guns. Using high-strength composite materials, the RAM® Power-Grip™ XL secures scanner guns even when not in use. When required, easily remove the scanner gun to quickly scan the desired item.

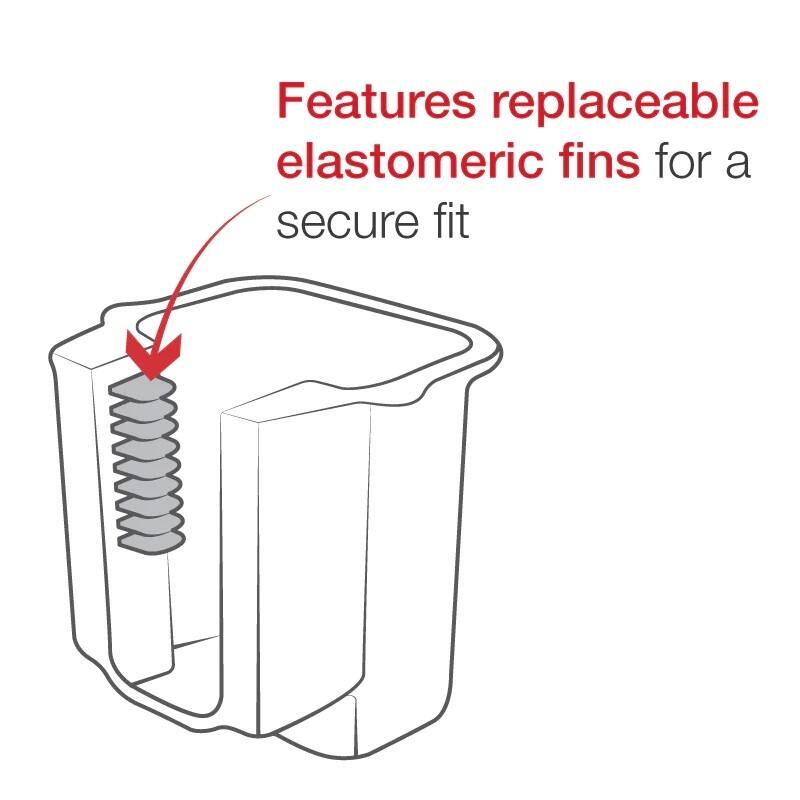

Elastomeric fins grip the handle of the scanner gun to ensure a secure fit, and can be easily replaced if required.

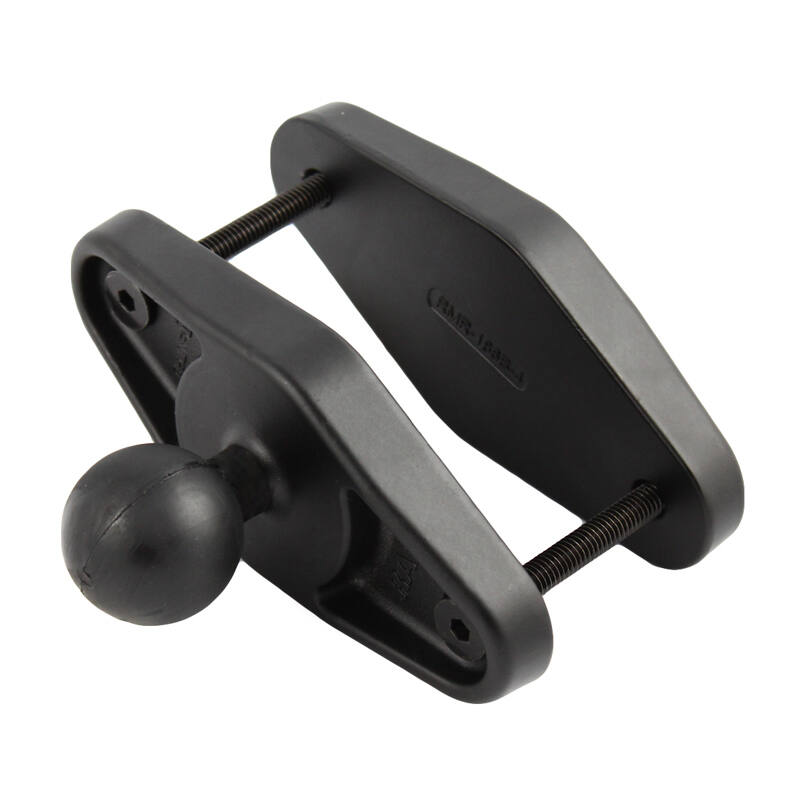

The clamp base with 1.5" rubber ball that will connect to rails and posts up to 102mm (4") maximum width.
Compatible Devices Include:
CipherLab
9700 Series
Cognex
MX-1502
MX-1000
Datalogic
Falcon X4
Honeywell
CK75
Zebra
MC2200
MC2700
MC3200
MC3300 Series
MC9190-G
MC9200
MC9300
Internal Dimensions
Width: 100.6mm (3.96")
Length: 67.6mm (2.66")
Depth: 188.7mm (7.43")
Square Clamp Base Maximum Width
101.6 mm (4")

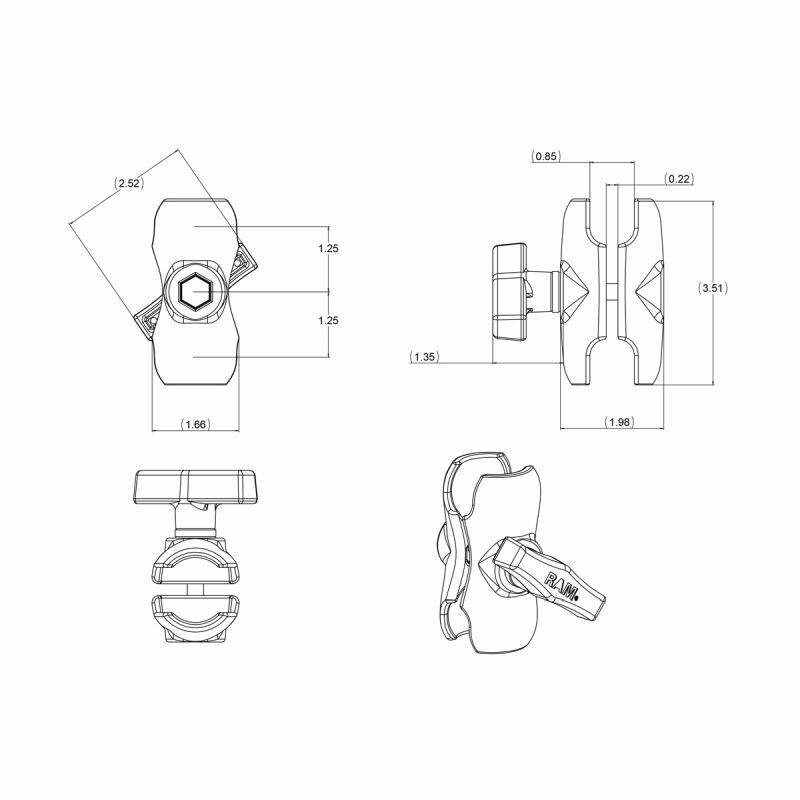

Arm Dimensions:
Overall Length:
90 mm (3.56")
Socket-To-Socket Length:
63.5 mm (2.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs
Hardware Included
Assembly Hardware
(4) #8-32 x 3/4" Machine Screws
(4) #8-32 Nylock Nuts
Materials
High strength composite
Powder Coated Marine Grade Aluminium
Components:

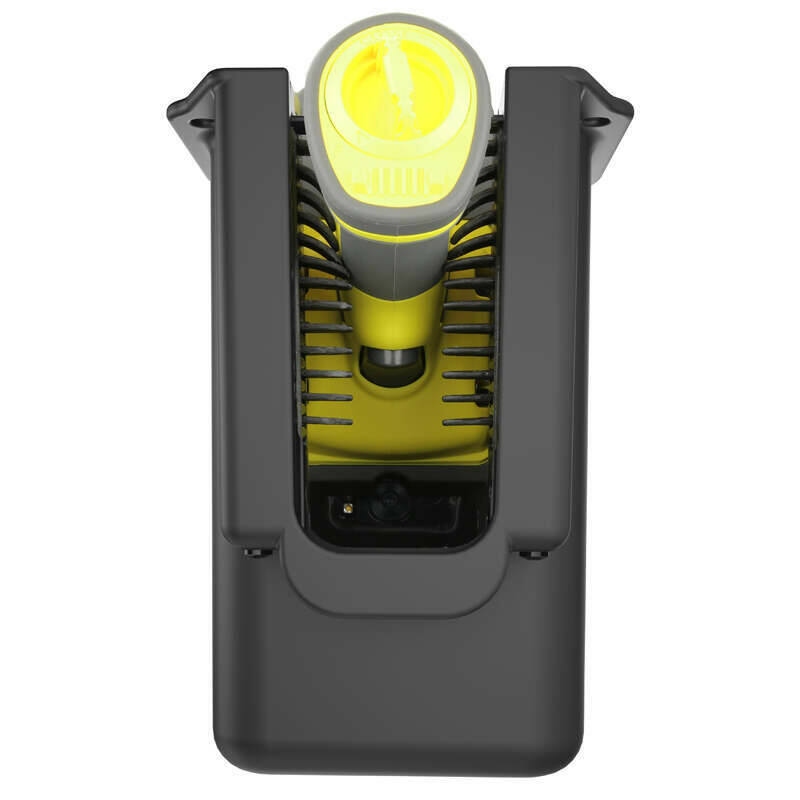

RAP-450U RAM Power-Grip XL Universal Scanner Gun Holder
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

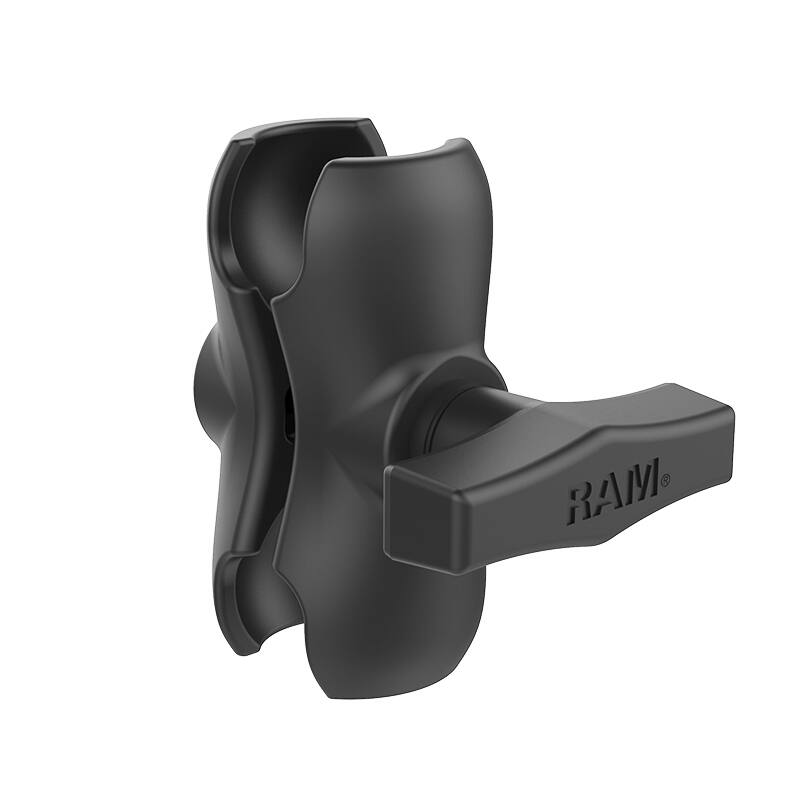

RAM-201U-B RAM short 1.5" (C-Series) Alloy Arm
RAM-247U-4 RAM Square Post Clamp 100mm with 1.5" Ball
