RAM Mounts

RAM Scanner Gun Holder - Power-Grip Universal Holder - Large Size - U Bolt Base

RAM Scanner Gun Holder - Power-Grip Universal Holder - Large Size - U Bolt Base

SKU:RAM-450-231-v

Regular price $249.00 NZD
Regular price Sale price $249.00 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-450-231 RAM® Power-Grip™ XL Universal Scanner Gun Holder with U-Bolt Mount


Features

* XL Size scanner basket ideal for large scanner / computers
* Scanner basket mated to 1.5" ball which allows great adjustability
* RAM U-Bolt mount will bolt to bars 12.5 - 25mm diameter
* C size RAM double socket arm measures 143mm socket to socket

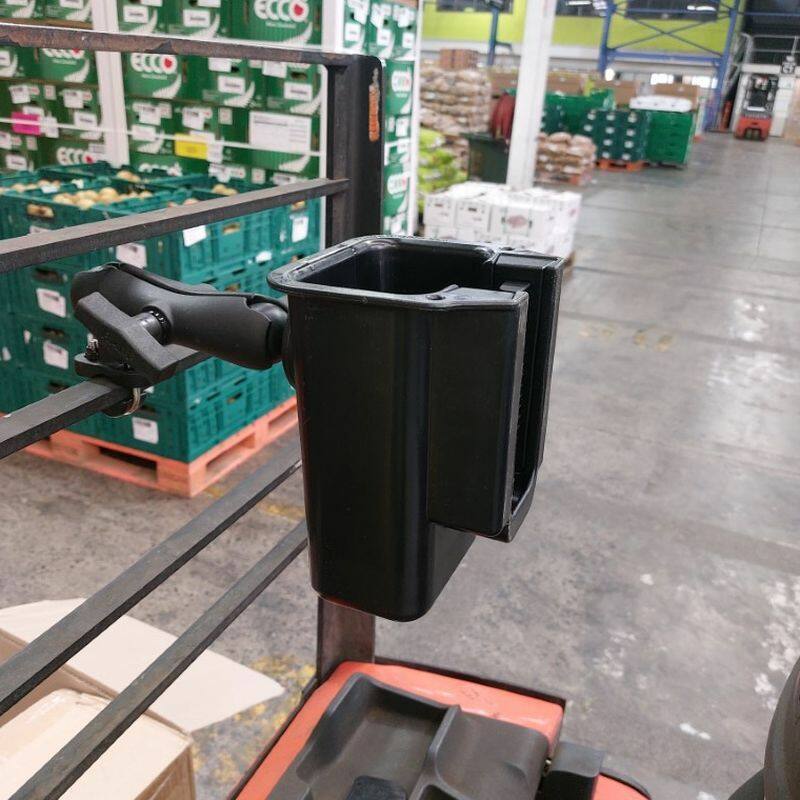

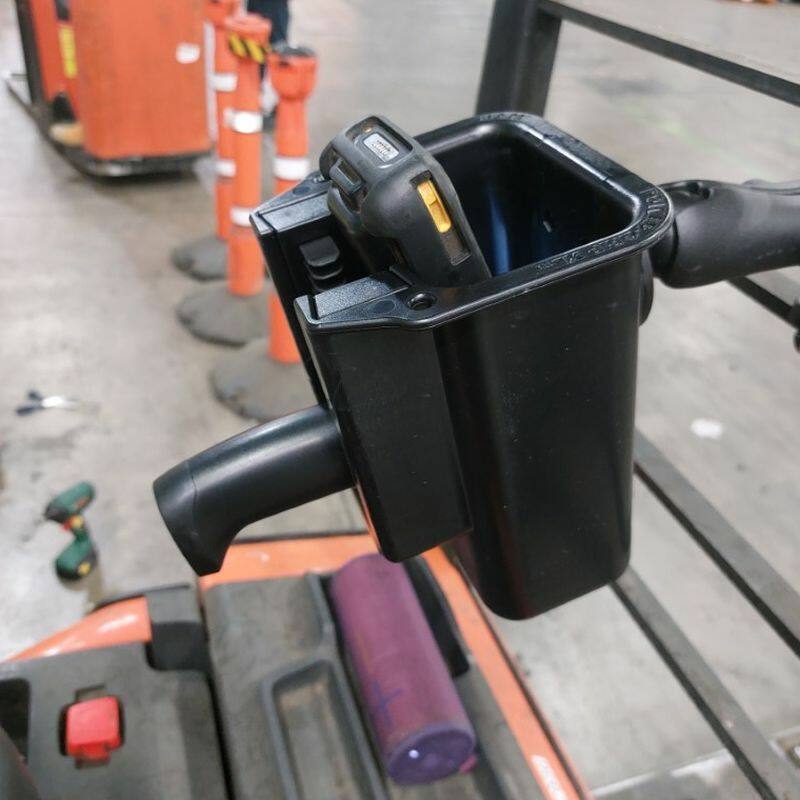

* Ideal for mounting to the bars of walk-behind pallet trucks with protective rails


Ideal for storing the barcode scanning gun on forklifts / reach trucks and other warehousing equipment.

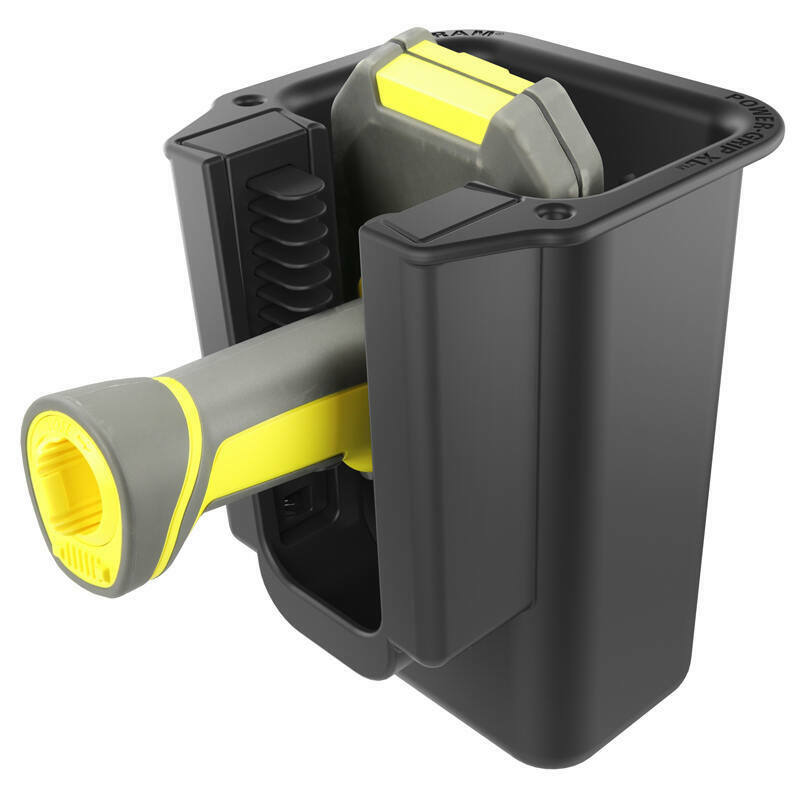

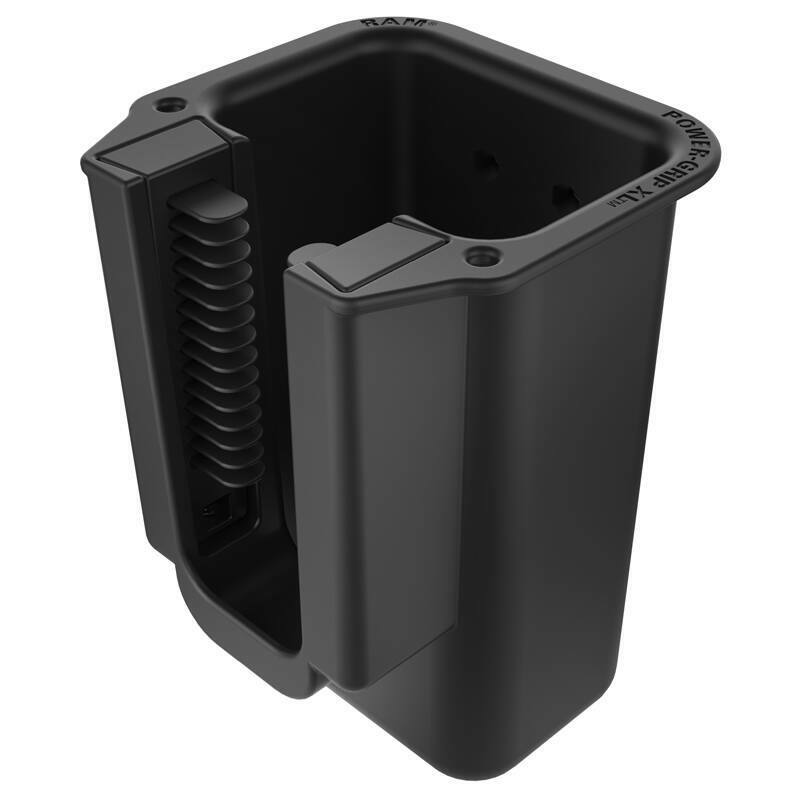

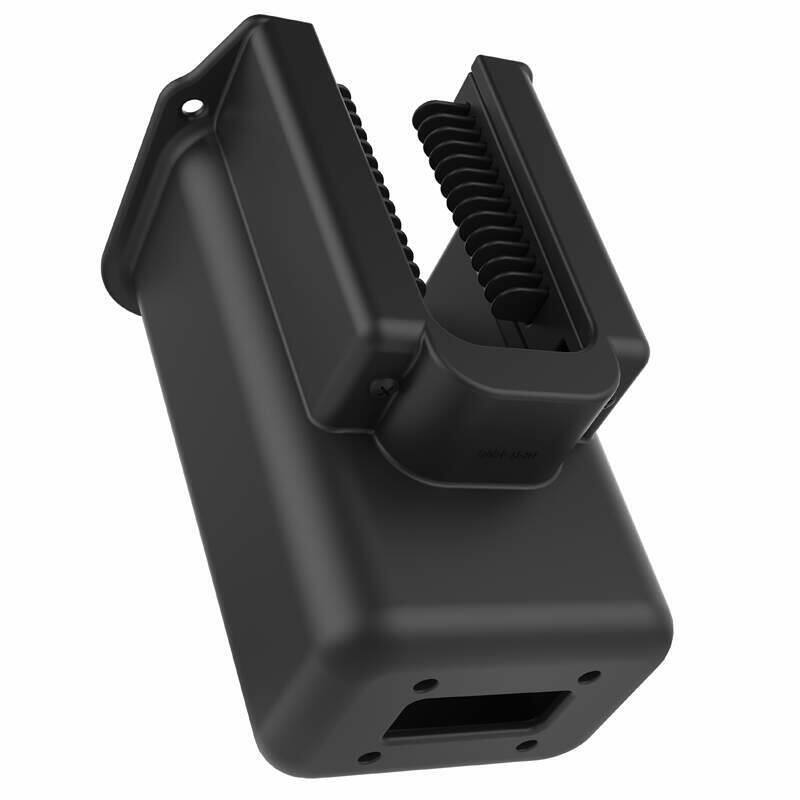

The RAM® Power-Grip™ XL universal scanner gun holder is designed for use with several large form factor scanner guns. Using high-strength composite materials, the RAM® Power-Grip™ XL secures scanner guns even when not in use. When required, easily remove the scanner gun to quickly scan the desired item.

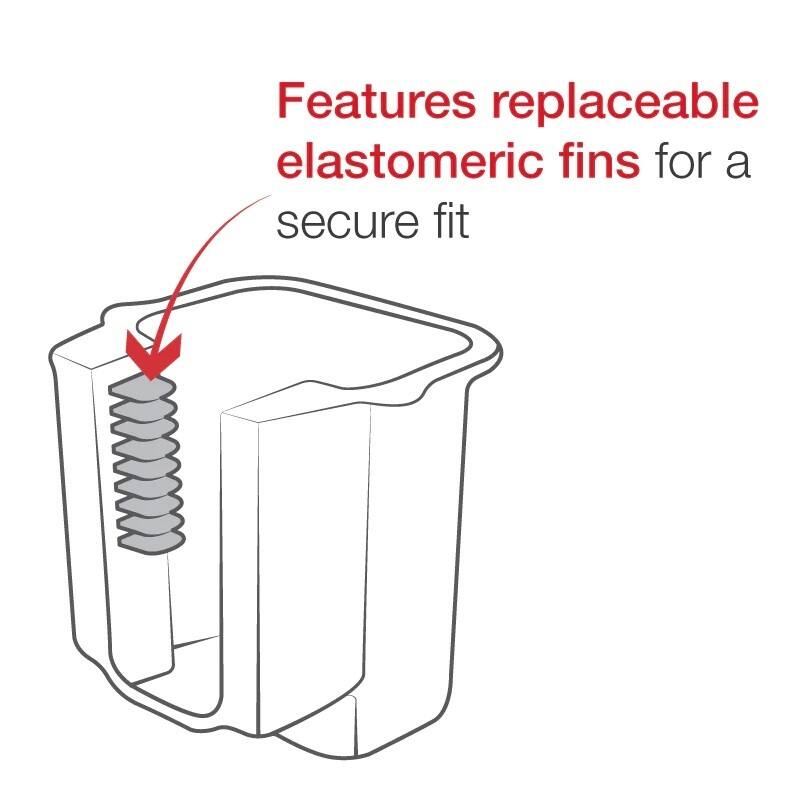

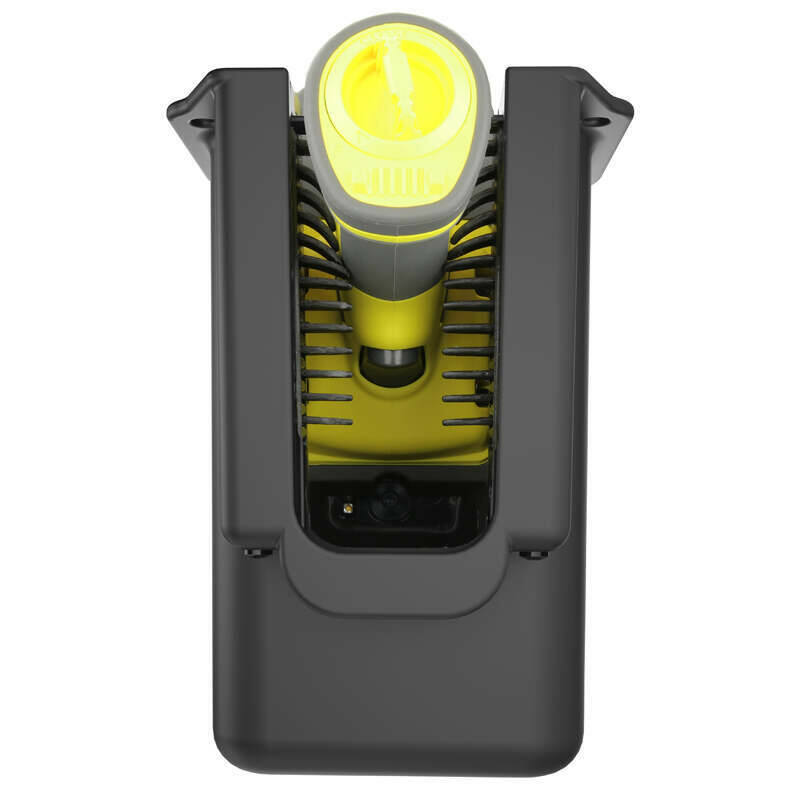

Elastomeric fins grip the handle of the scanner gun to ensure a secure fit, and can be easily replaced if required.

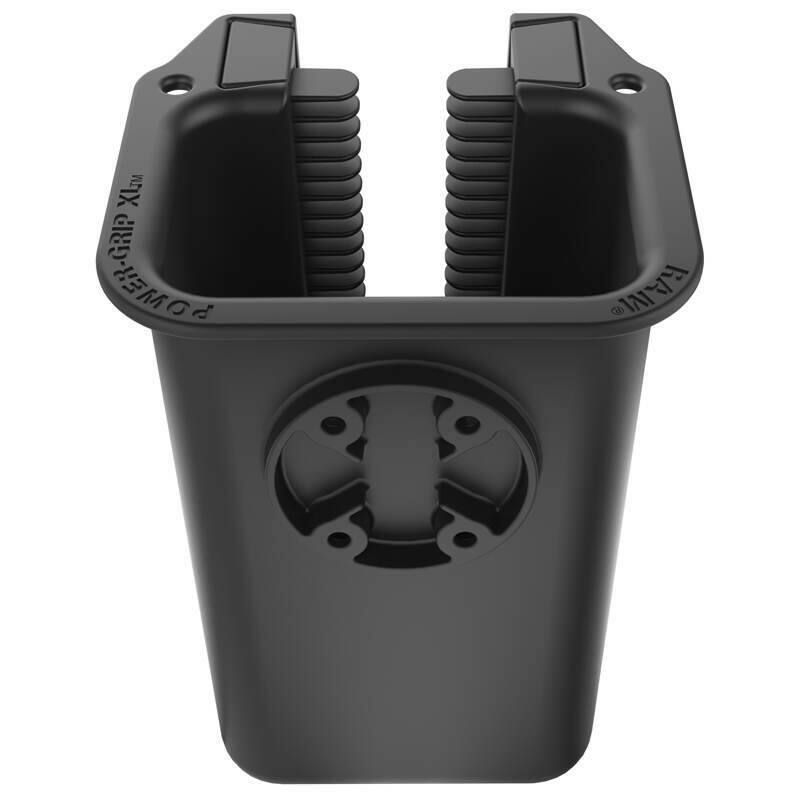

The hole pattern on the back of the holder allows for the connection of the RAM-202U round base plate which connects to the RAM double socket arm.

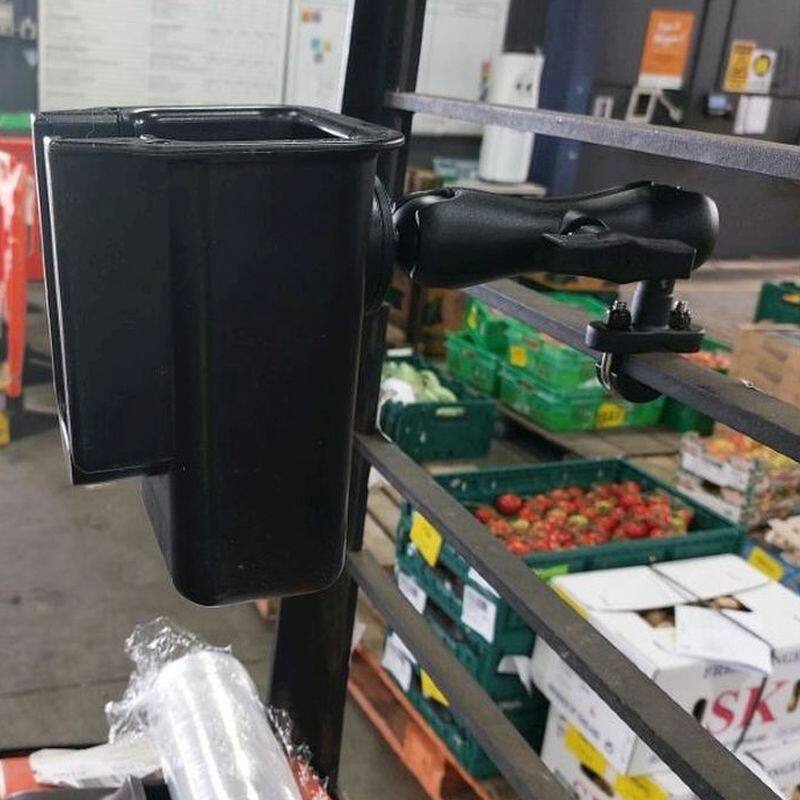

The U-Bolt mount will fix to round , rectangular or square bars from 12.5mm to 25mm diameter / width.


Compatible Devices Include:

CipherLab
9700 Series

Cognex
MX-1502
MX-1000

Datalogic
Falcon X4

Honeywell
CK75

Zebra
MC2200
MC2700
MC3200
MC3300 Series
MC9190-G
MC9200
MC9300


Internal Dimensions
Width: 100.6mm (3.96")
Length: 67.6mm (2.66")
Depth: 188.7mm (7.43")



Hardware Included
Assembly Hardware
(4) #8-32 x 3/4" Machine Screws
(4) #8-32 Nylock Nuts

U-Bolt Dimensions:
Accommodates rails / bars from 12.5 to 25.2mm (0.5” to 1”) in diameter

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Materials
High strength composite
Powder Coated Marine Grade Aluminium
Stainless Steel U-Bolt


Components:
RAP-450U RAM Power-Grip XL Universal Scanner Gun Holder
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls

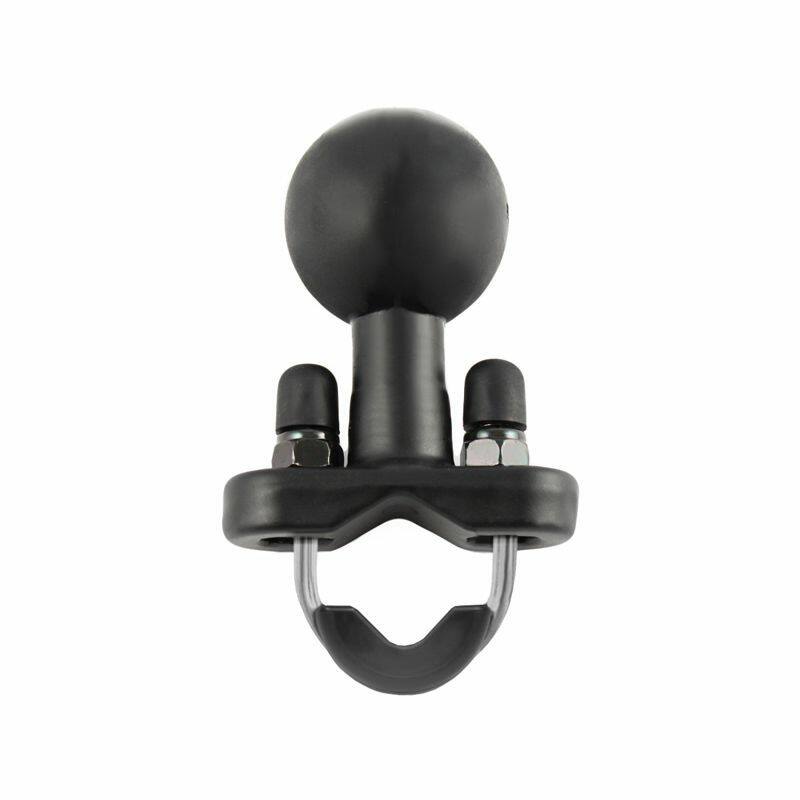

RAM-231U RAM U-bolt mount with 1.5" Ball
