RAM-396-231-1U RAM® Power-Grip™ Universal Scanner Gun Holder with U-Bolt Base
Features
* Power Grip scanner basket ideal for medium sized scanner / computers
* Scanner basket mated to 1.5" ball which allows great adjustability
* U-Bolt base will accommodate rails in 25mm to 31.75mm (1" to 1.25") in diameter
* C size RAM double socket arm measures 114mm socket to socket

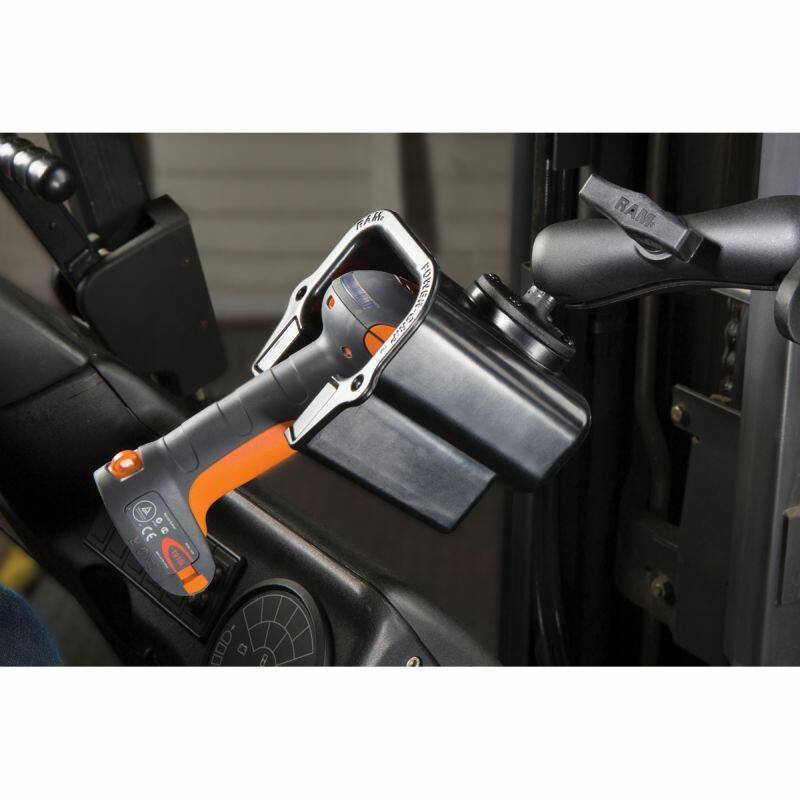

* Ideal for mounting posts and rails in many forklifts

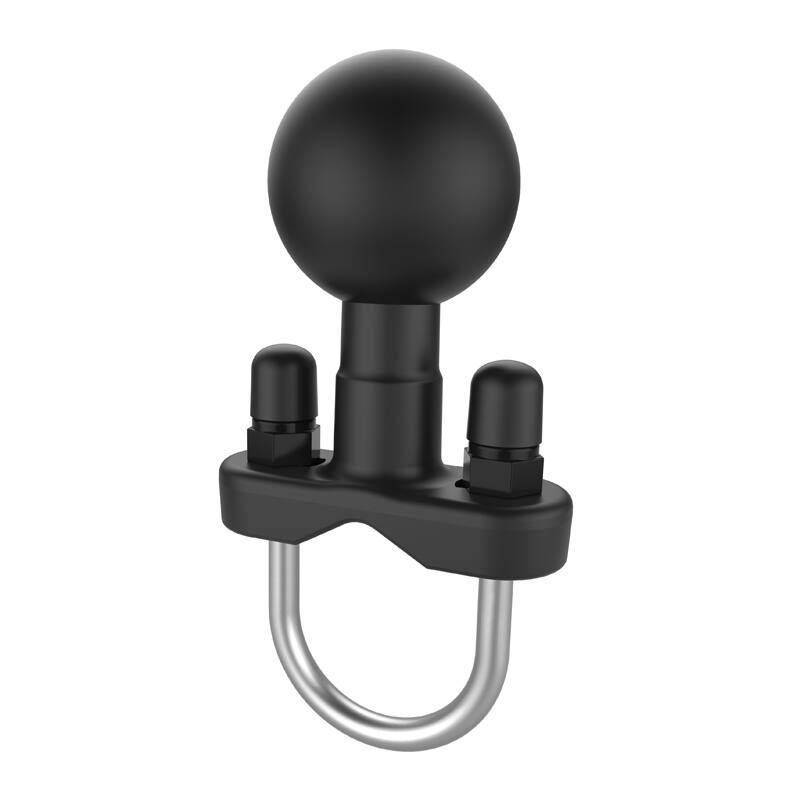

The RAM U-Bolt base with 1.5" rubber ball designed to sit at right angles to the mounting rail. The rust proof metal u-bolt accommodates rails 25mm to 31.75mm (1" to 1.25") in diameter. The base also includes black cover caps to be placed over the exposed ends of the u-bolt.
A 143mm arm and round base to attach to the arm to the scanner basket are included.

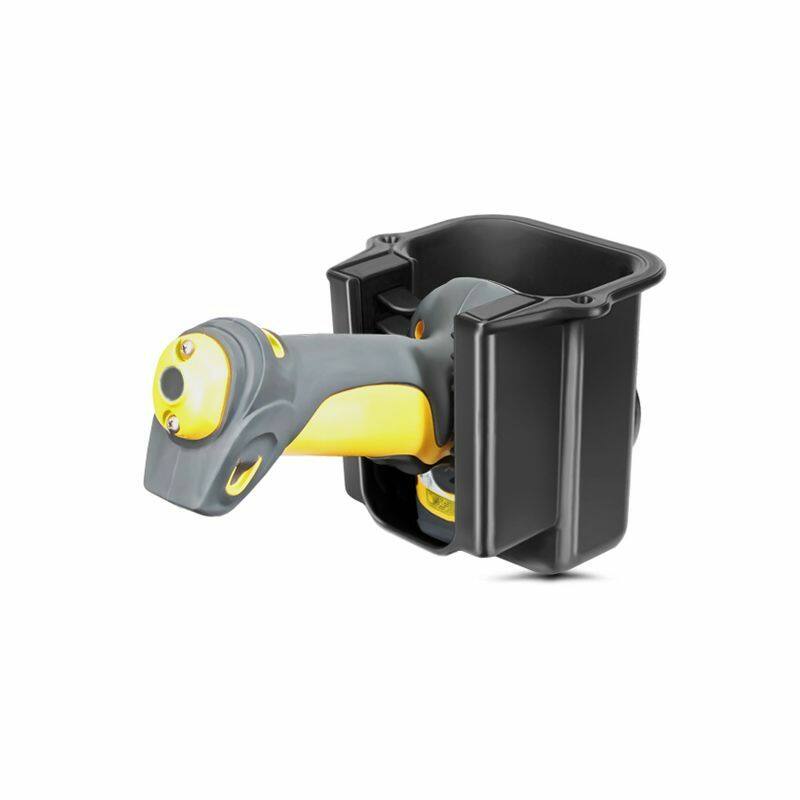

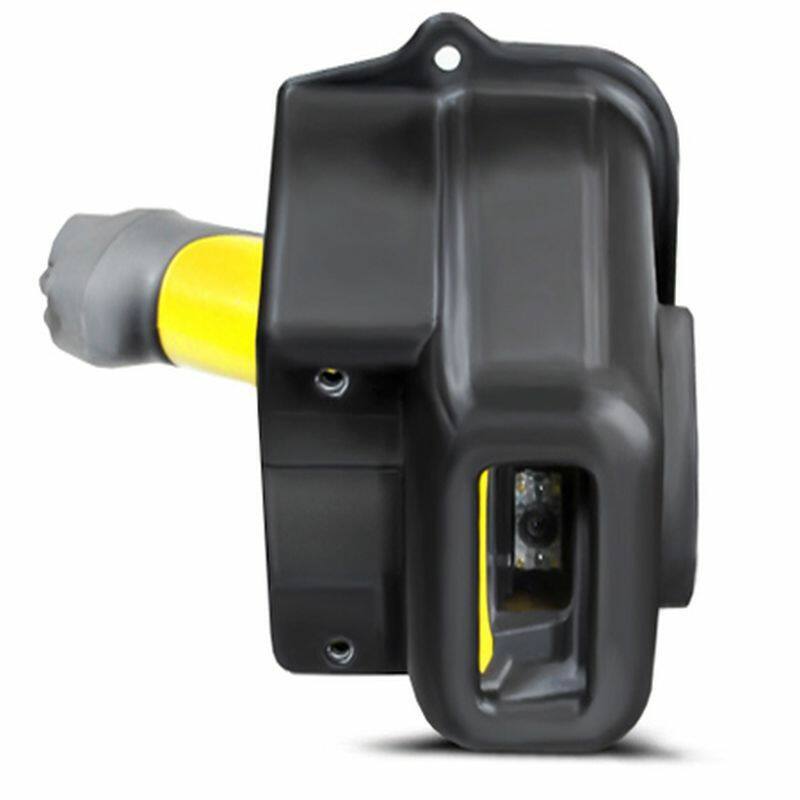

RAM has once again innovated with the Power-Grip™ Universal Scanner Gun Holder. This product is compatible with a wide range of ruggedized 2D barcode scanners and is compatible with RAM's full range of forklift mounting systems, as well as mounting systems for a variety of mounting scenarios. Using a variety of high strength, quality materials, The Power-Grip™ securely locates your 2D barcode scanner while you aren't using it.

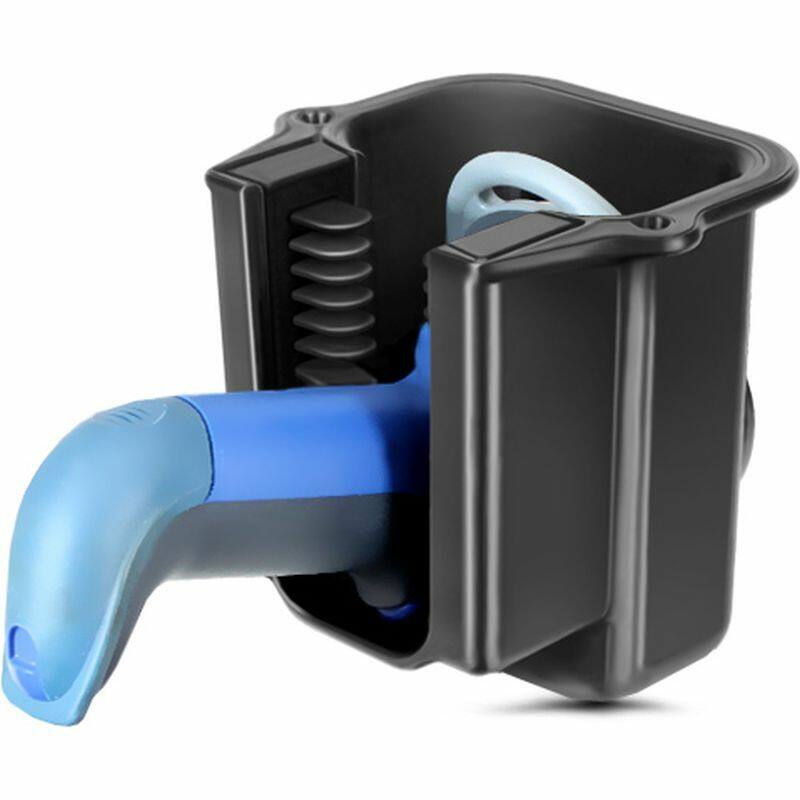

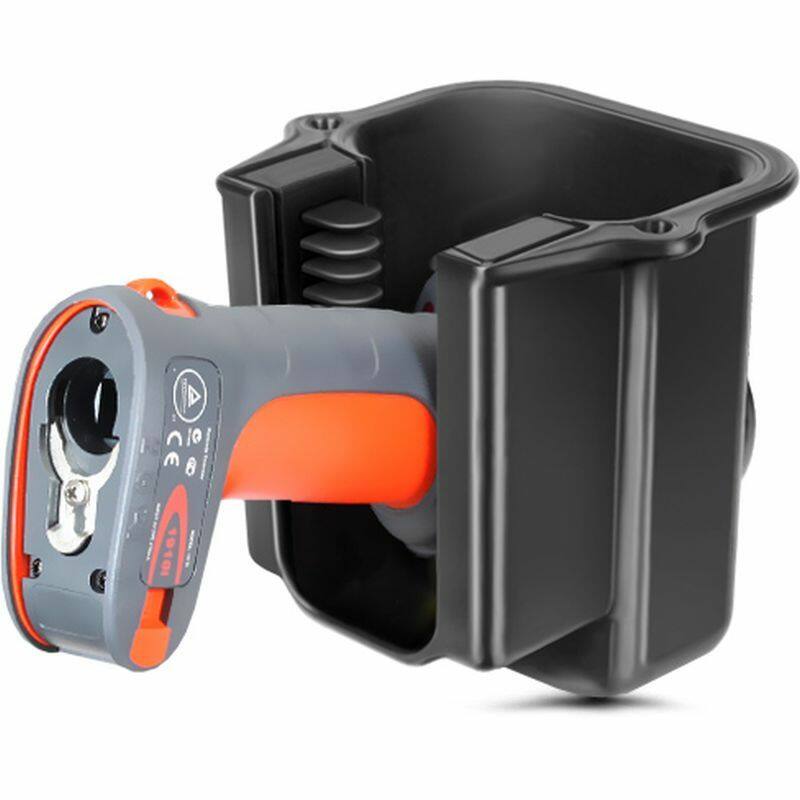

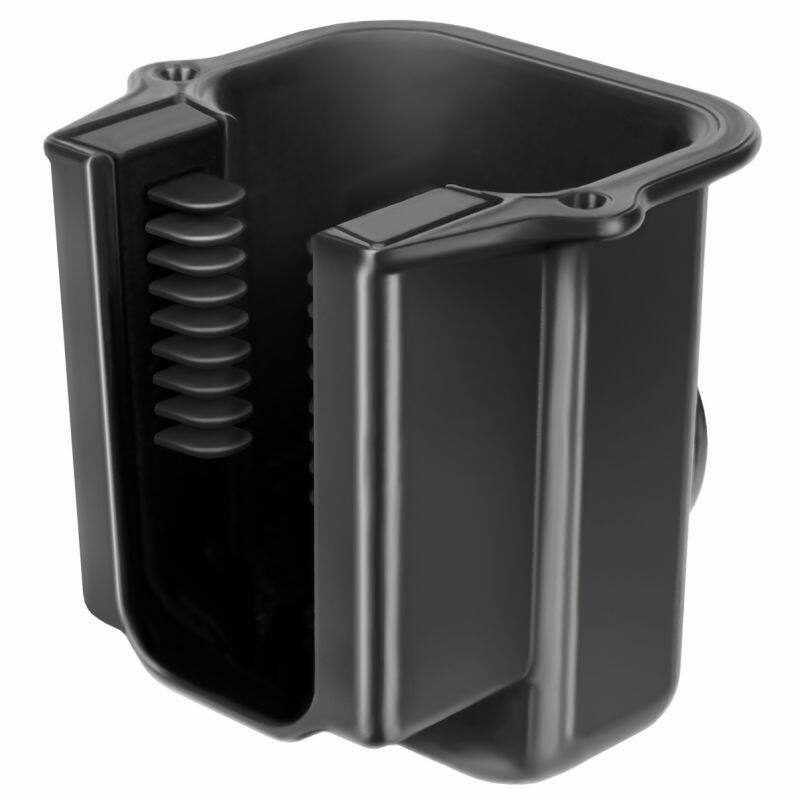

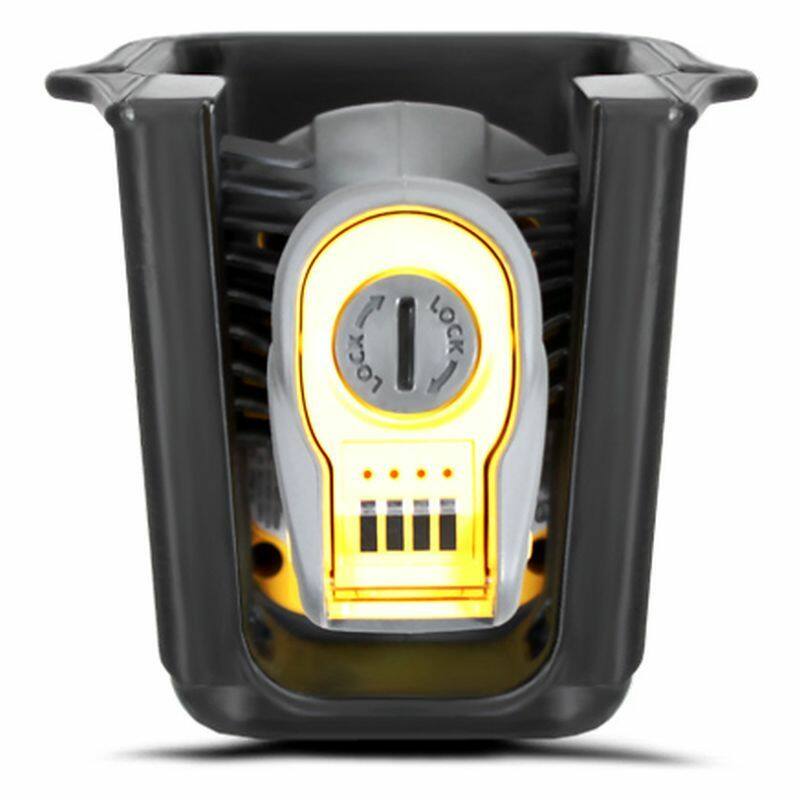

When required, the 2D barcode scanner easily removes to quickly scan the desired item. The unique open bottom design enables scanning while in the holder. Replaceable elastomeric fins grip the handle of the scanner tight to ensure the most secure fit, and can be easily replaced if required. Backed with RAM's renowned lifetime warranty, the Power-Grip™ Universal Scanner Gun Holder is an essential accessory for your 2D barcode scanner.
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
Scanner Basket Internal Dimensions
Width: 88.1mm (3.47")
Length: 54.9mm (2.16")
Depth: 124.5mm (4.9")
U-Bolt Dimensions
Bars and rails 25mm to 31.75mm (1" to 1.25") in diameter
Arm Dimensions:
Overall Length: 143mm (5.625")
Socket-To-Socket Length: 114mm (4.5")
Materials
High strength composite
Powder Coated Marine Grade Aluminium
Components:
RAP-396U Power-Grip Universal Scanner Gun Holder
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

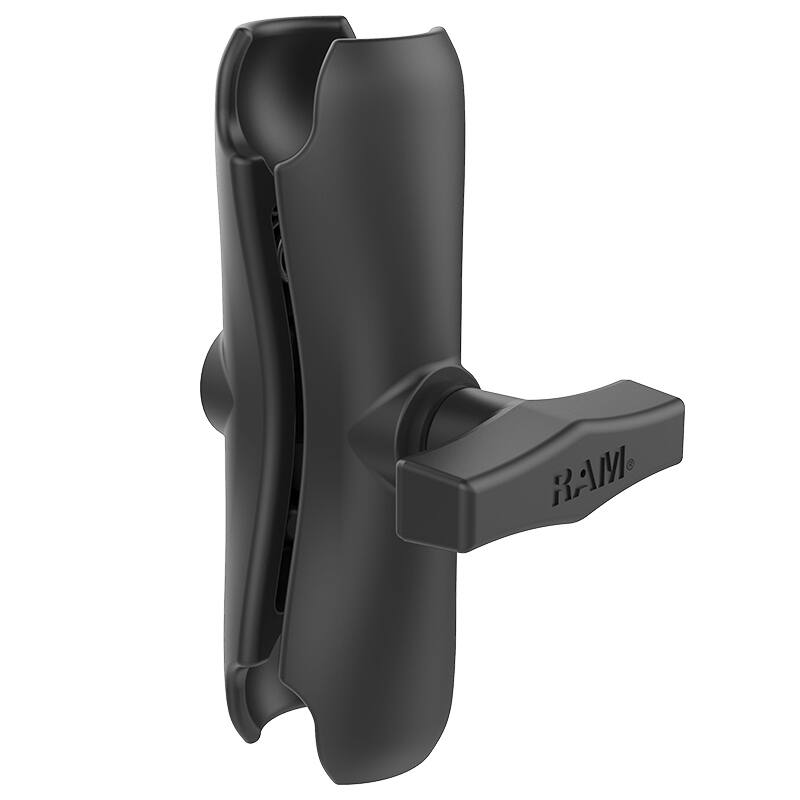

RAM-201U Standard Double Socket Arm for 1.5" Balls
RAM-231-1U U-bolt mount with 1.5" Ball for Rails 1" to 1.25" in Diameter
