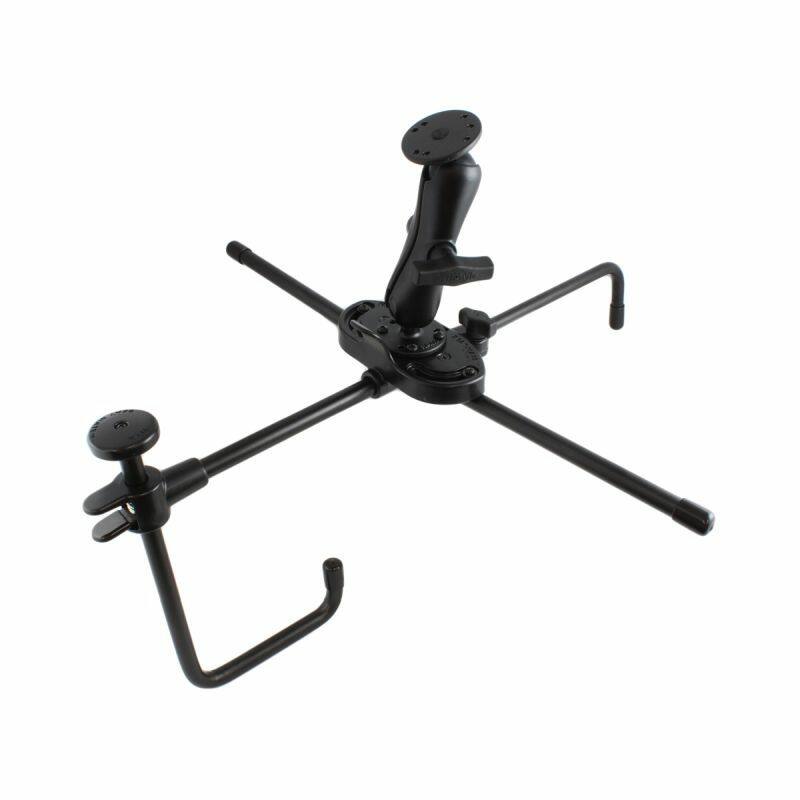

RAM-SM1-101 RAM® Seat-Mate™ with Double Socket Arm and Round Plate (C Size)

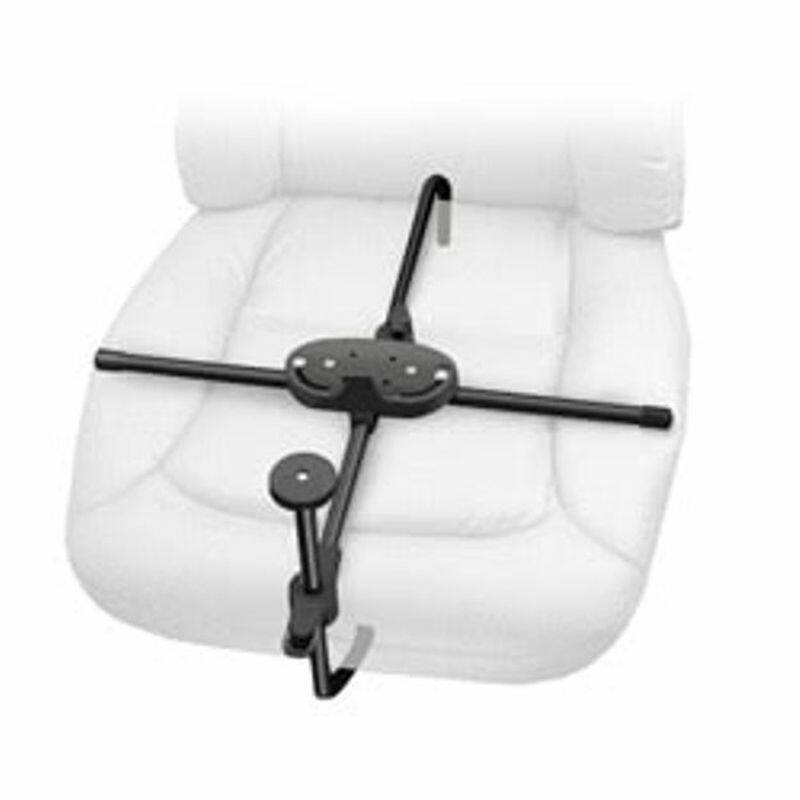

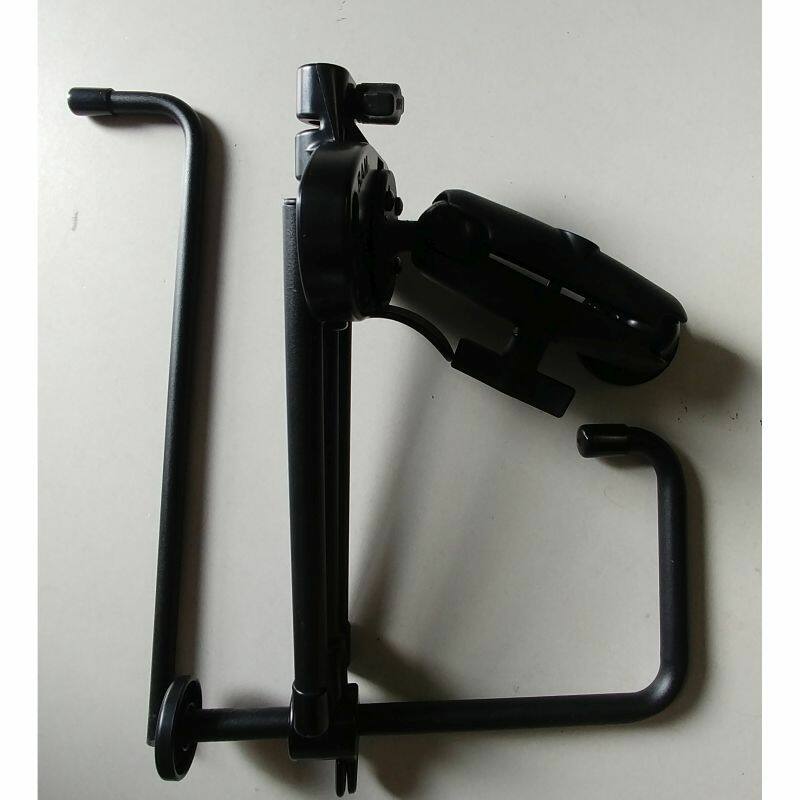

The RAM-SM1-101 is the complete RAM® Seat-Mate™ kit: the seat base, a C-size double socket arm and a 2.5" round AMPS plate. It buckles into any passenger seat in seconds, no tools required, then connects to any RAM device holder with the universal AMPS hole pattern.
Key Features

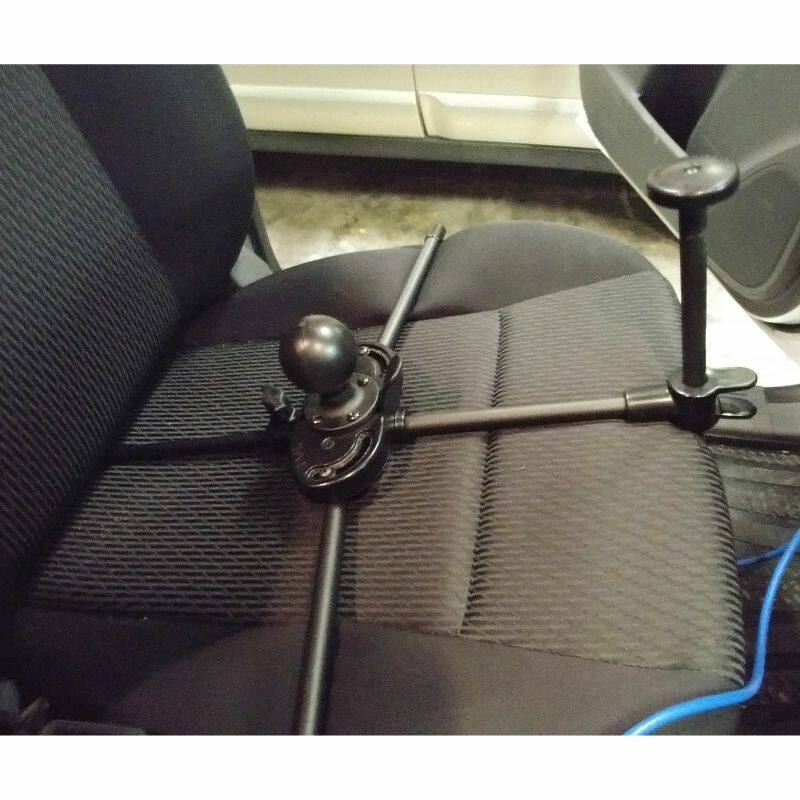

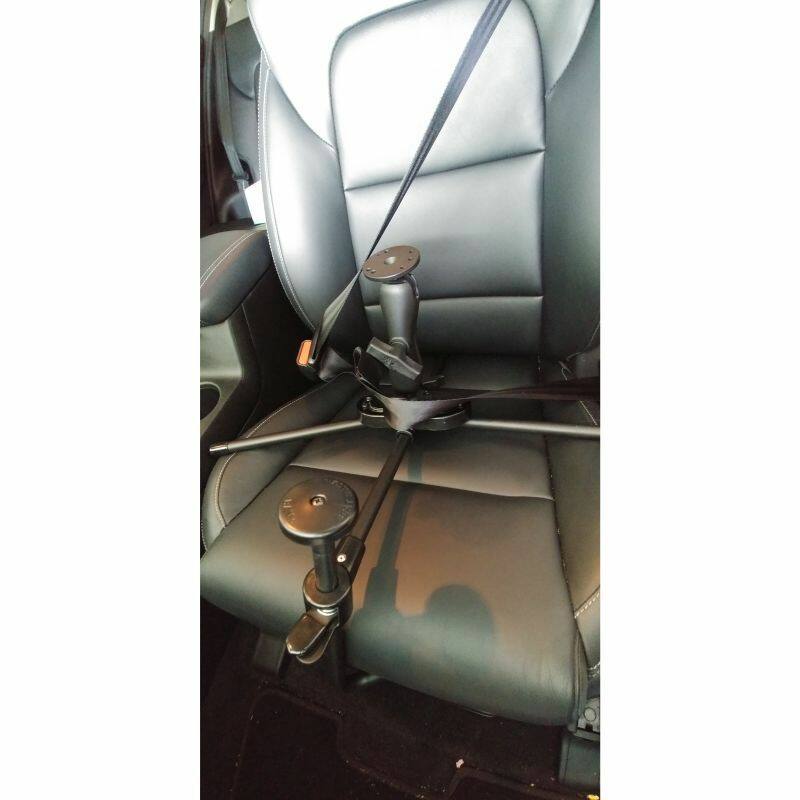

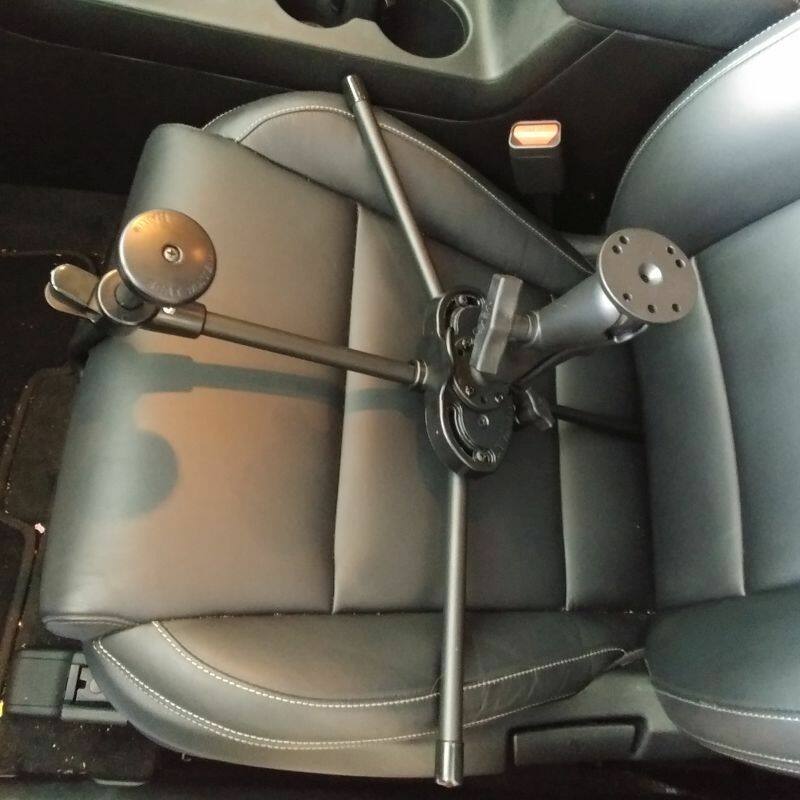

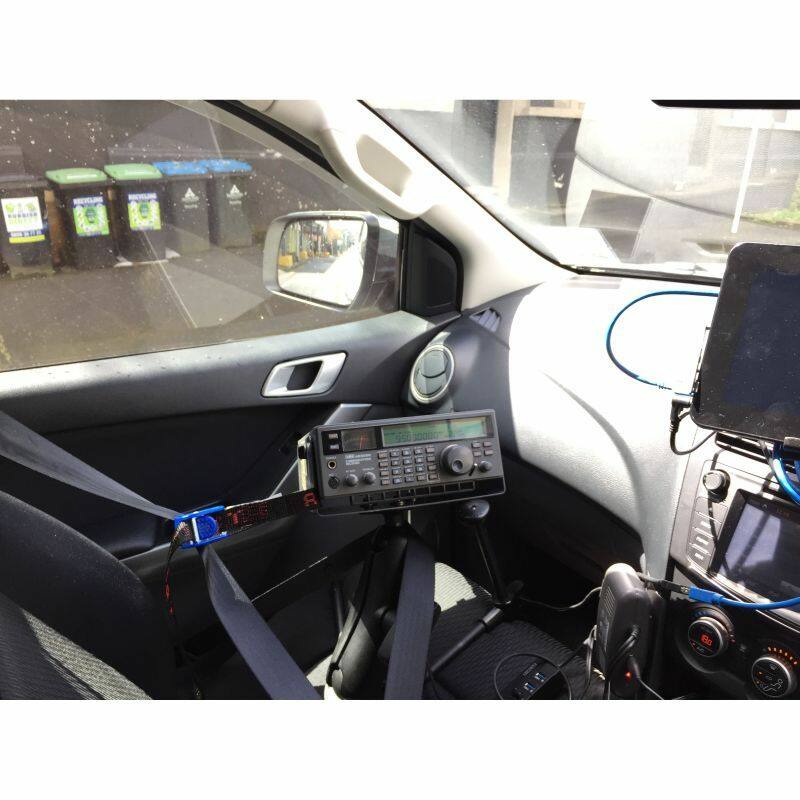

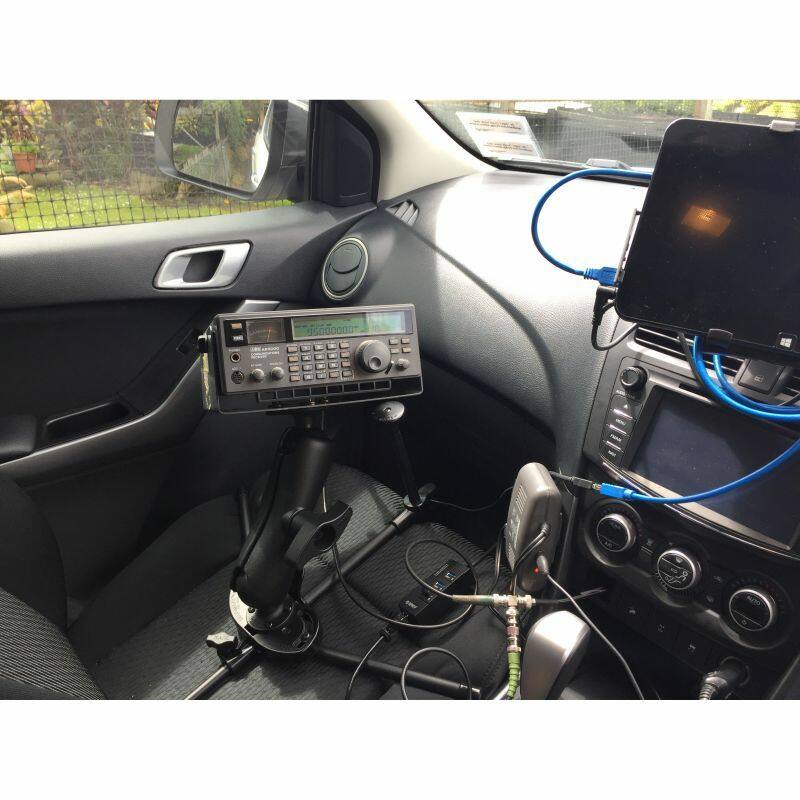

Buckles into a passenger seat to create a stable, no-drill mobile workstation

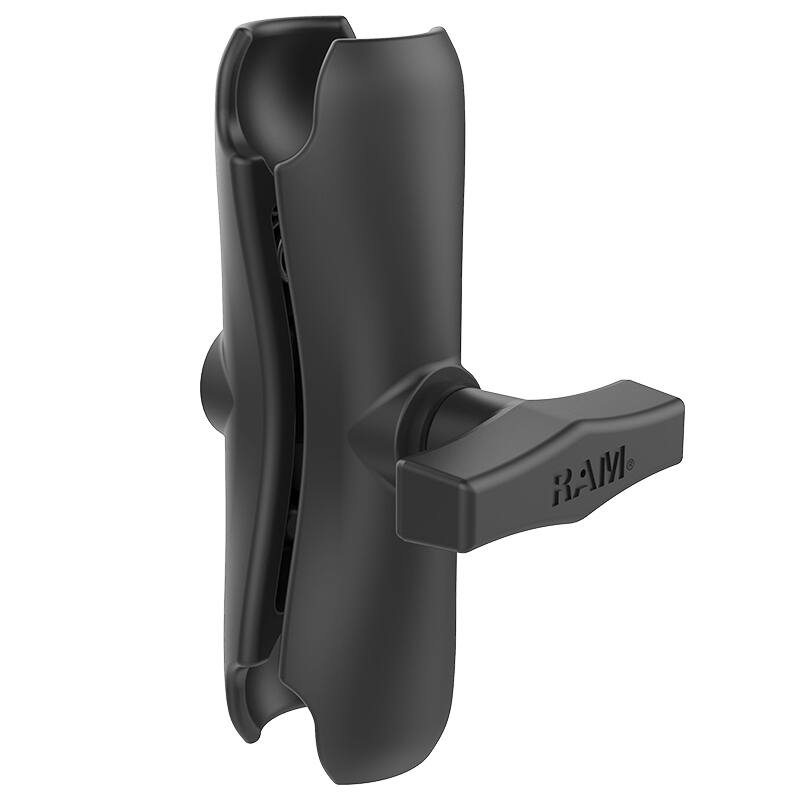

Double socket arm with adjustment at both ends for ergonomic viewing and typing angles

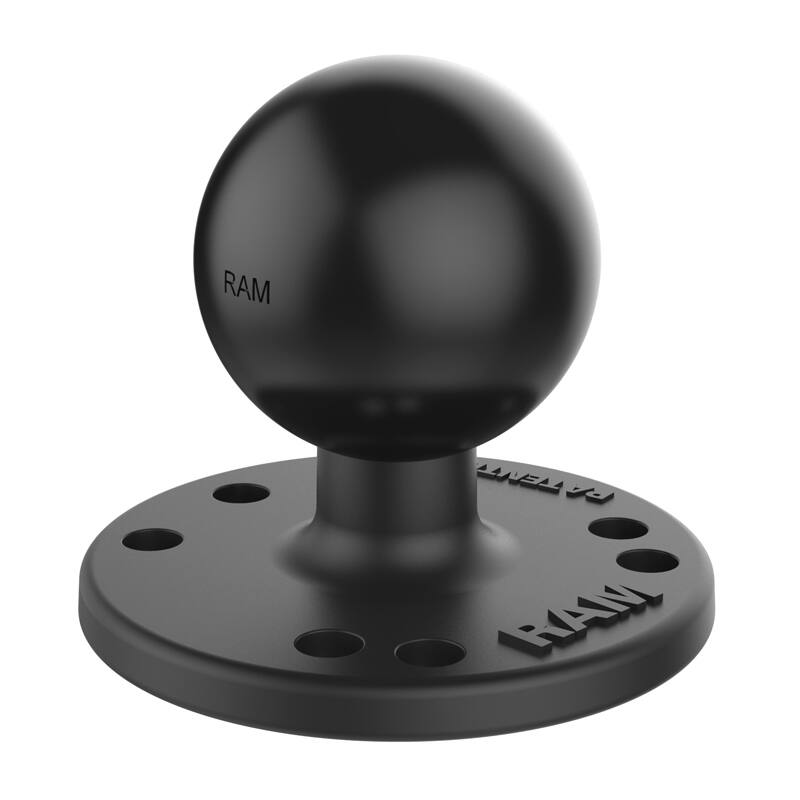

2.5" round plate with the universal AMPS hole pattern fits most RAM cradles and device holders
No tools required to set up or pack away
Powder-coated marine-grade aluminium and high-strength composite; lifetime warranty
Works With

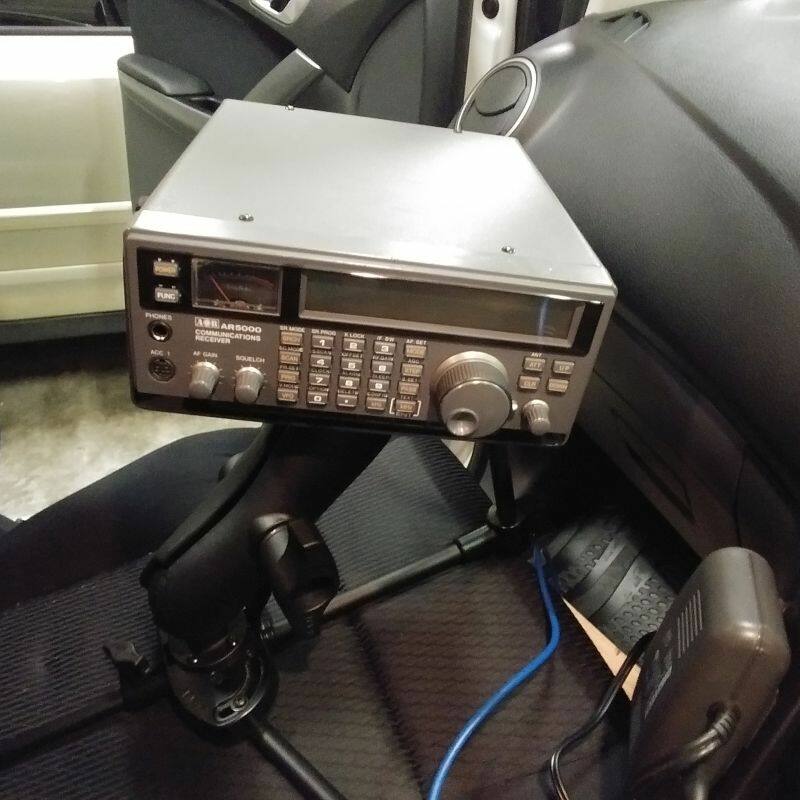

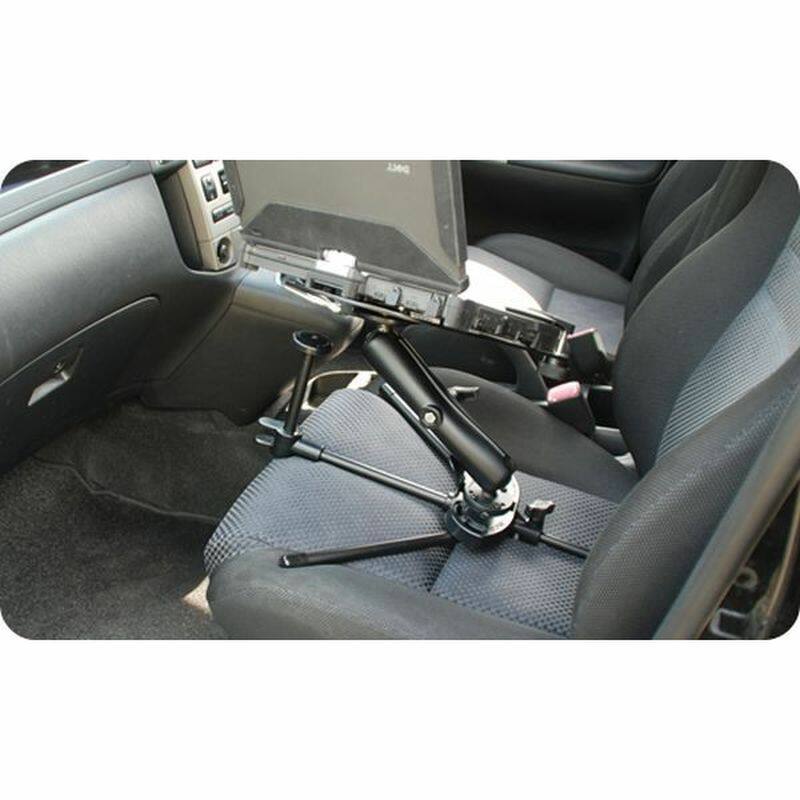

Any RAM® device holder or cradle with the universal AMPS hole pattern, and any C size (1.5" ball) RAM component. Ideal for laptops, tablets and UMPCs. For a laptop-specific tray, see the RAM-SM1-234-3 Tough-Tray kit.

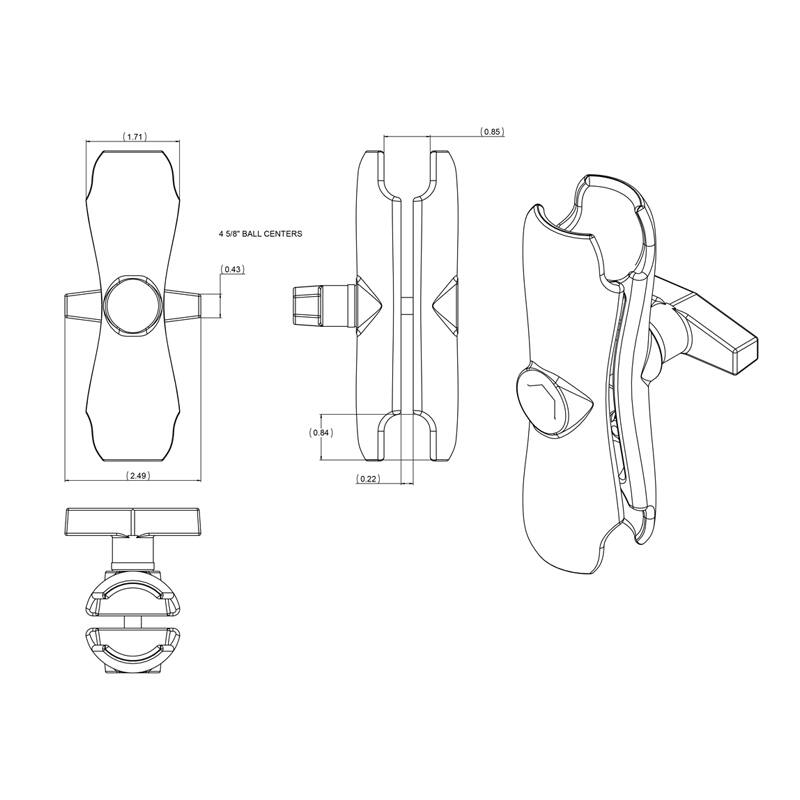

Dimensions & Specifications
Arm overall length: 143mm (5.625")
Arm socket-to-socket length: 114mm (4.5")

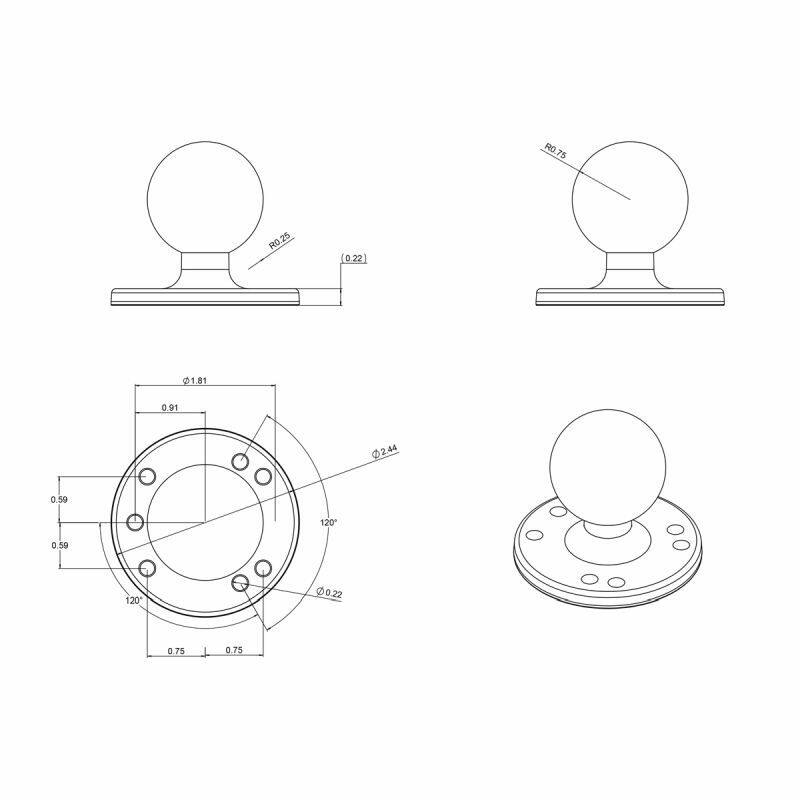

Round plate hole pattern: 4-hole AMPS 30mm x 38mm (1.181" x 1.496"); 3-hole 120° AMPS 46.0mm (1.812")
What does the round plate connect to? Any RAM device holder with the universal AMPS hole pattern, such as a tablet or GPS cradle.
Does it damage the seat? No, it buckles in without drilling or permanent fixing, and unfolds and packs away in seconds.
How fast does it ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
