RAM Single Socket Arm with Threaded Hole - B Series - 1/4" NPT

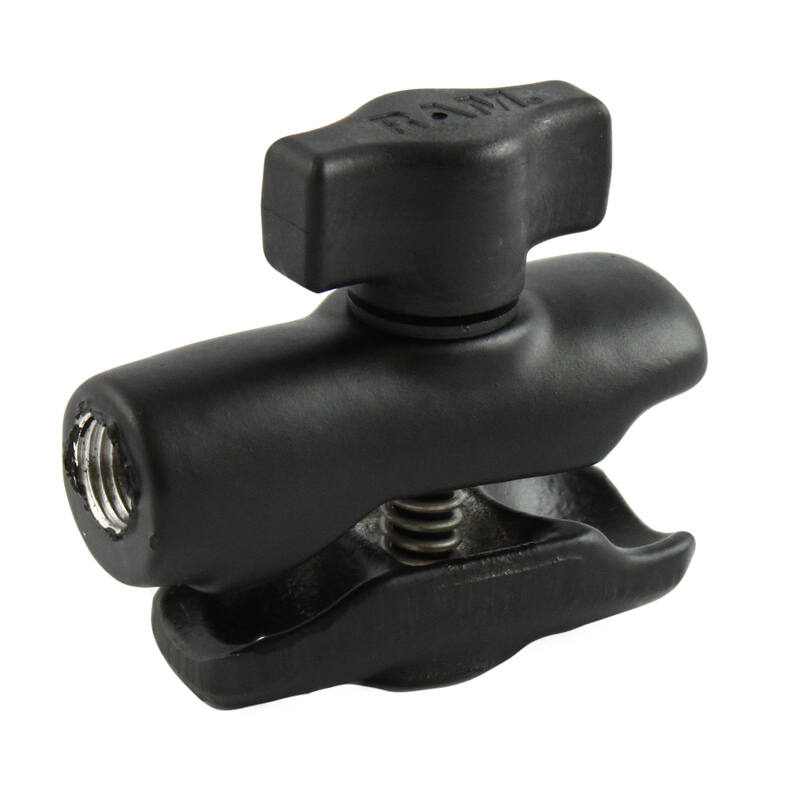

RAM-B-200-1U Single Socket Arm with 1/4" NPT Threaded Hole – B Series

The RAM-B-200-1U converts a 1/4" NPT male-threaded pipe or fitting into a B-Series RAM® ball connection, using a single socket that accepts any 1" B-Size ball component. Screwed onto a RAM® pipe, it lets you build a rigid straight arm to exactly the length you need.

Key Features

• Single ball socket accepts any 1" B-Size RAM® ball base or device holder
• 1/4" NPT female thread connects to any 1/4" NPT male pipe or fitting, including RAM-PA854XX NPT pipes
• Builds custom-length rigid arms: screw one onto each end of a RAM® pipe for B-Series sockets at both ends
• More rigid than a double socket arm, useful where extra reach or stiffness is needed
• Popular in device holders for wheelchairs and other mobility equipment
• Backed by RAM® Mounts' lifetime warranty

Works With

Screws directly onto RAM® pipes RAM-PA8206, RAM-PA8209, RAM-PA8224 and RAM-PA5412 to create a straight arm of your chosen length with a B-Series socket at each end. For the C-Series 1/2" NPT version, see the RAM-200-1U.

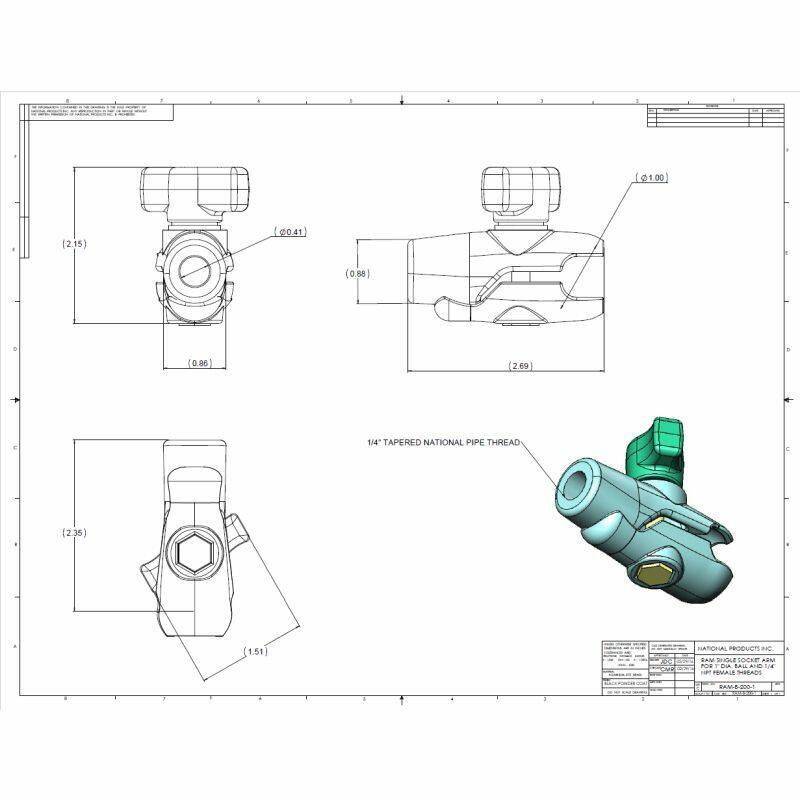

Dimensions & Specifications

• Ball/socket size: B-Size (1")
• Thread: 1/4" NPT female
• Weight capacity: 907g (2 lbs) standard use / 454g (1 lb) heavy-duty use
• Material: marine-grade aluminium
• Weight: 98g (0.22 lbs)

FAQs

Will this fit my existing RAM® arm? The socket accepts 1" B-Size balls, so it works with any B-Series RAM® ball component. It won't fit C-Size (1.5") balls; for those, see the RAM-200-1U.
