RAM Square Flat Base Plate - 6" square with AMPS Hole Pattern

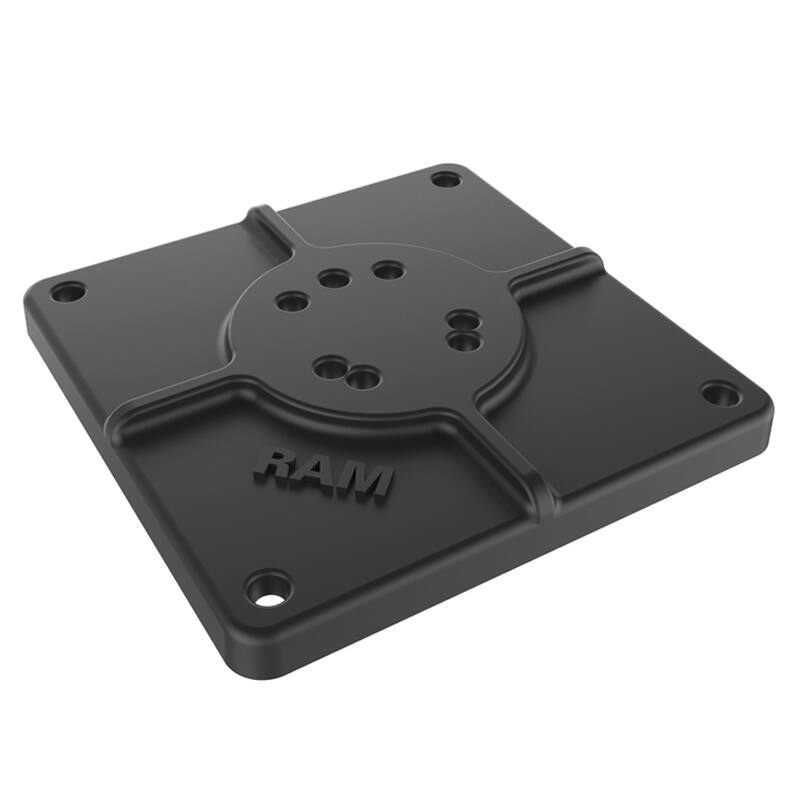

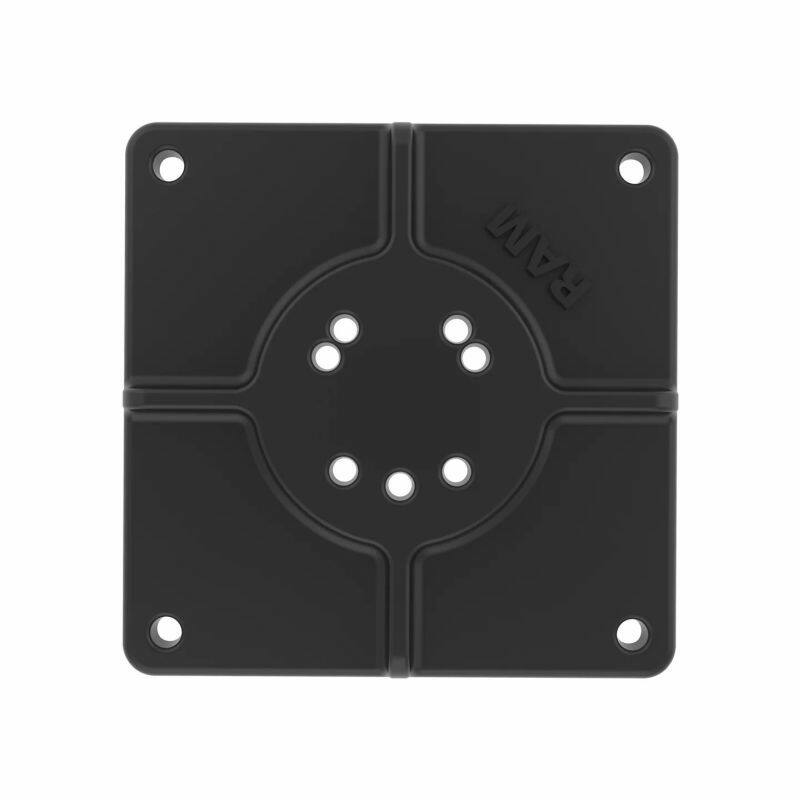

RAM-255U – RAM® 152 x 152mm (6" x 6") Flat Base Plate with AMPS Hole Pattern

The RAM-255U is a 152 x 152mm (6" x 6") flat mounting plate that gives RAM® round bases a larger surface to attach to, spreading the load across more of the mounting surface for stronger installations.

Key Features

• 152 x 152mm (6" x 6") flat plate with drilled holes at each corner
• Hole patterns adapt to RAM® round bases including RAM-B-202U, RAM-202U and RAM-D-254U
• Powder-coated marine-grade aluminium for demanding environments
• Backed by a lifetime warranty

Works With

RAM® round bases: RAM-B-202U (B size), RAM-202U (C size) and RAM-D-254U (D size), on any flat surface needing wider load distribution.

Dimensions & Specifications

• Plate size: 152 x 152mm (6" x 6")
• Weight: 513g (1.13 lb)

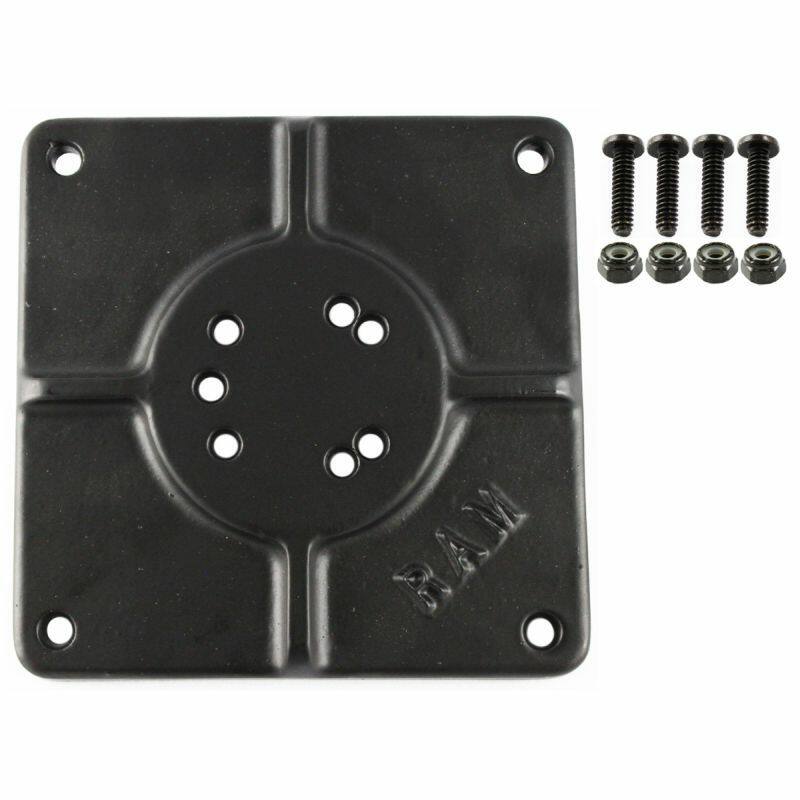

• Hardware included: (4) #10-24 x 3/4" machine screws, (4) #10-24 nylock nuts
• Material: powder-coated marine-grade aluminium
• Warranty: lifetime

FAQs

When would I need this plate?

When the surface under your round base is too soft, thin or uneven to hold the base alone; the plate spreads the load and provides solid corner fixing points.
