RAM Mounts

RAM Square VESA Base Plate - 100mm Hole Pattern - with Triple Suction Cup Base

RAM Square VESA Base Plate - 100mm Hole Pattern - with Triple Suction Cup Base


Regular price $257.50 NZD
Regular price Sale price $257.50 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

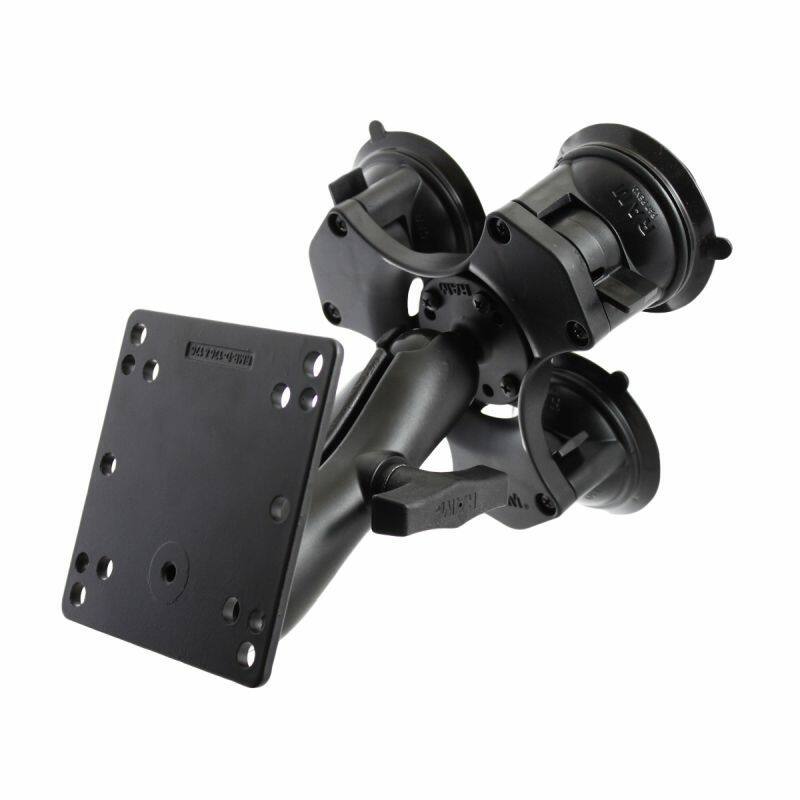

RAP-365-101-246U RAM® Twist-Lock™ Triple Suction Mount with 100x100mm VESA Plate - Medium


* RAM® Twist-Lock™ triple suction cup base is ideal for windshields and other nonporous surfaces
* Medium RAM arm with ball and socket technology allows for near-infinite adjustability
* VESA plate with C size 1.5" RAM® rubber ball has 75 x 75mm and 100 x 100mm VESA patterns
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

For the 75mm VESA pattern version see part RAP-365-101-2461U

Suction cups are one of the most convenient ways to mount portable electronics. RAM has a wide range of suction cups to choose from that have incredible holding power without an incredible price. Easy to afford and easy to use, we offer single, double, and now the RAM Triple suction cup base. This exceptional product allows the freedom to use and move your electronics like never before. Ideally suited to a wide range of agricultural, commercial, and industrial uses, RAM's new triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. You just found your single source provider of the most innovative line of suction cup products anywhere.

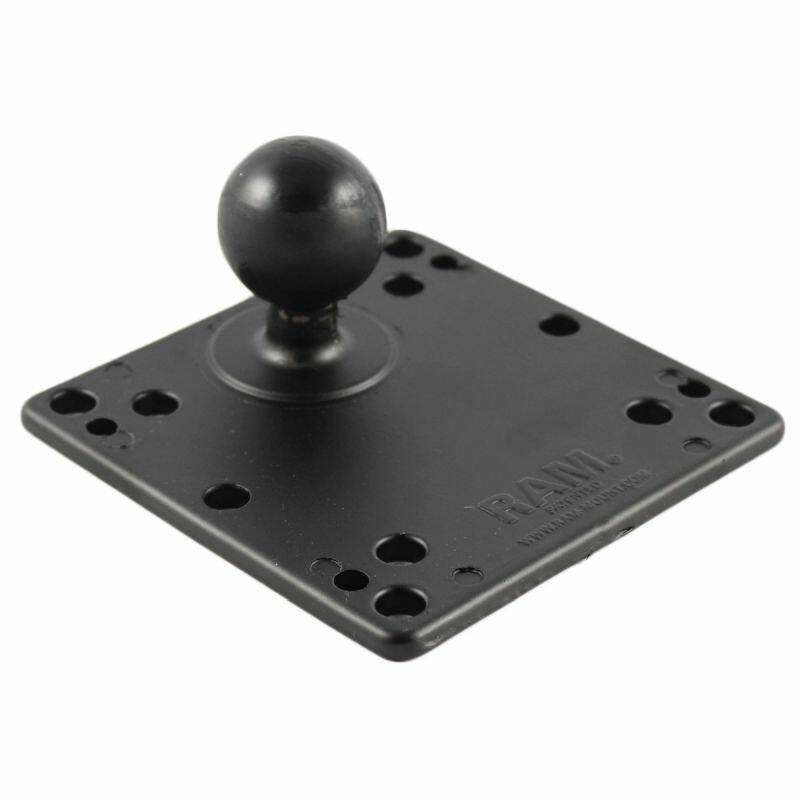

The included Square Base plate is a 1.5" rubber ball, connected to a 120mm square plate. The plate has the VESA standard 4 x 100mm holes and 4 x 75mm holes in each corner.

Specs & Features

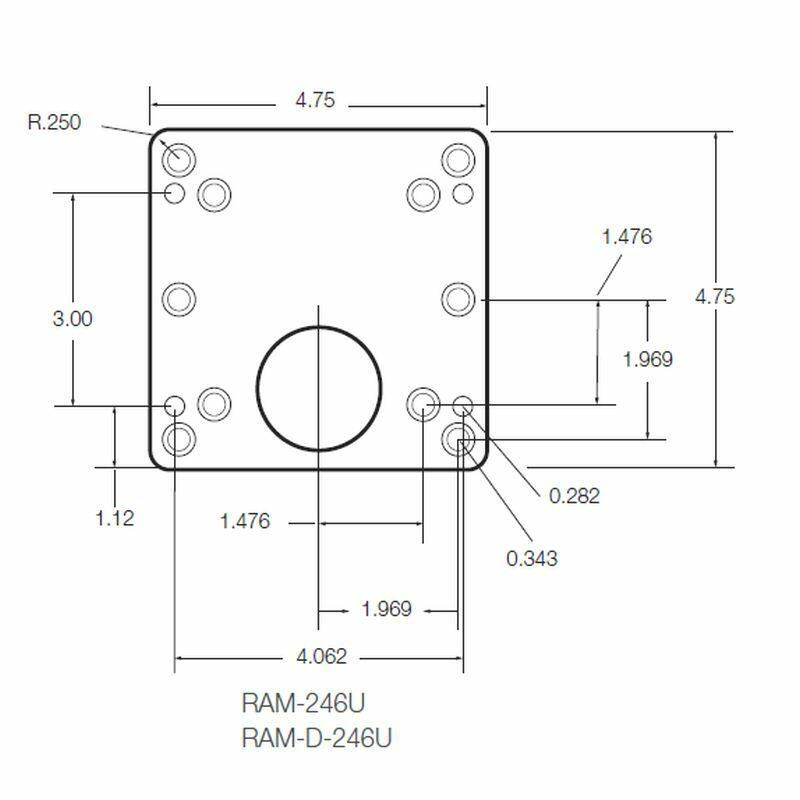

Plate Hole Patterns:
100 x 100 VESA Pattern
75 x 75 VESA Pattern
100 x 50 Half VESA Pattern

Hardware Included
Assembly Hardware
(4) .312" x .187" Shoulder Washers

Suction Size
(3) x 84mm (3.3") Diameter Bases, Total Width 201.9mm (7.95")

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")

Ball/Socket Size
C Size (1.5")

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)

Marine-grade aluminium
High strength composite

1.156kg (2.55 lbs.)

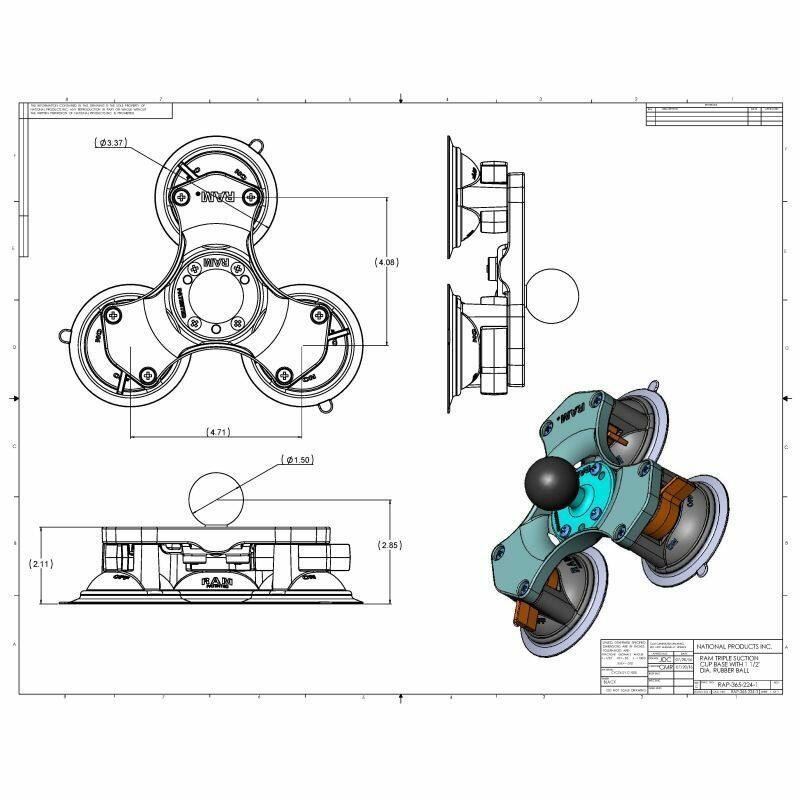

RAP-365-224-1BU RAM Triple Suction Cup Base with AMPs Hole Pattern
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball

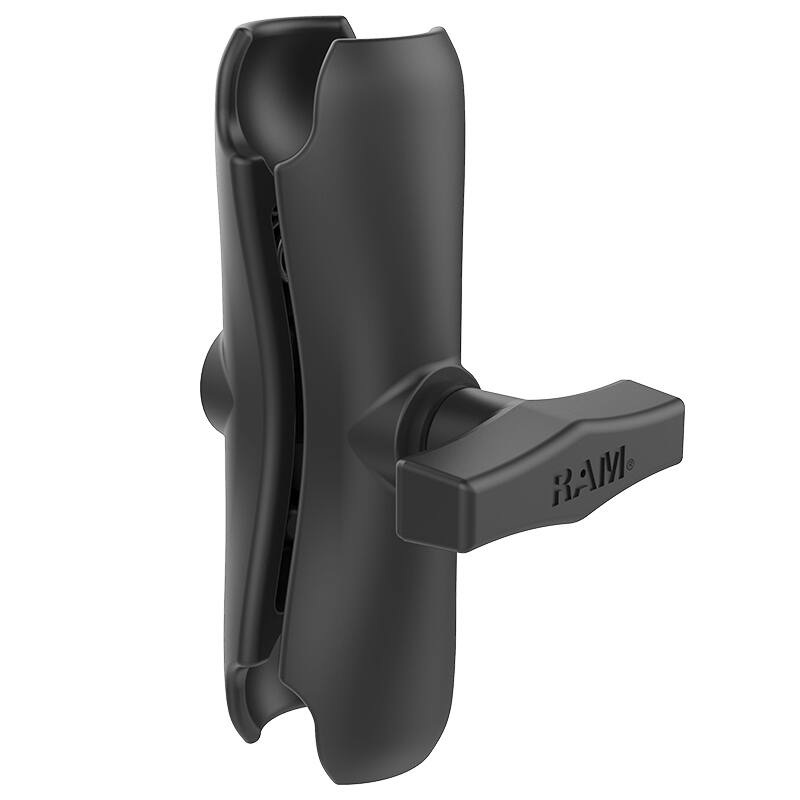

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls

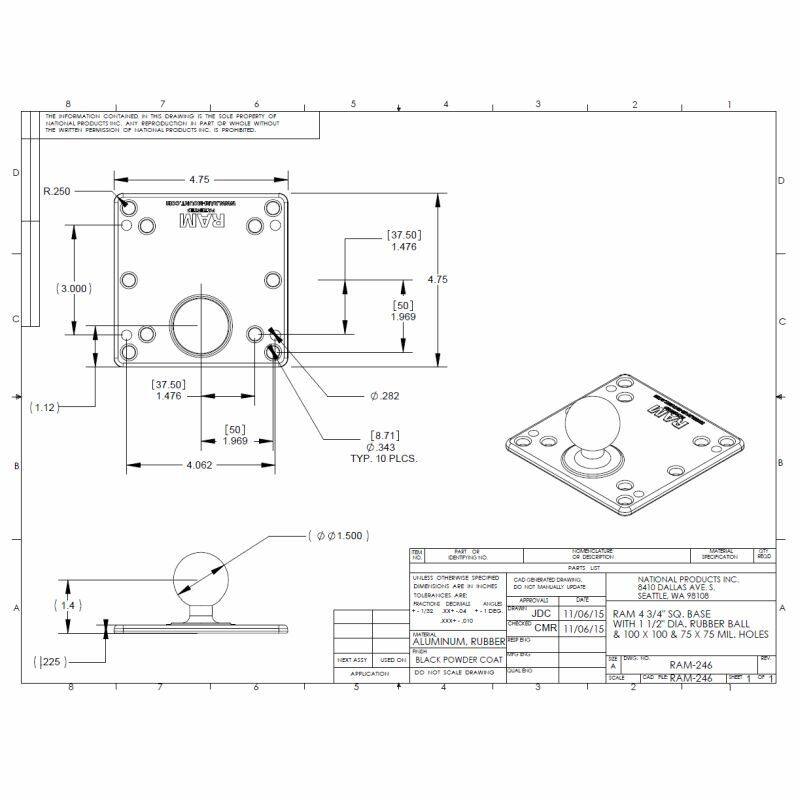

RAM-246U RAM Square VESA Base Plate
