RAM Mounts

RAM Square 100mm VESA Base Plate - C Size with Arm and Round Base

RAM Square 100mm VESA Base Plate - C Size with Arm and Round Base

SKU:RAM-101U-246-v

Regular price $151.98 NZD
Regular price Sale price $151.98 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-101U-246 RAM® Double Ball Mount with 100x100mm VESA Plate - C Size Medium

Features

* Square plate with offset ball features the 75 x 75mm and 100 x 100 VESA hole patterns for connection to a wide variety of devices
* 63.5mm round plate contains the universal AMPS hole pattern and provides a gerat drill down base on any flat surface
* C size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

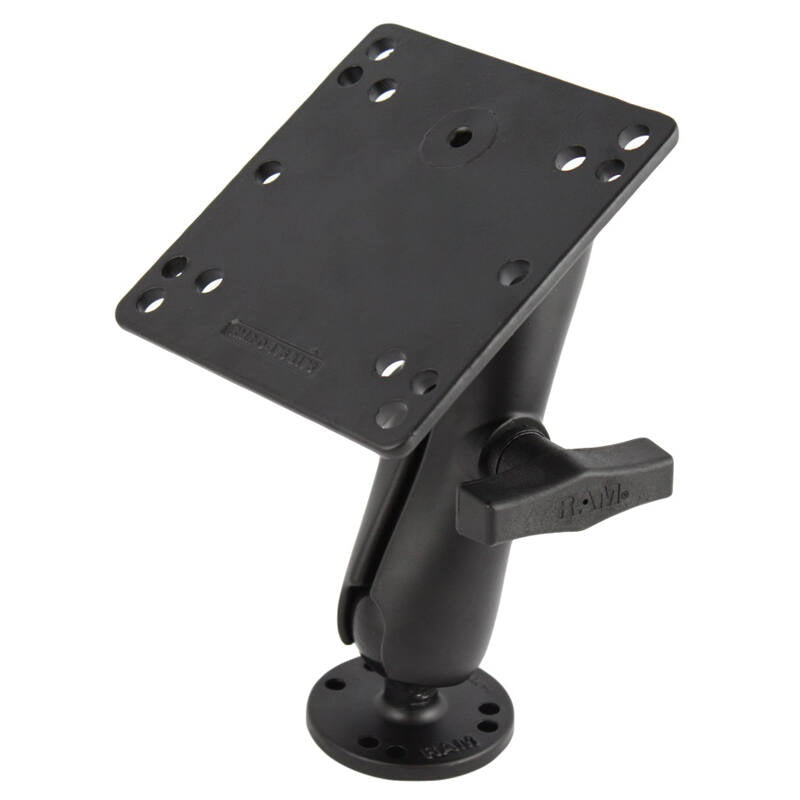

The RAM-101U-246 consists of a STANDARD length double socket arm, 63.5mm diameter round base with the universal AMPS hole pattern and square plate with the VESA hole pattern. The VESA plate contains a 75mm X 75mm hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles

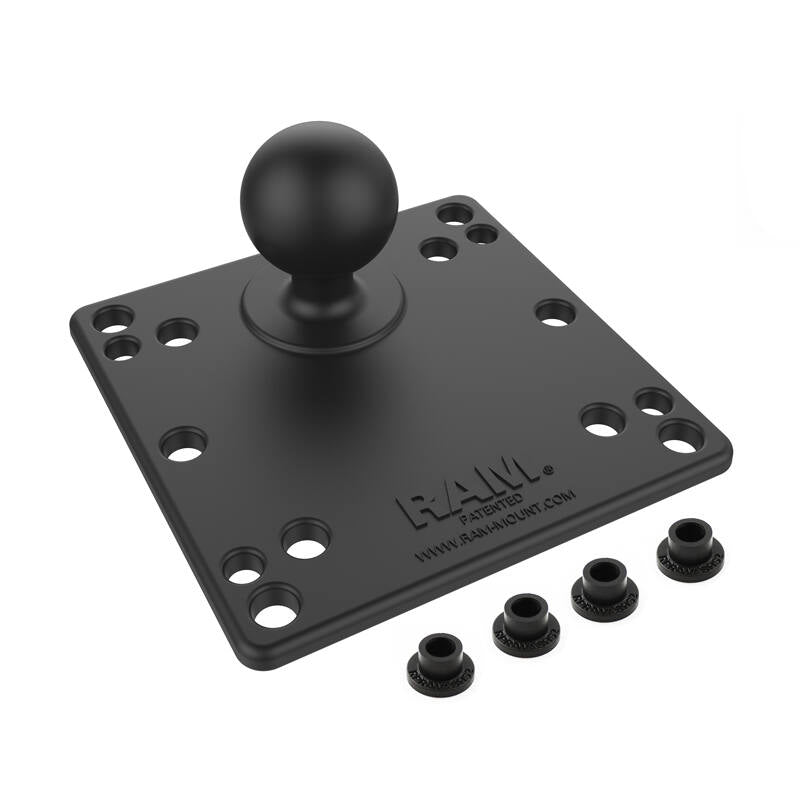

The VESA plate is a 1.5" rubber ball, connected to a 120.65mm square plate with a 75mm X 75mm and 100mm x 100mm VESA hole pattern. The rubber ball is positioned 22.3mm (0.88") from the centre of one edge. The will attach to all RAM 1.5" dia. ball double socket arms.


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
1.5" Rubber Ball Size

Plate Dimensions
Round:
63.5mm diameter
Square:
120.65mm (4.75") square


Hole Patterns

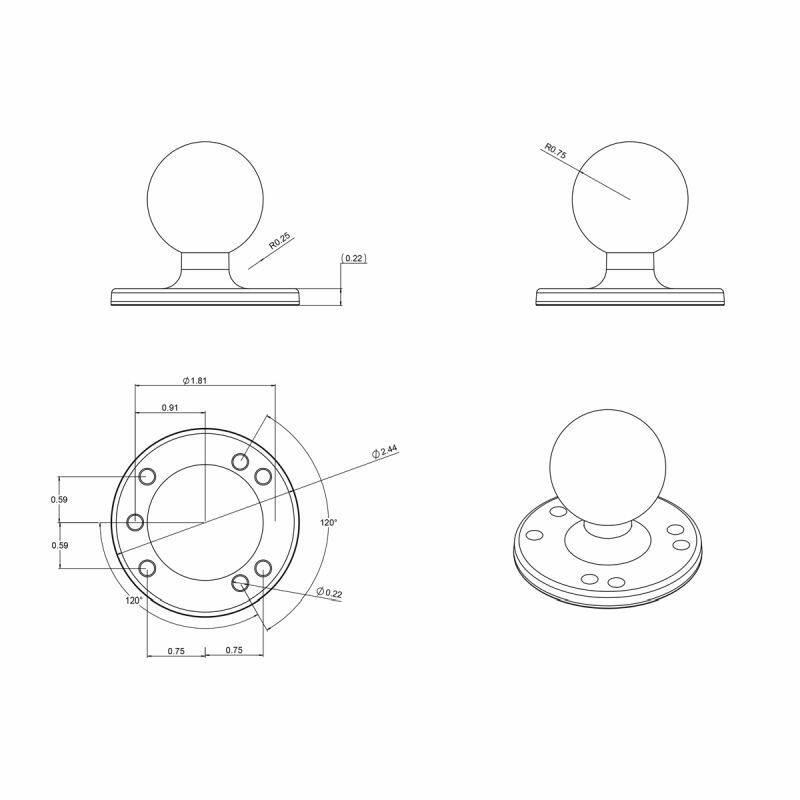

Round Plate
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)

Square Plate:
See Drawing

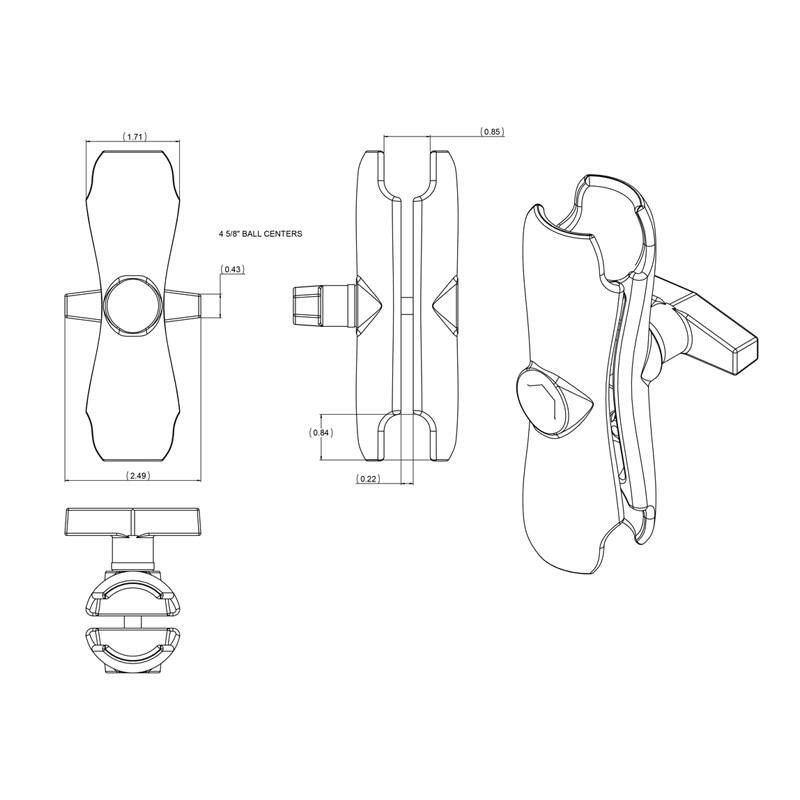

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5" )


Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Weight:
590 grams (1.3 lbs.)


Components:

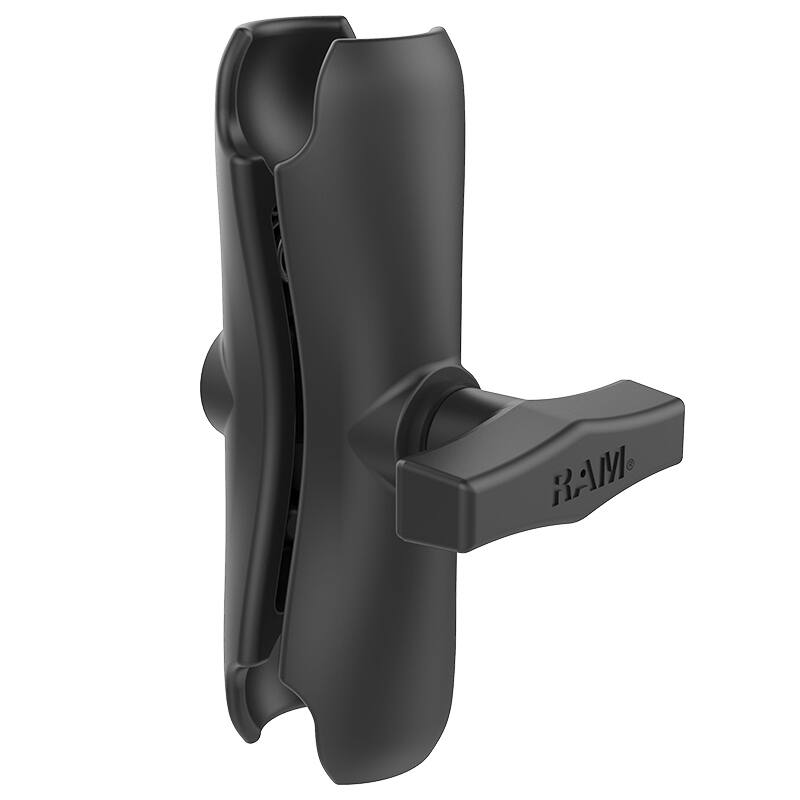

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-246U VESA base 100mm & 75mm holes for 1.5"/C size balls

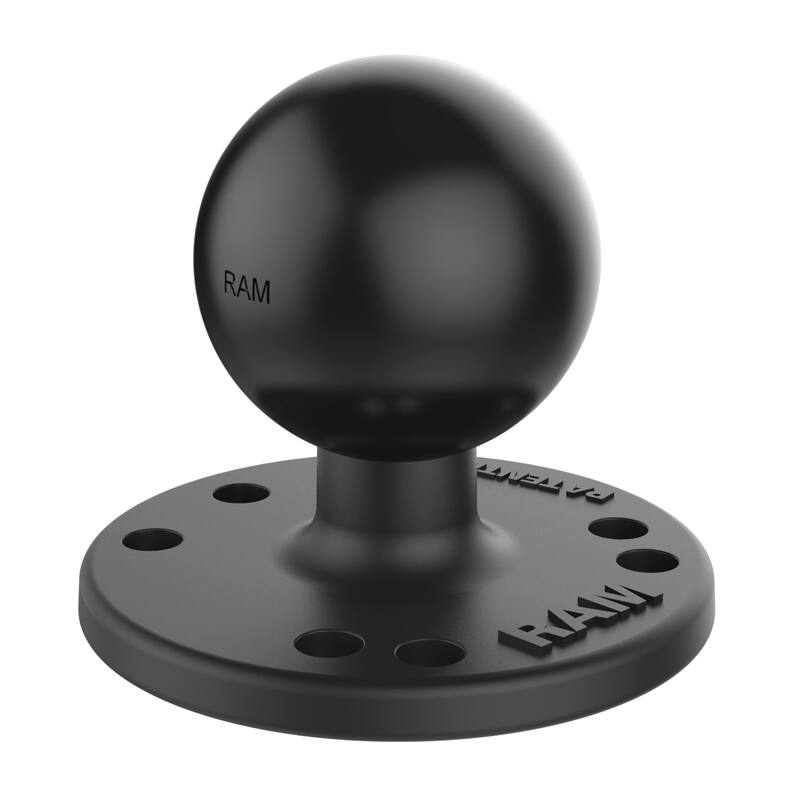

RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
