RAM Mounts

RAM Square 100mm VESA Base Plate - E Size with Arm and Round Base

RAM Square 100mm VESA Base Plate - E Size with Arm and Round Base

SKU:RAM-E-101U-246

Regular price $724.10 NZD
Regular price Sale price $724.10 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-E-101U-246 RAM® Double Ball Mount with 100x100mm VESA Plate


Features

* Square plate features the VESA hole pattern for connection to a wide variety of devices
* Round 93.5mm Plate
* Included E size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

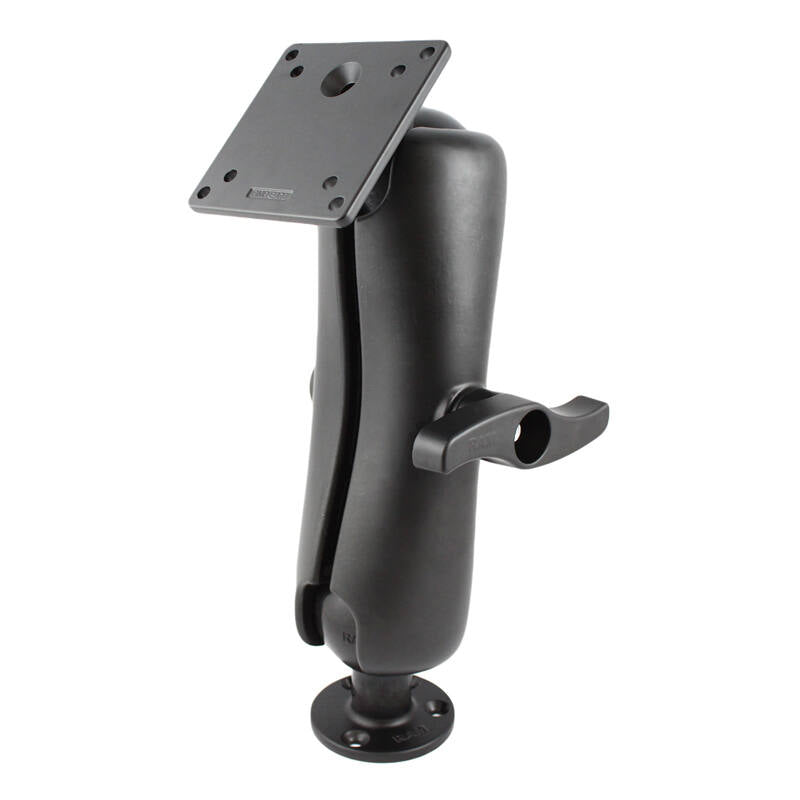

The RAM-E-101U consists of one 93.5mm diameter round base, a double socket arm and a square VESA plate.

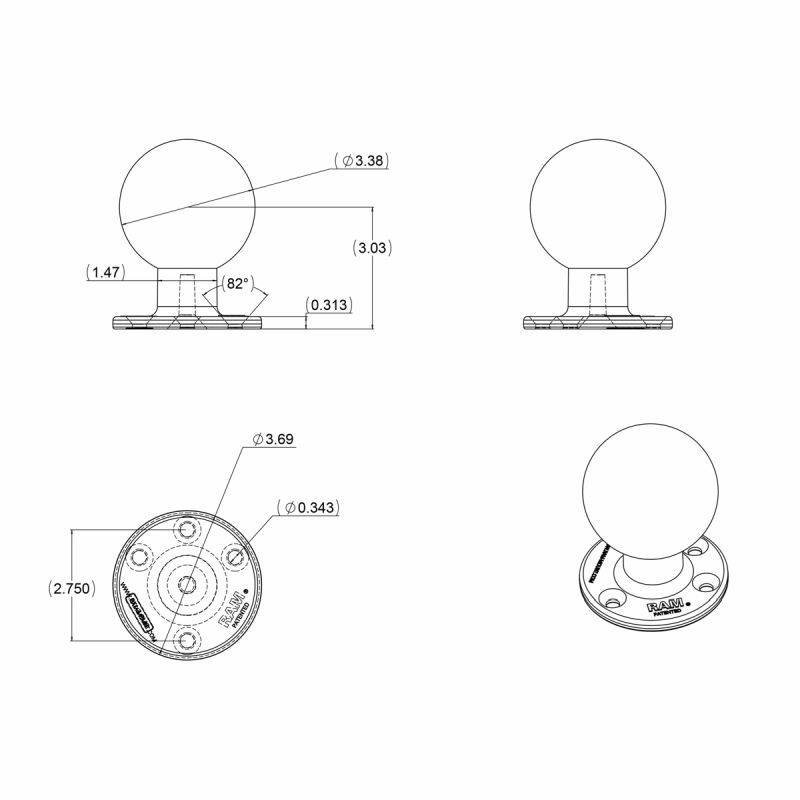

The 93.5mm diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees.

Designed into the mount is a 57mm diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

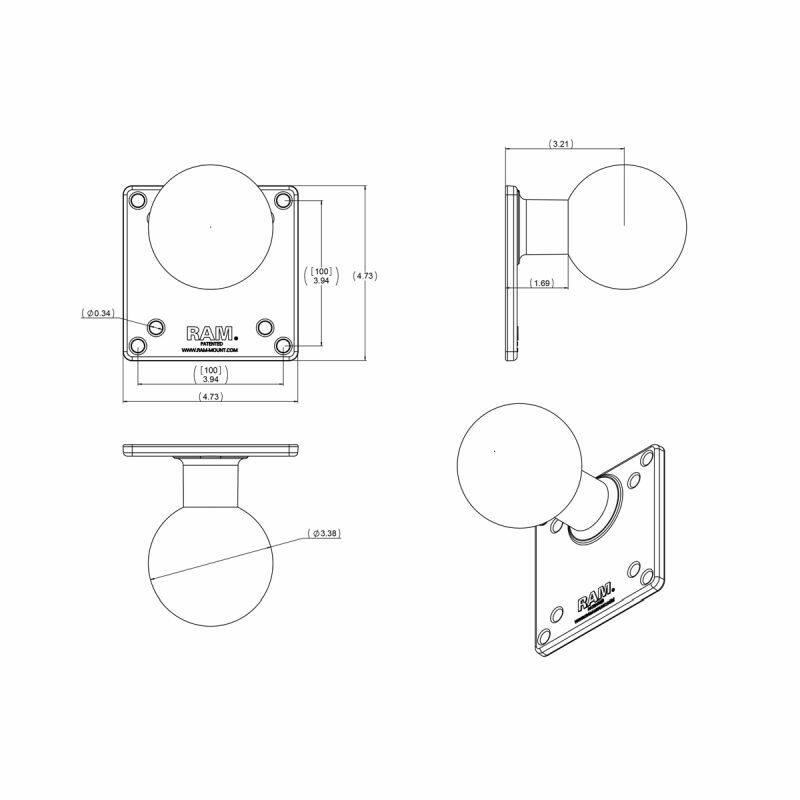

The VESA plate is a 85.5mm rubber ball, connected to a 120.6mm square plate with 4x100mm holes and 4x75mm holes in each corner. VESA hole pattern included.


Specs & Features

Arm Dimensions:
Overall Length:
321mm (12.625")
Socket-To-Socket Length:
251mm (9.875")


Hole Patterns:
See drawings


Material:
Powder Coated Marine Grade Aluminium


Ball Size:
2.25" (57mm) Rubber Ball "D" Size


Weight:
4.85kg (10.7 lbs.)

Weight Capacity
Standard Use:
6.8kg (15 lbs)
Heavy-Duty Use:
4.53kg (10 lbs)


Components:

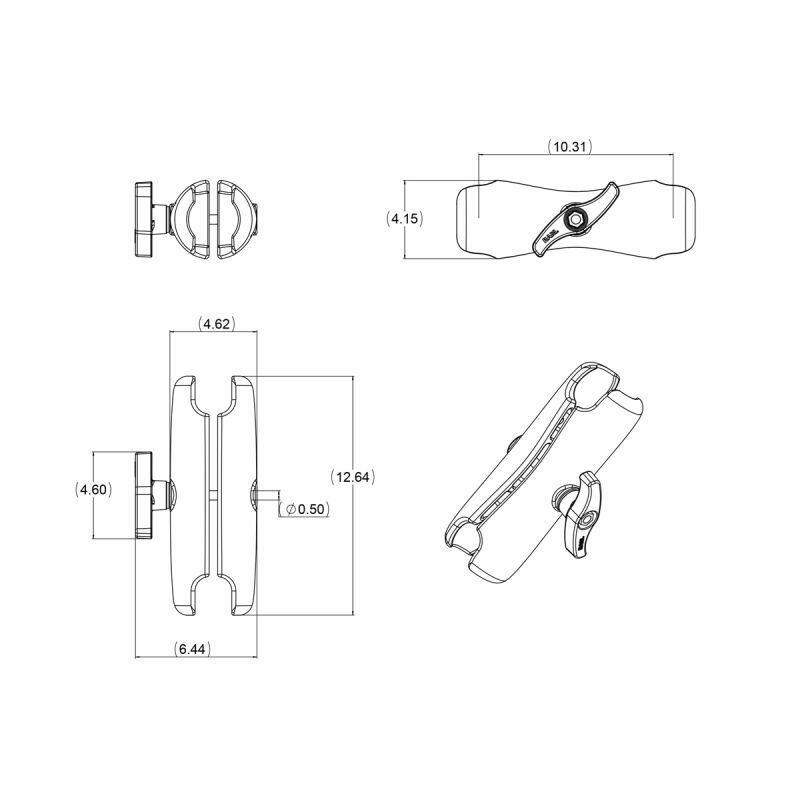

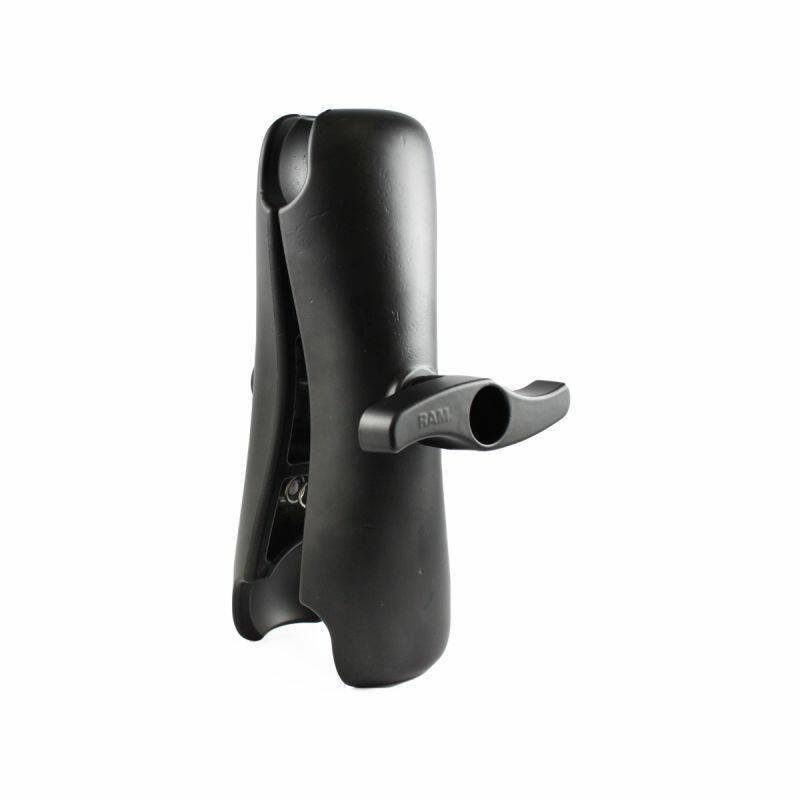

RAM-E-201U - double socket arm

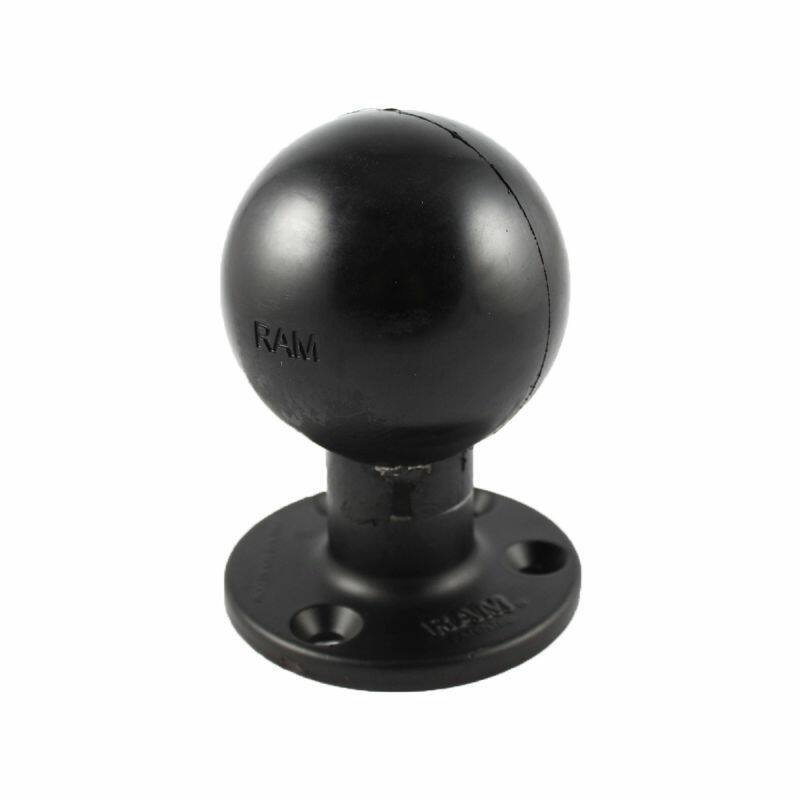

RAM-E-202U - 3.68" / 93.5mm round base

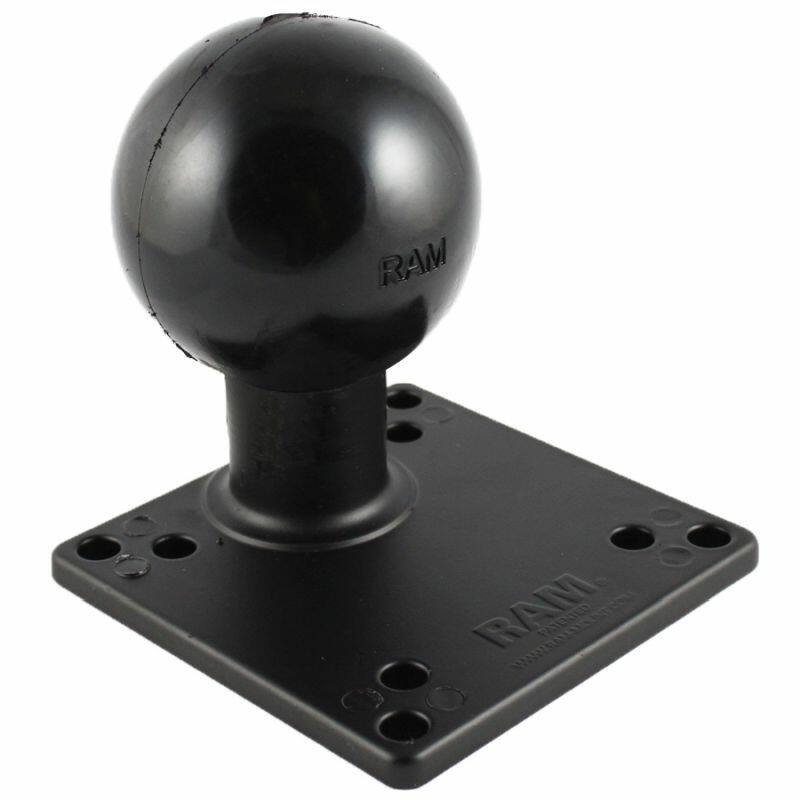

RAM-E-246U - RAM 100x100mm VESA Plate with Ball


YouTube:
https://www.youtube.com/watch?v=b_TtvLYShlw
https://www.youtube.com/watch?v=sihcgjafFI4



QUESTIONS & ANSWERS

Q: What are the 4 shoulder washers used for?

A: The four included shoulder washers are meant to accommodate smaller screws in case the original holes on the ball plate are too large. These washers will reduce the risk of smaller screw heads stripping through the larger holes, and can be used with any of the holes on the ball plate.
