RAM Mounts

RAM Square 100mm VESA Base Plate - C Series with Short Arm and Round Base

RAM Square 100mm VESA Base Plate - C Series with Short Arm and Round Base

SKU:RAM-101U-B-246-v

Regular price $146.39 NZD
Regular price Sale price $146.39 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-101U-B-246 RAM® Double Ball Mount with 75x75mm VESA Plate and Short Arm

FEATURES

* Square plate features the VESA hole pattern for connection to a wide variety of devices
* C size 1.5" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Round 63.5mm base includes industry standard AMPS's hole pattern
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

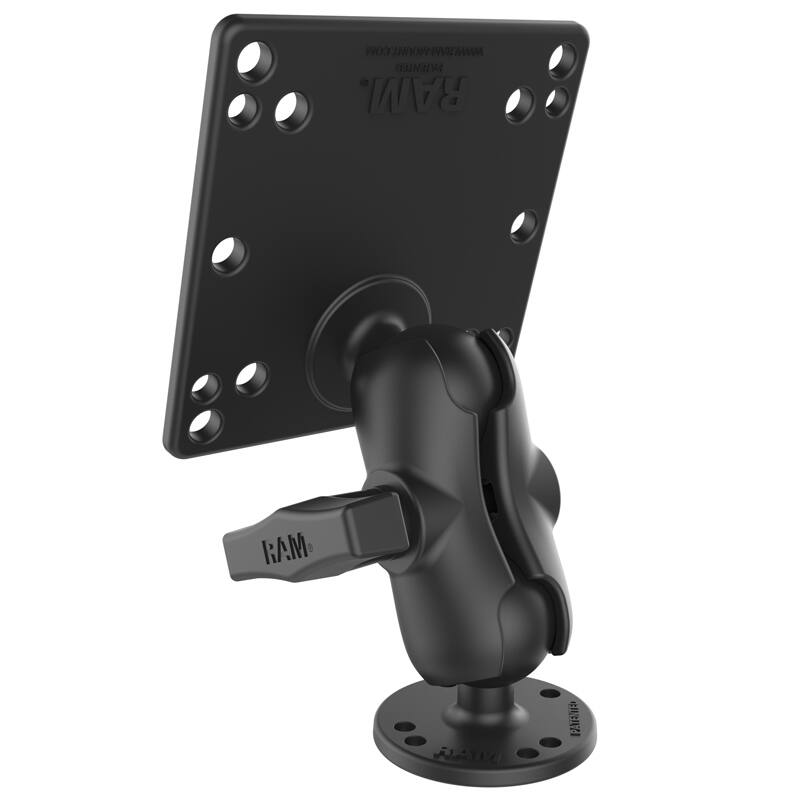

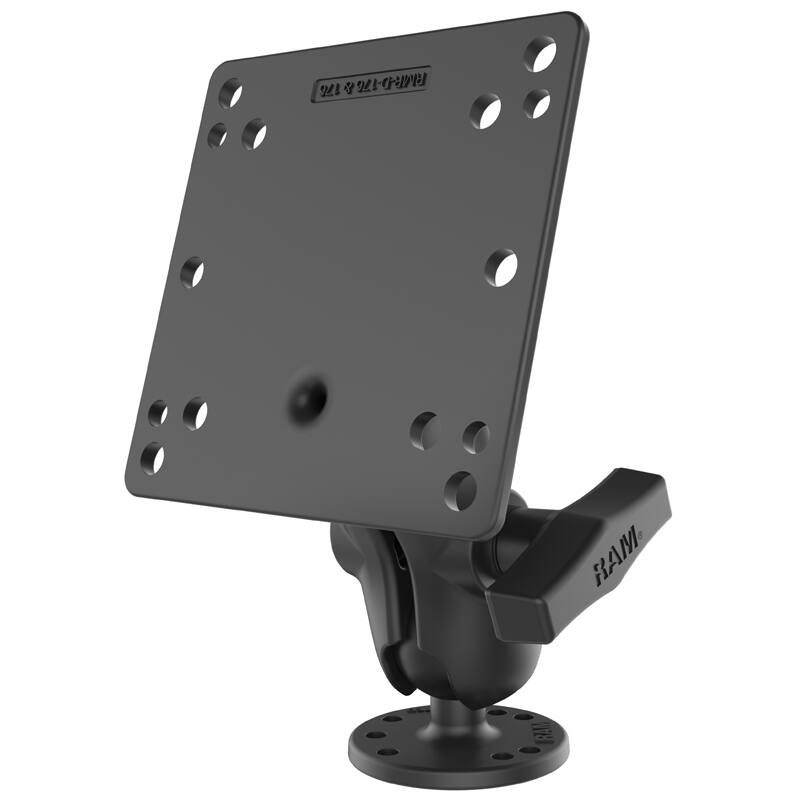

The RAM-101U-B-246 consists of a SHORT length double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 92.1mm / 3.625" square plate with the VESA hole pattern.

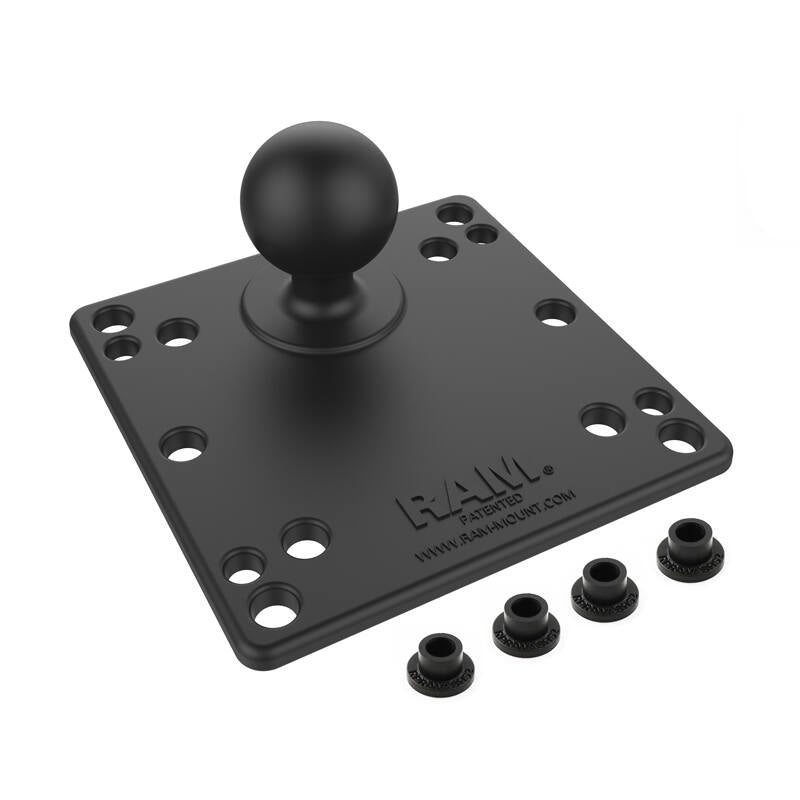

The 120mm Square Base with VESA (4 X 75mm) (4 X 100mm) Hole Patterns & 1.5" Ball - consists of a 1.5" rubber ball, connected to a 120mm square plate with 4 x 100mm holes and 4 x 75mm holes in each corner.

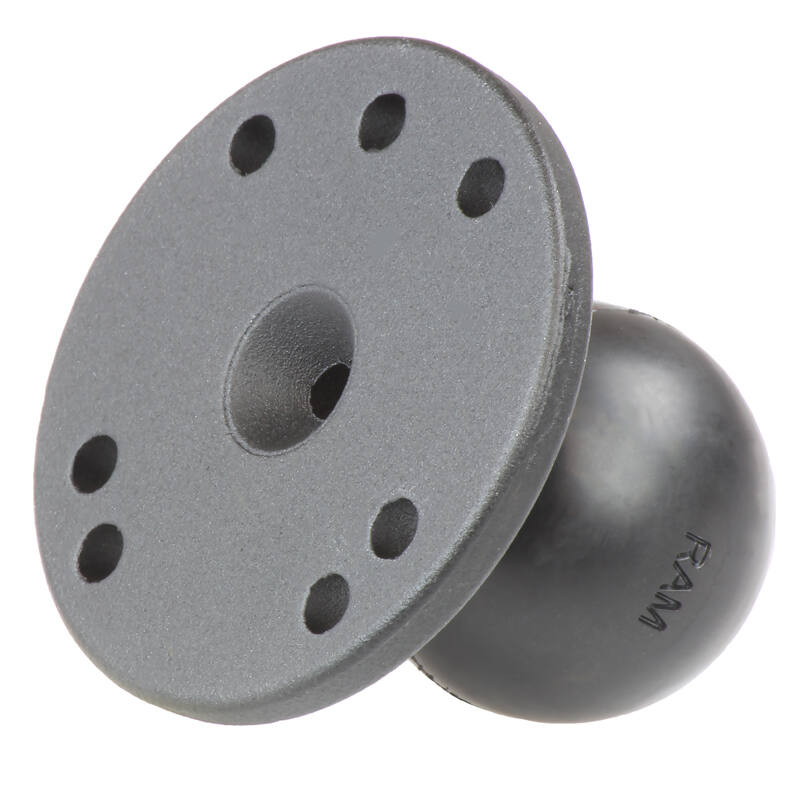

The round base consists of a 1.5" diameter rubber ball connected to a flat 63mm (2.5") diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.


Product Dimensions

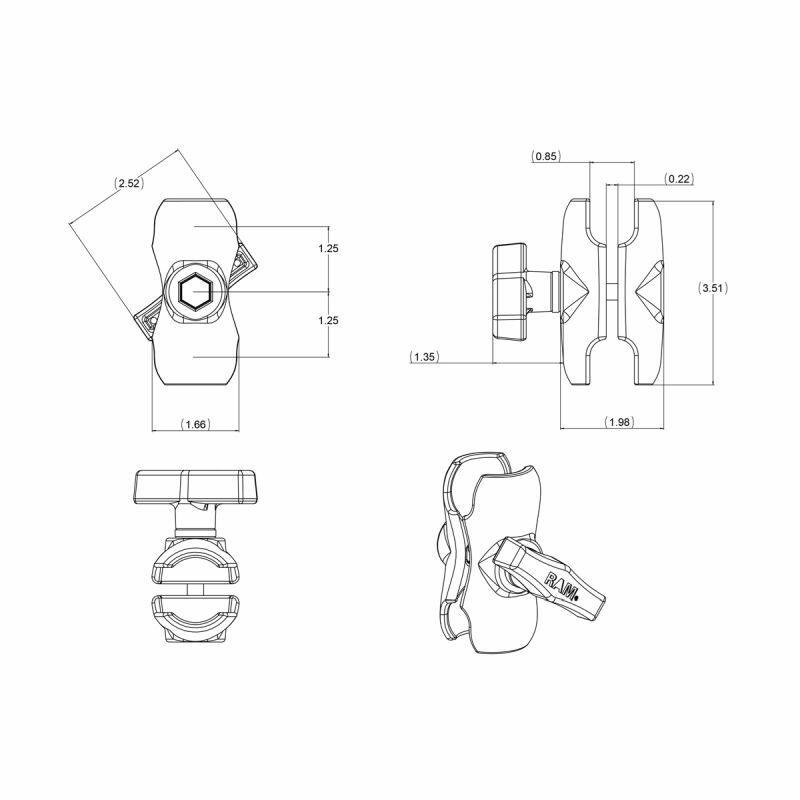

Arm Dimensions
Overall Length:
90 mm (3.56")
Socket-To-Socket Length:
63.5 mm (2.5")

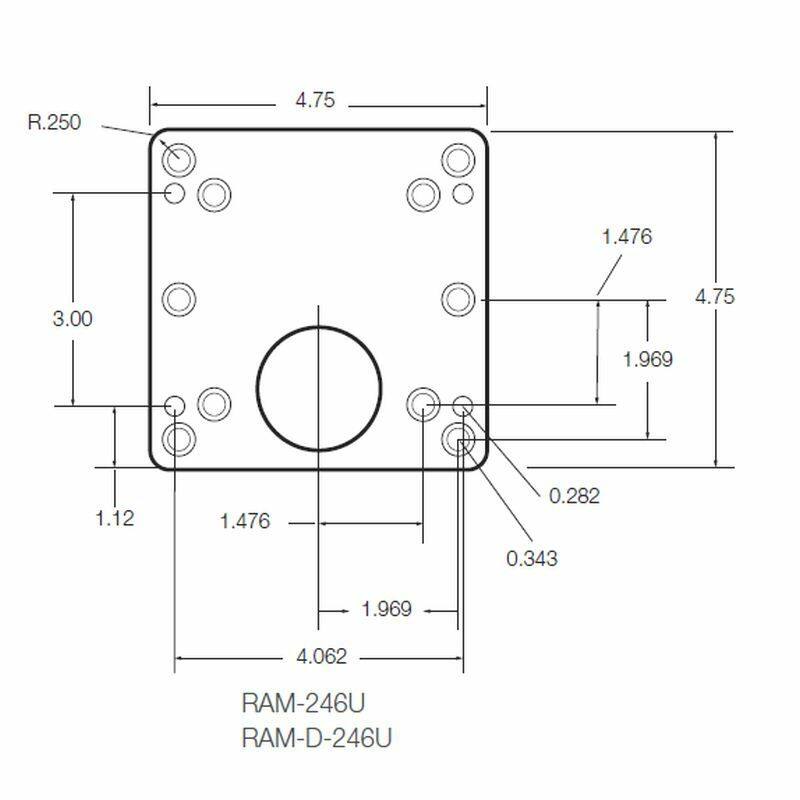

Square Plate Hole Pattern
HOLE PATTERN
75 x 75mm VESA
See Drawing

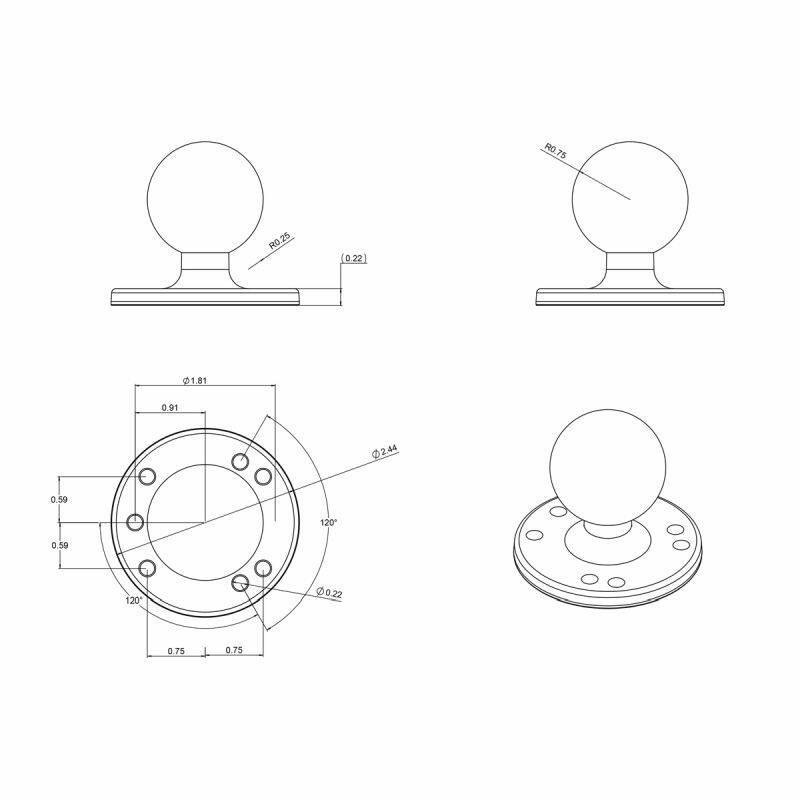

Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter


Ball/Socket Size
C Size (1.5")


Hardware Included
(4) .312" x .187" Shoulder Washers


Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)

Materials
Marine-grade aluminium

Weight
0.290kg (0.64 lbs.)

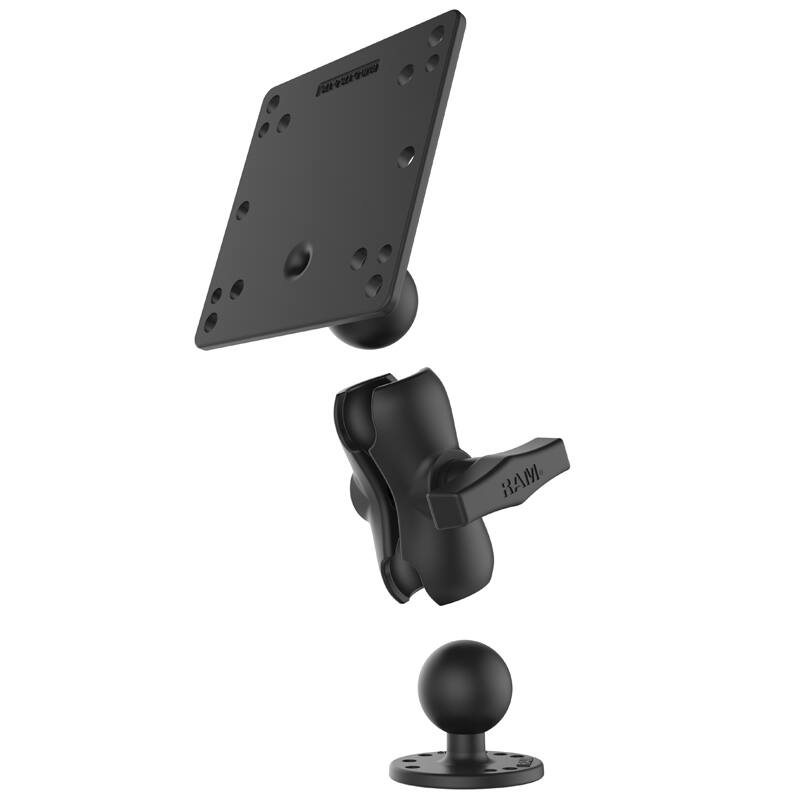

Components
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-246U VESA base 100mm & 75mm holes for 1.5"/C size balls

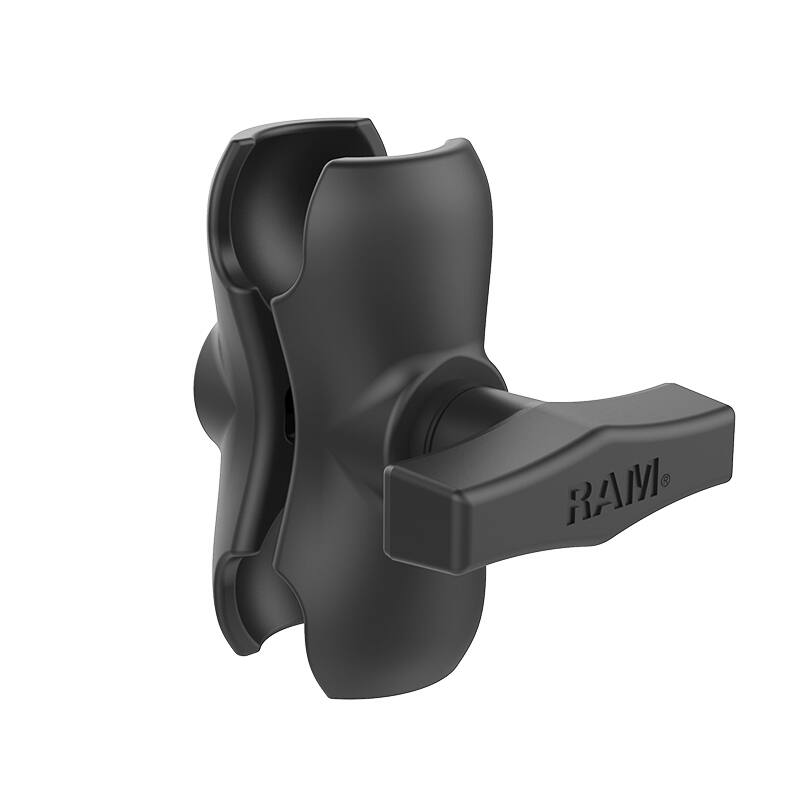

RAM-201U-B Short length C series double socket arm
