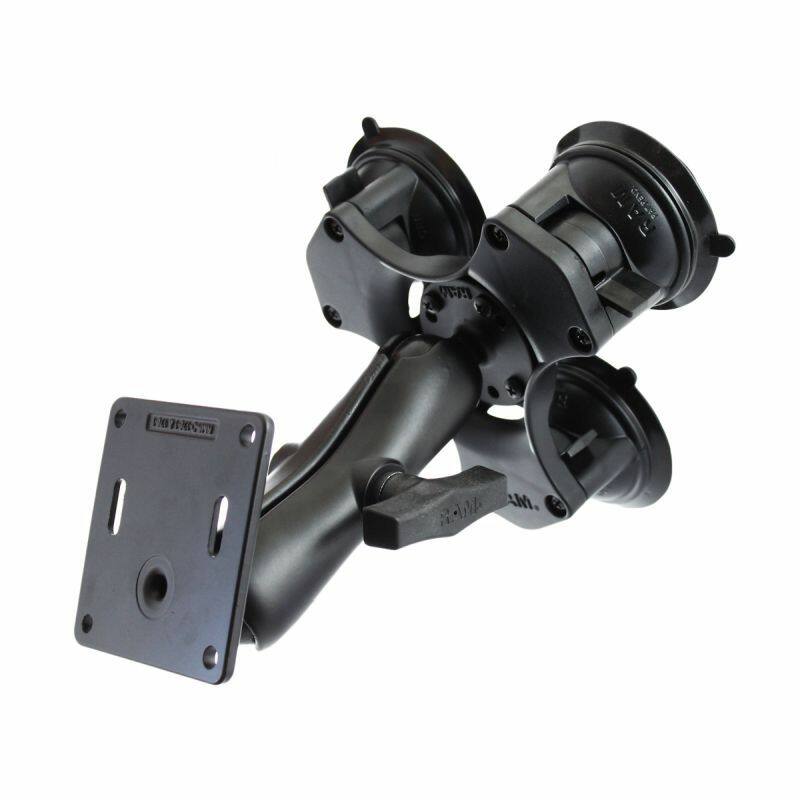

RAP-365-101-2461U RAM® Twist-Lock™ Triple Suction Cup Mount with 75x75mm VESA Plate
For the 100mm VESA pattern version see part RAP-365-101-246U
FEATURES
* Square plate features the 75 x 75mm VESA hole pattern for connection to a wide variety of devices
* Triple suction cup hold ideal for mounting for smooth non-porous surfaces where movement and vibration are common
* Included C size 1.5" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
Suction cups are one of the most convenient ways to mount portable electronics. RAM has a wide range of suction cups to choose from that have incredible holding power without an incredible price. This exceptional product allows the freedom to use and move your electronics like never before. Ideally suited to a wide range of agricultural, commercial, and industrial uses, the RAM triple suction cup base makes it possible to mount your electronics for optimum access, viewing, and safety. You just found your single source provider of the most innovative line of suction cup products anywhere

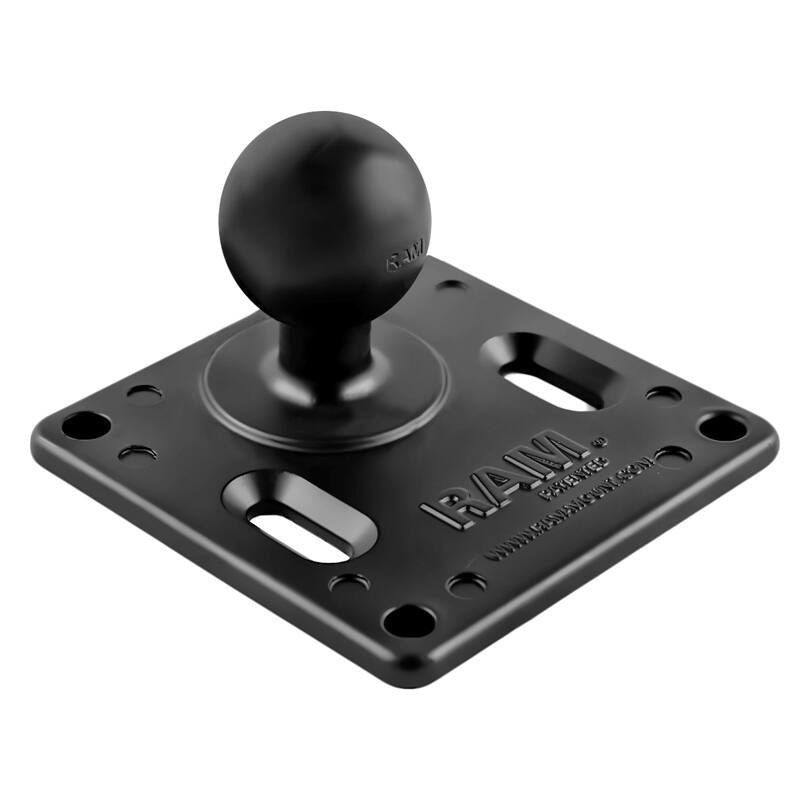

The square base plate consists of a 1.5" rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22mm / 0.88" from the centre of one edge.
Specs & Features
Hole Pattern
See Drawing
Includes 75mm X 75mm VESA hole pattern
Plate Dimensions
92.1mm x 92.1mm (3.625" x 3.625")
Hardware Included
Assembly Hardware
(4) .312" x .187" Shoulder Washers
Suction Size
(3) x 84mm / 3.3" Diameter Bases, Total Width 201.9mm / 7.95"
Arm Dimensions
Overall Length:
143mm (5.625")
Socket-to-Socket Length:
118mm (4.66")
Ball/Socket Size
C Size (1.5")
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
High strength composite
Weight
0.907kg (2.0 lbs.)
Components:

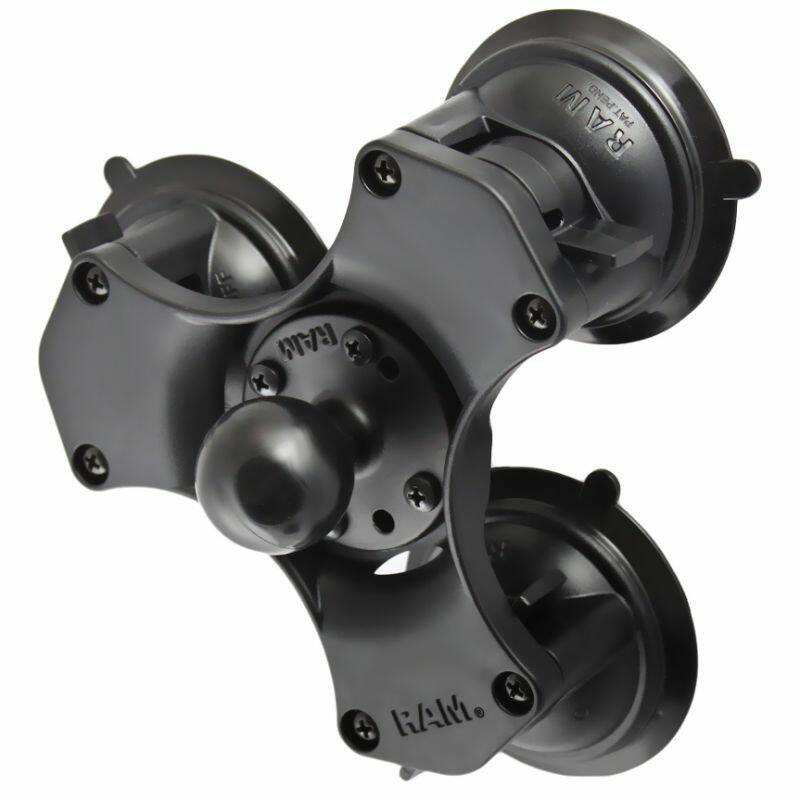

RAP-365-224-1BU Triple Suction Cup Base with AMPs Hole Pattern
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-201U Standard Double Socket Arm for 1.5" Balls
RAM-2461U Square VESA Base Plate
