RAM-2461U RAM® 75x75mm VESA Plate with Ball
Features
* 92mm square plate features the VESA hole pattern for connection to a wide variety of devices
* Included C size 1.5" RAM® rubber ball allows for connection to any C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of power-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

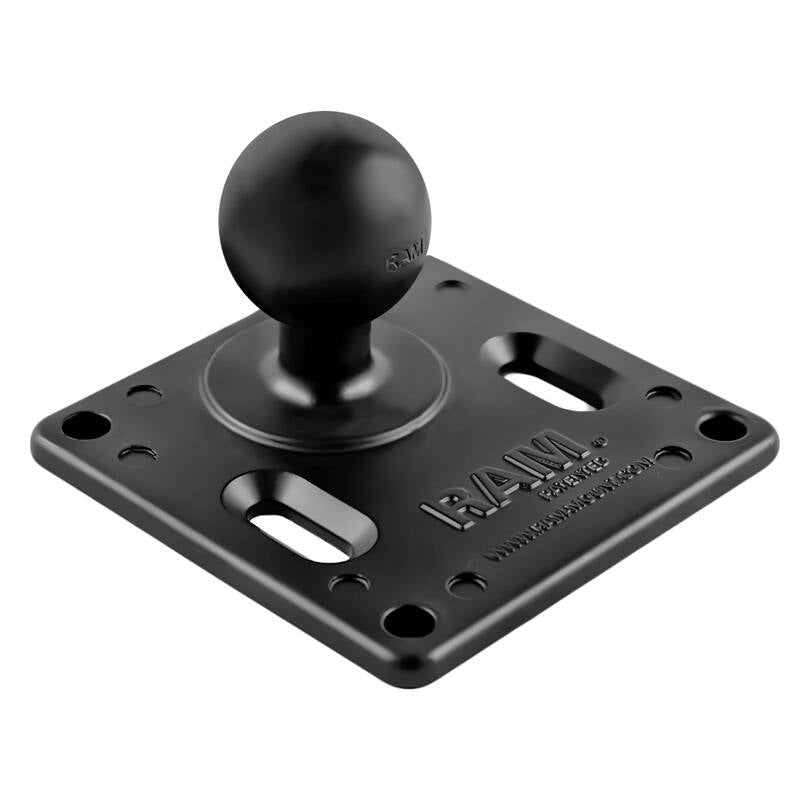

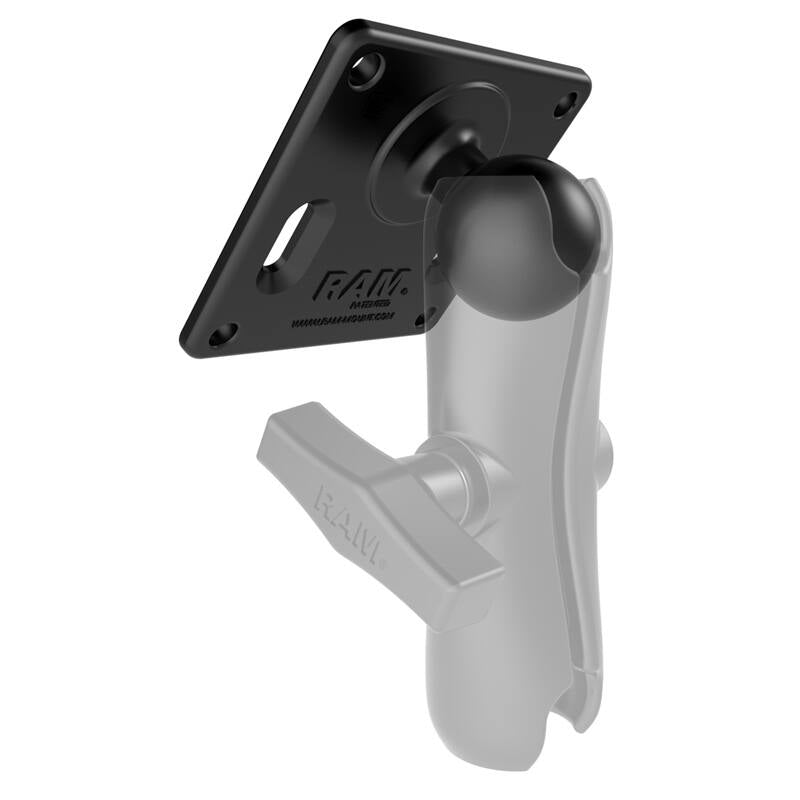

This RAM-2461U consists of a 1.5" rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 0.88" from the centre of one edge. The RAM-2461U will attach to all RAM 1.5" dia. ball double socket arms.
Hole Pattern

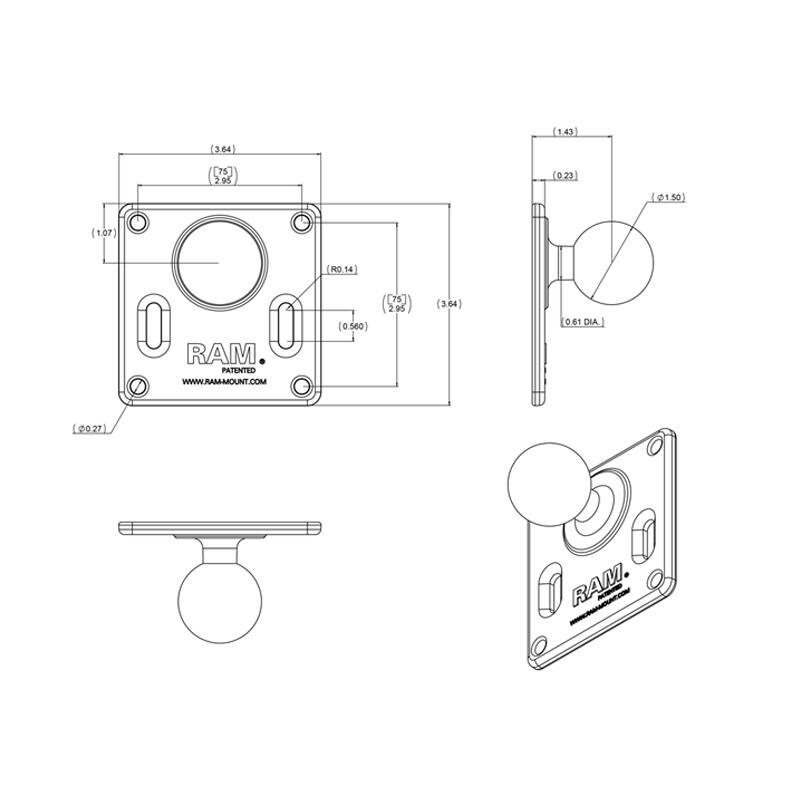

See Drawing
Includes 75mm X 75mm VESA hole pattern
Plate Dimensions
92.1mm x 92.1mm (3.625" x 3.625")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size
Weight:
181 grams (0.4 lbs.)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
