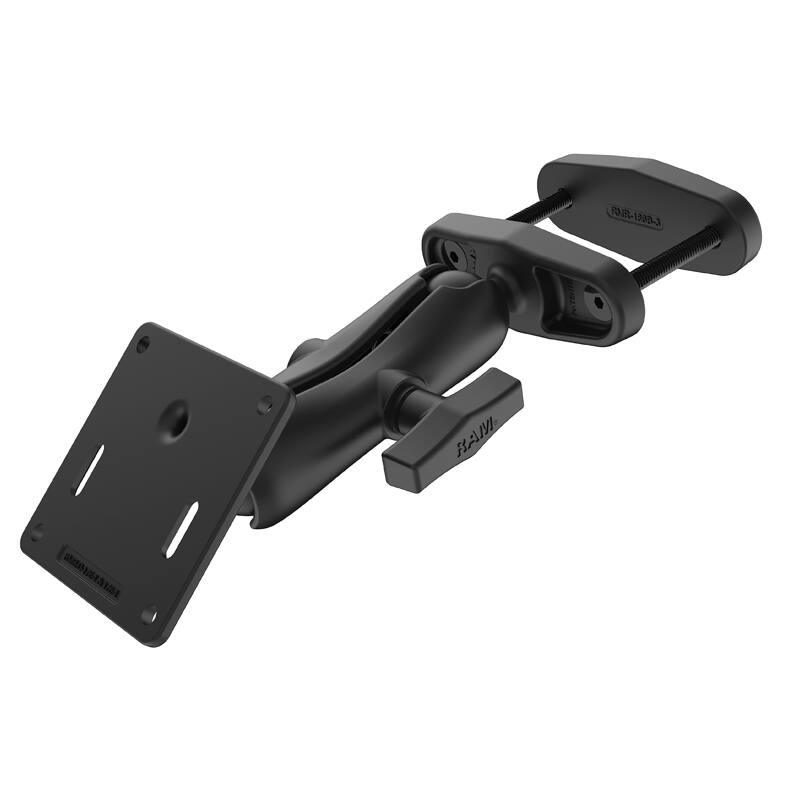

RAM-2461-247U-4 RAM® 102mm Square Post Clamp Mount with 75mm VESA Plate - C Size
Features
* Square plate features the VESA hole pattern for connection to a wide variety of devices
* Includes 102mm clamping base for posts and a medium length, C size RAM® double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-2461-247U-4 consists of a double socket arm, 92 x 92mm square base with 75 x 75mm VESA hole pattern and 102mm (4") clamp base. The clamp base will wrap around a maximum width of 101.6mm / 4" and is tightened by screwing the two plates together with the included nuts and bolts.
Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

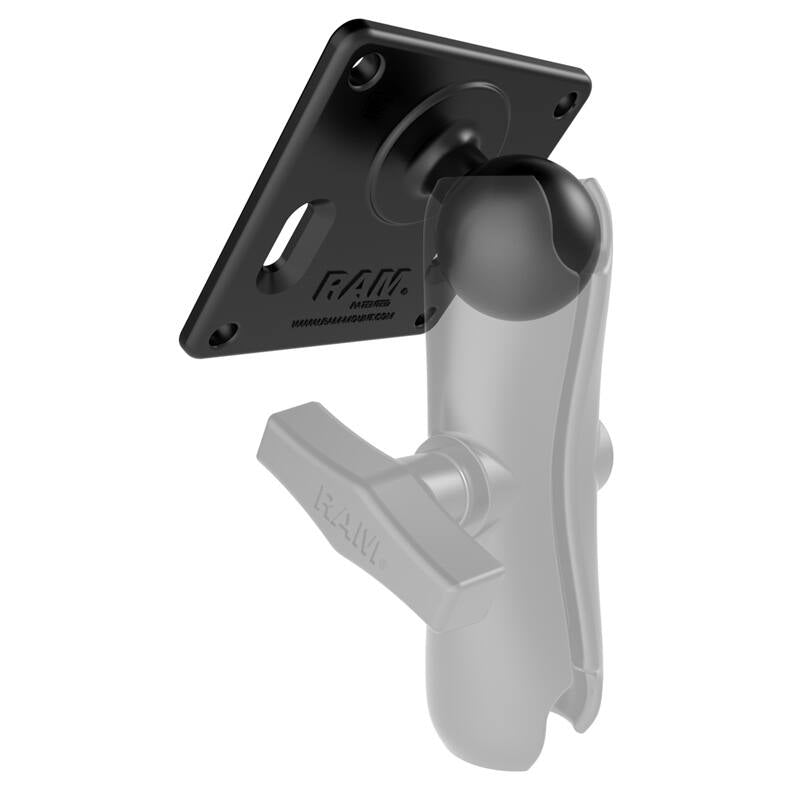

The square RAM-2461U plate is a 1.5" rubber ball, connected to a 92mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22.3mm (0.88") from the centre of one edge.
Specs & Features
Square Plate Hole Pattern
75 x 75mm VESA
Arm Length:
Overall Length: 143mm (5.625")
Socket-To-Socket Length: 114mm (4.5")

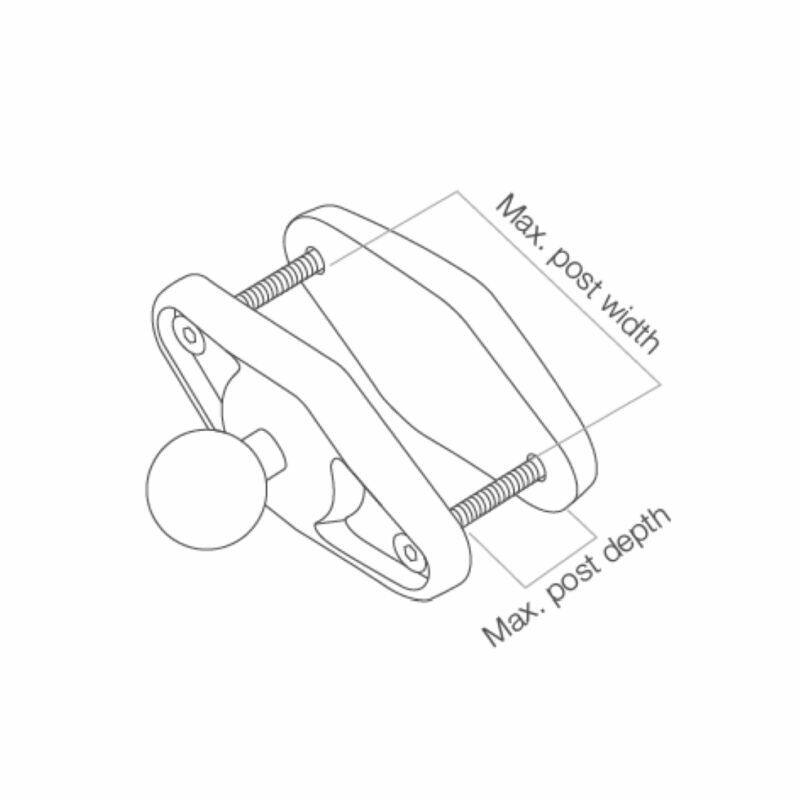

Maximum Width
101.6 mm (4")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" "C" size Rubber Ball Size
Weight:
730 grams (1.61 lbs)
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
YouTube:
https://www.youtube.com/watch?v=kjDomm7DCRk
Components:

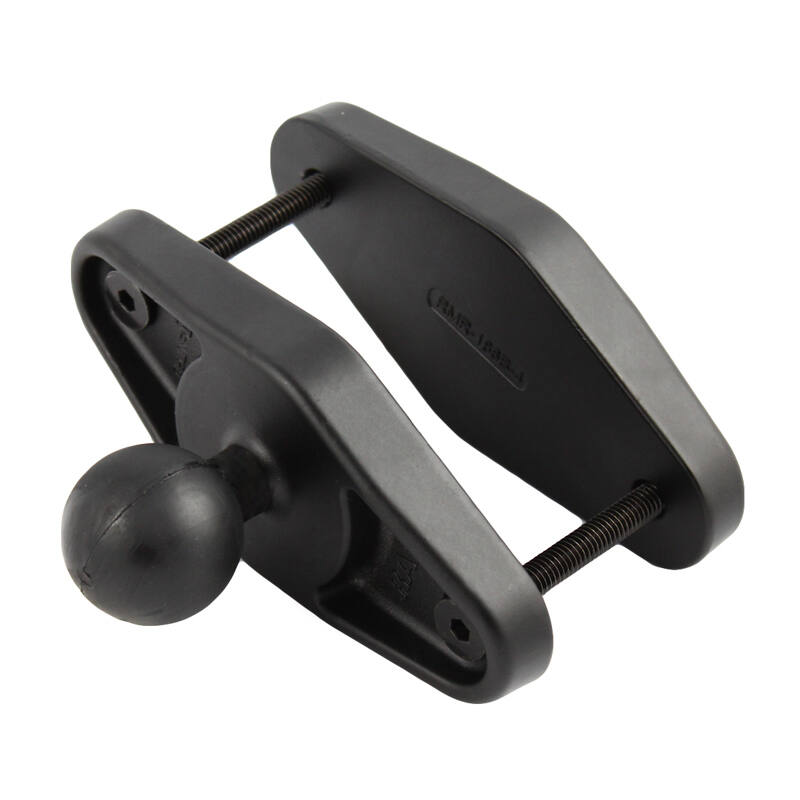

RAM-247U-4 RAM Square Post Clamp 100mm with 1.5" Ball

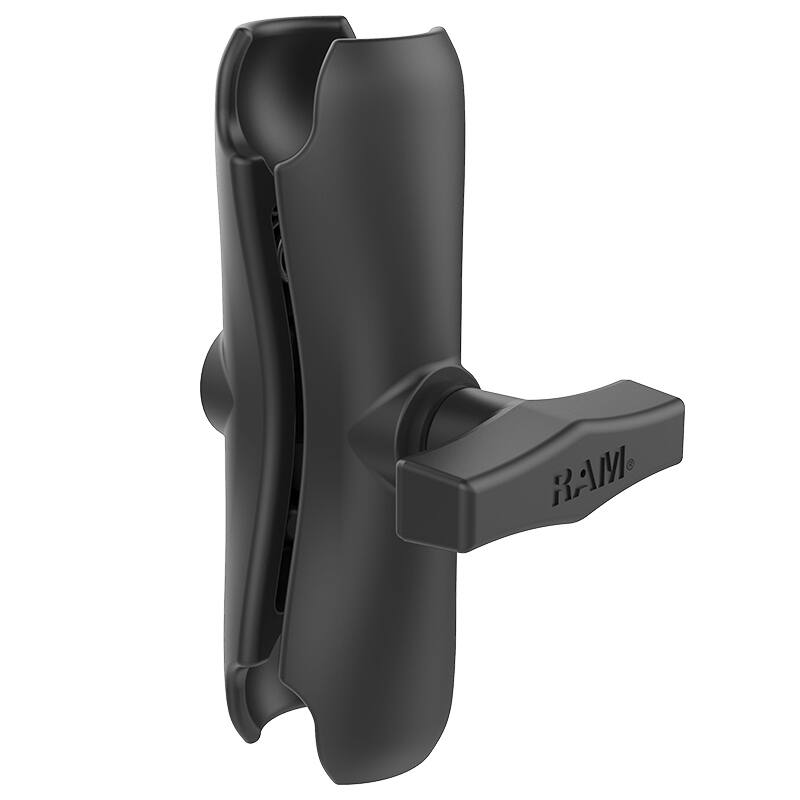

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls

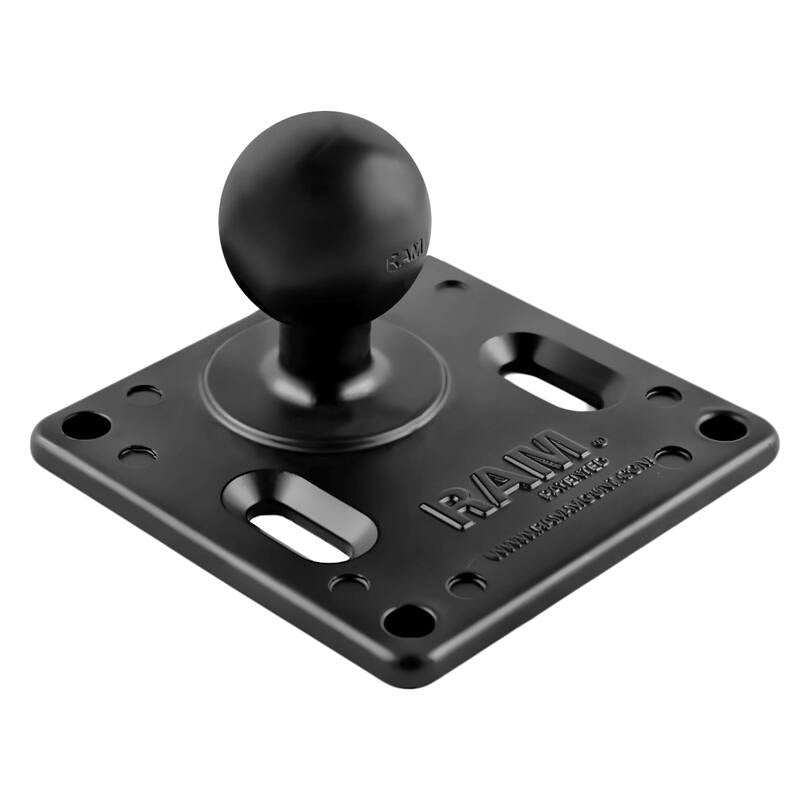

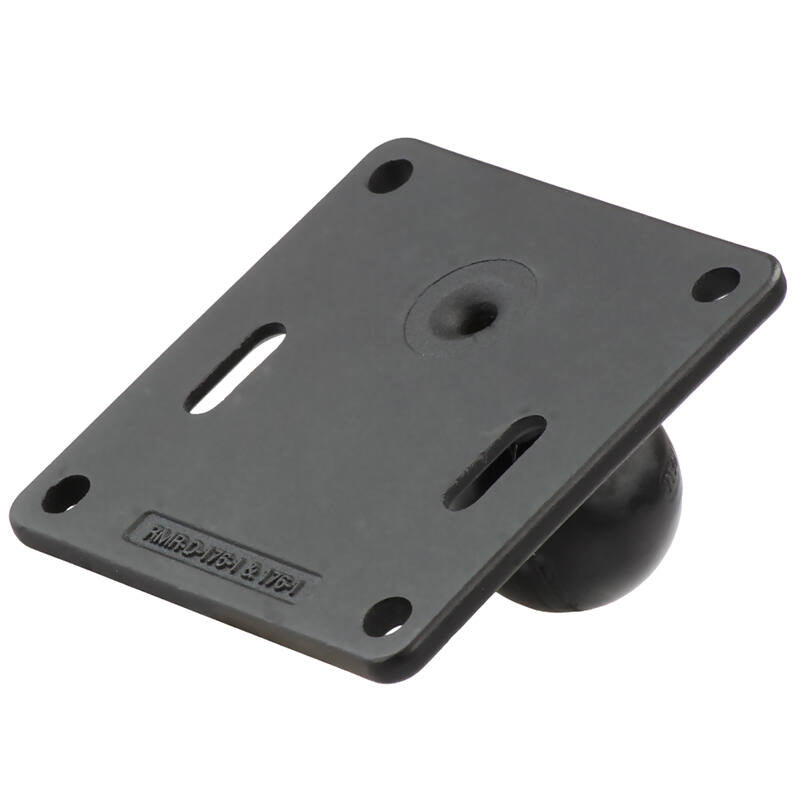

RAM-2461U RAM 90MM VESA PLATE STD BALL
