RAM Mounts

RAM Square VESA Base Plate - 92mm square - Arm and Round Base - (C Series)

RAM Square VESA Base Plate - 92mm square - Arm and Round Base - (C Series)

SKU:RAM-101U-2461

Regular price $140.61 NZD
Regular price Sale price $140.61 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-101U-2461 RAM® Double Ball Mount with 75x75mm VESA Plate


Features

* Square plate with offset ball features the 75 x 75mm VESA hole pattern for connection to a wide variety of devices
* 63.5mm round plate contains the universal AMPS hole pattern and provides a gerat drill down base on any flat surface
* C size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

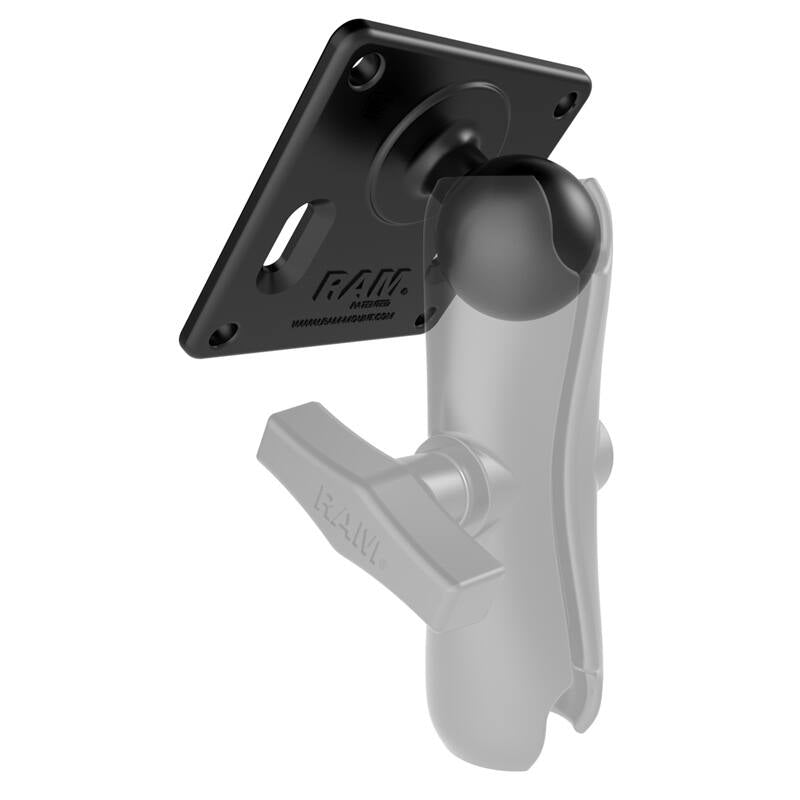

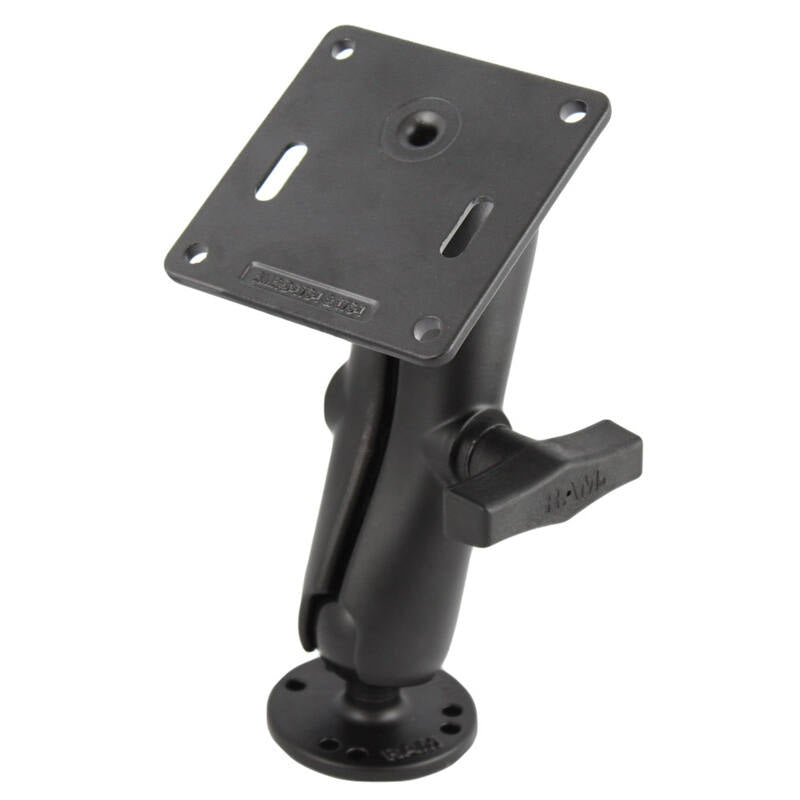

The RAM-101U-2461 consists of a STANDARD length double socket arm, 63.5mm (2.5") diameter round base with the universal AMPS hole pattern and 92.1mm (3.625") square plate with the VESA hole pattern. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles

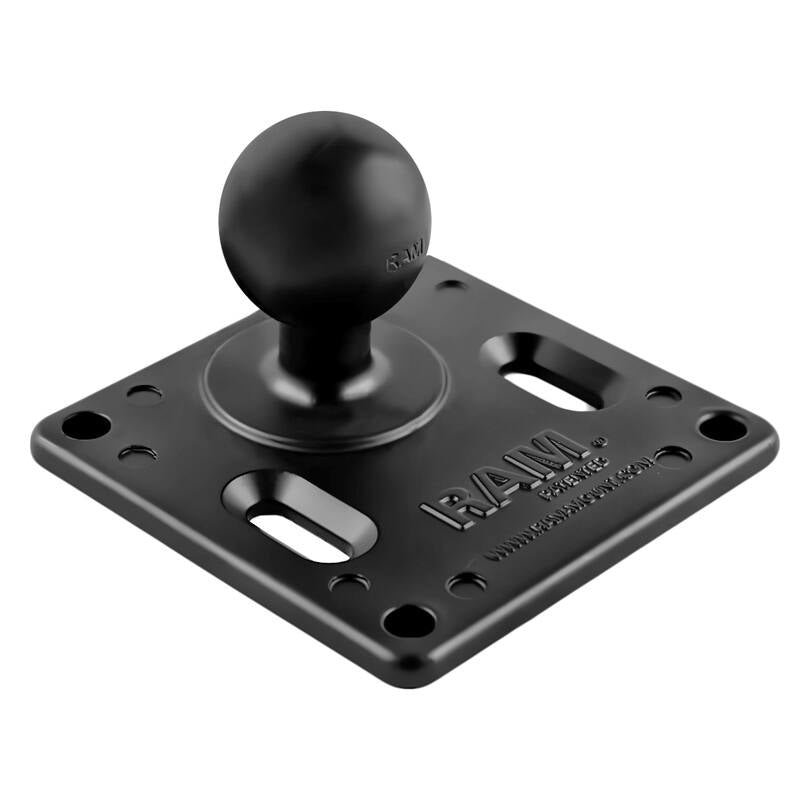

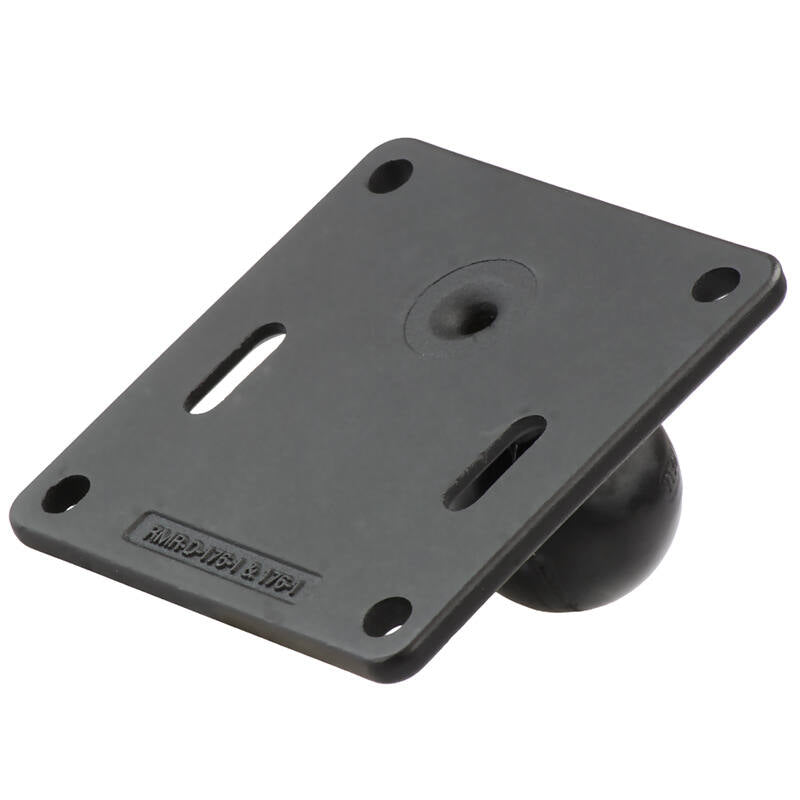

The VESA plate is a 1.5" rubber ball, connected to a 92.1mm (3.625") square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22.35mm (0.88") from the centre of one edge.


Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1.5" Rubber Ball Size

Hole Pattern

Round Plate
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)

Square Plate
See Drawing
Includes 75mm X 75mm VESA hole pattern

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")

Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)


Weight:
590 grams (1.3 lbs.)

Components:
RAM-2461U RAM 90MM VESA PLATE STD BALL
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
