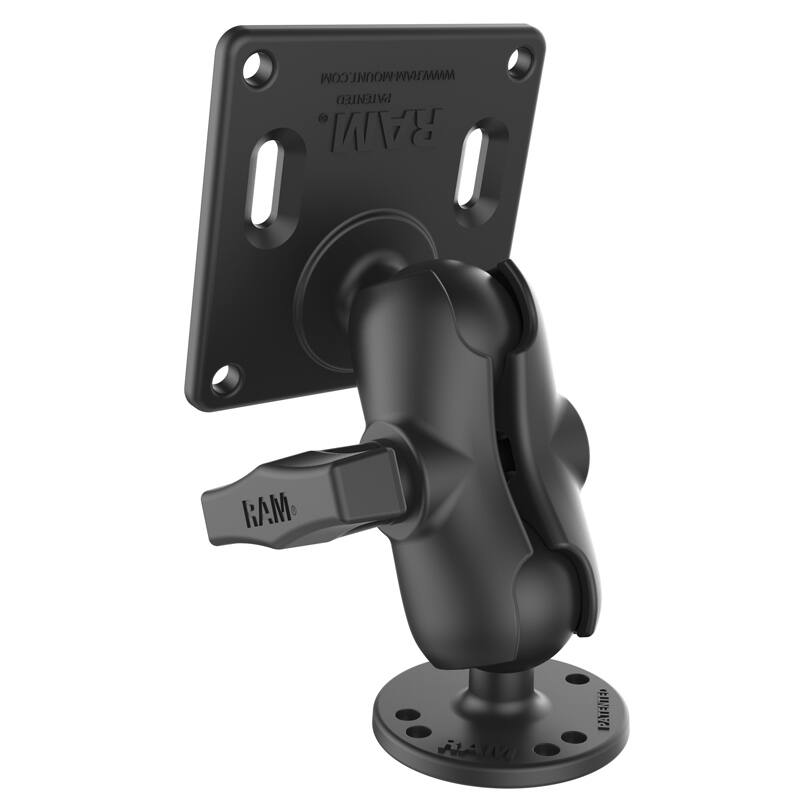

RAM-101U-B-2461 RAM® Double Ball Mount with 75x75mm VESA Plate and Short Arm
FEATURES
* Square plate features the 75mm VESA hole pattern for connection to a wide variety of devices
* C size 1.5" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Round 63.5mm base includes industry standard AMPS's hole pattern
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

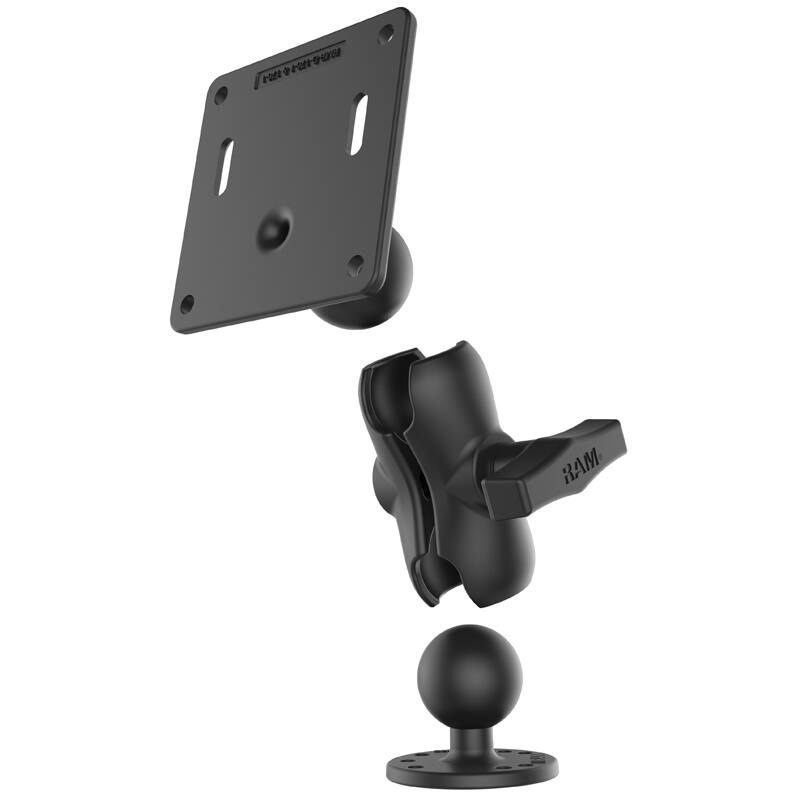

The RAM-101U-B-2461 consists of a SHORT length double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and 92.1mm (3.625") square plate with the 75mm VESA hole pattern.

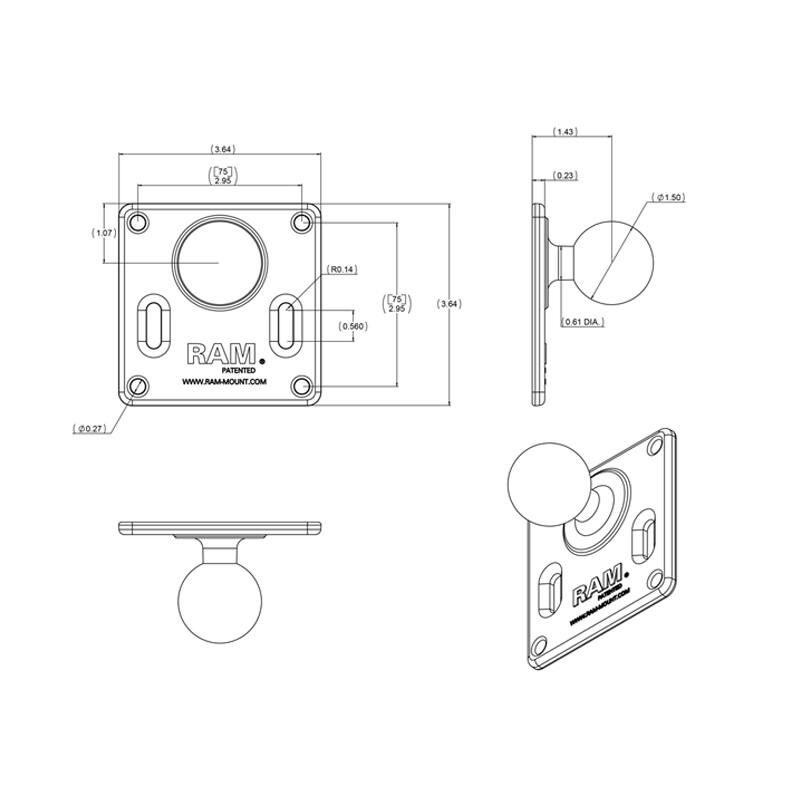

The 92mm (3.625") Square Base with VESA (4 X 75mm) Hole Pattern & 1.5" Ball has the ball positioned 0.88" from the centre of one edge.

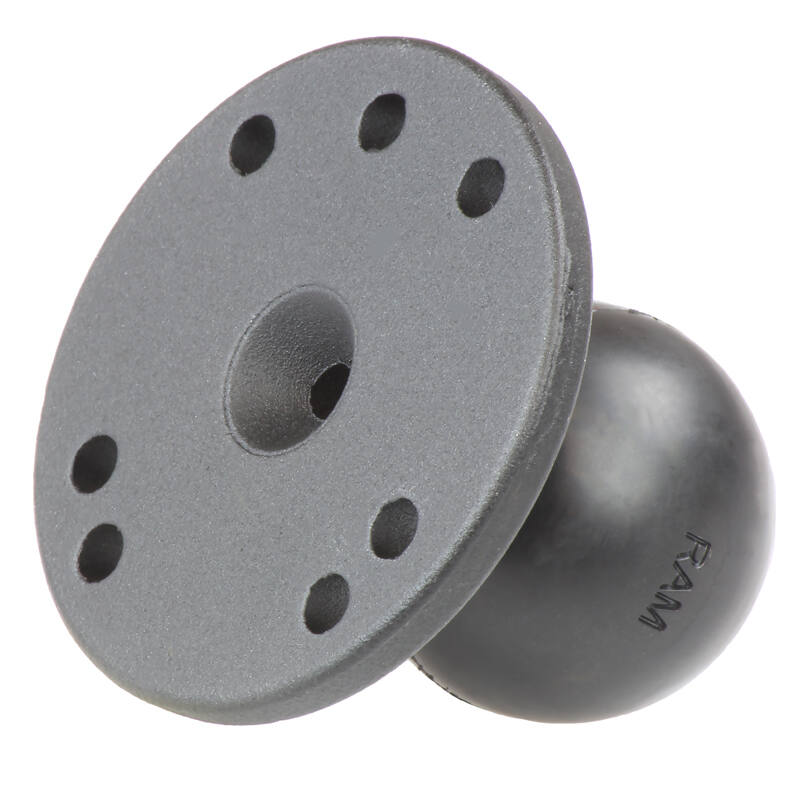

The round base consists of a 1.5" diameter rubber ball connected to a flat 63mm (2.5") diameter base. This mount has pre-drilled holes, including the universal AMPS hole pattern.
Product Dimensions

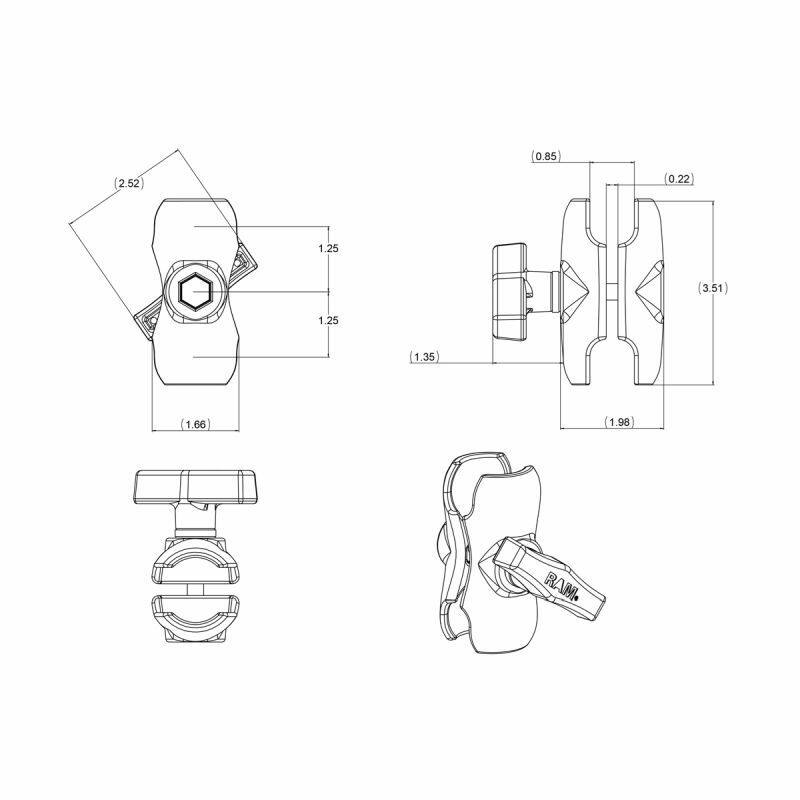

Arm Dimensions
Overall Length:
90 mm (3.56")
Socket-To-Socket Length:
63.5 mm (2.5")
Square Plate Hole Pattern
HOLE PATTERN
75 x 75mm VESA
See Drawing
Round Plate Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Ball/Socket Size
C Size (1.5")
Hardware Included
(4) .312" x .187" Shoulder Washers
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Materials
Marine-grade aluminium
Weight
0.290kg (0.64 lbs.)
Components
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball
RAM-2461U VESA base 75mm holes for 1.5"/C size balls

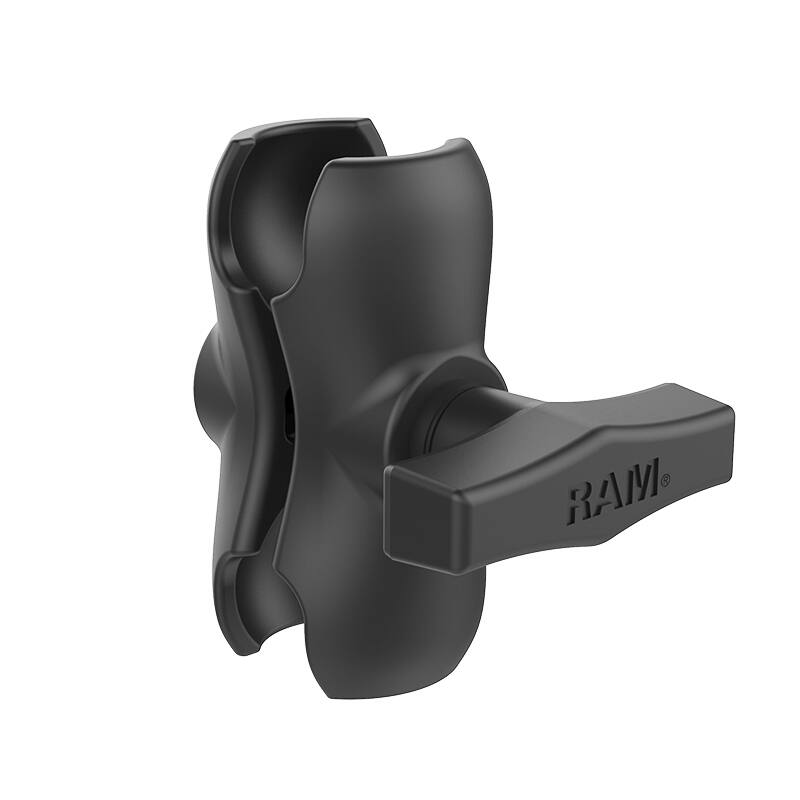

RAM-201U-B Short length C series double socket arm
