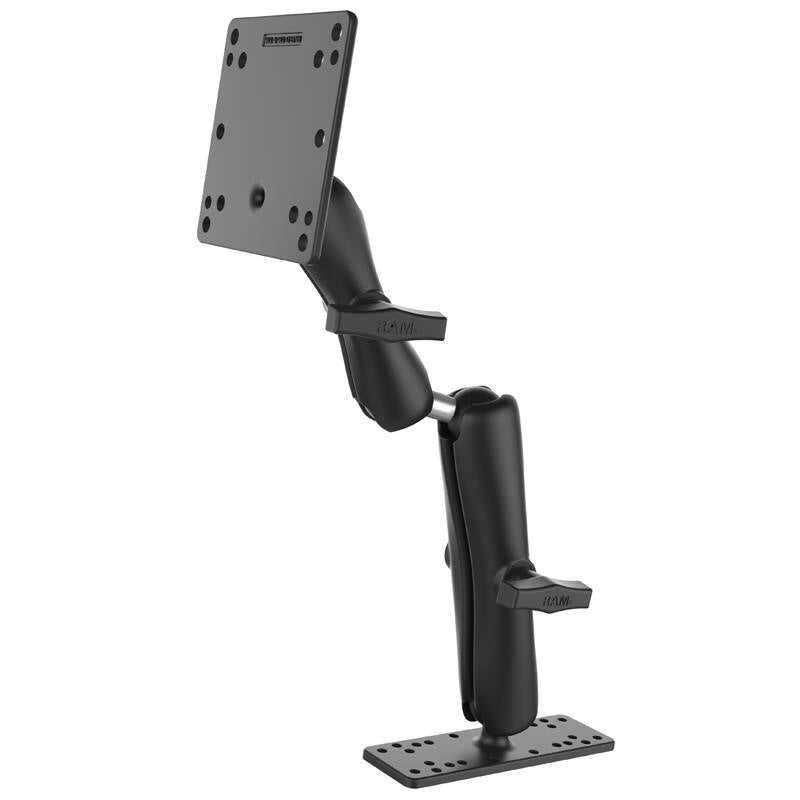

RAM-101U-SA1 RAM® Dual Double Ball Mount with 100x100mm VESA Plate
Features
* Square plate features the 100 x 100, 75 x 75 VESA patterns and 100 x 50 half VESA hole patterns for connection to a wide variety of devices
* Rectangular plate has multiple hole patterns and provides stable drill down base
* Two C size 1.5" RAM® double socket arms connected by a double ball adaptor allow for near-infinite adjustability
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This is a 120mm Square Base with VESA 4 x 100mm holes and 4 x 75mm holes in each corner coupled with a rectangular mounting plate, two medium length C series arms and a double ball adaptor

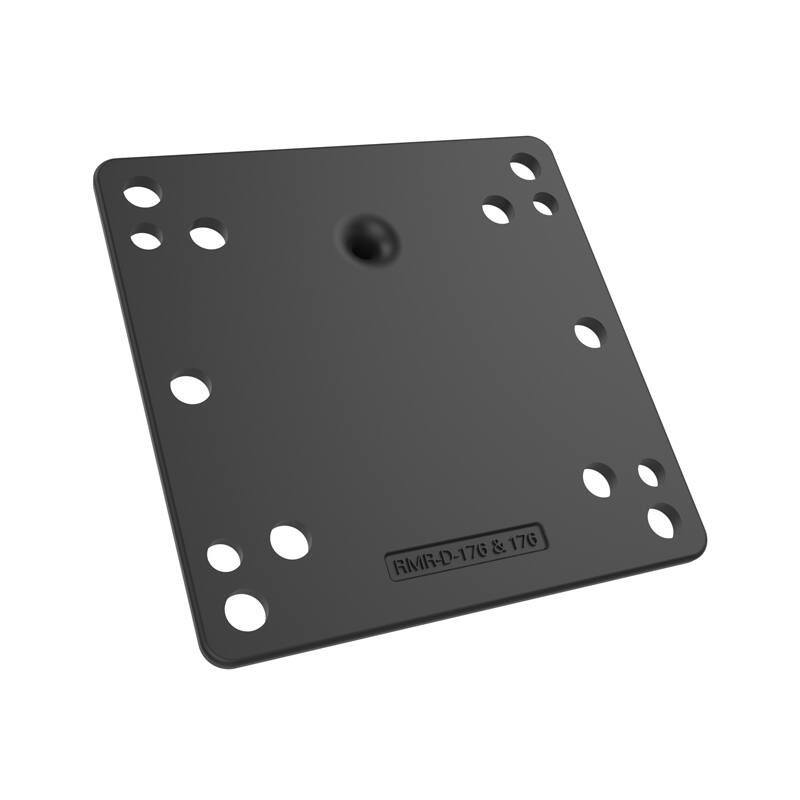

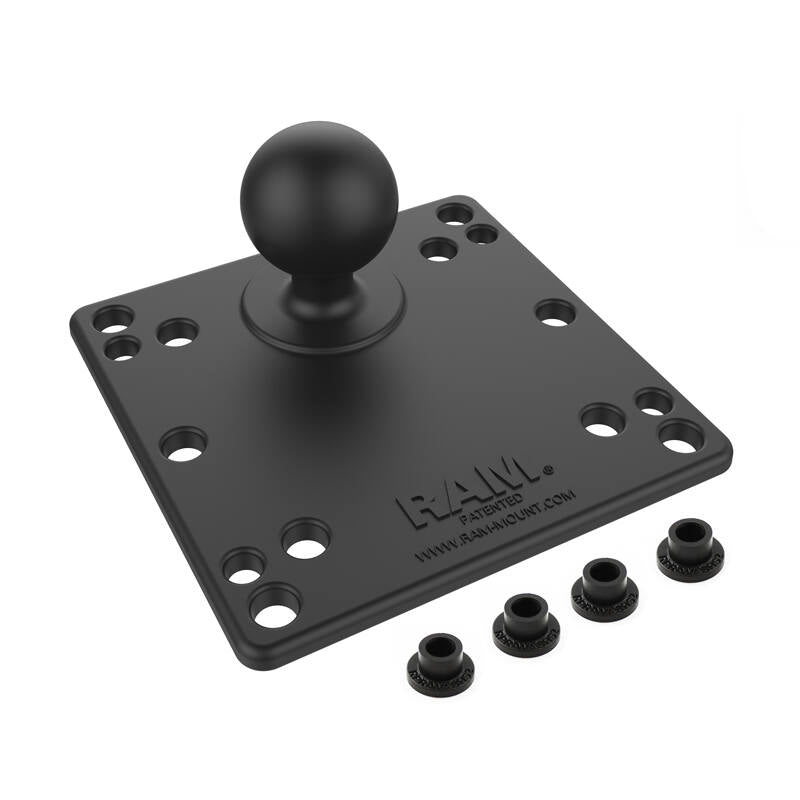

The square plate is a RAM-246U RAM® 100x100mm VESA Plate with Ball. This is a 120mm Square Base with VESA 4 x 100mm holes and 4 x 75mm holes in each corner.

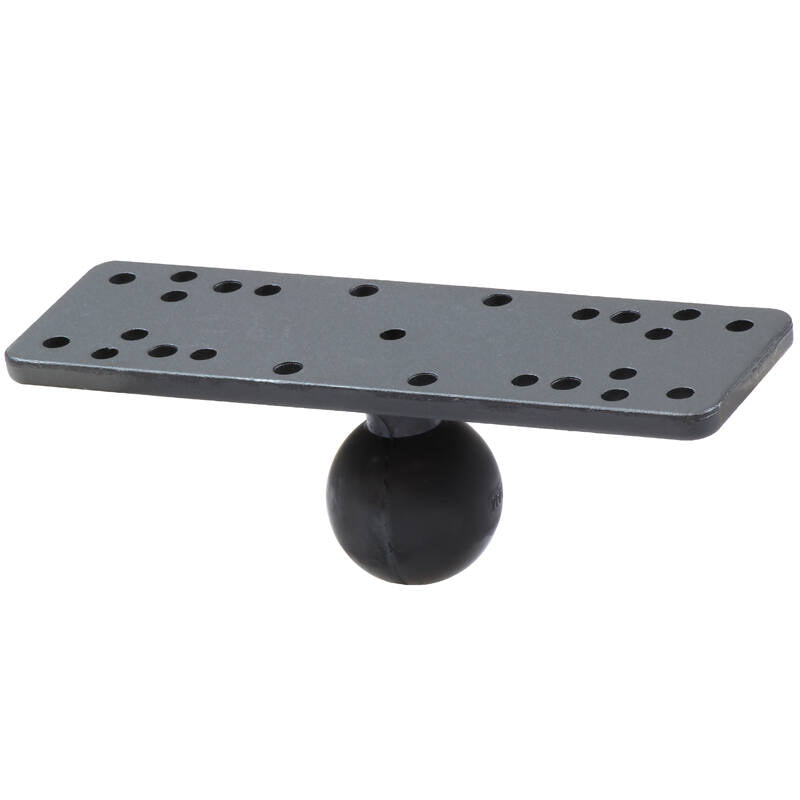

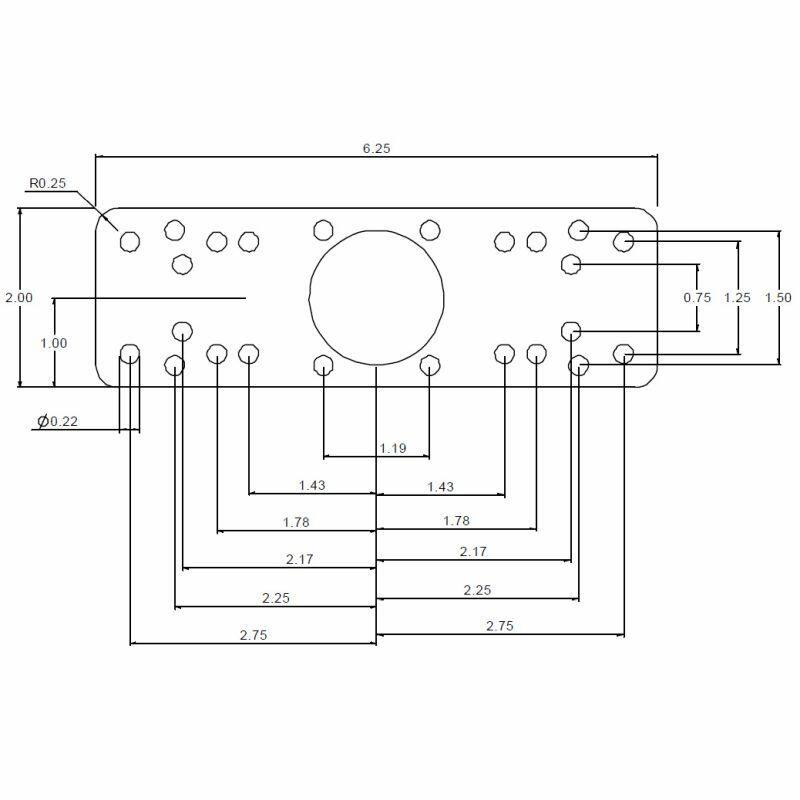

The rectangular plate consists of a 15.88 x 5.08cm (6.25" x 2") base connected to a 1.5" diameter rubber ball.

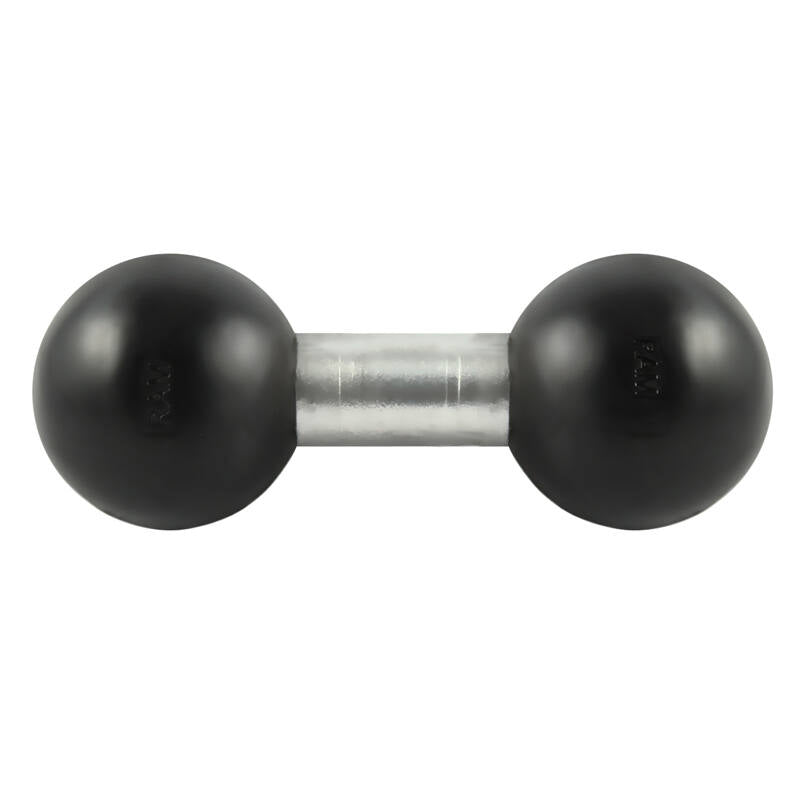

The C-series ball joiner connects the two medium C series arms.
Specs & Features

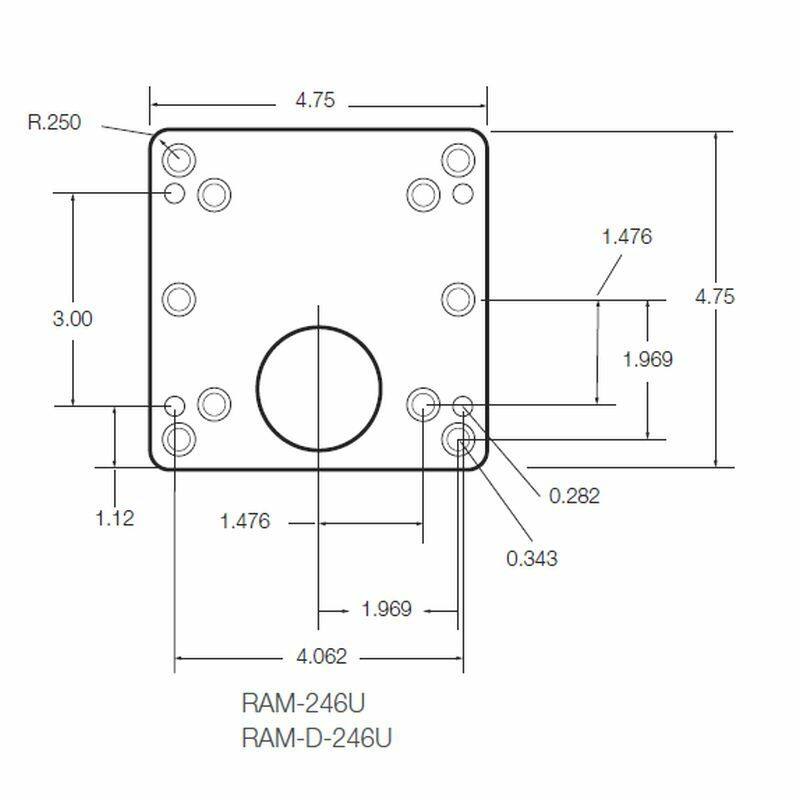

Plate Hole Patterns: (Square Plate)
100 x 100 VESA Pattern
75 x 75 VESA Pattern
100 x 50 Half VESA Pattern
HARDWARE INCLUDED
(4) .312" x .187" Shoulder Washers
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" Rubber Ball Size
Individual Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5" )
Weight:
1.58kg (3.49 lbs)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
YouTube:
https://www.youtube.com/watch?v=jTDey1GkfQg&feature=emb_logo
https://www.youtube.com/watch?v=CR7hBURG7XQ
https://www.youtube.com/watch?v=b_TtvLYShlw
Components:
RAM-246U VESA base 100mm & 75mm holes for 1.5"/C size balls
RAM-111BU RAM 158 x 50mm Universal Electronics Base with 1.5" Ball
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls (x2)
RAM-230U RAM 1.5" Double Ball Adapter
