RAM Mounts

RAM Square 75 and 100mm VESA Base Plates with double socket arm - C Series

RAM Square 75 and 100mm VESA Base Plates with double socket arm - C Series

Regular price $165.39 NZD
Regular price Sale price $165.39 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-246-2461U RAM® Double Ball Mount with 75x75mm VESA Plate and 100x100mm VESA Plate

Features

* 92mm Square plate features the 75 x 75mm VESA hole pattern for connection to a wide variety of devices
* 120mm Square Base has VESA 100 x 100mm and 75 x 75mm holes in each corner
* C size RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty

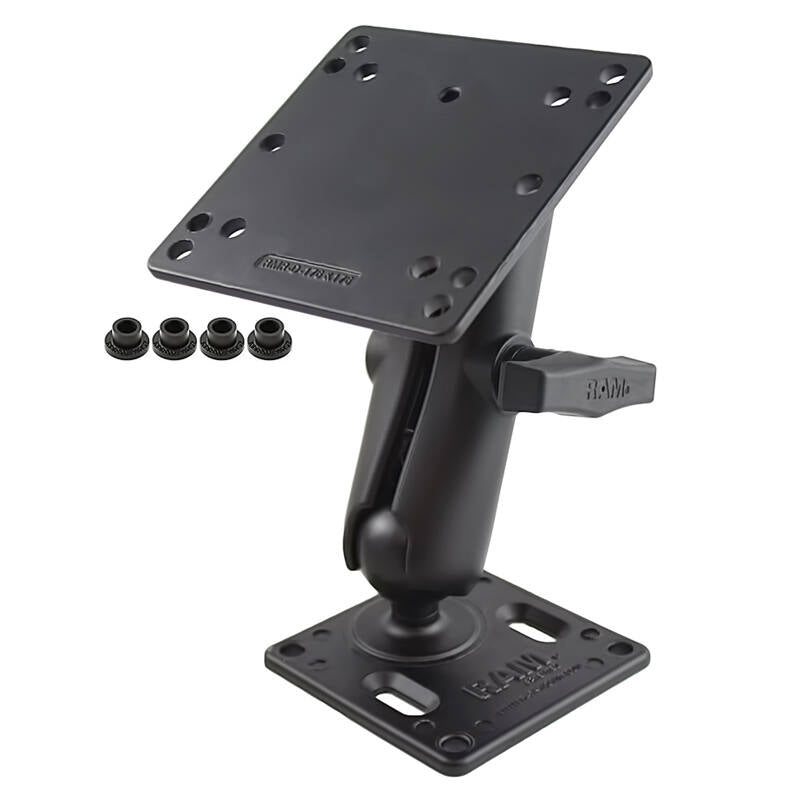

The RAM-246-2461U consists of a double socket arm, 92.1mm square plate and 120.7mm square plate. Designed into the mount is a 1.5" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.

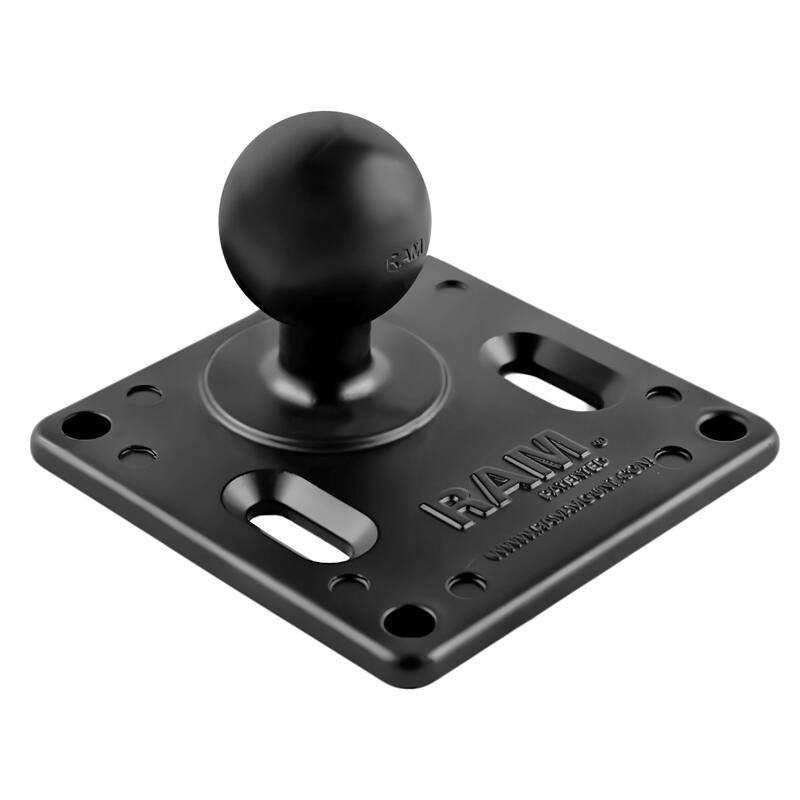

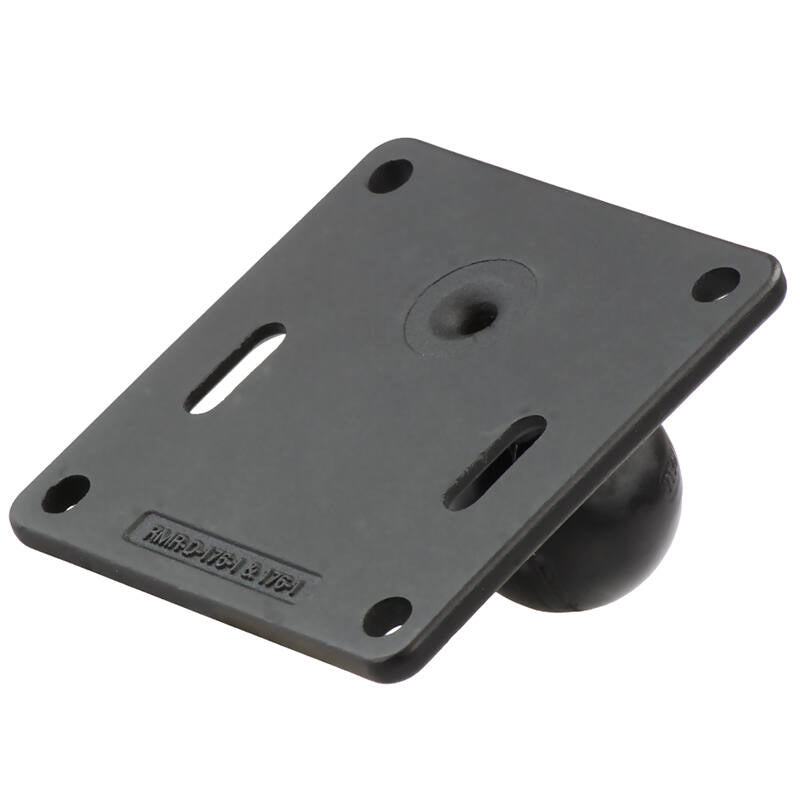

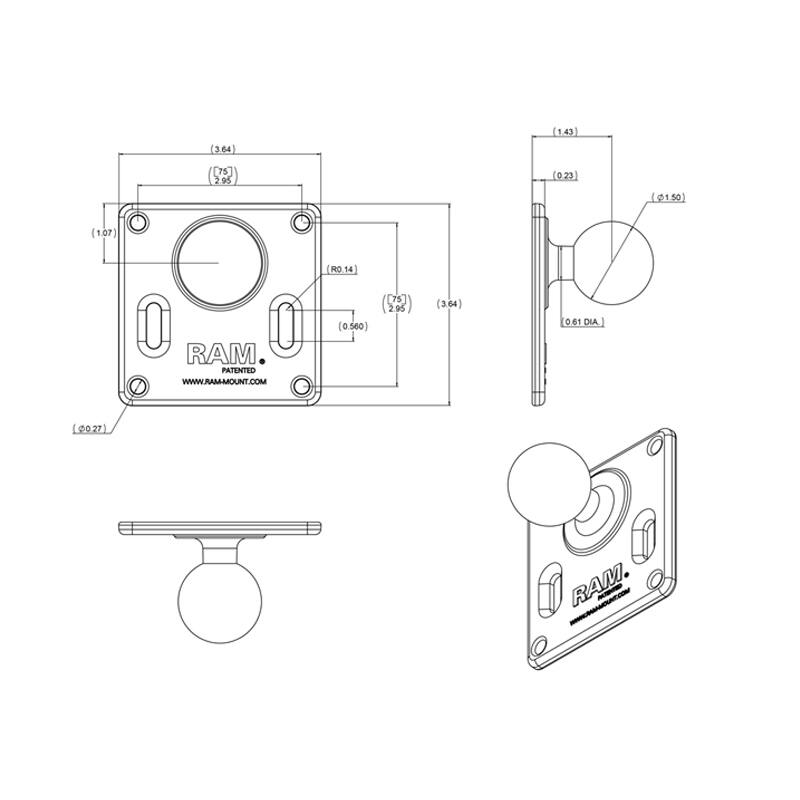

The RAM-2461U plate consists of a 1.5" rubber ball, connected to a 92.1mm square plate with a 75mm X 75mm VESA hole pattern. The rubber ball is positioned 22.35mm (0.88") from the centre of one edge. The RAM-2461U will attach to all RAM 1.5" dia. ball double socket arms.

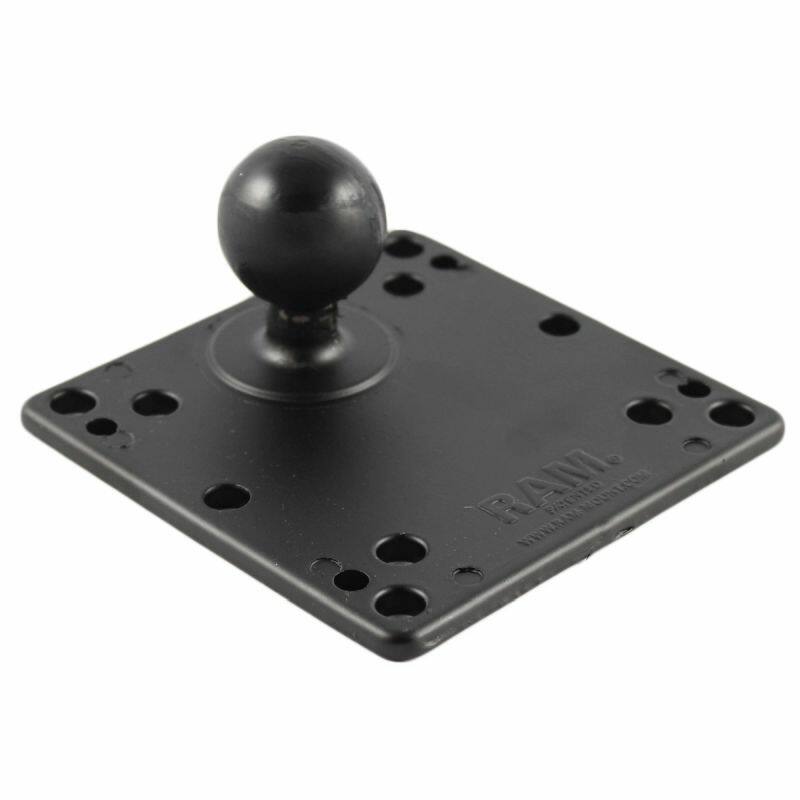

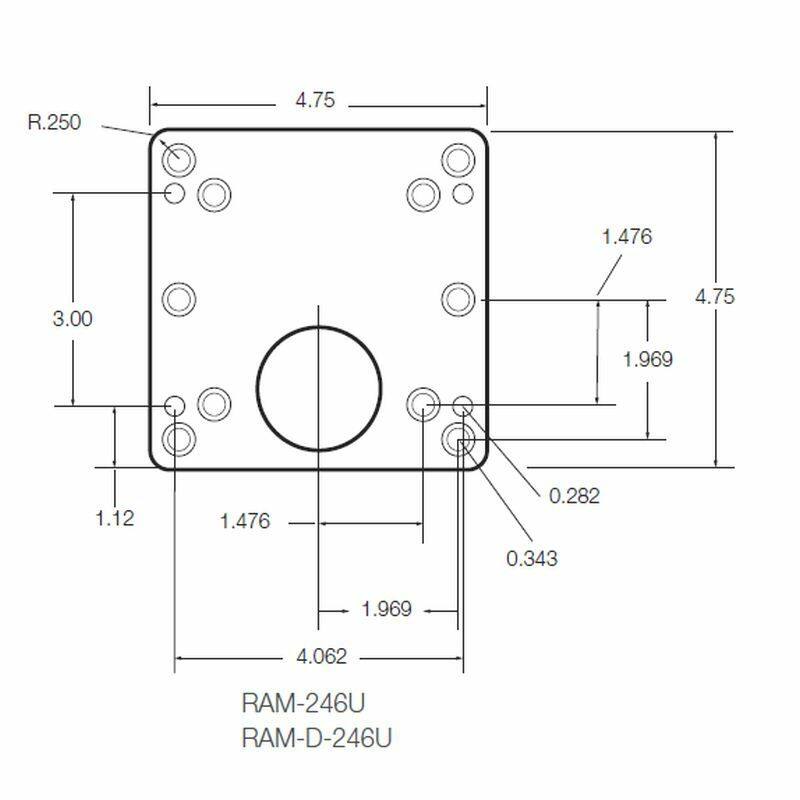

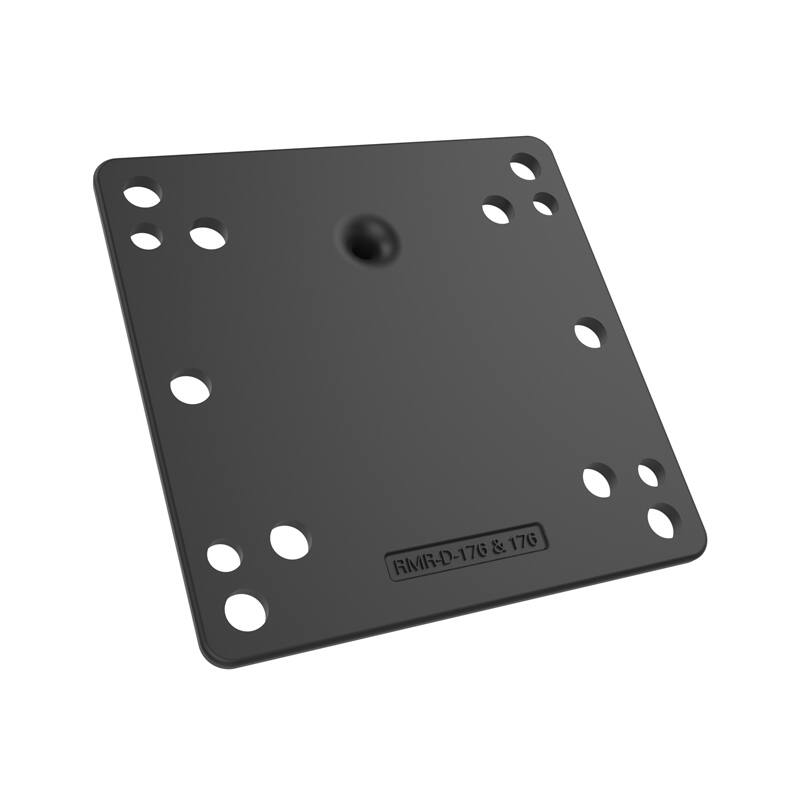

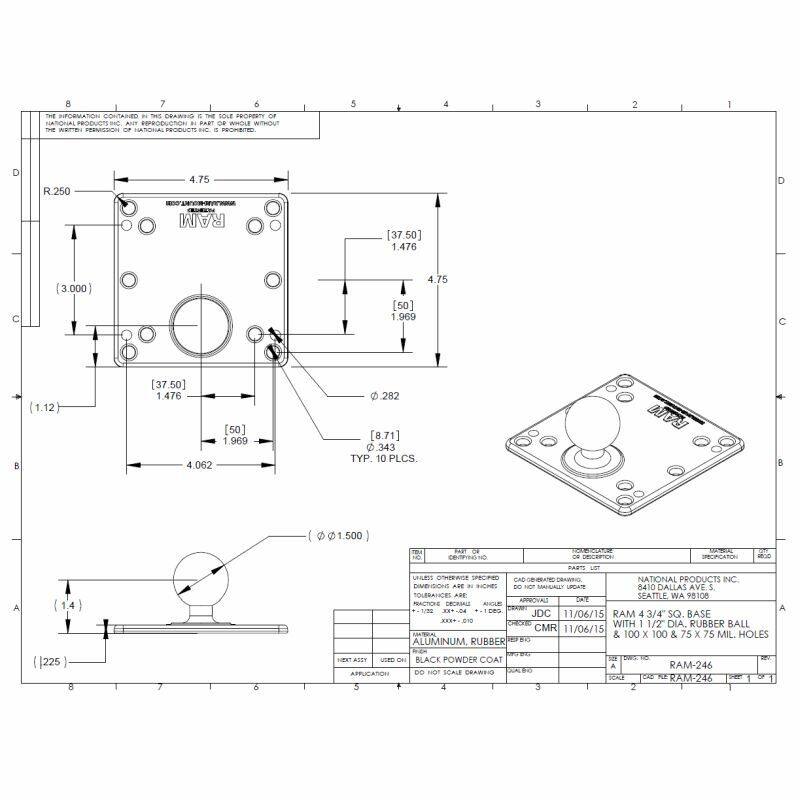

The RAM-246U 120mm Square Base has VESA 4 x 100mm holes and 4 x 75mm holes in each corner. Same as the RAM-246-AD1U but includes the shoulder washers


Material:
Powder Coated Marine Grade Aluminium


Plate Size
Small Plate:
92.1mm x 92.1mm (4.75" x 4.75")
Large Plate:
120.7mm x 120.7mm (3.625" x 3.625")

Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")

Ball/Socket Size
C Size (1.5")

Weight Capacity
1.914kg (4 lbs)

Overall height:
187mm (7.35 lbs)

Weight:
757 grams (1.67lb )

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)

Materials
Powder-coated marine-grade aluminium


Components:
RAM-201U RAM Standard Double Socket Arm for 1.5" Balls
RAM-246U VESA base 100mm & 75mm holes for 1.5"/C size balls
RAM-2461U RAM 90MM VESA PLATE STD BALL
